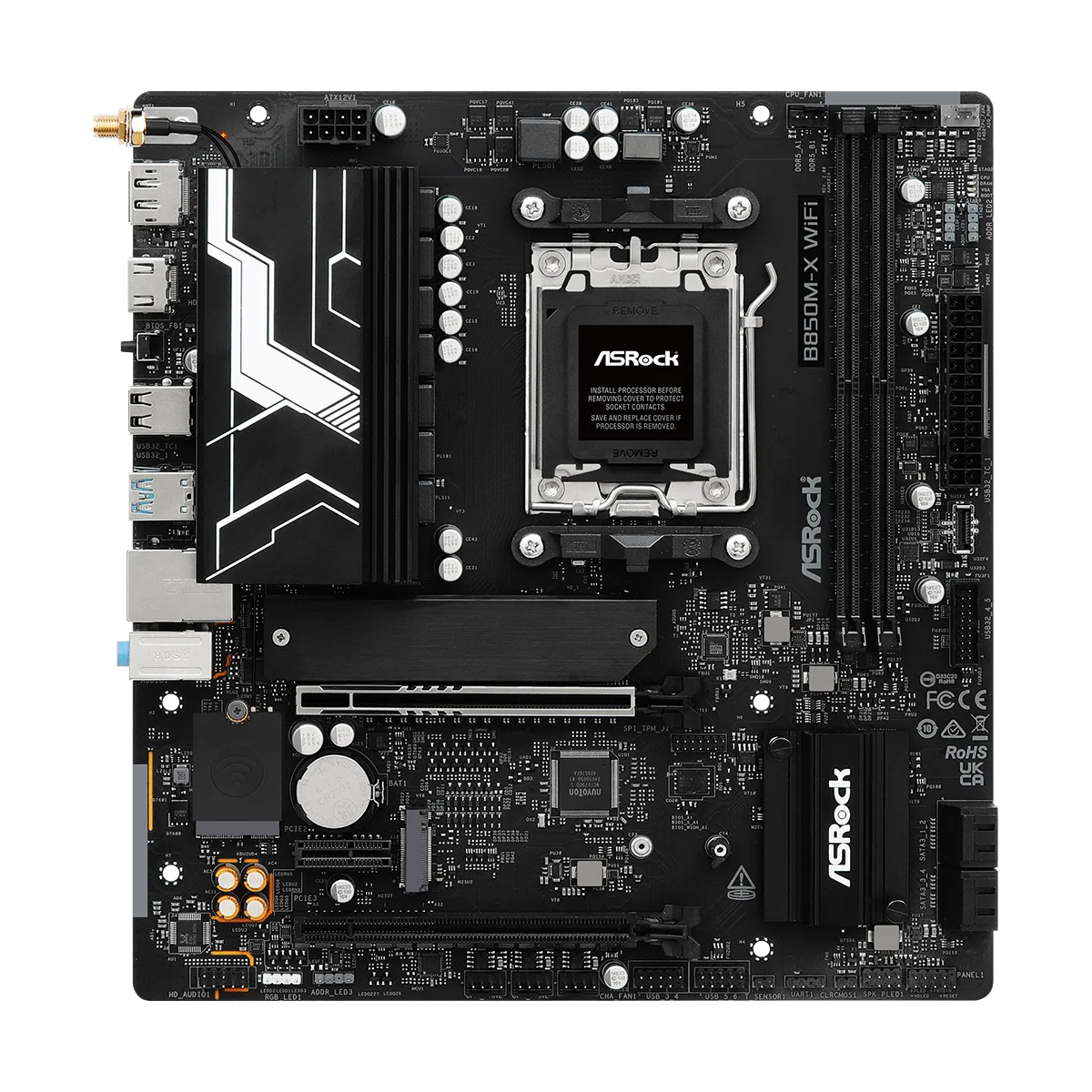

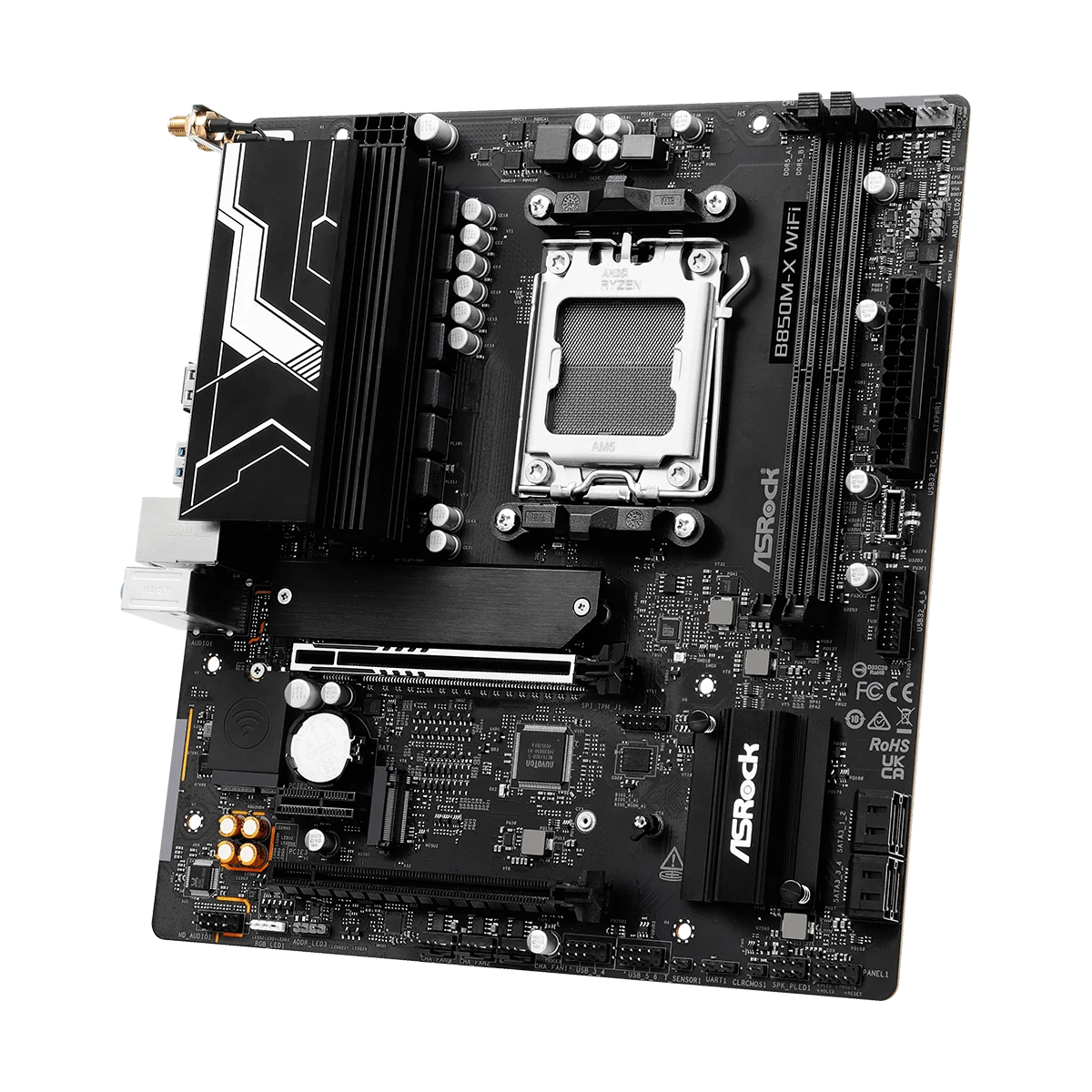

Asrock B850M-X WiFi R2.0 Micro ATX AM5 AMD 9000 Series Motherboard
Availability:
Onstock at Online Warehouse
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- 6+1+1 Phase Power Design, Dr.MOS for VCore
- 2 x DDR5 DIMMs
Supports Dual Channel, up to 8200+ (OC) - 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 4.0 x1
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4)
1 Hyper M.2 (PCIe Gen4x4)
4 SATA3 - 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
5 USB 3.2 Gen1 (3 Rear, 2 Front)
6 USB 2.0 (2 Rear, 4 Front) - Realtek 2.5G LAN
- 802.11axe Wi-Fi 6E + Bluetooth
- Supports BIOS Flashback
₱8,400.00 ₱9,000.00
6-Month Grace monthly payment:
₱847
12-Month Full Interest monthly payment:
₱994
Learn more about Billease Installment at Checkout
Estimated Delivery: Jun 20 - Jun 25, 2026 (Business Days)
Onstock at Online Warehouse
⚡ 24-Hour Shipping Eligible – In-Stock & Ready to Ship
Check items here that is part of our 99% Same-Day Shipping program displayed with 24 Hours Delivery Banner.
✔ Orders placed before 2:00 PM have the highest chance for same-day shipping or delivery.
✔ Orders after 2:00 PM may still be shipped the same day, but no guarantee.
✔ Applies to items labeled under our 24-hour delivery process.
❗ If your cart includes non-eligible items, your order will follow standard processing.
🚚 Nationwide Coverage:
Orders are shipped out within 24 hours across Luzon, Visayas, and Mindanao, depending on courier and location.
📦 Stock-Based System:
This badge appears only on selected product, showcasing our massive inventory selection ready to ship anytime anywhere.
💳 Payment Note: Fully paid orders are eligible for 24hrs Delivery on Selected Cities. COD orders will only be guaranteed shipped within 24 hours.
🕒 View All 24-Hour Eligible Products
Check items here that is part of our 99% Same-Day Shipping program displayed with 24 Hours Delivery Banner.
✔ Orders placed before 2:00 PM have the highest chance for same-day shipping or delivery.
✔ Orders after 2:00 PM may still be shipped the same day, but no guarantee.
✔ Applies to items labeled under our 24-hour delivery process.
❗ If your cart includes non-eligible items, your order will follow standard processing.
🚚 Nationwide Coverage:
Orders are shipped out within 24 hours across Luzon, Visayas, and Mindanao, depending on courier and location.
📦 Stock-Based System:
This badge appears only on selected product, showcasing our massive inventory selection ready to ship anytime anywhere.
💳 Payment Note: Fully paid orders are eligible for 24hrs Delivery on Selected Cities. COD orders will only be guaranteed shipped within 24 hours.
🕒 View All 24-Hour Eligible Products

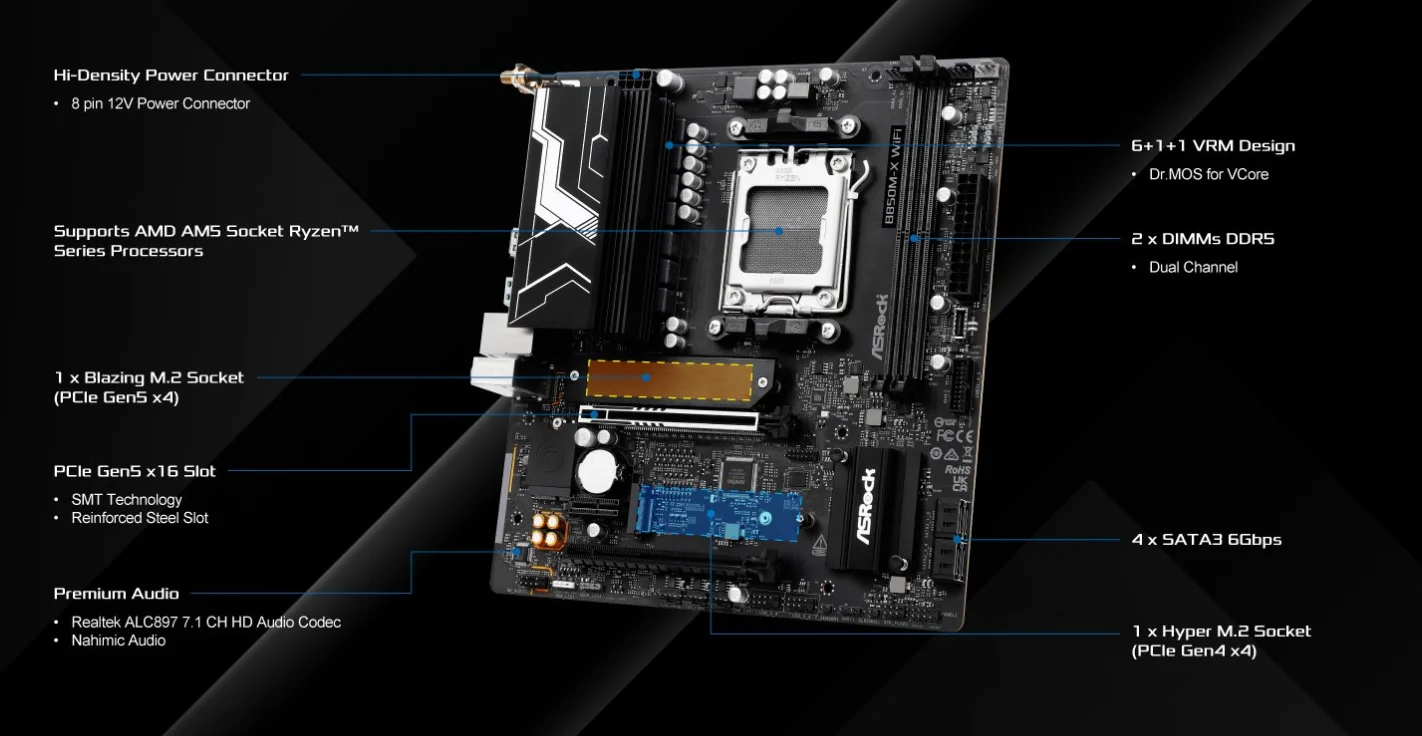

| Unique Features | – Superb Productivity: PCIe Gen5 (Graphics, M.2), Dual Channel DDR5 – Rock-Solid Durability: 6+1+1 Power Phase, Dr.MOS for VCore – Ultrafast Connectivity: 2.5G LAN, Wi-Fi 6E (802.11axe) – EZ Update: BIOS Flashback, Auto Driver Installer – EZ Troubleshooter: POST Status Checker |
| CPU Support | AMD Socket AM5 Supports Ryzen™ 9000, 8000, 7000 Series |
| Chipset | AMD B850 |
| Memory | Dual Channel DDR5, 2× DDR5 DIMM Slots ECC/Non-ECC, un-buffered Up to 8200+ MHz (OC), 128 GB max Supports XMP & EXPO |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI |
| Graphics | Integrated AMD RDNA™ Graphics (CPU-dependent) – 1× HDMI 2.1 (up to 4K @ 120Hz, HDR, HDCP 2.3) – 1× DisplayPort 1.4 (up to 4K @ 120Hz, HDR, HDCP 2.3) |
| Audio | Realtek ALC897, 7.1 CH HD Audio Nahimic Audio |
| LAN | Dragon RTL8125BG 2.5GbE LAN Bandwidth Control, Network Statistics, Gaming/Streaming Profiles |
| Wireless LAN | Wi-Fi 6E (802.11axe), Dual-Band 2×2, Bluetooth 5.2 6GHz requires Windows 11 + compatible router |
| Expansion Slots | – CPU: 1× PCIe 5.0 x16 (x16 mode) – Chipset: 1× PCIe 4.0 x1, 1× PCIe 4.0 x16 (x4 mode) – 1× M.2 (Key E) for Wi-Fi/BT module |
| Storage | CPU: – 1× M.2 (M2_1): PCIe Gen5 x4 (2280) – 1× M.2 (M2_2): PCIe Gen4 x4 (2260/2280) Chipset: – 4× SATA 6Gb/s |
| RAID Support | RAID 0, 1, 10 for SATA & NVMe M.2 SSDs RAID 10 requires additional expansion cards |
| USB Ports | CPU: – 3× USB 3.2 Gen1 Type-A (Rear) – 1× USB 2.0 (Rear) Chipset: – 2× USB 3.2 Gen1 Type-C (Rear + Front) – 2× USB 3.2 Gen1 Type-A (Front) – 5× USB 2.0 (1 Rear, 4 Front) All support ESD Protection |

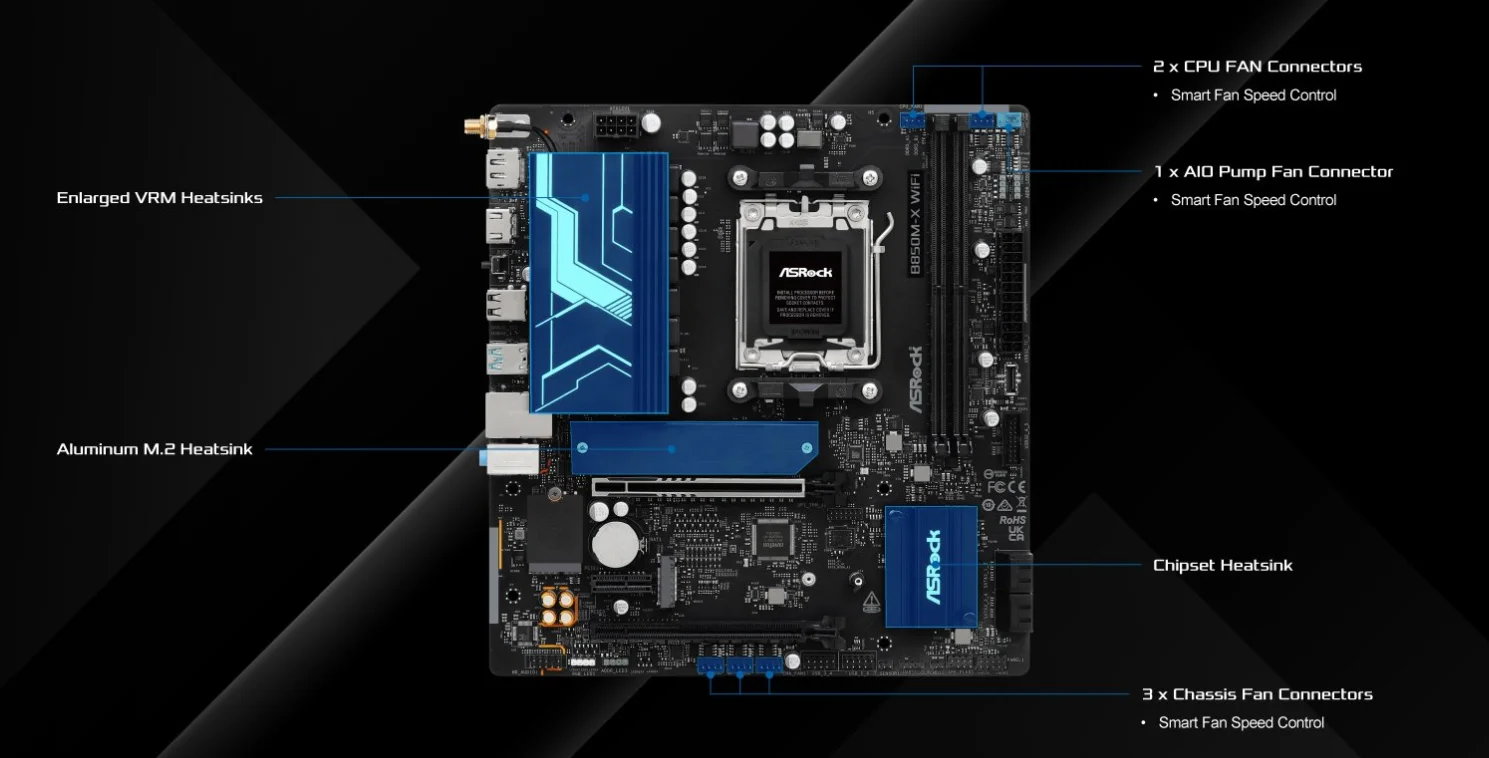

| Internal Connectors | – 1× Thermistor Header – 1× SPI TPM Header – 1× Power LED/Speaker Header – 1× RGB LED Header (12V/3A) – 3× Addressable LED Headers (5V/3A) – 2× CPU Fan Headers (1A/3A) – 3× Chassis/Water Pump Fan Headers (3A) – 1× AIO Pump Header (3A) – 1× 24-pin ATX Power – 1× 8-pin 12V Power (Hi-Density) – Audio, USB 2.0, USB 3.2 Gen1, USB 3.2 Gen1 Type-C Headers |

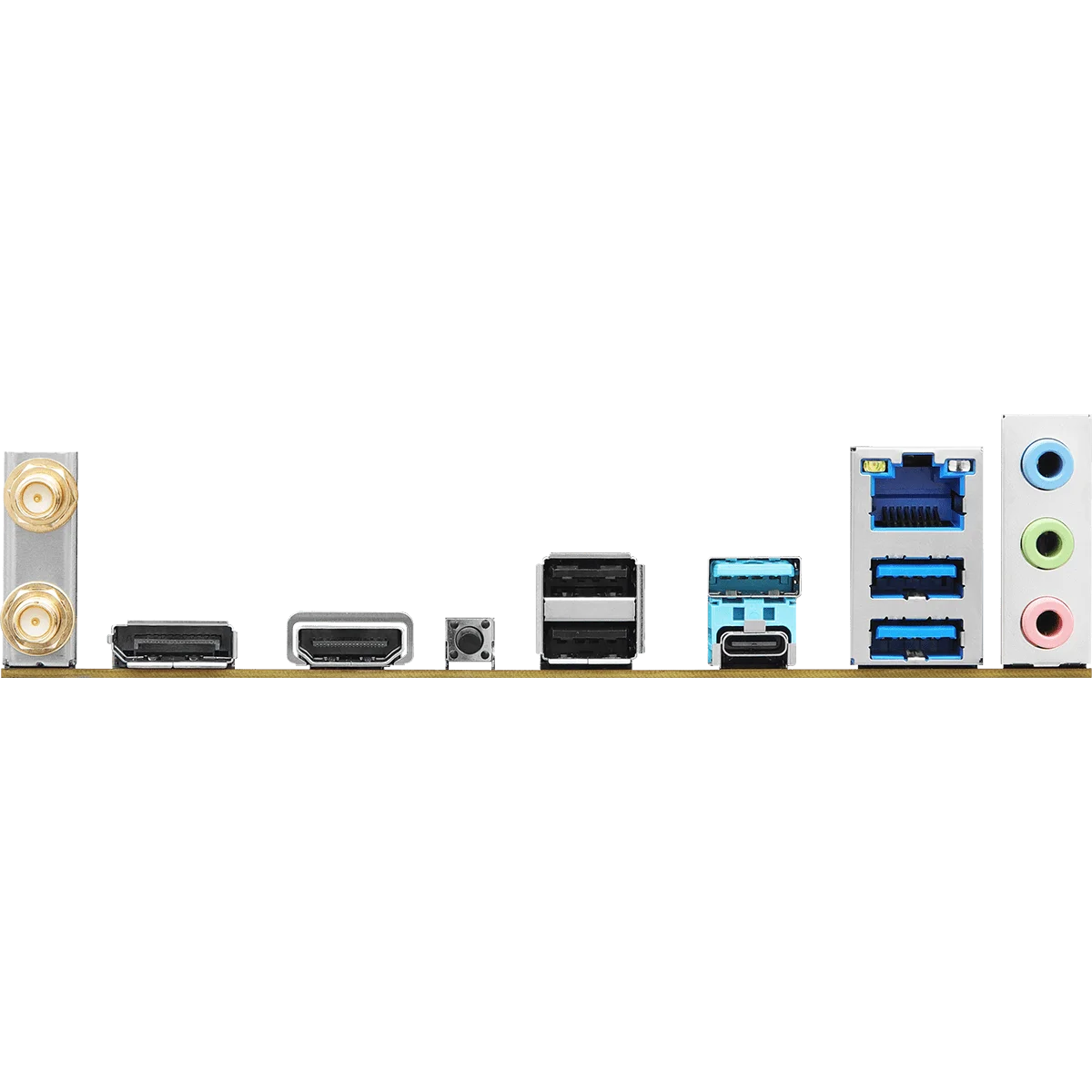

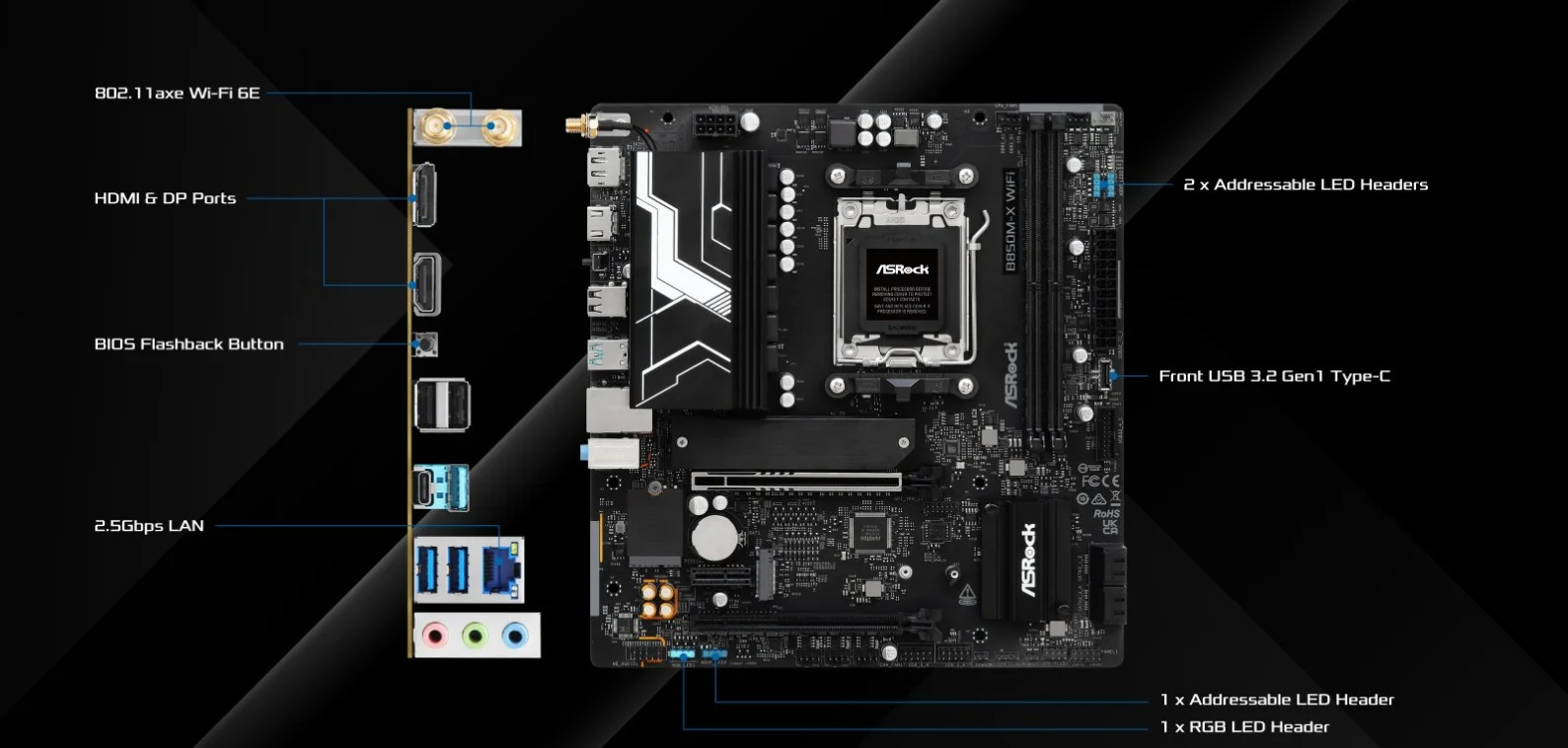

| Rear I/O Panel | – 2× Antenna Ports – 1× HDMI – 1× DisplayPort 1.4 – 1× USB 3.2 Gen1 Type-C – 3× USB 3.2 Gen1 Type-A – 2× USB 2.0 – 1× RJ-45 LAN – 1× BIOS Flashback Button – HD Audio Jacks (Line In, Front Speaker, Mic) |
| Software | – ASRock A-Tuning – Dragon 2.5G LAN Software – Polychrome SYNC – Auto Driver Installer – Instant Flash – Full HD UEFI & EZ Mode |
| Accessories | – 1× I/O Shield – 2× SATA Cables – 2× Wi-Fi Antennas |
| Form Factor | Micro ATX (24.4 × 22.6 cm) |
| Operating System | Windows 10/11 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready |
| Brands | |
|---|---|
| AMD Chipset | B850 |
| Form Factor | MATX |
| RAM Generation | DDR5 |
| CPU Socket | AM5 |
