Specification | Value |
---|---|
Platform | Desktop |
Market Segment | Enthusiast Desktop |
Product Family | AMD Ryzen™ Processors |
Product Line | AMD Ryzen™ 7 Processors |
AMD PRO Technologies | No |
Consumer Use | Yes |
Regional Availability | Global |
Former Codename | “Raphael AM5” |
Architecture | “Zen 4” |
Number of CPU Cores | 8 |
Multithreading (SMT) | Yes |
Number of Threads | 16 |
Max. Boost Clock | Up to 5.3GHz |
Base Clock | 3.8GHz |
L1 Cache | 512KB |
L2 Cache | 8MB |
L3 Cache | 32MB |
Default TDP | 65W |
Processor Technology for CPU Cores | TSMC 5nm FinFET |
Processor Technology for I/O Die | TSMC 6nm FinFET |
CPU Compute Die (CCD) Size | 71mm² |
I/O Die (IOD) Size | 122mm² |
Package Die Count | 2 |
Unlocked for Overclocking | Yes |
AMD EXPO™ Memory Overclocking Technology | Yes |
Precision Boost Overdrive | Yes |
Curve Optimizer Voltage Offsets | Yes |
AMD Ryzen™ Master Support | Yes |
CPU Socket | AM5 |
Supporting Chipsets | A620, X670E, X670, B650E, B650 |
CPU Boost Technology | Precision Boost 2 |
Instruction Set | x86-64 |
Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
Thermal Solution (PIB) | AMD Wraith Prism |
Max. Operating Temperature (Tjmax) | 95°C |
Launch Date | 1/14/2023 |
OS Support | Windows 11 – 64-Bit Edition<br>Windows 10 – 64-Bit Edition<br>RHEL x86 64-Bit<br>Ubuntu x86 64-Bit (*OS support will vary by manufacturer) |
Connectivity | |
USB Type-C® Support | Yes |
Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
Native USB 3.2 Gen 1 (5Gbps) Ports | 0 |
Native USB 2.0 (480Mbps) Ports | 1 |
Native SATA Ports | 0 |
PCIe Express® Version | PCIe® 5.0 |
Native PCIe® Lanes (Total/Usable) | 28 / 24 |
Additional Usable PCIe Lanes from Motherboard | AMD X670E: 12x Gen4<br>AMD X670: 12x Gen4<br>AMD B650E: 8x Gen4<br>AMD B650: 8x Gen4 |
NVMe Support | Boot, RAID0, RAID1, RAID10 |
System Memory Type | DDR5 |
Memory Channels | 2 |
Max. Memory | 128GB |
System Memory Subtype | UDIMM |
Max Memory Speed | 2x1R DDR5-5200<br>2x2R DDR5-5200<br>4x1R DDR5-3600<br>4x2R DDR5-3600 |
ECC Support | Yes (Requires mobo support) |
Graphics Capabilities | |
Integrated Graphics | Yes |
Graphics Model | AMD Radeon™ Graphics |
Graphics Core Count | 2 |
Graphics Frequency | 2200 MHz |
USB Type-C® DisplayPort™ Alternate Mode | Yes |
Product IDs | |
Product ID Boxed | 100-100000592BOX |
Product ID Tray | 100-000000592 |
Key Features | |
Supported Technologies | AMD EXPO™ Technology<br>AMD Ryzen™ Technologies |
AMD Processors, BTZ Deals, Processors
AMD Ryzen 7 7700 3.8GHz Up to 5.3GHz Socket AM5 Processor 100-100000592BOX
Availability:
Domestic or Local Stocks via Bermor Techzone
Recently Sold: 151
Platform: Desktop
Product Family: AMD Ryzen™ Processors
Product Line: AMD Ryzen™ 7 Processors
# of CPU Cores: 8
# of Threads: 16
Max. Boost Clock: Up to 5.3GHz
Base Clock: 3.8GHz
L1 Cache: 512KB
L2 Cache: 8MB
L3 Cache: 32MB
Default TDP: 65W
Processor Technology for CPU Cores: TSMC 5nm FinFET
Unlocked for Overclocking: Yes
CPU Socket: AM5
Thermal Solution (PIB):
Max. Operating Temperature (Tjmax): 95°C
₱12,950.00 – ₱18,150.00
Frequently Bought Together
Performance Features
Precision Boost 2
AMD Ryzen processors monitor the system’s energy consumption, temperatures, and other factors to automatically raise clock speeds, allowing applications to perform faster.
Precision Boost Overdrive
Precision Boost Overdrive technology takes advantage of your compatible motherboard’s design to boost clock speeds higher and for longer periods of time. It also allows you to overclock the processor at the touch of a button.
AMD EXPO Technology
The AMD Extended Profiles for Overclocking (AMD EXPO Technology) provides users with advanced profile settings for memory overclocking with supported modules.
AMD Ryzen Master Utility
Personalized Performance
The AMD Ryzen Master Utility provides you with multiple custom profiles to store CPU, GPU, and memory configurations. Use it to configure performance parameters for the active cores and adjust memory times. You can also optimize general performance or fine tune your favorite applications.
System Monitoring
Monitor your system in real-time using the AMD Ryzen Master Utility, which features a histogram of per-core clock rates and temperature, including average and peak readings.
Brands | |
---|---|
Stock | Retail Box, No Retail Box |
Q & A
Ask a question
There are no questions yet
28 reviews for AMD Ryzen 7 7700 3.8GHz Up to 5.3GHz Socket AM5 Processor 100-100000592BOX
5 star | 92% | |
4 star | 7% | |
3 star | 0% | |
2 star | 0% | |
1 star | 0% |
Customer Images
1-7 of 28 reviews
Add a review
AMD Ryzen 7 7700 3.8GHz Up to 5.3GHz Socket AM5 Processor 100-100000592BOX
Your review
* Review is required
Name
* Name is required
Email
* Email is required
Add photos or video to your review
* Please confirm that you are not a robot
100 ⭐
GOOD AND FAST
Fast as hell CPU
It’s a cooler version of the 7700X. Highest temps I’ve seen is 78°c while maintaining 5.3ghz on cyberpunk…on a Saturday afternoon. That’s impressive.

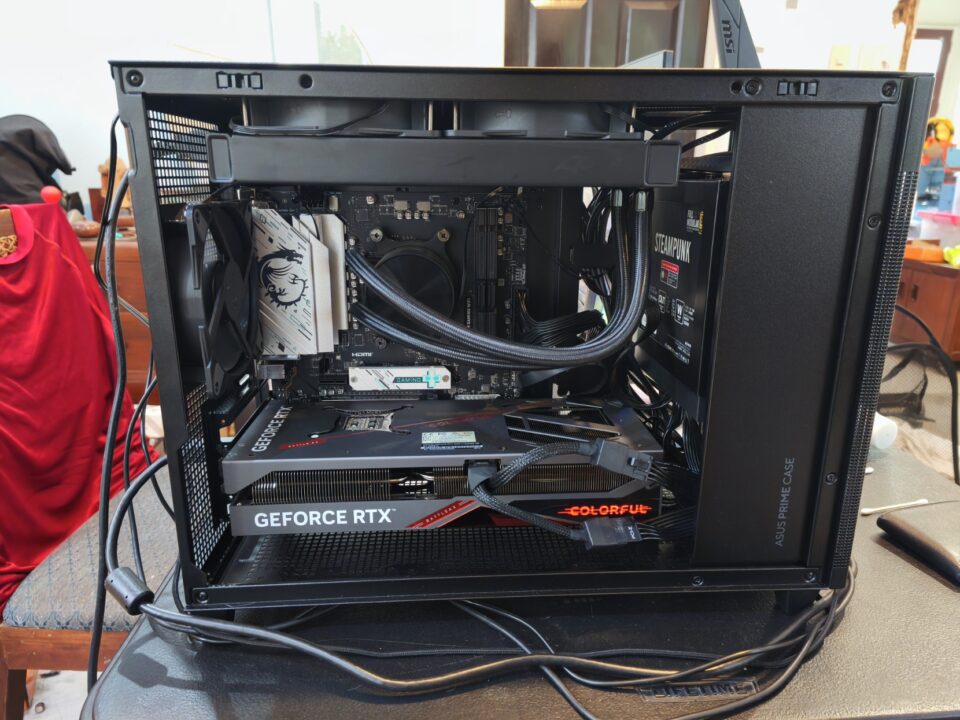

Securely received the item without any damage and works perfectly on my Mini ITX project. Transaction was smooth and 100% reliable.
Very good CPU and functions well
