Gigabyte B650 M K AM5 B650 m ATX AMD Motherboard
Unleash the full potential of your gaming and computing experience with the Gigabyte B650 M K AM5 B650 m ATX AMD Motherboard. Designed for power users and gamers alike, this motherboard offers a robust foundation for building a high-performance PC.
- AM5 Socket: Provides support for the latest AMD Ryzen processors, ensuring top-tier performance and efficiency.
- ATX Form Factor: Offers ample space for expansion and superior airflow within your PC case.
- Dual M.2 Slots: Experience lightning-fast data transfers and seamless multitasking with support for NVMe SSDs.
- DDR5 Memory Support: Elevate your system’s speed and responsiveness with the latest memory technology.
- PCIe 4.0: Enjoy faster GPU performance and greater bandwidth for demanding applications.
- Advanced Thermal Design: Maintain optimal temperatures with heatsinks and effectively manage heat dissipation.
Experience smoother gaming sessions and boosted productivity with the Gigabyte B650 M K. Its cutting-edge technology supports the latest components, ensuring your system remains future-proof. Whether you’re assembling a new build or upgrading, this motherboard offers unparalleled flexibility and performance. Crafted with premium materials, it promises durability and stability, making it a smart investment for enthusiasts and professionals alike.
Component | Specification |
---|---|
CPU | AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors |
Chipset | AMD B650 |
Memory | – Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800 MT/s memory modules – 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory – Dual channel memory architecture – Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules – Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
Onboard Graphics | Integrated Graphics Processor: – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz (Support for DisplayPort 1.4 version) – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz (Support for HDMI 2.1 version and HDCP 2.3) |
Audio | Realtek® Audio CODEC – High Definition Audio – 2/4/5.1/7.1-channel |
LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Expansion Slots | CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
Storage Interface | CPU: – 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) – 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) Chipset: – 4 x SATA 6Gb/s connectors – RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices – RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
USB | CPU: – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel – 2 x USB 2.0/1.1 ports on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
Internal I/O Connectors | – 1 x 24-pin ATX main power connector – 1 x 8-pin ATX 12V power connector – 1 x CPU fan header – 2 x system fan headers – 1 x addressable LED strip header – 1 x RGB LED strip header – 2 x M.2 Socket 3 connectors – 4 x SATA 6Gb/s connectors – 1 x front panel header – 1 x front panel audio header – 1 x USB Type-C® header, with USB 3.2 Gen 1 support – 1 x USB 3.2 Gen 1 header – 1 x USB 2.0/1.1 header – 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) – 1 x reset jumper – 1 x Clear CMOS jumper |
Back Panel Connectors | – 1 x DisplayPort – 1 x HDMI port – 4 x USB 2.0/1.1 ports – 1 x PS/2 keyboard/mouse port – 1 x USB 3.2 Gen 2 Type-A port (red) – 1 x USB Type-C® port, with USB 3.2 Gen 2 support – 1 x Q-Flash Plus button – 1 x RJ-45 port – 2 x USB 3.2 Gen 1 ports – 3 x audio jacks |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring | – Voltage detection – Temperature detection – Fan speed detection – Water cooling flow rate detection – Fan fail warning – Fan speed control (Whether the fan speed control function is supported will depend on the cooler you install.) |
BIOS | – 1 x 256 Mbit flash – Use of licensed AMI UEFI BIOS – PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features | – Support for GIGABYTE Control Center (GCC) (Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.) – Support for Q-Flash – Support for Q-Flash Plus |
Bundled Software | – Norton® Internet Security (OEM version) – LAN bandwidth management software |
Operating System | – Support for Windows 11 64-bit – Support for Windows 10 64-bit |
Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |

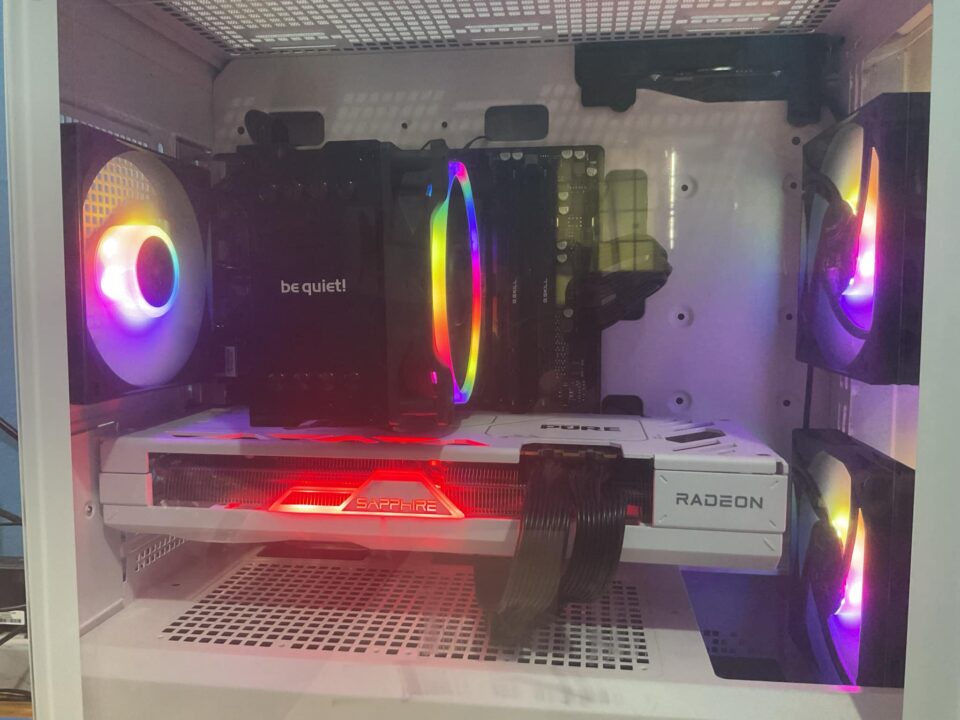

Basic mATX wish it has more PCIE slots but this is good enough for future upgrades
