Component | Specification |
---|---|
CPU Socket | AMD Socket AM5, supports Ryzen™ 7000 / 8000 / 9000 Series Processors |
Chipset | AMD B650 |
Memory | Supports DDR5 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 MT/s |
4 x DDR5 DIMM sockets, up to 192 GB, dual channel, non-ECC Un-buffered DIMMs | |
Onboard Graphics | Integrated AMD Radeon™ Graphics, 2 x DisplayPorts (3840×2160@144 Hz), 1 x HDMI (4096×2160@60 Hz), support for triple-display |
Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
LAN | Realtek® 2.5GbE LAN chip, Wi-Fi 6E (802.11ax), Bluetooth 5.3 |
Expansion Slots | 1 x PCIe x16 (PCIEX16, CPU integrated), 1 x PCIe x1 (PCIEX1, Chipset) |
Storage | 1 x M.2 (M2A_CPU) PCIe 4.0 x4/x2, 1 x M.2 (M2C_SB) PCIe 4.0 x4/x2, 4 x SATA 6Gb/s |
USB | CPU: 1 x USB Type-C®, 1 x USB 3.2 Gen 1, 1 x USB 2.0 |
Chipset: 2 x USB 3.2 Gen 1, 1 x USB Type-C® (internal), 2 x USB 3.2 Gen 1 (internal), 5 x USB 2.0 | |
Internal Connectors | Includes power connectors, fan headers, M.2 sockets, SATA connectors, USB headers, TPM header, Q-Flash Plus button |
Back Panel Connectors | PS/2, USB Type-C®, USB 3.2 Gen 1, USB 2.0, HDMI, DisplayPorts, RJ-45, audio jacks |
BIOS | AMI UEFI BIOS, Q-Flash, Q-Flash Plus |
Form Factor | Micro ATX (24.4cm x 24.4cm) |
Unique Features | GIGABYTE Control Center (GCC) support, Q-Flash, bundled software |
Operating System | Supports Windows 11 64-bit, Windows 10 64-bit |

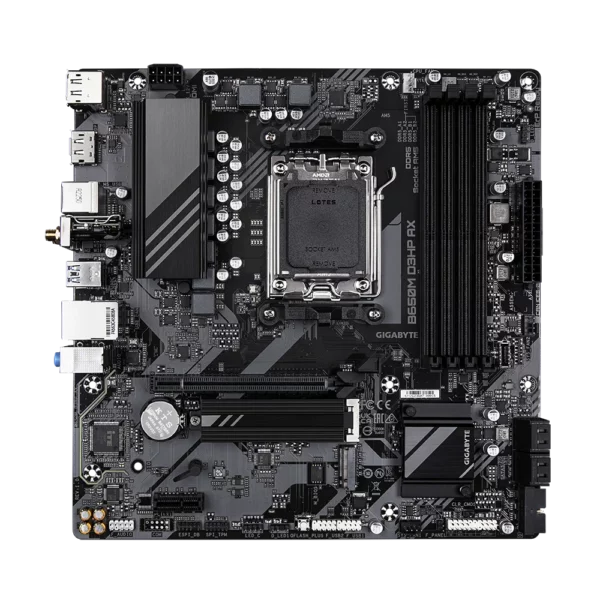

SKU: GA-B650M-D3HP-AX
Categories: AMD Motherboards, Motherboards
