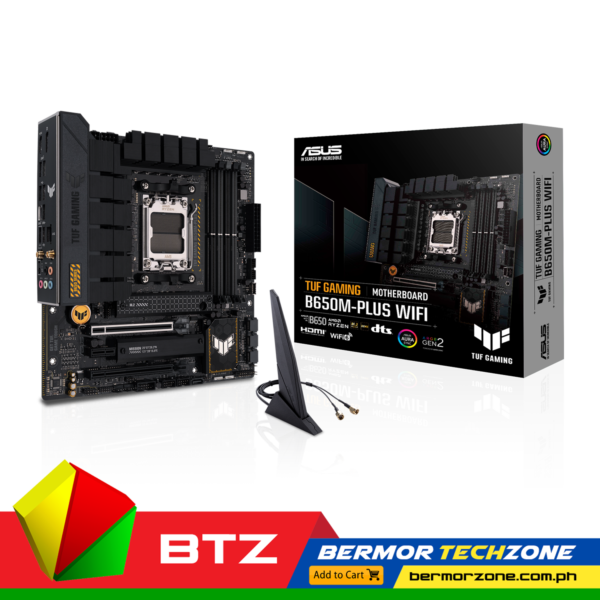

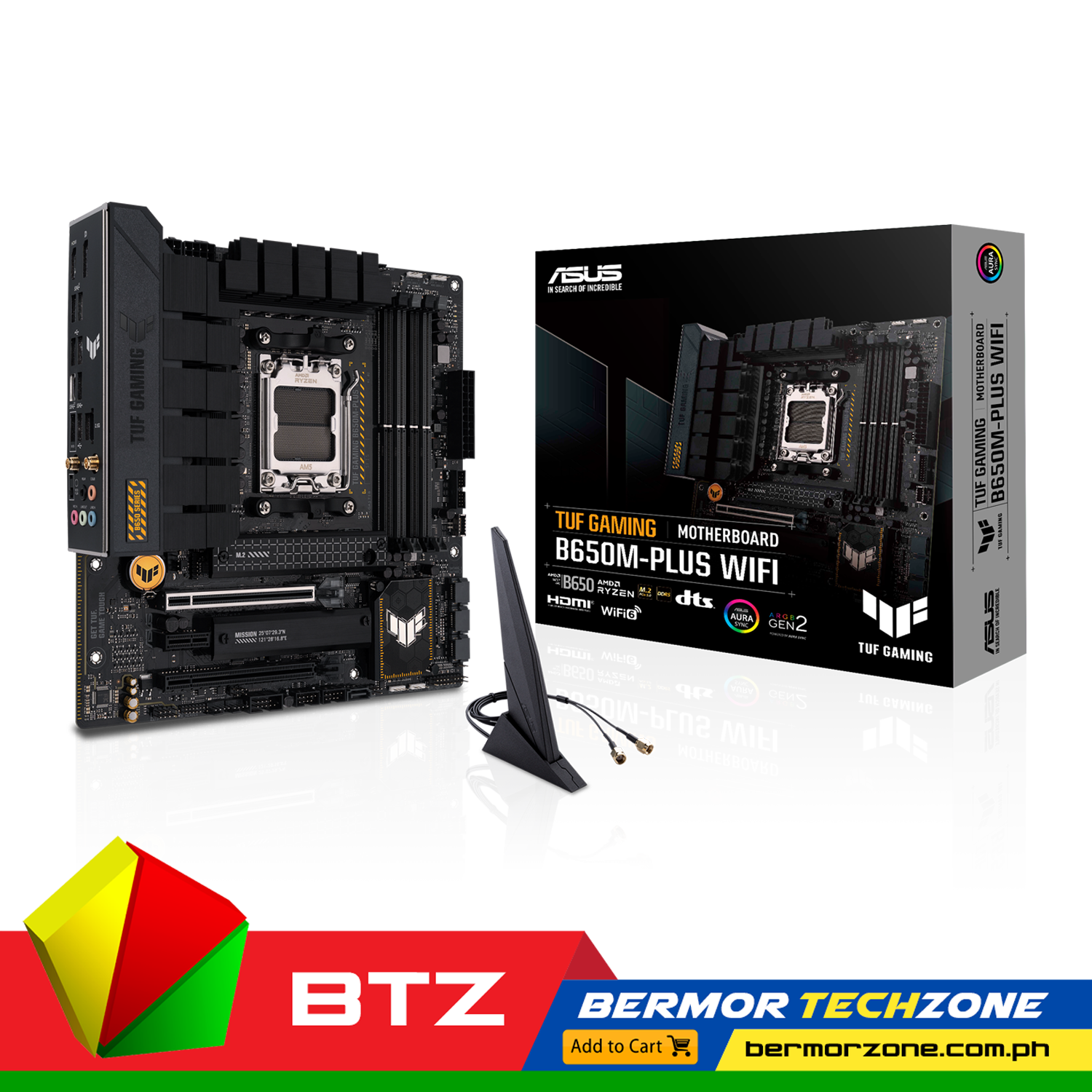

Asus TUF Gaming B650 M Plus Wi Fi AM5 m ATX DDR5 AMD Motherboard
Unlock the true potential of your gaming rig with the Asus TUF Gaming B650 M Plus Wi Fi AM5 Motherboard, engineered for the demanding gamer who seeks performance and reliability. This powerhouse motherboard is designed to bring your gaming and creative experiences to life with seamless connectivity and robust durability.
- AMD AM5 Socket: Supports the latest Ryzen 7000 series processors for cutting-edge performance.
- DDR5 Memory Support: Boosts your system’s speed and efficiency with next-gen memory capabilities.
- Enhanced Wi-Fi 6 Technology: Experience lag-free gaming with ultra-fast, reliable wireless connectivity.
- Military-Grade TUF Components: Built to withstand the rigors of intense gaming with enhanced durability.
- Comprehensive Cooling: Features a robust cooling solution to maintain optimal performance during extended sessions.
With the Asus TUF Gaming B650 M Plus, you’re equipped to handle high-intensity gaming and multitasking with ease. Its superior build quality ensures longevity, while the advanced connectivity options keep you ahead in the gaming world.
Crafted from top-tier materials, this motherboard is the cornerstone of a high-performance gaming setup. Embrace the future of gaming with Asus, where power meets precision.
Component | Specification |
---|---|
Model | TUF GAMING B650M-PLUS WIFI |
CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series |
Chipset | AMD B650 |
Memory | 4 x DIMM, Max. 192GB, DDR5 |
Dual Channel Memory Architecture | |
Supports AMD EXTended Profiles for Overclocking | |
OptiMem II | |
Graphics | 1 x DisplayPort |
1 x HDMI® port | |
Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors: |
1 x PCIe 4.0/3.0 x16 slot | |
AMD B650 Chipset: | |
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) | |
1 x PCIe 4.0/3.0 x1 slot | |
Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s |
AMD Ryzen™ 7000 Series Desktop Processors: | |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
AMD B650 Chipset: | |
4 x SATA 6Gb/s ports | |
Ethernet | 1 x Realtek 2.5Gb Ethernet |
TUF LANGuard | |
Wireless & Bluetooth | Wi-Fi 6 |
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) | |
Bluetooth v5.2 | |
USB | Rear USB (Total 8 ports): |
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) | |
2 x USB 3.2 Gen 2 ports (2 x Type-A) | |
1 x USB 3.2 Gen 1 port (1 x Type-A) | |
4 x USB 2.0 ports (4 x Type-A) | |
Front USB (Total 7 ports): | |
1 x USB 3.2 Gen 1 connector (supports USB Type-C®) | |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
Supports up to 24-Bit/192 kHz playback | |
Audio Features: | |
– Audio Shielding | |
– Premium audio capacitors | |
– Dedicated audio PCB layers | |
Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) |
2 x USB 3.2 Gen 2 ports (2 x Type-A) | |
1 x USB 3.2 Gen 1 port (1 x Type-A) | |
4 x USB 2.0 ports (4 x Type-A) | |
1 x DisplayPort | |
1 x HDMI®port | |
1 x Wi-Fi Module | |
1 x Realtek 2.5Gb Ethernet port | |
5 x Audio jacks | |
1 x BIOS FlashBack™ button | |
Internal I/O Connectors | Fan and Cooling related: |
1 x 4-pin CPU Fan header | |
1 x 4-pin CPU OPT Fan header | |
1 x 4-pin AIO Pump header | |
3 x 4-pin Chassis Fan headers | |
Power related: | |
1 x 24-pin Main Power connector | |
1 x 8-pin +12V Power connector | |
1 x 4-pin +12V Power connector | |
Storage related: | |
2 x M.2 slots (Key M) | |
4 x SATA 6Gb/s ports | |
USB: | |
1 x USB Gen 1 connector (supports USB Type-C® ) | |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
Miscellaneous | 3 x Addressable Gen 2 headers |
1 x Aura RGB header | |
1 x Clear CMOS header | |
1 x COM Port header | |
1 x Front Panel Audio header (AAFP) | |
1 x 20-3 pin System Panel header with Chassis intrude function | |
1 x Thunderbolt™ (USB4®) header | |
Special Features | ASUS TUF PROTECTION: |
– DIGI+ VRM (Digital power design with DrMOS) | |
– Enhanced DRAM Overcurrent Protection | |
– ESD Guards | |
– TUF LANGuard | |
– Overvoltage Protection | |
– SafeSlot Core+ | |
– Stainless-Steel Back I/O | |
ASUS Q-Design: | |
– M.2 Q-Latch | |
– Q-DIMM | |
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
– Q-Slot | |
ASUS Thermal Solution: | |
– M.2 heatsink | |
– VRM heatsink design | |
ASUS EZ DIY: | |
– BIOS FlashBack™ button | |
– BIOS FlashBack™ LED | |
– ProCool | |
– Pre-mounted I/O shield | |
– SafeDIMM | |
Aura Sync: | |
– Aura RGB header | |
– Addressable Gen 2 headers | |
Software Features | ASUS Exclusive Software: |
Armoury Crate | |
– Aura Creator | |
– Aura Sync | |
– Fan Xpert 2+ | |
– Power Saving | |
– Two-Way AI Noise Cancellation | |
AI Suite 3: | |
– TurboV EVO | |
– DIGI+ VRM | |
– PC Cleaner | |
TUF GAMING CPU-Z | |
DTS Audio Processing | |
MyAsus | |
Norton Anti-virus software (Free Trial version) | |
WinRAR | |
UEFI BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Operating System | Windows®11, Windows®10 64-bit |
Form Factor | micro-ATX Form Factor |
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
Specs may change anytime without further notice*
