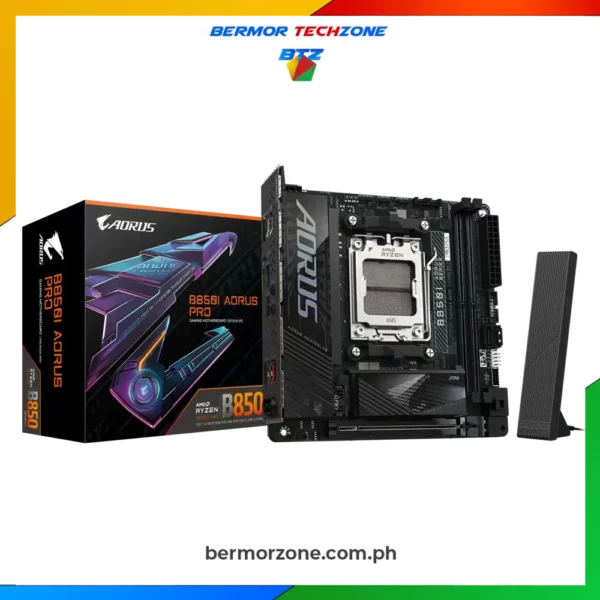

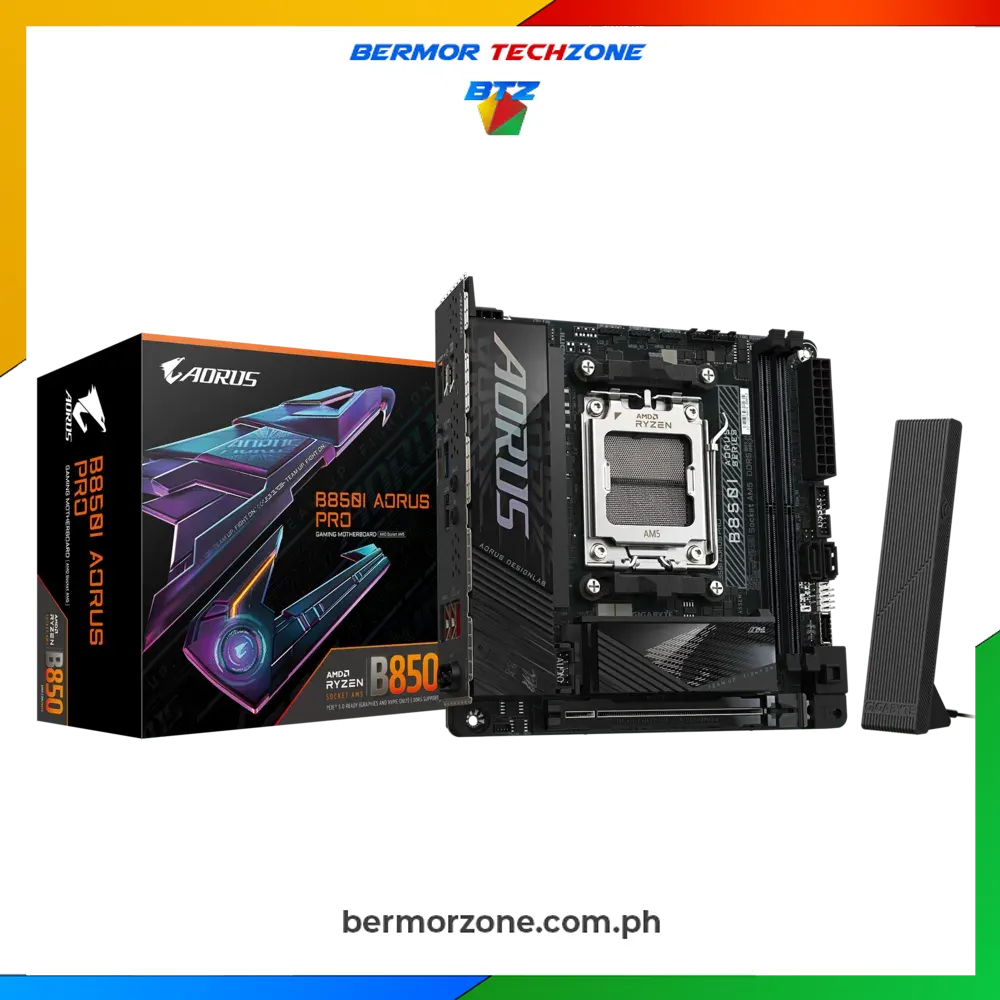

Introducing the Gigabyte B850 I AORUS PRO Mini ITX Motherboard, the ultimate choice for gamers and tech enthusiasts seeking high performance in a compact form. This motherboard is engineered to elevate your computing experience with unmatched speed and reliability.
Supports AMD Ryzen processors for exceptional performance.
Compact Mini ITX form factor, perfect for space-constrained builds.
Dual M.2 slots with thermal guards for faster data transfers.
Integrated Wi-Fi 6 and Bluetooth 5.2 for seamless connectivity.
Advanced thermal design with Smart Fan 5 for efficient cooling.
RGB Fusion 2.0 for customizable lighting effects.
Experience the power of cutting-edge technology with the Gigabyte B850 I AORUS PRO. Its compact size doesn’t compromise on performance, offering robust features that ensure smooth, uninterrupted gaming and computing. Whether you’re building a high-performance gaming rig or a powerful workstation, this motherboard provides the flexibility and power you need.
Crafted with premium materials for durability and efficiency, the Gigabyte B850 I AORUS PRO promises longevity and peak performance. It’s more than just a motherboard; it’s the backbone of your ultimate PC setup.
CPU
AMD Socket AM5, support for:
– AMD Ryzen™ 9000 Series Processors
– AMD Ryzen™ 8000 Series Processors
– AMD Ryzen™ 7000 Series Processors (Visit GIGABYTE’s website for the latest CPU support list)
– Integrated AMD Radeon™ Graphics:
– 1 x HDMI port, max resolution 4096×2160@60 Hz
* Supports HDMI 2.1, HDCP 2.3, and HDR (Graphics specifications depend on CPU support)
Audio
Realtek® ALC4080 CODEC
– High Definition Audio, 2-channel
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

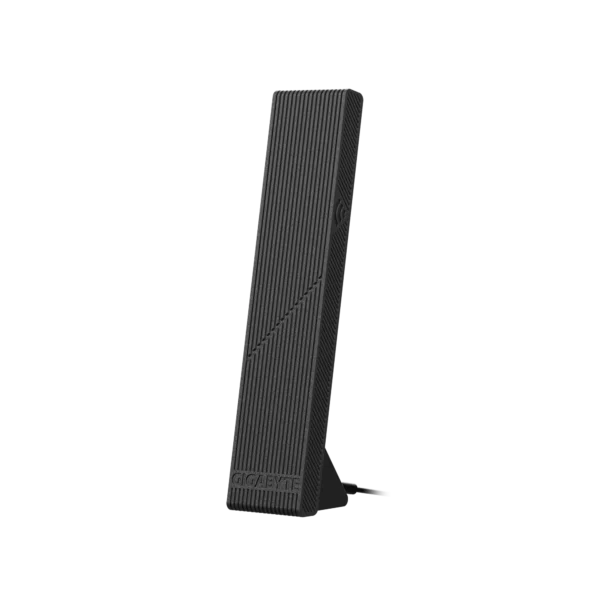

Wireless Communication
Realtek® Wi-Fi 7 RTL8922AE
– 802.11a/b/g/n/ac/ax/be, supports 2.4/5/6 GHz
– Bluetooth 5.4 (Wi-Fi 7 requires Windows 11 SV3; not supported on Windows 10)
– 1 x M.2 (M2A_CPU) for Socket 3, M key (2280 SSDs):
– PCIe 5.0 x4/x2 (Ryzen™ 9000/7000)
– PCIe 4.0 x4/x2 (Phoenix 1/2, Ryzen™ 8000)
– 1 x M.2 (M2C_SB, back) for Socket 3, M key (2280 SSDs): PCIe 4.0 x4/x2
– 2 x SATA 6Gb/s
– RAID 0, 1, 5 (NVMe; only RAID 5 for Ryzen™ 9000), 10
USB Ports
– CPU:
– 1 x USB Type-C® (USB 3.2 Gen 2)
– 2 x USB 3.2 Gen 2 Type-A (red)
– Chipset:
– 1 x USB Type-C® (USB 3.2 Gen 2, internal)
– 4 x USB 3.2 Gen 1 (2 rear, 2 internal)
– 4 x USB 2.0/1.1 (2 rear, 2 internal)
Internal I/O Connectors
– 1 x 24-pin ATX power connector
– 1 x 8-pin ATX 12V power connector
– 1 x CPU fan header
– 1 x CPU fan/water cooling pump header
– 1 x system fan header
– 2 x addressable RGB Gen2 headers
– 1 x RGB LED header
– 2 x M.2 connectors
– 2 x SATA 6Gb/s
– 1 x front panel header
– 1 x USB Type-C® (USB 3.2 Gen 2) header
– 1 x USB 3.2 Gen 1 header
– 1 x USB 2.0/1.1 header
Back Panel Connectors
– 1 x HDMI port
– 2 x antenna connectors (2T2R)
– 1 x USB Type-C® (USB 3.2 Gen 2)
– 2 x USB 3.2 Gen 2 Type-A (red)
– 2 x USB 3.2 Gen 1
– 2 x USB 2.0/1.1
– 1 x RJ-45 LAN port
– 2 x audio jacks
– 1 x Q-Flash Plus button
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
– Voltage, temperature, and fan speed detection
– Fan and water cooling flow rate detection
– Fan fail warning
– Fan speed control (depends on fan)
BIOS
– 1 x 256 Mbit flash
– AMI UEFI BIOS
Unique Features
– GIGABYTE Control Center (GCC)
– Q-Flash and Q-Flash Plus support
– Smart Backup
Bundled Software
– Norton® Internet Security (OEM)
– LAN bandwidth management software
Gigabyte B850I AORUS PRO Mini ITX Motherboard
