16GB of GDDR6 memory
AMD Radiance Displayโข Engine
DisplayPortโข 2.1
AMD FidelityFXโข Super Resolution
AMD Radeon Super Resolution
4K and Beyond
GPU Specifications |
|
GPU |
AMD Radeonโข RX 7800 XT Graphics Card |
Manufacturing Process |
5nm |
Architecture |
AMD RDNAโข 3 |
Engine Clock |
|
– Boost Clock |
Up to 2475 MHz |
– Game Clock |
Up to 2169 MHz |
Stream Processors |
3840 |
Compute Units |
60 CU (with RT+AI Accelerators) |
Infinity Cache |
64MB |
Ray Accelerators |
60 |
Memory |
|
– Size/Bus |
16GB/256 bit GDDR6 |
– Memory Clock |
19.5 Gbps Effective |
Displays |
|
– Maximum Displays |
4 Displays |
– Resolution |
|
– HDMIโข |
7680ร4320 |
– DisplayPort 2.1 |
7680ร4320 |
Interface |
PCI-Express 4.0 x16 |
Output |
|
– 2x HDMI |
|
– 2x DisplayPort |
|
BIOS Support |
UEFI |
Game Index |
4K |
Sapphire Features |
|
Premium Digital Power Design |
Yes |
Ultra High-Performance Capacitors |
Yes |
Fuse Protection |
Yes |
Cooling Technology |
Tri-X Cooling Technology |
High TG Copper PCB |
Yes |
Composite Heatpipe |
Optimized Composite Heatpipe |
Fan Control |
Intelligent Fan Control |
Precision Fan Control |
Yes |
Metal Backplate |
Yes |
LED Logo |
Red LED SAPPHIRE Logo |
Fans |
Two-Ball Bearing Fans |
Fan Blade |
Angular Velocity Fan Blade |
TriXX Support |
Yes |
TriXX Boost |
Yes |
Accessories Bundled |
Graphics Card Supporter |
AMD Features |
|
Architecture |
AMD RDNAโข 3 |
AMD RDNAโข 3 Compute Units |
60 |
AMD Infinity Cacheโข Technology |
64MB |
DisplayPortโข 2.1 Support |
Yes |
AMD Radiance Displayโข Engine |
Yes |
GDDR6 Memory on 256-Bit Bus |
16GB |
PCIยฎ Express 4.0 ready |
Yes |
AMD FidelityFXโข Super Resolution |
Yes |
DirectXยฎ 12 Ultimate Support |
Yes |
DirectStorage Support |
Yes |
Vulkanยฎ Optimized |
Yes |
AMD Smart Technologies |
|
– AMD Software: Adrenalin Editionโข |
Yes |
– AMD Noise Suppression |
Yes |
– AMD Privacy View |
Yes |
– AMD Radeonโข Super Resolution |
Yes |
– AMD Link |
Yes |
AMD FreeSyncโข Technology |
Yes |
Form Factor |
|
Slots |
2.5 slot, ATX |
Dimensions |
320(L)X 128.75(W)X 52.57(H)mm |
Power and System Requirements |
|
Power Consumption |
270W Total Board Power |
OS |
Linuxยฎ, Windowsยฎ 10, and Windows 11. 64-bit operating system required |
System Requirement |
|
– Minimum Power Supply |
700 Watt Power Supply |
– Power Connectors |
2 x 8-pin Power Connector |
– PCI Expressยฎ Slot |
One X16 lane graphics slot available on the motherboard |
– System Memory |
Minimum 8GB of system memory. 16GB recommended. |
Specification may change without further notice.
100% legit walang damage yung item smooth na smooth yung item.. worth the wait kahit umorder ako ng long weekend nung november with warranty highly recommend
Ordered from Visayas, Item was delivered safe and in good condition pero medyo matagal nga lang ung pagka deliver ranging from 8-12 days.
Best gpu

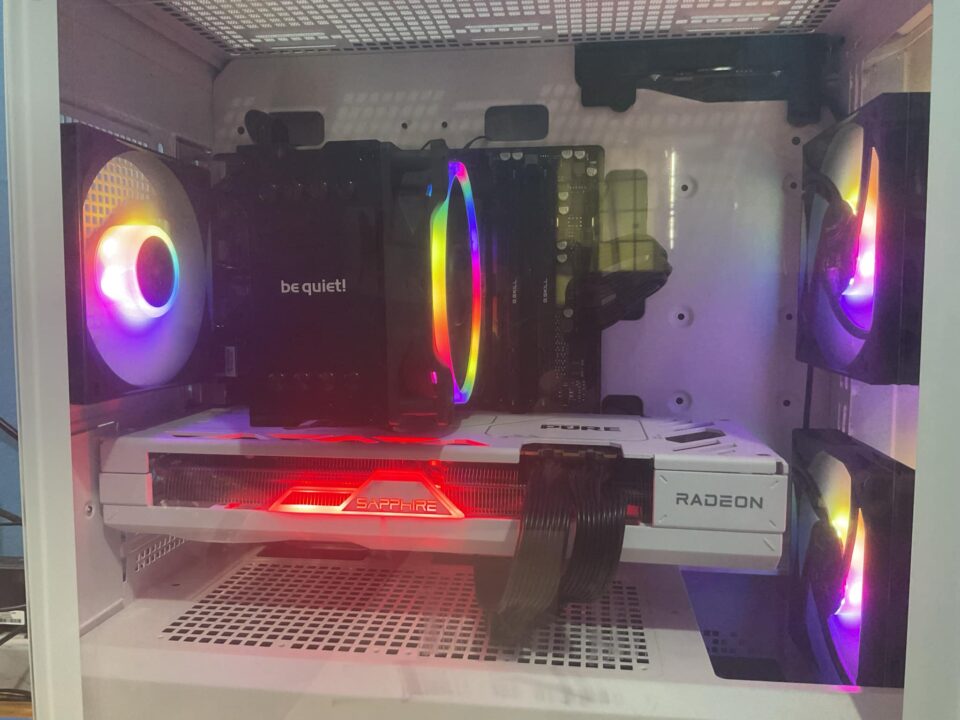

Works like a charm! I love the white design, looks great with my white build
