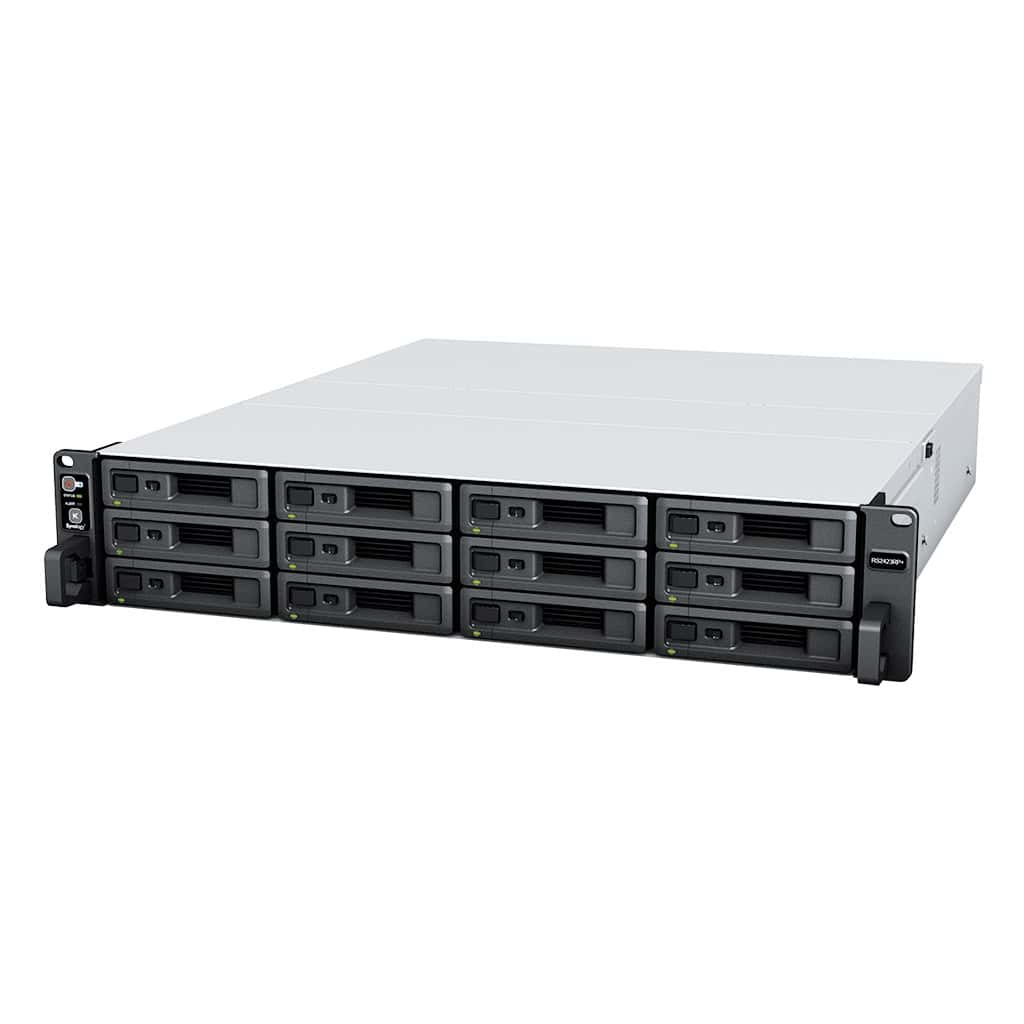

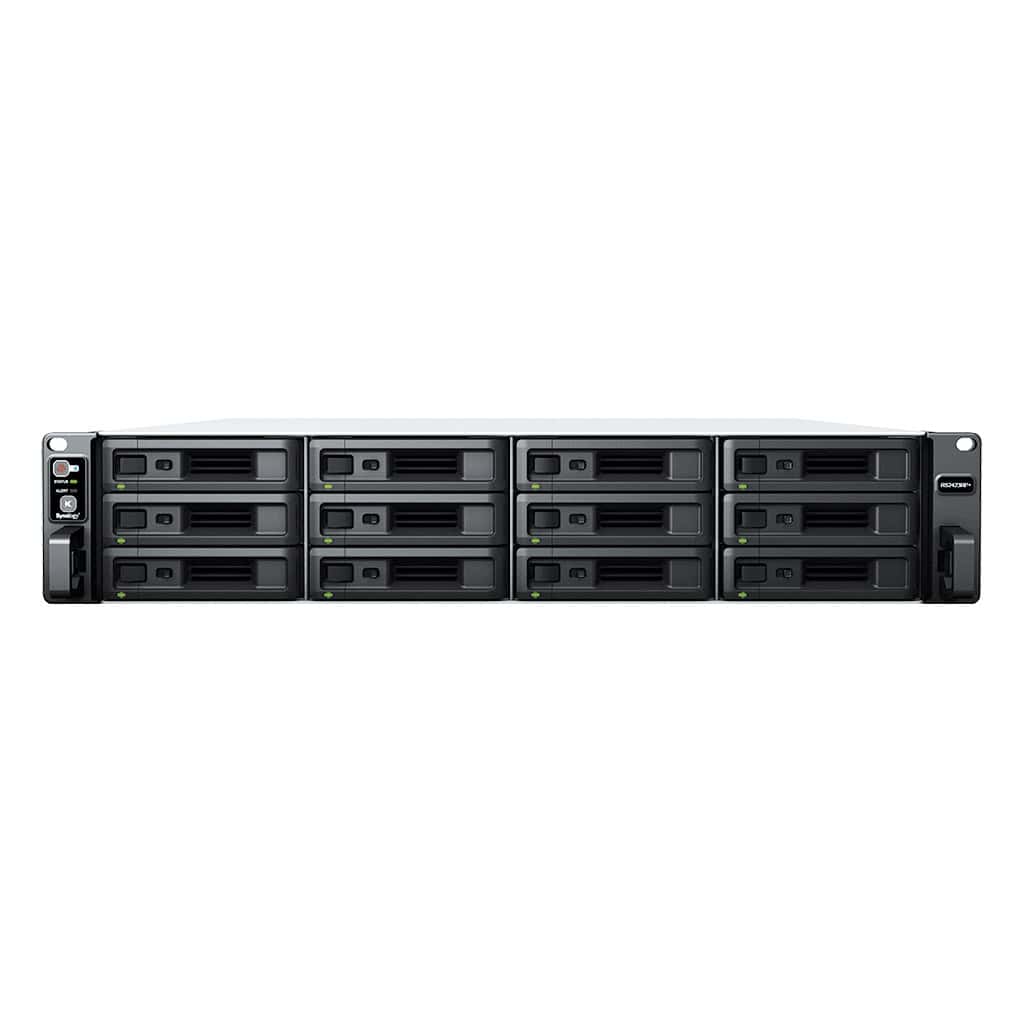

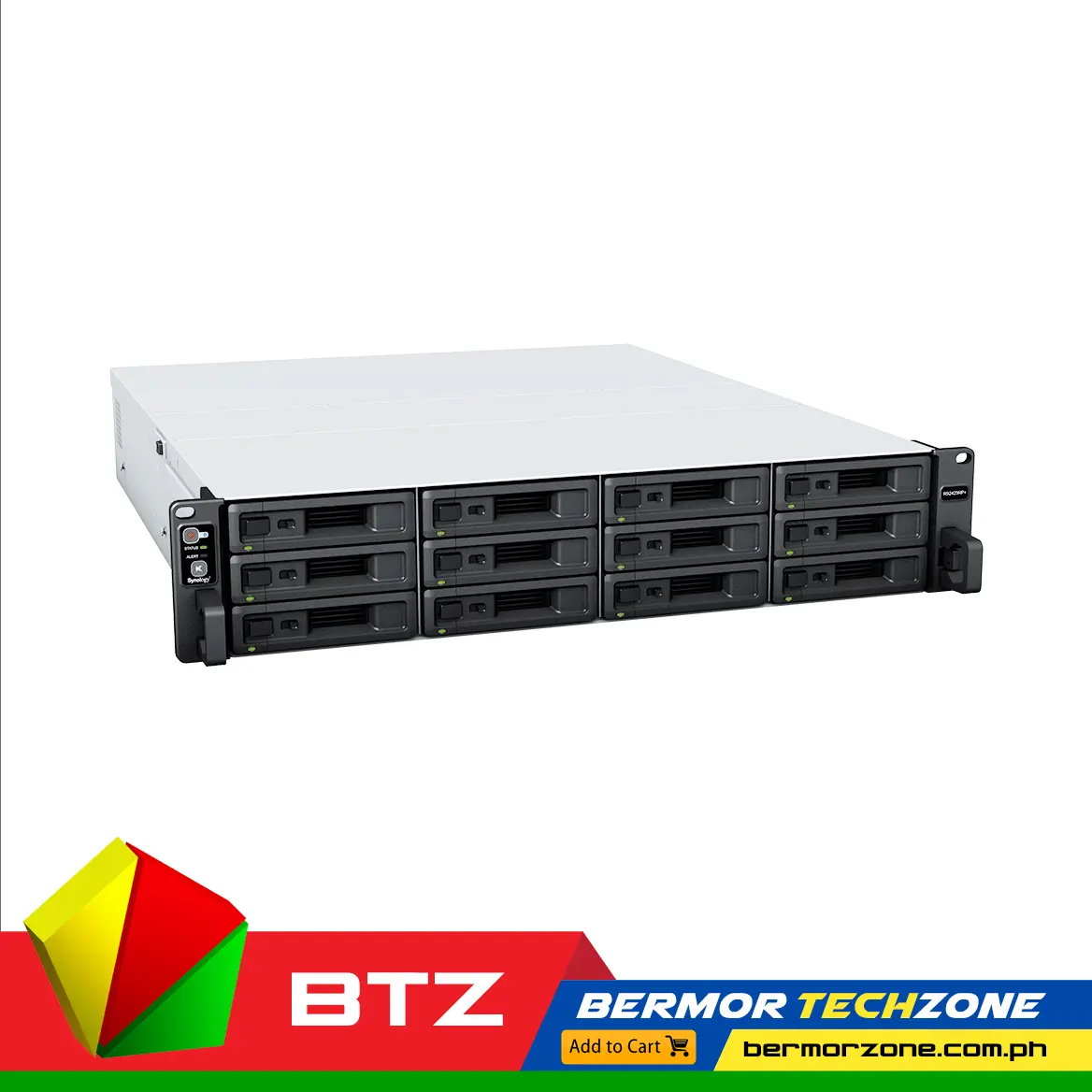

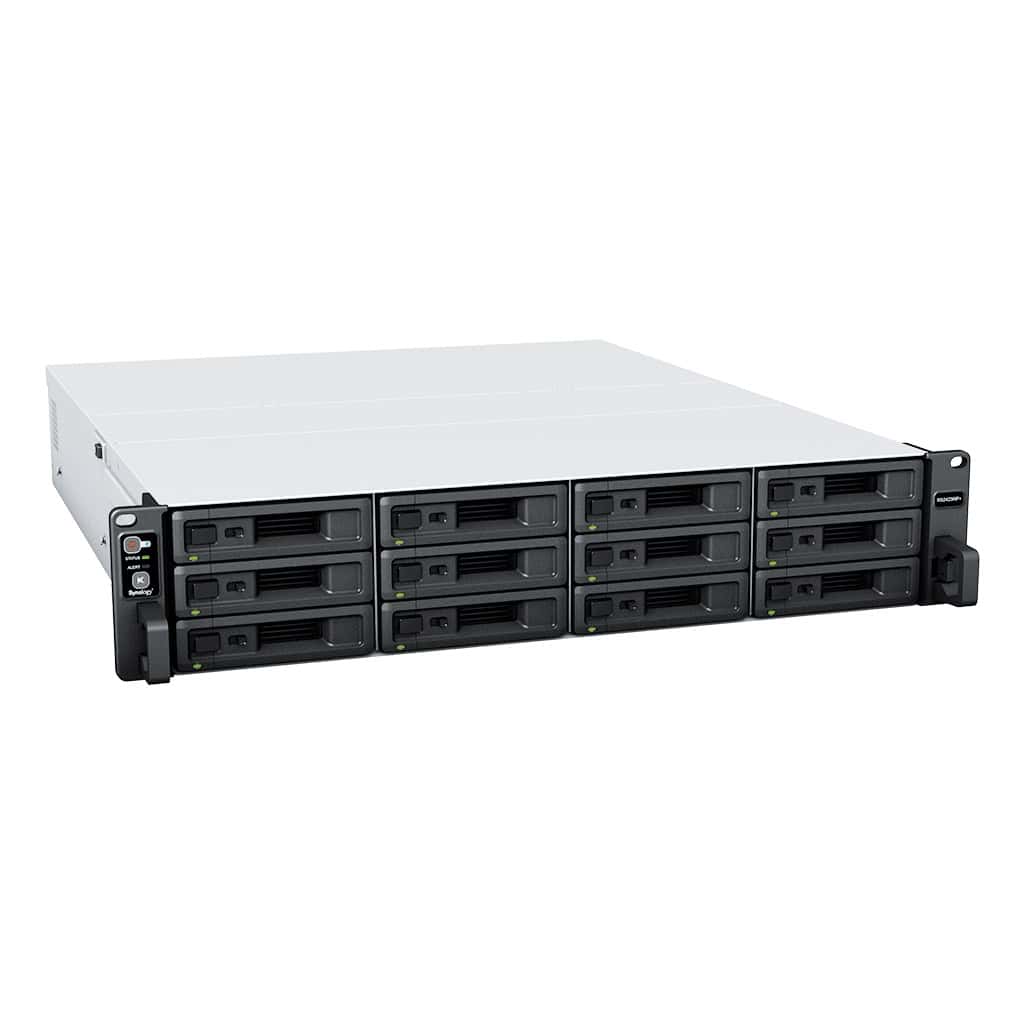

Synology Rackstation RS2423+ 12 Bay NAS Server
Availability:
Out of Stock. Check Counterpart Models
- CPU: AMD Ryzen V1780B, 4 cores, 3.35/3.6 GHz
- RAM: 8 GB DDR4 ECC (up to 32 GB)
- Storage: 12 bays (expandable to 24), 3.5″ HDD, 2.5″ SSD
- Ports: 2 x 1GbE, 1 x 10GbE, 2 x USB 3.2, 1 x Mini-SAS HD
- Form Factor: 2U, 88 x 482 x 578 mm, 11.9 kg
- Power Supply: 500W, 100-240V
- Power Consumption: 120W (access), 46W (hibernation)
- Noise Level: 52.3 dB(A)
- Temperature: 0-35°C operating, -20 to 60°C storage
- Warranty: 3 years (extendable)
- Protocols: SMB, NFS, iSCSI, FTP, HTTP
- Max Volume Size: 108 TB (200 TB with 32 GB RAM)
- Max Volumes: 64
- RAID: Synology Hybrid RAID, Basic, JBOD, RAID 0, 1, 5, 6, 10
- File Systems: Btrfs, ext4 (internal); Btrfs, ext4, ext3, FAT, NTFS, HFS+, exFAT (external)
- Max Connections: 2,000 SMB/AFP/FTP
- Max Users: 2,048 local, 256 groups
- Max IP Cameras: 75 channels (720p-5M), 55 channels (4K)
- Concurrent Users: 150 (Chat), 600 (Drive), 1,800 (Office)
₱138,000.00
6-Month Grace monthly payment:
₱13,909
12-Month Full Interest monthly payment:
₱16,317
Learn more about Billease Installment at Checkout
Out of Stock. Check Counterpart Models
Want to be Notified upon Restock
We will inform you when the product toggled in stock. Please leave your valid email address below.
Add to WishlistAlready In Wishlist
Add to Wishlist
Introducing the Synology Rackstation RS2423+ 12 Bay NAS Server, the ultimate solution for all your data storage needs. Designed for businesses and tech enthusiasts, this powerful NAS server offers unparalleled performance and scalability to manage, protect, and store crucial data efficiently.
- Robust 12-bay design for extensive storage capabilities.
- Powered by a high-performance CPU and ample memory for seamless operation.
- Advanced data protection with RAID support and Synology's award-winning DiskStation Manager (DSM) software.
- Scalable up to hundreds of terabytes with additional expansion units.
- Dual 1GbE LAN ports with failover and Link Aggregation support for improved network stability.
- Comprehensive backup solutions, including Snapshot Replication and Cloud Sync.
Benefit from the RS2423+'s ability to centralize your data, ensuring easy access and thorough protection against data loss. It's an ideal choice for enterprises requiring a reliable, high-capacity storage solution that is both cost-effective and easy to manage. Crafted with durable materials, this NAS server is built to last, providing peace of mind for your business's data management needs.
| Category | Specification |
|---|---|
| CPU | AMD Ryzen V1780B, 4 Cores, 3.35 GHz Base / 3.6 GHz Turbo |
| Memory | 8 GB DDR4 ECC UDIMM (1 x 8 GB, 2 slots, max 32 GB) |
| Storage | 12 Drive Bays, Expandable to 24 with RX1223RP |
| Drive Types | 3.5″ SATA HDD, 2.5″ SATA SSD |
| External Ports | 2 x RJ-45 1GbE, 1 x RJ-45 10GbE, 2 x USB 3.2 Gen 1, 1 x Mini-SAS HD |
| PCIe Expansion | 1 x Gen3 x8 Slot (x4 Link) |
| Form Factor | 2U, 88 mm x 482 mm x 578 mm, 11.9 kg |
| Power Supply | 500W, AC 100-240V, 50/60 Hz |
| Power Consumption | 119.95W (Access), 46.21W (HDD Hibernation) |
| Noise Level | 52.3 dB(A) |
| Temperature Range | 0°C to 35°C Operating, -20°C to 60°C Storage |
| Warranty | 3 years, extendable to 5 years with EW202 |
| Weight | 11.9 kg |
| Optional Accessories | DDR4 ECC UDIMM, RX1223RP, HAT5300, SAT5200, M.2 SSD Cards, 10GbE NICs, Rail Kit |
| Supported Protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized, iSCSI, HTTP, HTTPS, FTP, SNMP, LDAP, CalDAV |
| Max Volume Size | 108 TB (200 TB with 32 GB RAM) |
| Max Internal Volumes | 64 |
| RAID Types | Synology Hybrid RAID, Basic, JBOD, RAID 0, 1, 5, 6, 10 |
| File Systems | Btrfs, ext4 (Internal); Btrfs, ext4, ext3, FAT, NTFS, HFS+, exFAT (External) |
| Max SMB/AFP/FTP Connections | 2,000 |
| Max Users | 2,048 Local Users, 256 Local Groups, 512 Shared Folders |
| Max IP Cameras | 75 channels (720p, 1080p, 3M, 5M); 55 channels (4K) |
| Max Concurrent Users | 150 for Synology Chat, 600 for Synology Drive, 1,800 for Synology Office |
| Backup | Hyper Backup (Full System), MailPlus (1,484,000 emails/day) |
| Supported Browsers | Chrome, Firefox, Edge, Safari |
| Supported Languages | Multiple languages including English, Deutsch, Français, Español, 中文, etc. |
