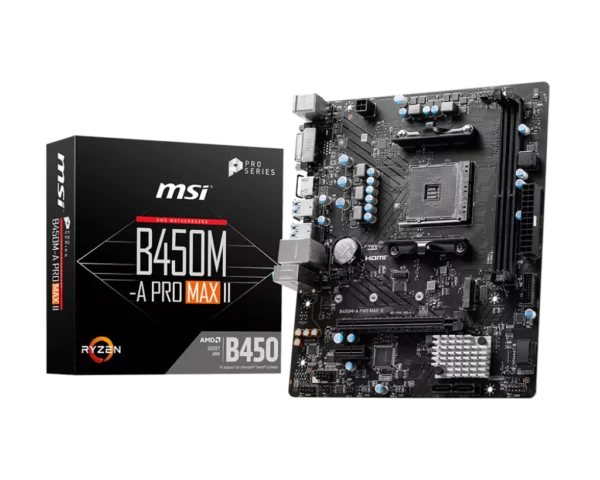

MSI B450 M-A Pro Max II AMD B450 AM4 Micro ATX Motherboard
Elevate your computing experience with the MSI B450 M-A Pro Max II, an advanced AMD B450 AM4 Micro ATX Motherboard that seamlessly combines performance with flexibility. Designed for enthusiasts and professionals, this motherboard is your key to unlocking the full potential of your PC.
- Optimized for AMD Ryzen: Supports AMD Ryzen 1st, 2nd, and 3rd generation processors for exceptional performance.
- DDR4 Boost Technology: Enhanced memory performance with DDR4 Boost, offering stability and efficiency.
- Audio Boost: High-quality audio capacitors and an isolated audio design ensure immersive sound quality.
- Turbo M.2 Slot: Ultra-fast storage performance for faster boot times and quicker data access.
- Core Boost Technology: Delivers precise power to the CPU for high performance and reliability.
Transform your system into a powerhouse with superior processing capabilities. Whether you’re gaming, designing, or multitasking, this motherboard provides a stable, high-speed platform for all your computing needs. The MSI B450 M-A Pro Max II combines robust construction with a user-friendly layout, making installation and upgrades hassle-free.
Crafted with high-quality materials, this motherboard ensures durability. Its compact Micro ATX form factor fits effortlessly into a variety of cases, making it an ideal choice for both new builds and upgrades. Experience the perfect blend of performance and reliability with MSI.
CHIPSET | AMD B450 |
---|---|
CPU SUPPORT | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors Socket AM4 |
MEMORY | 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE) Supports Dual-Channel mode Supports non-ECC, UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
ONBOARD GRAPHICS | 1x HDMI™ Support HDMITM 1.4, maximum resolution of 4K 24Hz* 1x DVI Support DVI-D, maximum resolution of 1920×1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
EXPANSION SLOT | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset) |
STORAGE | 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
LAN | Realtek® 8125 2.5Gbps LAN controller |
AUDIO | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
INTERNAL I/O | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |

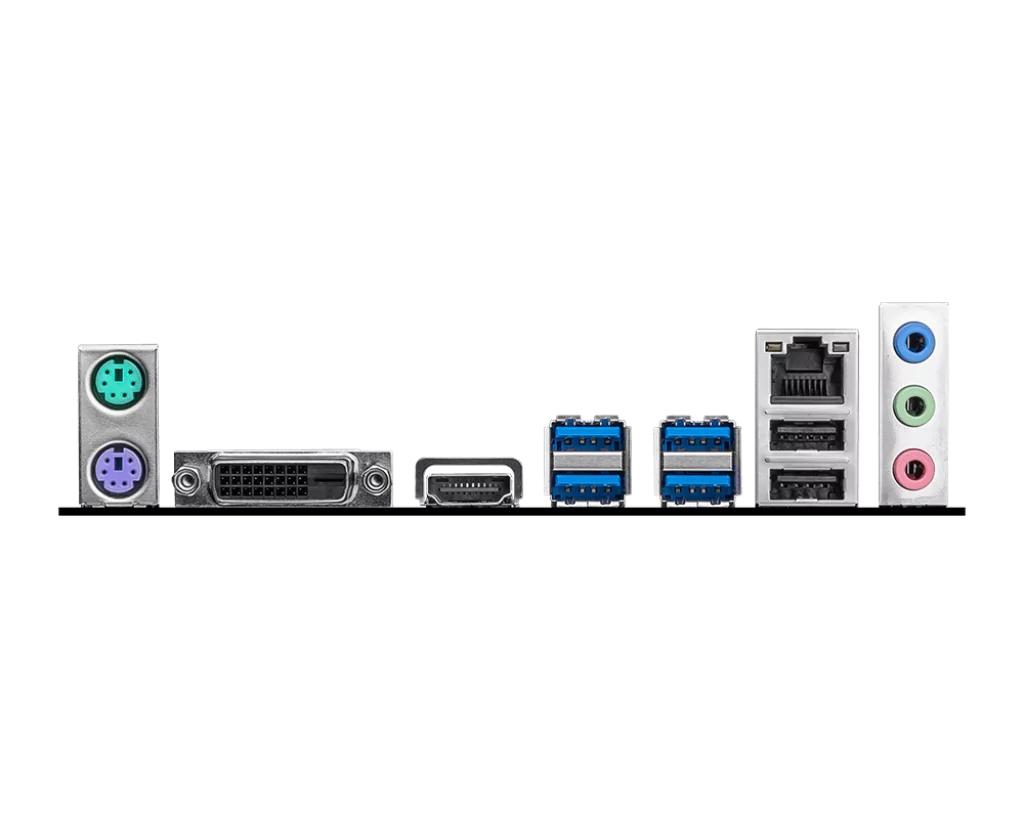

BACK PANEL PORTS |
|
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
PCB DIMENSION (W × L) | mATX 200mmx236mm |
BOX CONTENT |
