Intel Motherboards, MotherboardsNEW!

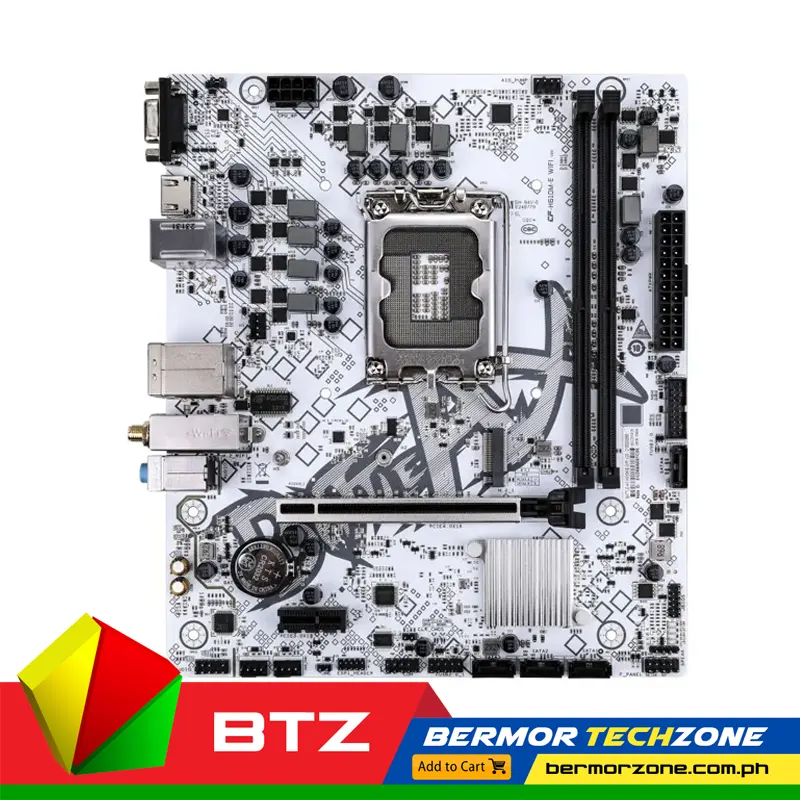

Colorful BATTLE-AX H610M-E WIFI V20 White PCB LGA 1700 Intel Micro ATX Motherboard
Availability:
Domestic or Local Stocks via Bermor Techzone
Feature Highlights:
- Intel H610 chipset
- Support dual-channel DDR4-3200MHz memory
- Provide 1 PCIe 3.0 x4 M.2 SSD slot
- Equipped with HDMI+VGA display interface
- Equipped with Realtek 8111H Gigabit wired network card, RTL8821CE/AC3165 WiFi 5 Wireless network, Bluetooth 4.2
- Realtek ALC897 sound card chip with up to 5.1 channels
- Rear: 2 USB 3.2 Gen 1 Type-A interfaces, 2 USB 2.0 interfaces
- Front: 2 USB 3.2 Gen 1 Type-A interfaces, 2 USB 2.0 interfaces
₱4,250.00 ₱5,550.00
Domestic or Local Stocks via Bermor Techzone
| Product image |  |
|---|---|
| Model | BATTLE-AX H610M-E WIFI V20 |
| Product Series | BATTLE-AX series |
| Chipset | Intel H610 |
| Processor | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor (* Please visit www.colorful.cn for the latest memory compatibility list) |
| Memory | 2 DDR4 memory slots are provided, which can support up to 64 GB of memory (a single slot can support up to 32 GB of memory) – DDR4-3200/2933/2666/2400MHz memory – support dual-channel memory technology (* Please visit the official website of Rainbow for the latest memory compatibility list) |
| SATA Ports | A total of 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces are supported – M2_ 1 slot: supports 2242/2280 specification M.2 SSD (PCIe 3.0 x4, PCH channel) |
| Board I/O | Rear I/O: – 1×PS/2 interface – 4×USB 2.0 interfaces – 2×USB 3.2 Gen 1 Type-A interfaces – 1×HDMI 2.0 interface, Up to 4K 60Hz resolution – 1×VGA interface – 1×Gigabit network interface – 3×Audio interfaces (audio input/audio output/microphone) On board: – 1×CPU fan pin – 2×System fan pins – 1×water cooling pump pin – 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces – 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces – 1×Front audio pin – 1×Front panel pin – 1×Speaker pin – 1×COM port pin – 1×ME write protection jumper – 1×Clear CMOS jumper – 1×BIOS burner pin – 1×POST Card pin – 1×Wake-up control jumper |
| Expansion Slots | 1 PCIe 4.0 x16 slot 1 PCIe 3.0 x1 slot |
| BIOS | 128M UEFI, supporting multiple languages |
| Power Management | Support S3, S4, network S5 wake-up, support timed startup, call startup |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8111H Gigabit network card, RTL8821CE/AC3165 WiFi 5 Wireless network, Bluetooth 4.2 |
| Audio | 5.1 sound card |
| Configuration | M-ATX 225mm x 194mm |
Specs May change without further notice
