CPU
Supports AMD Ryzenโข 5000 & 3000 Series desktop processors (not compatible with AMD Ryzenโข 5 3400G & Ryzenโข 3 3200G) and AMD Ryzenโข 4000 G-Series desktop processors
CHIPSET
AMD B550 Chipset
MEMORY
- 4x DDR4 memory slots, support up to 128GBย 1
- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
- 1DPC 1R max speed 4400 MHZ
- 1DPC 2R max speed 3733 MHZ
- 2DPC 1R max speed 3866 MHZ
- 2DPC 2R max speed 3466 MHZ
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory
- Supports un-buffered memory
- Please refer www.msi.com for more information on compatible memory.
EXPANSION SLOT
- 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)ย 1
- 2x PCIe 3.0 x1 slots
- The supported specification depends on installed processor.
ONBOARD GRAPHICS
- 1x VGA port, supports resolution of 2048×1536 @50Hz, 2048×1280 @60Hz, 1920×1200 @60Hzย 1
- 1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hzย 1
- 1x HDMIโข 2.1 port, supports a maximum resolution of 4096×2160 @60Hzย 1ย 2
Support HDCP 1.4 & 2.3 - Maximum shared memory of 16 GB
- Available for the processor with integrated graphics.
- Graphics specifications may vary depending on the CPU installed.
STORAGE
AMD B550 Chipset
- 4x SATA 6Gb/s ports
- 2x M.2 slots (Key M)
- M2_1 slot (from AMD Processor)
- Supports PCIe 4.0/ 3.0 x4ย 1
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- M2_2 slot (from AMD B550 chipset)
- Supports PCIe 3.0×4
- Supports 2242/ 2260/ 2280 storage devices
- M2_1 slot (from AMD Processor)
- The supported specification depends on installed processor.
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
AMD B550 Chipset
- 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
- 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AUDIO
Realtekยฎย ALC892/ALC897 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Realtekยฎย 8111HN Gigabit LAN controller
WIRELESS LAN & BLUETOOTHยฎ
Wi-Fi AC
- Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed.
- Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2
INTERNAL CONNECTORS
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 2x M.2 slots (M-Key)
- 1x USB 3.2 Gen 1 5Gbps Type-C port
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 3x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Serial port connector
- 1x Chassis Intrusion connector
- 2x 4-pin RGB LED connectors
- 2x 3-pin RAINBOW LED connectors
- 1xTPM module connector
- 1x Clear CMOS jumper
BACK PANEL PORTS
- VGA
- USB 3.2 Gen 1 5Gbps Type-A
- Keyboard / Mouse
- LAN
- Flashย BIOS Button
- DisplayPort
- HDMIโข
- USB 2.0
- USB 3.2 Gen 1 5Gbps Type-A
- Wi-Fi Antenna connectors
- 3x Audio jacks
DIMENSIONS
- Micro-ATX Form Factor
- 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
MOUNTING
8 mounting holes
BOX CONTENT
- MSIยฎย does not guarantee the risks or damages caused by changing the cover.
- These pictures are for reference only and may vary without notice.
I’ve been using this board for almost a week now and it’s working smoothly! The ethernet cable is faster than the wifi as expected, but if you don’t want the cable line lying around, you can just use the wifi, it’s just slightly slower but not that noticeable. overall this store earned my trust! thank you!
The mobo is great and it works well. Nakatipid na kaunti by buying from this store.

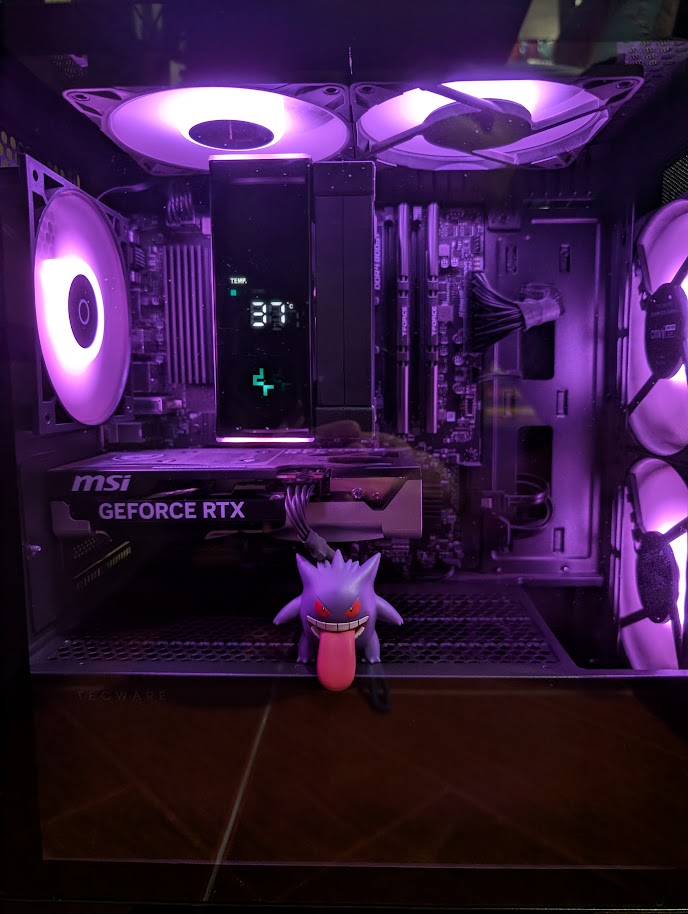

Happy with everything. Super ganda ng pricing. Currently enjoying it with my 6700xt.
Fast shipping. Legit items! Will order again!

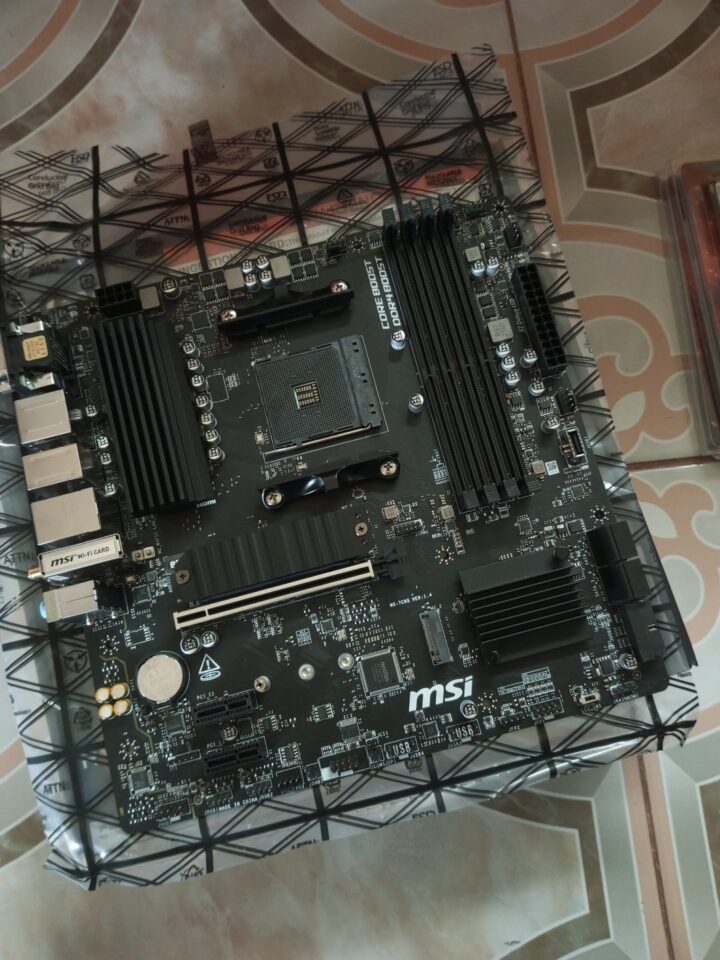

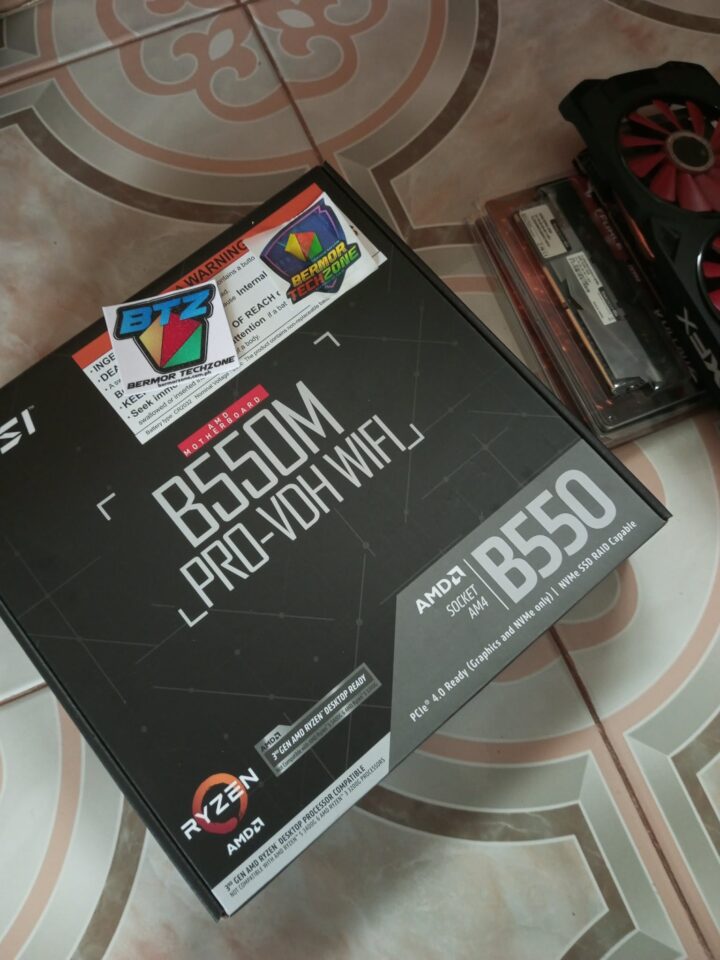

One of the best price-to-performance and budget mobo for AM4. Item arrived with great condition, and the content itself is complete.
