Gigabyte X870 AORUS ELITE WIFI7 ATX AM5 Motherboard
Unlock the full potential of your gaming rig with the Gigabyte X870 AORUS ELITE WIFI7 ATX AM5 Motherboard. Designed for serious gamers and tech enthusiasts, this motherboard offers cutting-edge technology and unparalleled performance to take your computing experience to new heights.
- Supports AMD AM5 processors for high-speed performance
- Advanced WIFI 7 capability for ultra-fast wireless connectivity
- Robust power design ensures stability during intense gaming sessions
- PCIe 5.0 ready for next-gen graphics cards and SSDs
- Enhanced thermal solution with Fins-Array Heatsink and Thermal Guard III
- RGB Fusion 2.0 with multiple lighting options for personalized aesthetics
Experience seamless multitasking and high-performance gaming with the Gigabyte X870 AORUS ELITE. Its superior thermal design ensures your system stays cool, even under heavy loads, and the advanced WIFI 7 technology provides blazing-fast internet speeds, perfect for online gaming and streaming.
Crafted with high-quality materials, this motherboard is built to last. Upgrade your system with confidence and enjoy a superior, lag-free gaming experience.
Category | Details |
---|---|
CPU | AMD Socket AM5, supports: – AMD Ryzen™ 9000 Series Processors – AMD Ryzen™ 8000 Series Processors – AMD Ryzen™ 7000 Series Processors (Refer to GIGABYTE’s website for the latest CPU support list) |
Chipset | AMD X870 |
Memory | – Supports DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory – 4 x DDR5 DIMM sockets (max 256 GB) |
Memory Architecture | – Dual channel – Supports non-ECC Un-buffered DIMM – Supports AMD EXPO™ and XMP memory modules |
Onboard Graphics | Integrated AMD Radeon™ Graphics: – 2 x USB4® Type-C® (DisplayPort 1.4, 3840×2160@240 Hz) – 1 x HDMI (HDMI 2.1, 4096×2160@60 Hz) – 1 x front HDMI (HDMI 1.4, 1920×1080@30 Hz) – Quad-display support |
Audio | – Realtek® ALC1220 CODEC – High Definition Audio, 2/4/5.1/7.1-channel – Supports S/PDIF Out |
LAN | Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) |
Wireless Communication | MediaTek Wi-Fi 7 MT7925 / Realtek® Wi-Fi 7 RTL8922AE (depending on PCB version) – Supports 2.4/5/6 GHz bands – Bluetooth 5.4 – Wi-Fi 7 requires Windows 11 SV3 |
Expansion Slots | – 1 x PCIe 5.0 x16 (for Ryzen™ 9000/7000), or PCIe 4.0 x8/x4 (for Ryzen™ 8000) – 1 x PCIe 4.0 x4 – 1 x PCIe 3.0 x2 |
Storage Interface | – 4 x M.2 connectors (PCIe 5.0/4.0) – 4 x SATA 6Gb/s connectors – RAID 0/1/5/10 (for NVMe and SATA devices) |
USB Ports | – 2 x USB4® Type-C® (back) – 4 x USB 3.2 Gen 1 (back) – 4 x USB 2.0/1.1 (back) – Internal USB 3.2 Gen 2×2 and USB 3.2 Gen 1 headers |
Internal I/O Connectors | – 24-pin ATX, 2 x 8-pin ATX 12V – 1 x CPU fan, 6 x system/water cooling fan headers – 4 x M.2, 4 x SATA 6Gb/s connectors |
Back Panel Connectors | – Q-Flash Plus button – 2 x USB4® Type-C® – 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 – HDMI, RJ-45, optical S/PDIF Out, 2 x audio jacks |
Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
Operating System | Supports Windows 11 64-bit |
Specification may change without further notice.

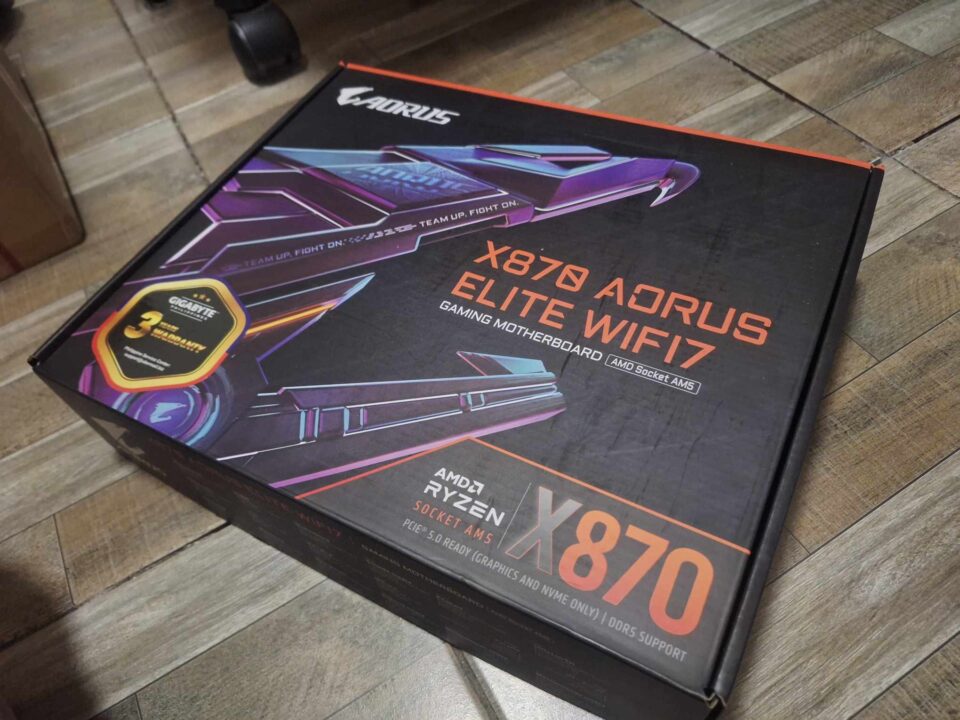

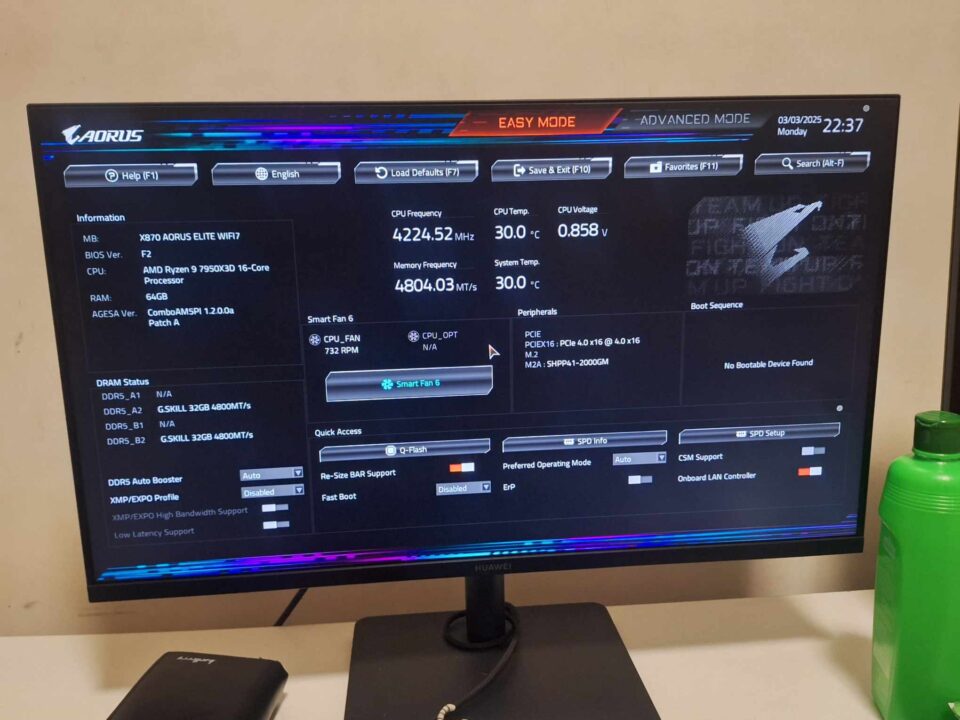

Product Arrived on time, and in well condition. I had to flash mine since it was a little outdated but there are no issues after the update. Overall satisfied with my order
