Gigabyte B550M DS3H ARGB Gaming Motherboard

55 reviews
Availability:

Domestic or Local Stocks via Bermor Techzone


Recently Sold: 457

Specification:

  • Supports 3rd Gen AMD Ryzen Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra Durable PCIe 4. 0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4. 0/3. 0 M. 2 Connectors
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • GIGABYTE Exclusive 8118 Gaming GbE LAN with Bandwidth Management

5,095.00 5,950.00

Domestic or Local Stocks via Bermor Techzone

Step by Step PC Builder Here!
CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series
Chipset AMD B550
Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor:
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Support for up to 3 displays at the same time
Maximum shared memory of 16 GB
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset
1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset
Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset
USB CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O 1 x 24-pin ATX main power connector
Connectors 1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
Back Panel 1 x PS/2 keyboard/mouse port
Connectors 1 x DVI-D port
1 x DisplayPort
1 x HDMI port
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control*
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for APP Center
@BIOS
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

Specification may change without further notice.

SKU: GA-B550M-DS3H Categories: , ,
Brands

Q & A

There are no questions yet

Ask a question

Your question will be answered by a store representative or other customers.

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

Warning

An error occurred when saving your answer. Please report it to the website administrator. Additional information:

55 reviews for Gigabyte B550M DS3H ARGB Gaming Motherboard

4.9
Based on 55 reviews

Customer Images

Image #1 from Allen Mejia

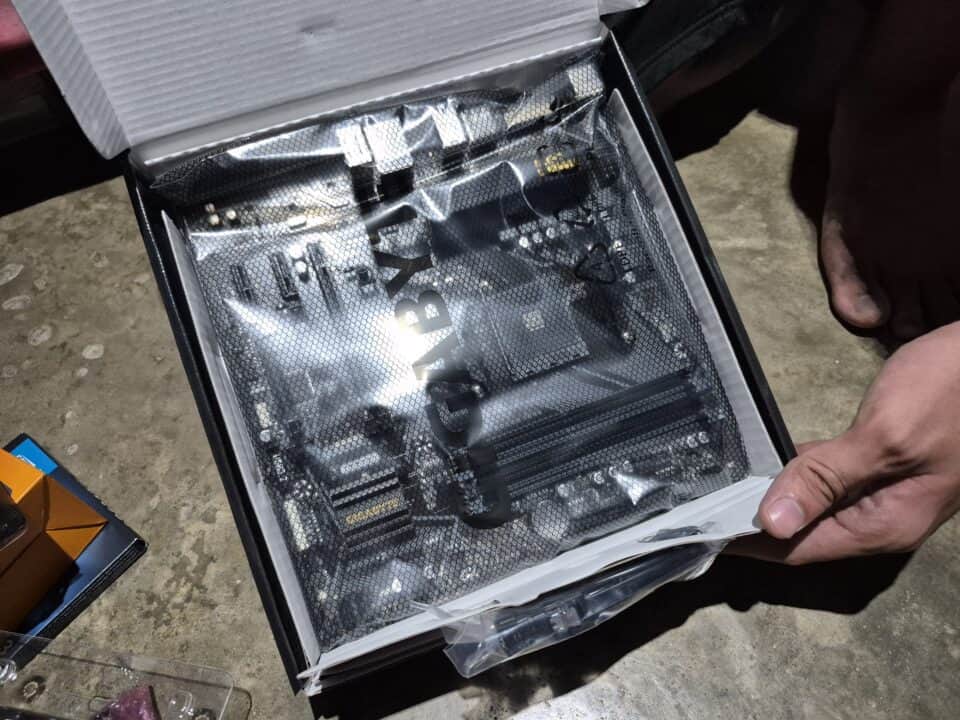

Image #2 from Martin Allen Mejia
