SAPPHIRE NITRO+ & PULSE AMD Radeon™ RX 7800 Series are designed with digital power which provides accurate power control and excellent power efficiency
Ultra High Performance Conductive Polymer Aluminum Capacitor
The Ultra High Performance Conductive Polymer Aluminum Capacitor has a small PCB foot print but high volumetric capacitance that makes 14-phase power possible on the RX 7800 series graphics card. The capacitor offers stable capacitance at a high frequency and temperature with very low signal noise, ensuring the stability and reliability of the product.
High TG Copper PCB
The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.
Angular Velocity Fan Blade
The Angular Velocity Fan Blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Component
Specification
GPU
AMD Radeon™ RX 7800 XT Graphics Card
Manufacturing Process
5nm
Architecture
AMD RDNA™ 3
Stream Processors
3840
Compute Units
60 CU (with RT+AI Accelerators)
Infinity Cache
64MB
Ray Accelerators
60
Memory Size/Bus
16GB/256 bit GDDR6
Maximum Displays Supported
4 Displays
Max Resolution (HDMI)
7680×4320
Max Resolution (DisplayPort)
7680×4320
Interface
PCI-Express 4.0 x16
Outputs
2x HDMI, 2x DisplayPort
BIOS Support
UEFI
Game Index
4K
Sapphire Features
Digital Power Design
Ultra High Performance Conductive Polymer Aluminum Capacitors
Fuse Protection
High TG Copper PCB
Optimized Composite Heatpipe
Dual-X Cooling Technology
Intelligent Fan Control
Precision Fan Control
Metal Backplate
Angular Velocity Fan Blade
Dual-Ball Bearing Fans
TriXX Supported
TriXX Boost
AMD Features
AMD RDNA™ 3 Architecture
60 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
64MB AMD Infinity Cache™ Technology
DisplayPort™ 2.1 Support
AMD Radiance Display™ Engine
16GB GDDR6 on 256-Bit Memory Bus
PCI® Express 4.0 ready
AMD FidelityFX™ Super Resolution technology
Microsoft® DirectX® 12 Ultimate Support
Microsoft® DirectStorage Support
Vulkan® Optimized
AMD Smart Technologies
AMD Software: Adrenalin Edition™
AMD Noise Suppression
AMD Privacy View
AMD Radeon™ Super Resolution technology
AMD Link
AMD FreeSync™ Technology
Cooling
2 Fans
Form Factor
2.5 slot, ATX
Dimensions: 280(L)X 128.75(W)X 52.57 (H)mm
Power Consumption
266W Total Board Power
Supported Operating Systems
Linux®, Windows® 10, and Windows 11. 64-bit OS required
System Requirements
Minimum 700 Watt Power Supply
2 x 8-pin Power Connector
PCI Express® based PC with one X16 lane graphics slot
10 reviews for Sapphire PULSE AMD Radeon RX 7800 XT 16GB GDDR6 256 Bit Graphics Card
4.6
Based on 10 reviews
5 star
90
90%
4 star
0%
3 star
0%
2 star
0%
1 star
10
10%

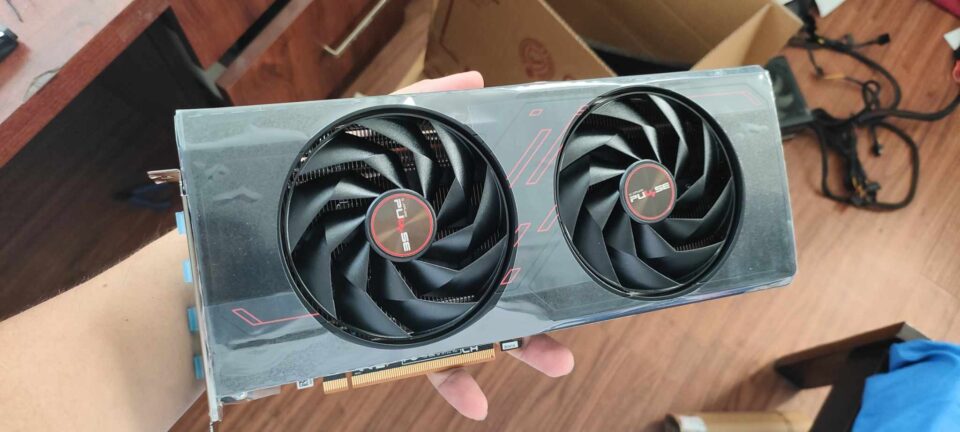

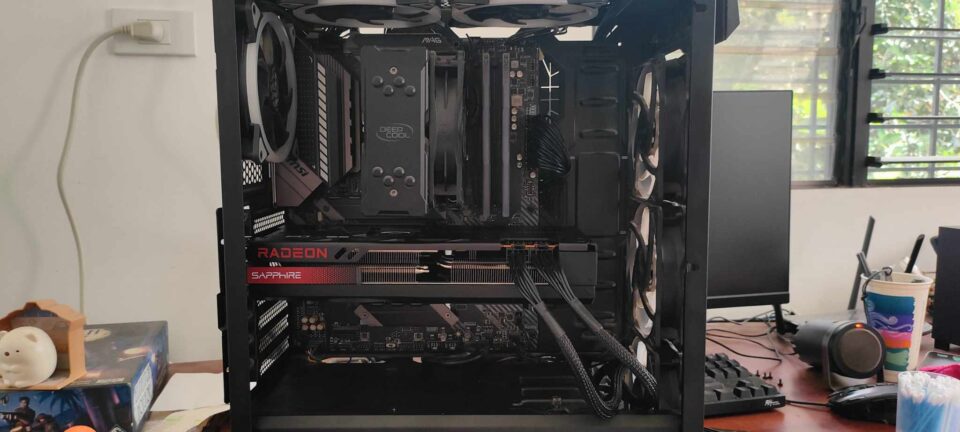

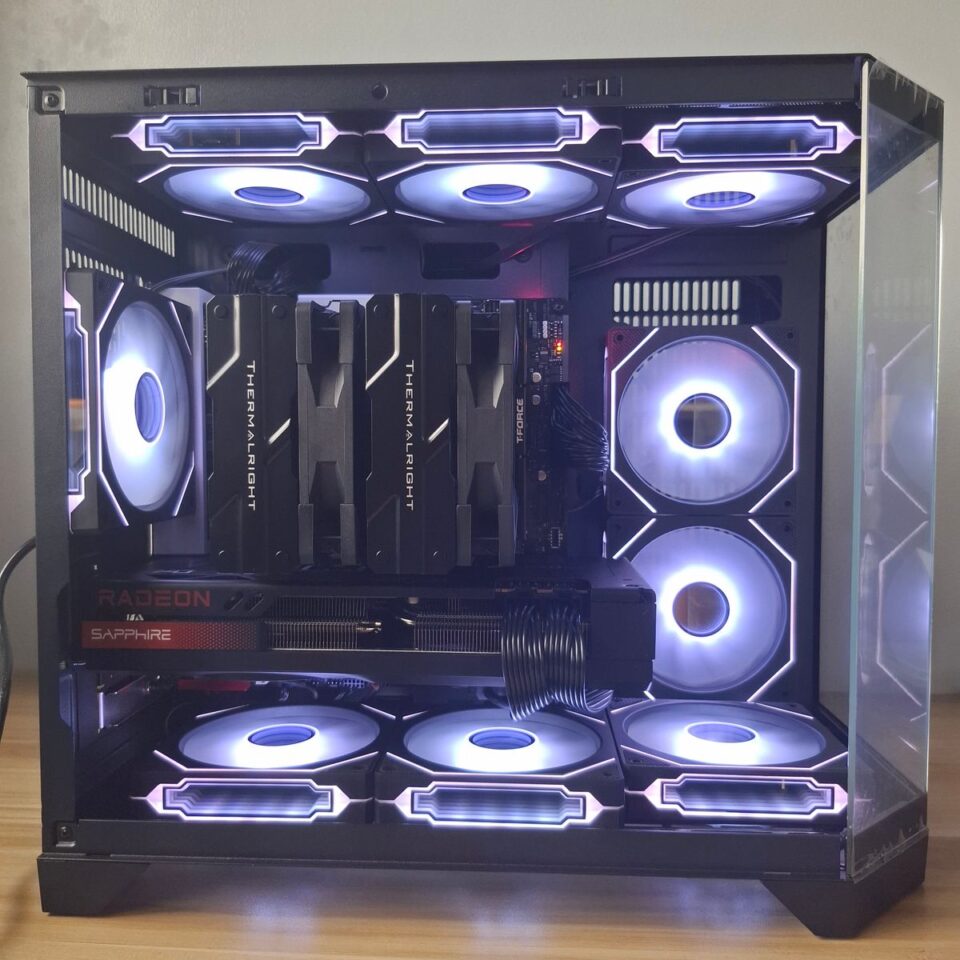

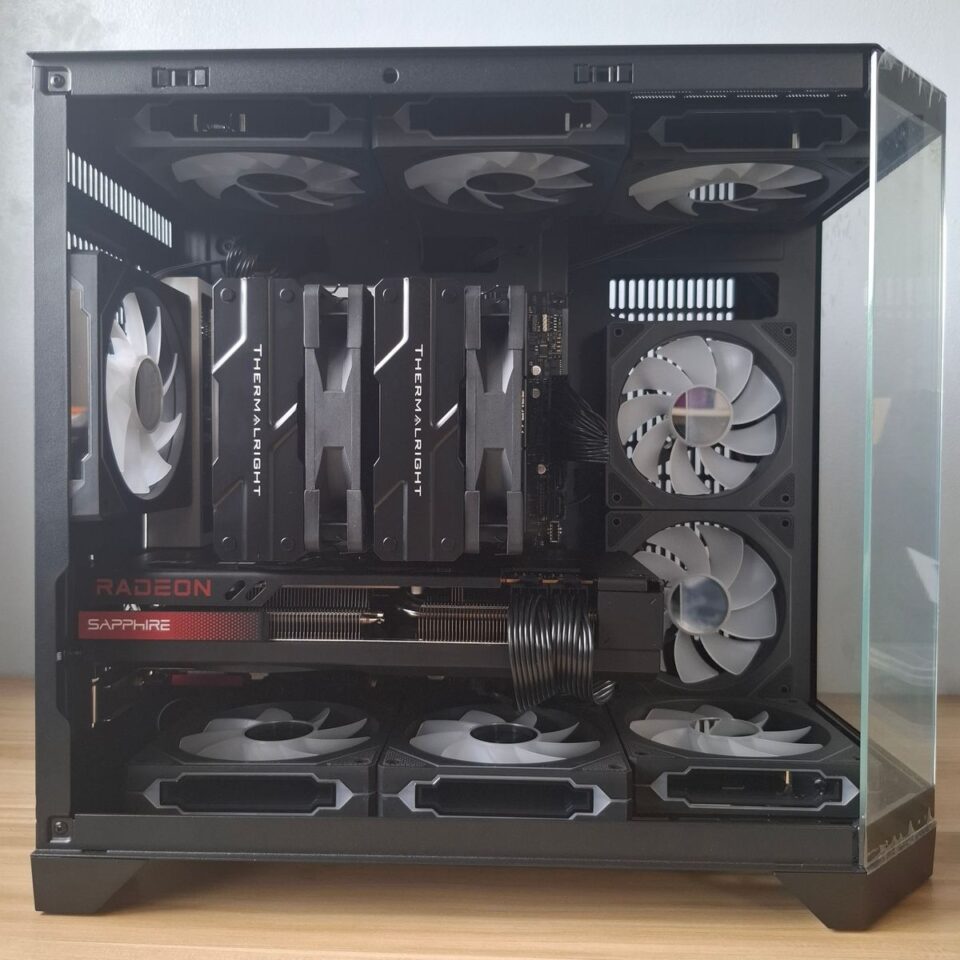

Customer Images
