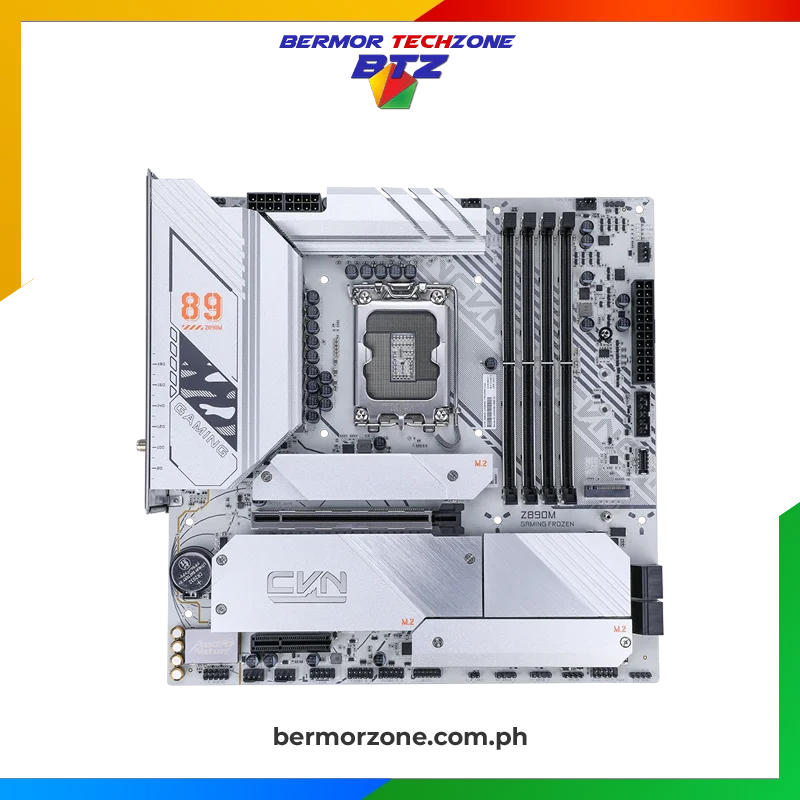

Colorful CVN Z890M Gaming Frozen V20 Motherboard
Availability:
Out of Stock. Check Counterpart Models
- Powerful Performance: Supports Intel® Core™ Ultra processors with LGA 1851 socket.
- High-Speed Memory Support: 4 DDR5 slots with up to DDR5-8400(OC) support.
- Versatile Storage Options: 5 M.2 slots (including PCIe 5.0) and 4 SATA 6Gb/s ports with RAID support.
- Comprehensive Connectivity: Multiple USB 3.2 ports, including 20Gbps Type-C, HDMI 2.0, and DP 1.4.
- Enhanced Network Capability: 2.5G LAN, Wi-Fi 6E, and Bluetooth 5.3 support.
- Rich Expansion and Customization: PCIe 5.0 x16 slot, multiple fan headers, ARGB/RGB headers, and water pump support.
- Advanced Audio and BIOS: Realtek ALC897 audio and 128M UEFI BIOS with multi-language support.
- Compact Form Factor: M-ATX configuration suitable for smaller builds without compromising on features.
₱13,350.00 ₱13,500.00
6-Month Grace monthly payment:
₱1,346
12-Month Full Interest monthly payment:
₱1,579
Learn more about Billease Installment at Checkout
Out of Stock. Check Counterpart Models
Want to be Notified upon Restock
We will inform you when the product toggled in stock. Please leave your valid email address below.
Add to WishlistAlready In Wishlist
Add to Wishlist
| Feature | Specification |
|---|---|
| Model | CVN Z890M GAMING FROZEN V20 |
| Product Series | CVN Series |
| Chipset | Intel Z890 |
| Processor Support | Intel® Core™ Ultra processors (LGA 1851 socket) |
| Memory | – 4 DDR5 slots, up to 192 GB (48 GB per slot) |
| – DDR5-8400(OC) to DDR5-4800 MHz support | |
| – Intel® Extreme Memory Profile (XMP) | |
| – Dual channel memory technology | |
| Storage (SATA & M.2) | – 5 M.2 Slots: |
| – M.2_1: PCIe 5.0 x4 (CPU) | |
| – M.2_2: PCIe 4.0 x4 (CPU) | |
| – M.2_3 to M.2_5: PCIe 4.0 x4 (PCH) | |
| – 4 SATA 6Gb/s ports | |
| – RAID 0, 1, 5, 10 support | |
| Rear I/O Ports | – 4× USB 3.2 Gen 1 (5Gbps, Type-A) |
| – 2× USB 3.2 Gen 2 (10Gbps, Type-A) | |
| – 1× USB 3.2 Gen 2 (10Gbps, Type-C) | |
| – 1× USB 3.2 Gen 2×2 (20Gbps, Type-C) | |
| – 1× DP 1.4 (Up to 8K 60Hz) | |
| – 1× HDMI 2.0 (Up to 4K 60Hz) | |
| – 1× 2.5G LAN Port | |
| – 2× Wi-Fi 6E Antenna Interfaces | |
| – 3× Audio Jacks | |
| – 1× BIOS Update Button | |
| Onboard Headers | – 2× USB 2.0 Headers (Supports 4x Type-A) |
| – 1× USB 3.2 Gen 1 Header (2x Type-A) | |
| – 1× USB 3.2 Gen 2 Type-C Header | |
| – 1× CPU Fan Header | |
| – 3× System Fan Headers | |
| – 1× Water Cooling Pump Header | |
| – 3× 5V 3-pin ARGB Headers | |
| – 1× 12V 4-pin RGB Header | |
| – 1× Front Audio Header | |
| – 1× Front Panel Header | |
| – 1× Speaker Header | |
| – 1× COM Port Header | |
| – 1× Clear CMOS Jumper | |
| – 1× BIOS Burner Header | |
| Expansion Slots | – 1× PCIe 5.0 x16 |
| – 1× PCIe 4.0 x4 | |
| BIOS | 128M UEFI, Multi-language support |
| Power Management | – S3/S4 Wake-up, Network S5 Wake-up |
| – USB Wake-up, Timing Boot, Call Boot | |
| Hardware Monitoring | – CPU and System Fan Speed Control |
| – CPU and System Temperature Monitoring | |
| – Voltage Monitoring | |
| LAN | – RTL8125BG 2.5Gbit LAN |
| – AX211 WiFi 6E | |
| – Bluetooth 5.3 | |
| Audio | Realtek ALC897 (5.1 Channel Support) |
| Form Factor | M-ATX (245 x 245 mm) |
| Brands | |
|---|---|
| Intel Chipset | Z890 |
| Form Factor | MATX |
| RAM Generation | DDR5 |
| CPU Socket | LGA 1851 |
