Provide 4 USB 3.2 Gen 1 Type-A high-speed interfaces
Provide 2 PCIe 4.0 x4 M.2 SSD slots
Equipped with Realtek 2.5G high-speed wired network card and AX101 WiFi 6 wireless network card, supporting Bluetooth 5.2
Provide HDMI+VGA display interface
Support iGame Center light efficiency control software, which can synchronously adjust the light efficiency of heat sinks, cooling fans, and memory
Six protection technologies, more stable product operation
200 processes are strictly tested with guaranteed quality
PCB atomization process comprehensively upgraded
Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor
(* Please visit www.colorful.cn for the latest memory compatibility list)
Memory
2 DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory)
– Support DDR5-7600 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory
– Support Extreme Memory Profile (XMP) memory technology
– Supports dual channel memory technology
(* Please visit www.colorful.cn for the latest memory compatibility list)
SATA Ports
2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices
– M.2_1 slot: supports 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel)
– M.2_2 slot: supports 2242/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)
(* See the official BIOS user guide of Colorful for the steps to create a RAID disk array)
Board I/O
Rear I/O :
-2×USB 2.0 interfaces
-4×USB 3.2 Gen 1 Type-A interfaces
-1×DP 1.2 interface, supports up to 4K 60Hz resolution
-1×HDMI 2.0 interface, supports up to 4K 60Hz resolution
-1×VGA interface
-1×PS/2 interface
-1×2.5G network interface
-2×Wi-Fi 6 antenna interfaces
-3×Audio interfaces (audio input/audio output/microphone)
On board:
-1×CPU fan pin
-2×System fan pins
-1×Water cooling pump pin
-1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces
-1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces
-2×5V 3-pin ARGB pins
-1×Front audio pin
-1×Front panel pin
-1×Speaker pin
-1×COM port pin
-1×ME write protection jumper
-1×Clear CMOS jumper
-1×BIOS burner pin
-1×POST card pin
-1×PS/2 Wake-up control jumper
Expansion Slots
1×PCIe 4.0 x16 slot
1×PCIe 3.0 x4 slot
BIOS
128M UEFI, support multiple languages
Power Management
Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot
Hardware Monitor
CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring

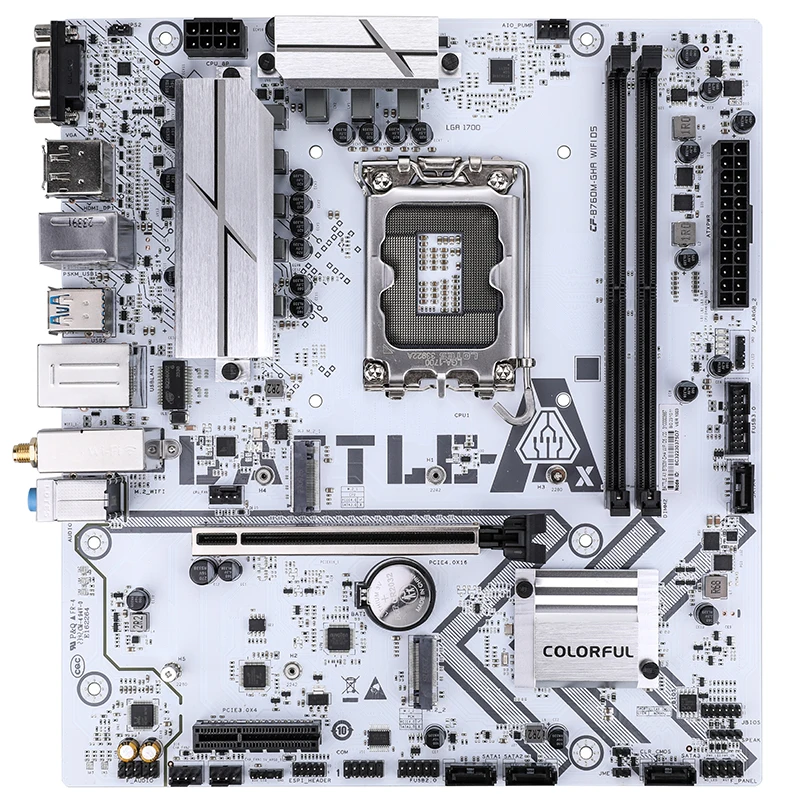

Colorful BATTLE-AX B760M-GHA WIFI D5 V20 White Micro ATX Motherboard
