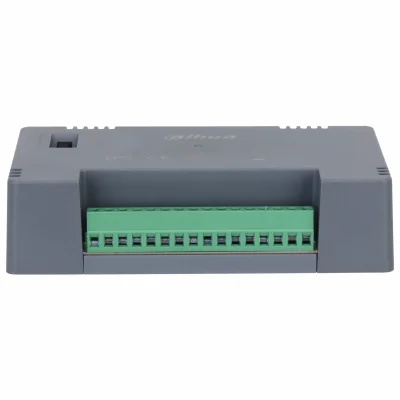

Dahua DH-PFM344D-8CH-US Switching Power Supply

Availability:

Domestic or Local Stocks via Bermor Techzone
  • Outputs through 8 channels and can supply to multiple devices at the same time.
  • The output voltage can be adjusted to 3 levels, making it easily adapt to various types of devices.
  • Easy to install, the device supports wall mount installation.
  • Designed with protection against overcurrent, overvoltage, and short circuits.
  • Surge protection: common mode: ±4 kV, differential mode: ±2 kV.
  • V-0 fireproof.
  • CE certification.
  • Efficiency Level: VI.

₱770.00

Domestic or Local Stocks via Bermor Techzone

Step by Step PC Builder Here!
Function
Input Voltage 185 VAC–240 VAC
Output Voltage Normal: 12 VDC<br>Long: 13.5 VDC<br>Ex-Long: 15 VDC
Rated Output Current Normal: 5 A<br>Long: 4.5 A<br>Ex-Long: 4 A
Rated Power Output power: 12 W (for one channel)<br>Total power: 60 W
Power Consumption In Idle ≤0.21 W
Efficiency ≥87%
Port
Input Port 2-core female seat C8, with North American standard cable
Output Plug 8 channel output terminal
Protection
Protection Overcurrent protection, overvoltage protection, and short circuit protection
Surge Protection Grade Common mode: ±4 kV<br>Differential mode: ±2 kV
Statics Protection Air discharge: ±8 kV<br>Contact discharge: ±6 kV
Structure
Installation Wall mount
Product Dimensions 140.1 mm × 94.5 mm × 34.2 mm (5.52″ × 3.72″ × 1.35″)
Appearance Color Gray
Net Weight 0.27 kg (0.60 lb)
Gross Weight 0.35 kg (0.77 lb)
Packaging Dimensions 143 mm × 41 mm × 144 mm (5.63″ × 1.61″ × 5.67″)
Environment
Operating Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Operating Humidity 10%–90% (RH)
Storage Temperature –40 °C to +80 °C (–40 °F to +176 °F)
Storage Humidity 5%–95% (RH)
Compliance Standard
Compliance Standard EN 55032: 2015<br>EN 55035: 2017<br>EN 61000-3-2: 2014<br>EN 61000-3-3: 2013<br>EN 62368-1: 2014 + A11: 2017
