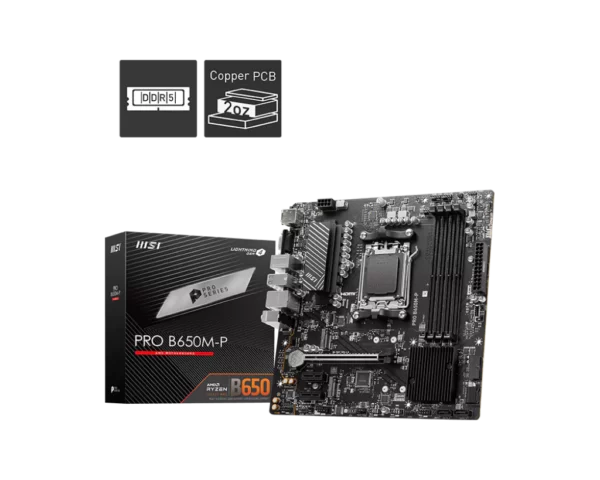

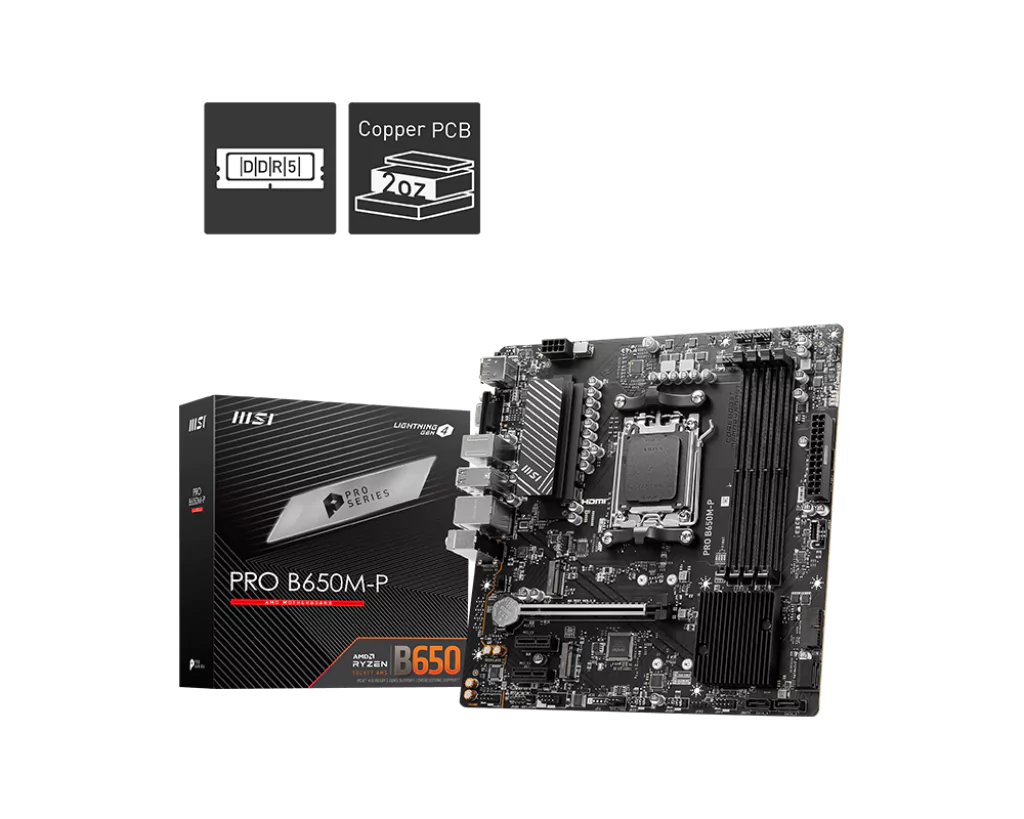

Specification | Details |
---|---|
CHIPSET | AMD B650 |
CPU SUPPORT | Supports AMD Ryzen™ 7000 Series Desktop Processors, Socket AM5 |
MEMORY | 4x DDR5, Maximum Memory Capacity 192GB |
Memory Support | DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
Max. Overclocking Frequency | – 1DPC 1R: Max speed up to 7200+ MHz |
– 1DPC 2R: Max speed up to 6000+ MHz | |
– 2DPC 1R: Max speed up to 6000+ MHz | |
– 2DPC 2R: Max speed up to 5400+ MHz | |
Supports Dual-Channel mode | Yes |
Supports non-ECC, un-buffered memory | Yes |
Supports AMD EXPO | Yes |
ONBOARD GRAPHICS | 1x HDMI™ (Support HDMITM 2.1, max resolution 4K 60Hz*) |
1x DisplayPort (Supports DP 1.4, max resolution 4K 60Hz*) | |
1x VGA (Supports VGA, max resolution 1920×1200 60Hz*) | |
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
EXPANSION SLOT | 1x PCI-E x16 slot |
2x PCI-E x1 slots | |
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) | |
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
STORAGE | 2x M.2 (M.2_1 supports PCIe 4.0 x4, M.2_2 supports PCIe 4.0 x4) |
4x SATA 6G | |
RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
USB | 4x USB 2.0 (Rear) |
4x USB 2.0 (Front) | |
2x USB 3.2 Gen1 Type A (Rear) | |
2x USB 3.2 Gen1 Type A (Front) | |
2x USB 3.2 Gen2 Type A (Rear) | |
1x USB 3.2 Gen2 Type C (Front) | |
LAN | Realtek® 8125BG 2.5G LAN |
AUDIO | Realtek® ALC897 Codec |
7.1-Channel High Definition Audio | |
INTERNAL I/O | Various connectors for power, fans, audio, USB, RGB, TPM, etc. |
LED FEATURE | 4x EZ Debug LED |

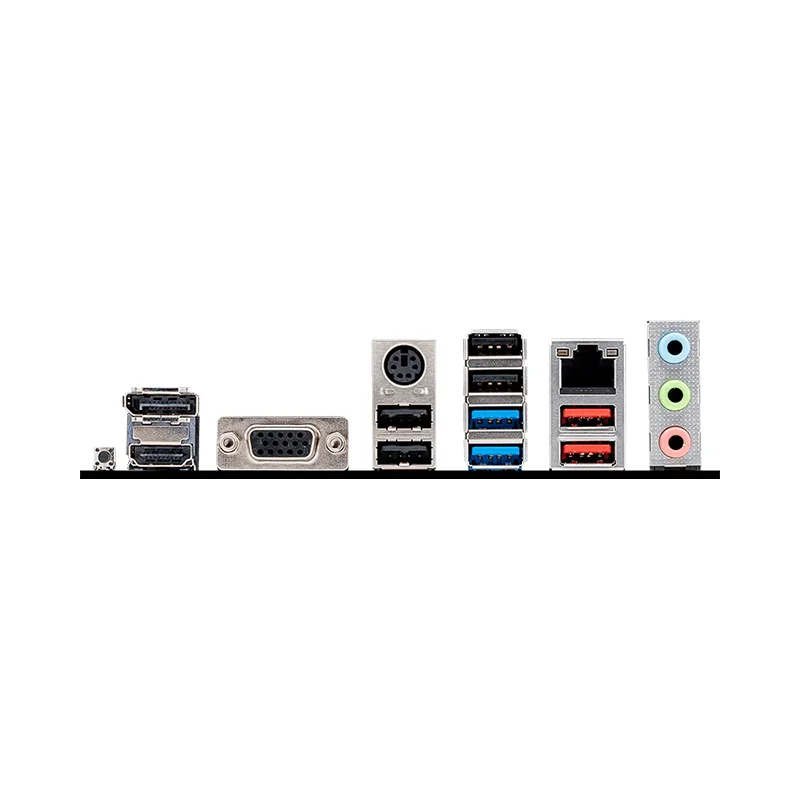

BACK PANEL PORTS | DisplayPort |
VGA | |
Keyboard / Mouse | |
USB 2.0 | |
2.5G LAN | |
Audio connectors | |
Flash BIOS Button | |
HDMI™ | |
USB 2.0 | |
USB 3.2 Gen 1 5Gbps (Type-A) | |
USB 3.2 Gen 2 10Gbps (Type-A) | |
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
PCB DIMENSION (W × L) | mATX 243.84mmx243.84mm |
Specs may change without further notice.
