-18%
AMD Motherboards, Motherboards

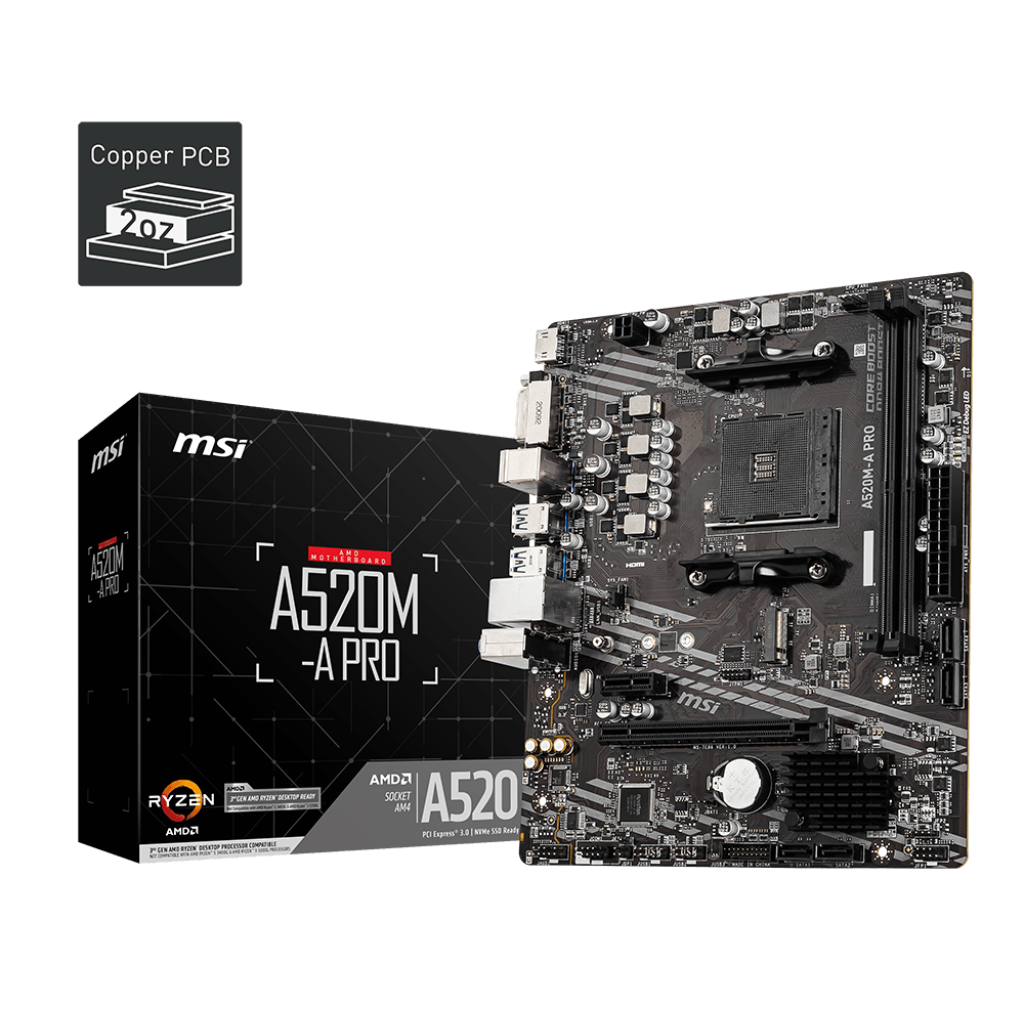

MSI A520M-A PRO Micro ATX Gaming Motherboard
Availability:
Out of Stock. Check Counterpart Models
Specification:
- Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors
- Supports DDR4 Memory, up to 4600(OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Audio Boost: Reward your ears with studio grade sound quality
- Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface
₱3,295.00 ₱4,000.00
6-Month Grace monthly payment:
₱333
12-Month Full Interest monthly payment:
₱390
Learn more about Billease Installment at Checkout
Out of Stock. Check Counterpart Models
Want to be Notified upon Restock
We will inform you when the product toggled in stock. Please leave your valid email address below.
Add to WishlistAlready In Wishlist
Add to Wishlist
MSI A520 M-A PRO Micro ATX Gaming Motherboard
Elevate your gaming experience with the MSI A520 M-A PRO Micro ATX Gaming Motherboard, meticulously designed for gaming enthusiasts who demand performance and reliability. This motherboard serves as the backbone of your gaming setup, offering seamless compatibility with AMD processors and delivering an unbeatable gaming experience.
- Optimized Performance: Supports AMD Ryzen processors, ensuring smooth and efficient multitasking.
- Enhanced Connectivity: Equipped with a variety of ports including USB 3.2 Gen 1 for rapid data transfer.
- Durable Design: Built with premium quality materials, offering extended longevity and stability.
- Advanced Cooling: Features MSI’s patented Core Boost technology for superior thermal management.
- Audio Boost Technology: Enjoy a crystal-clear audio experience that enhances your gaming and entertainment.
With the MSI A520 M-A PRO, you gain the edge in gaming performance. Its robust build and advanced features ensure that your system runs at peak efficiency, allowing you to focus on what truly matters—winning. Easy to install and upgrade, it’s ideal for both novice builders and experienced gamers looking to maximize their system’s potential. Transform your gaming rig into a powerhouse with this exceptional motherboard.
CPU
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
CHIPSET
AMD A520 Chipset
MEMORY
- 2x DDR4 memory slots, support up to 64GB 1
- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
- 1DPC 1R max speed 4600 MHz
- 1DPC 2R max speed 3866 MHz
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
- Please refer www.msi.com for more information on compatible memory.
EXPANSION SLOT
- 1x PCIe 3.0 x16 slot (from AMD processor)1
- Supports x16 speed with Ryzen™ 5000, 5000G, 4000G and 3000 processors
- Supports x8 speed with Ryzen™ 3000G processors
- Supports x4 speed with AMD® Athlon™ with Radeon Graphics processors
- 1x PCIe 3.0 x1 slot
- The supported specification depends on installed processor.
ONBOARD GRAPHICS
- 1x HDMI™ 2.1 port, supports a maximum resolution of 4096×2160 @60Hz12
Support HDCP 1.4 & 2.3 - 1x DVI-D port, supports a maximum resolution of 1920×1200@60Hz1
- Maximum shared memory of 16 GB
- Available for the processor with integrated graphics.
- Graphics specifications may vary depending on the CPU installed.
STORAGE
AMD A520 Chipset
- 4x SATA 6Gb/s ports
- 1x M.2 slot (Key M) (from AMD Processor)
- Supports PCIe 3.0 x4 & SATA 6G/s with Ryzen™ 5000, 5000G, 4000G, 3000 and 3000G processors
- Supports SATA 6Gb/s with Athlon™ with Radeon™ Vega Graphics processors
- Supports 2242/ 2260/ 2280 storage devices
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
AMD A520 Chipset
- 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
- 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AUDIO
Realtek® ALC892/ALC897 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Realtek® RTL8111H Gigabit LAN controller
INTERNAL CONNECTORS
- 1x 24-pin ATX main power connector
- 1x 4-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 1x M.2 slots (M-Key)
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1xTPM module connector
- 1x Clear CMOS jumper
BACK PANEL PORTS
- LAN port
- HDMI™
- DVI-D
- Keyboard / Mouse
- USB 3.2 Gen 1 5Gbps Type-A
- USB 3.2 Gen 1 5Gbps Type-A
- USB 2.0 Ports
- Audio Connectors
DIMENSIONS
- Micro-ATX Form Factor
- 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
MOUNTING
8 mounting holes
BOX CONTENT
- MSI® does not guarantee the risks or damages caused by changing the cover.
- These pictures are for reference only and may vary without notice.
| Brands | |
|---|---|
| AMD Chipset | A520 |
| CPU Socket | AM4 |
| RAM Generation | DDR4 |
| Form Factor | MATX |
