AMD Motherboards, Motherboards

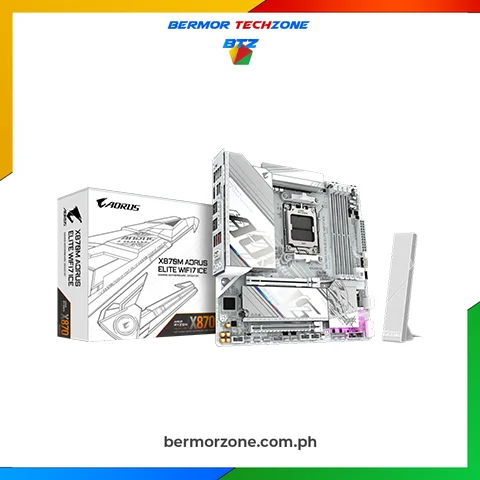

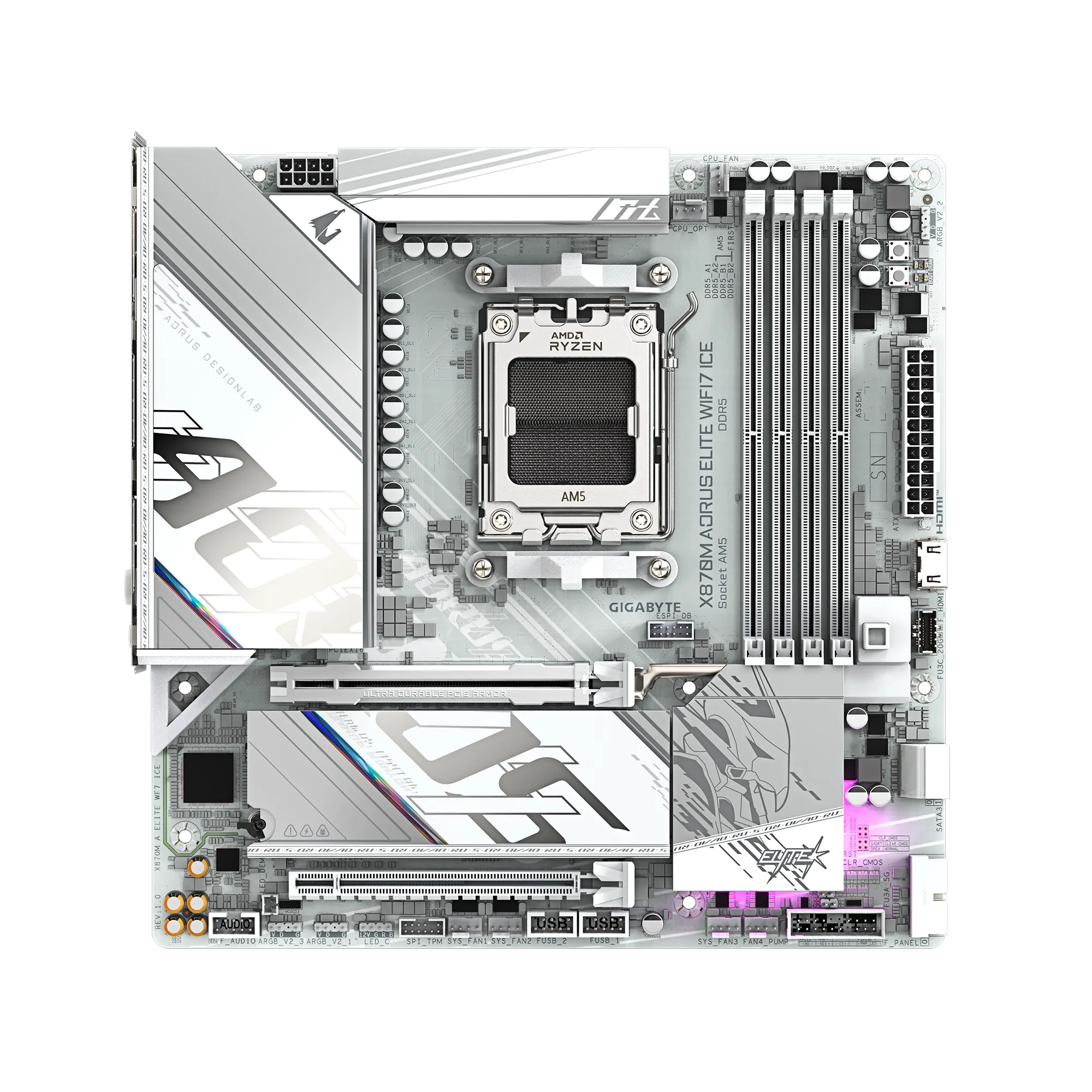

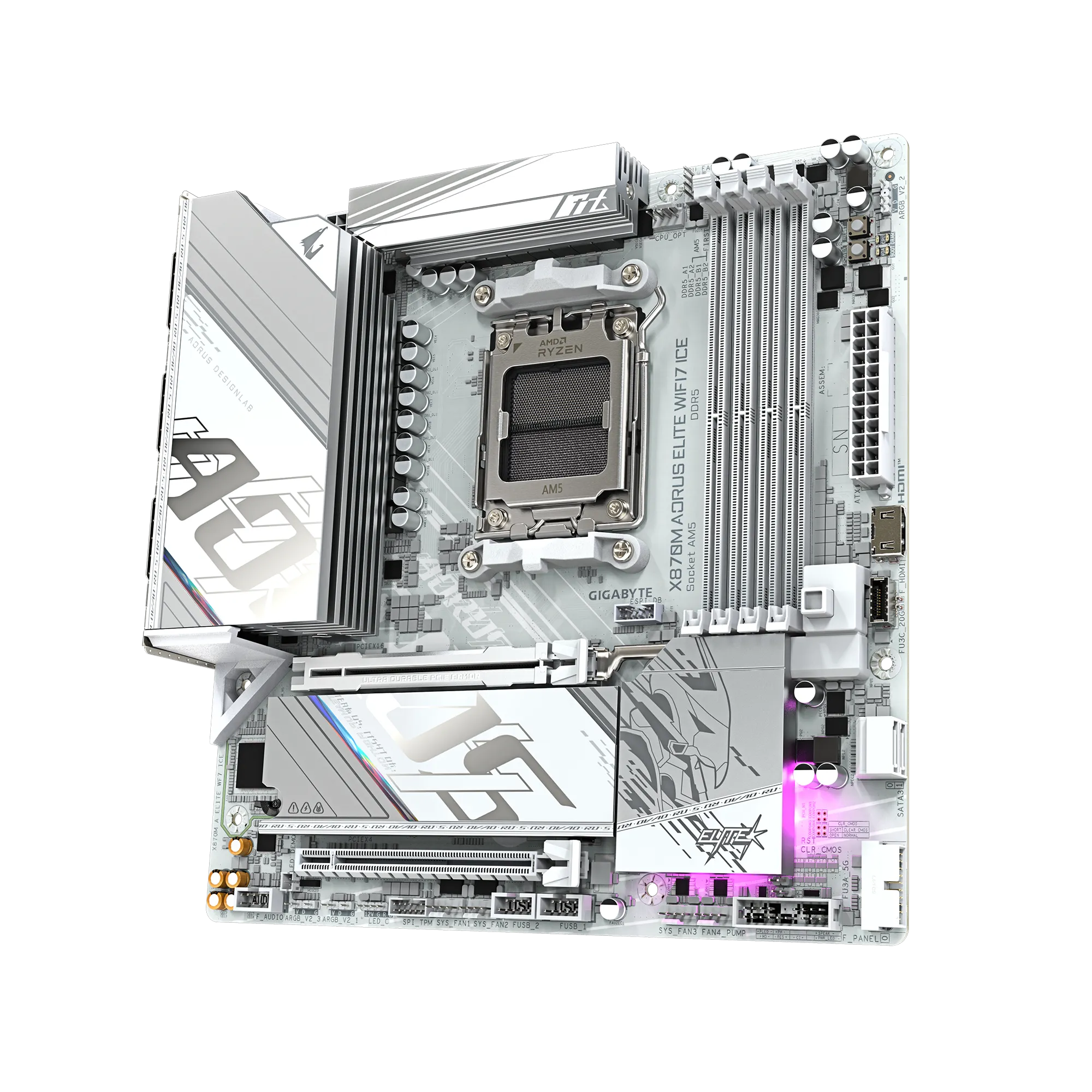

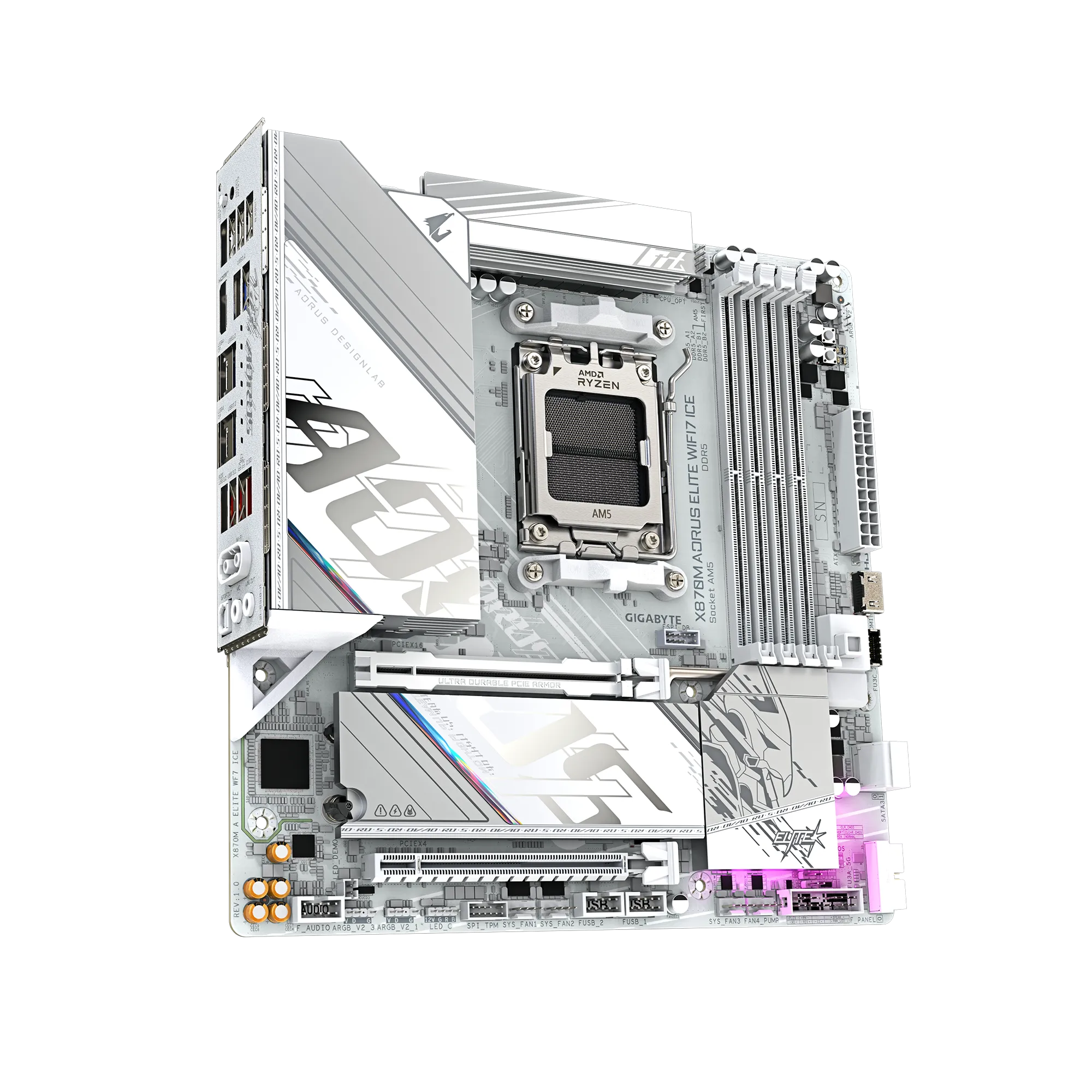

Gigabyte X870M Aorus Elite WIFI7 ICE Micro ATX White AM5 Motherboard GA-X870M-A-ELITE-WF7-ICE
Availability:
Onstock at Online Warehouse
Features
- Supports AMD Ryzen™ 9000, 8000, and 7000 Series processors on the latest AMD Socket AM5 with X870 chipset
- Equipped with 4× DDR5 DIMM slots, supporting up to 256 GB and memory speeds up to DDR5-8200 (OC)
- Integrated graphics support with dual USB4® Type-C® (DP output), HDMI 2.1, and front HDMI 1.4 for multi-display setups
- Offers PCIe 5.0 x16 slot and PCIe Gen5 M.2 support for high-performance GPUs and NVMe SSDs
- Features Realtek® Wi-Fi 7 and 2.5GbE LAN for next-generation wireless and wired connectivity
₱14,450.00
6-Month Grace monthly payment:
₱1,457
12-Month Full Interest monthly payment:
₱1,709
Learn more about Billease Installment at Checkout
Estimated Delivery: Jul 1 - Jul 6, 2026 (Business Days)
Onstock at Online Warehouse
⚡ 24-Hour Shipping Eligible – In-Stock & Ready to Ship
Check items here that is part of our 99% Same-Day Shipping program displayed with 24 Hours Delivery Banner.
✔ Orders placed before 2:00 PM have the highest chance for same-day shipping or delivery.
✔ Orders after 2:00 PM may still be shipped the same day, but no guarantee.
✔ Applies to items labeled under our 24-hour delivery process.
❗ If your cart includes non-eligible items, your order will follow standard processing.
🚚 Nationwide Coverage:
Orders are shipped out within 24 hours across Luzon, Visayas, and Mindanao, depending on courier and location.
📦 Stock-Based System:
This badge appears only on selected product, showcasing our massive inventory selection ready to ship anytime anywhere.
💳 Payment Note: Fully paid orders are eligible for 24hrs Delivery on Selected Cities. COD orders will only be guaranteed shipped within 24 hours.
🕒 View All 24-Hour Eligible Products
Check items here that is part of our 99% Same-Day Shipping program displayed with 24 Hours Delivery Banner.
✔ Orders placed before 2:00 PM have the highest chance for same-day shipping or delivery.
✔ Orders after 2:00 PM may still be shipped the same day, but no guarantee.
✔ Applies to items labeled under our 24-hour delivery process.
❗ If your cart includes non-eligible items, your order will follow standard processing.
🚚 Nationwide Coverage:
Orders are shipped out within 24 hours across Luzon, Visayas, and Mindanao, depending on courier and location.
📦 Stock-Based System:
This badge appears only on selected product, showcasing our massive inventory selection ready to ship anytime anywhere.
💳 Payment Note: Fully paid orders are eligible for 24hrs Delivery on Selected Cities. COD orders will only be guaranteed shipped within 24 hours.
🕒 View All 24-Hour Eligible Products
| Category | Details |
|---|---|
| CPU Support | AMD Socket AM5, supporting:• AMD Ryzen™ 9000 / 8000 / 7000 Series Processors*Visit GIGABYTE website for latest CPU support list. |
| Chipset | AMD X870 |
| Memory Support | • 4× DDR5 DIMM slots, up to 256 GB (64 GB per DIMM)• Dual channel architecture
• Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 support• AMD EXPO™ & XMP support• Supported speeds (OC): 8200 / 8000 / 7950 / 7900 / 7800 / 7600 / 7400 / 7200 / 7000 / 6800 / 6600 / 6400 / 6200 / 6000 / 5800 / 5600 / 5200 / 4800 / 4400 MT/s |
| Integrated Graphics | • AMD Radeon™ Graphics support (CPU dependent)• 2× USB4® Type-C® (DP output up to 3840×2160@240Hz)• 1× HDMI 2.1 (up to 4096×2160@60Hz)• 1× Front HDMI 1.4 (up to 1920×1080@30Hz) |
| Audio | Realtek® ALC1220 Codec• Supports DSD Audio (Line Out)• 2/4/5.1/7.1-channel HD Audio• S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN |
| Wireless | Realtek® Wi-Fi 7 (RTL8922AE)• 802.11a/b/g/n/ac/ax/be• 2.4/5/6 GHz bands• Bluetooth 5.4*Wi-Fi 7 requires Windows 11 SV3 |
| Expansion Slots | • 1× PCIe x16 (CPU controlled):– Ryzen™ 9000/7000: PCIe 5.0 x16– Ryzen™ 8000 Phoenix 1: PCIe 4.0 x8– Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4• 1× PCIe x16 (chipset, runs at x4 – PCIe 4.0) |
| Storage | • 1× M.2 (M2A_CPU):– Ryzen 9000/7000: PCIe 5.0 x4/x2– Ryzen 8000: PCIe 4.0 x4/x2• 1× M.2 (M2C_SB, Chipset): PCIe 4.0 x2• 2× SATA 6Gb/s• RAID: NVMe (0/1/5/10*), SATA (0/1)*RAID 5 only with Ryzen™ 9000 |
| USB Ports | Back Panel:• 2× USB4® Type-C®• 2× USB 3.2 Gen 2 Type-A (Red)• 4× USB 3.2 Gen 1• 4× USB 2.0
Internal:• 1× USB 3.2 Gen 2×2 Type-C header• 1× USB 3.2 Gen 2 Type-A• 2× USB 3.2 Gen 1• 4× USB 2.0 |
| Internal I/O | • 1× 24-pin ATX• 1× 8-pin ATX 12V• 1× CPU fan• 1× CPU fan/pump• 3× System fan• 1× System fan/pump• 3× ARGB Gen2• 1× RGB• 2× M.2• 2× SATA• 1× Front Panel & Audio• 1× USB 3.2 Gen 2×2 Type-C header• 1× USB 3.2 Gen 1 header• 2× USB 2.0 headers• TPM header• 1× HDMI• Power/Reset buttons & jumpers• Clear CMOS jumper |

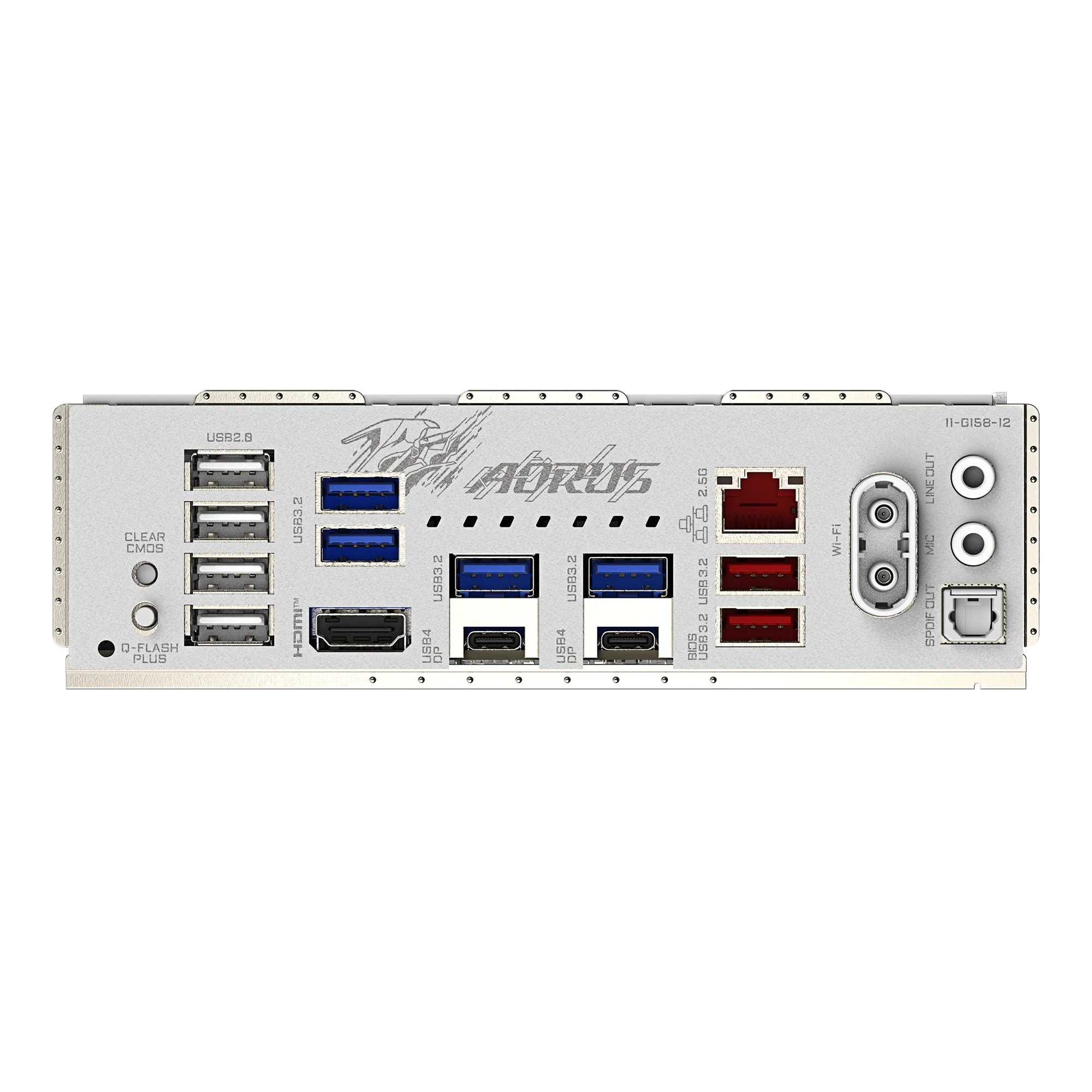

| Back Panel I/O | • 1× Clear CMOS button• 1× Q-Flash Plus button• 1× HDMI• 2× USB 3.2 Gen 2 Type-A (Red)• 4× USB 3.2 Gen 1• 4× USB 2.0• 2× USB4® Type-C® (DP)• 1× RJ-45• 2× Antenna connectors• 2× Audio jacks• 1× Optical S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| Monitoring | Voltage/Temperature/Fan/Flow rate detection• Fan fail warning• Fan/pump speed control (fan dependent) |
| BIOS | • 256 Mbit flash• AMI UEFI BIOS• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | • GIGABYTE Control Center (GCC) support• Q-Flash & Q-Flash Plus• Smart Backup |
| Bundled Software | Norton® Internet Security (OEM) |
| OS Support | Windows 11 64-bit |
| Form Factor | Micro ATX (24.4 cm x 24.4 cm) |
| Brands | |
|---|---|
| Form Factor | MATX |
| AMD Chipset | X870 |
