Component | Specification |
---|---|
CPU | AMD Socket AM4 |
Supports: | |
– AMD Ryzen™ 5000 Series | |
– AMD Ryzen™ 5000 G-Series | |
– AMD Ryzen™ 4000 G-Series | |
– AMD Ryzen™ 3000 Series | |
Chipset | AMD B550 |
Memory | – 4 x DDR4 DIMM sockets |
– Max 128 GB system memory | |
– Supports DDR4 memory up to 4733(O.C.) MHz | |
– Dual channel memory architecture | |
– ECC Un-buffered DIMM support (varies by CPU) | |
– Extreme Memory Profile (XMP) support | |
Onboard Graphics | Integrated in the AMD Ryzen™ 5000 G-Series/4000 G-Series Processors: |
– 1 x DVI-D port (max resolution: 1920×1200@60 Hz) | |
– 1 x HDMI port (max resolution: 4096×2160@60 Hz, HDMI 2.1, HDCP 2.3, HDR) | |
– Maximum shared memory of 16 GB | |
Audio | Realtek® Audio CODEC |
High Definition Audio | |
2/4/5.1/7.1-channel | |
LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
Wireless Communication Module | Realtek® Wi-Fi 6E RTL8852CE |
– Wi-Fi: a, b, g, n, ac, ax | |
– Bluetooth 5.3 | |
– Support for 11ax 160MHz wireless standard | |
– Up to 2.4 Gbps data rate (actual rate may vary) | |
Expansion Slots | – 1 x PCI Express x16 slot (PCIEX16) (CPU-integrated, PCIe 4.0/3.0) |
– 1 x PCI Express x16 slot (PCIEX4) (Chipset-integrated, PCIe 3.0 x4) | |
– 1 x PCI Express x1 slot (PCIEX1) (Chipset-integrated, PCIe 3.0 x1) | |
Storage Interface | – 1 x M.2 connector (M2A_CPU, CPU-integrated) |
– 1 x M.2 connector (M2B_SB, Chipset-integrated) | |
– 4 x SATA 6Gb/s connectors (Chipset-integrated) | |
USB | CPU: 4 x USB 3.2 Gen 1 ports on the back panel |
Chipset: | |
– 2 x USB 3.2 Gen 1 ports (internal header) | |
– 6 x USB 2.0/1.1 ports (4 on the back panel, 2 via internal header) | |
Internal I/O Connectors | Various connectors including power, fans, USB, etc. |

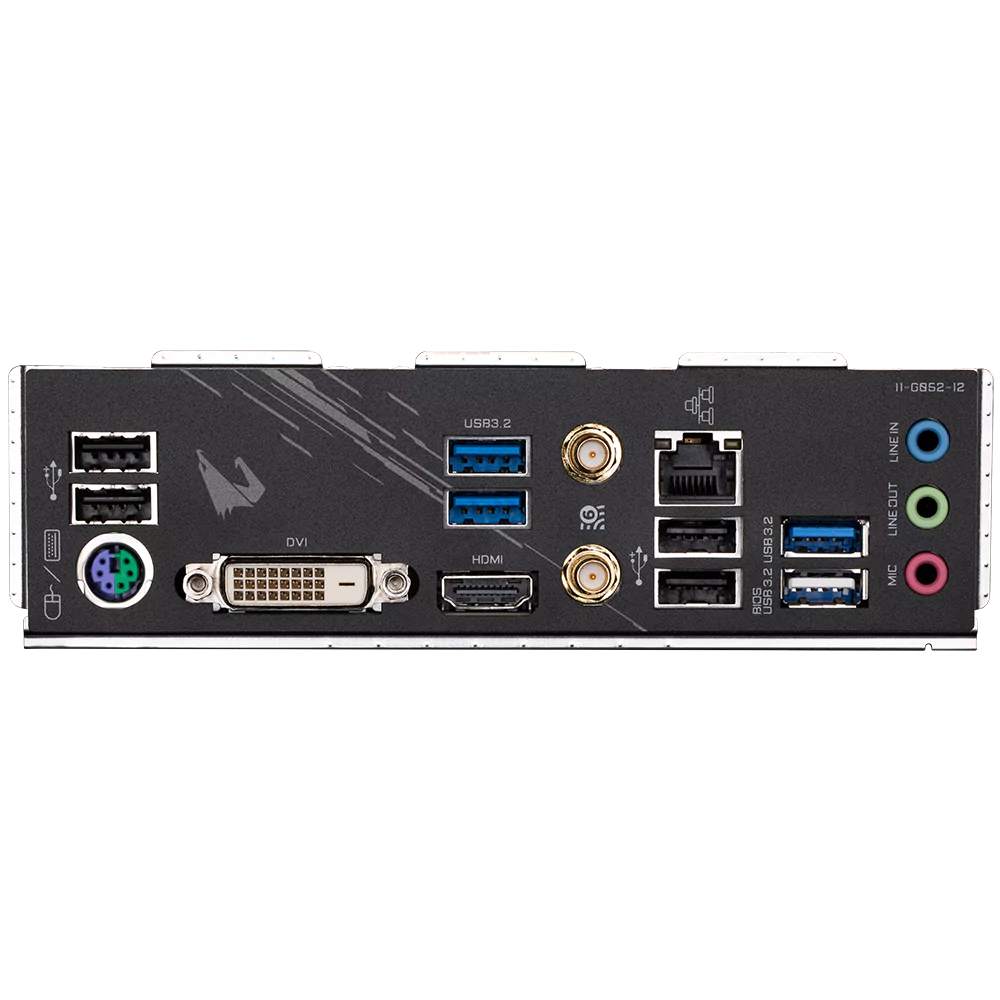

Back Panel Connectors | – PS/2 keyboard/mouse port |
– DVI-D port | |
– HDMI port | |
– SMA antenna connectors (2T2R) | |
– USB 3.2 Gen 1 ports | |
– USB 2.0/1.1 ports | |
– RJ-45 port (LAN) | |
– Audio jacks | |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring | Voltage detection, temperature detection, fan speed detection, overheating warning, fan fail warning, fan speed control |
BIOS | 128 Mbit flash |
Licensed AMI UEFI BIOS | |
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Unique Features | Support for APP Center (varies by motherboard model) |
– @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer | |
Support for Q-Flash Plus, Q-Flash, Xpress Install | |
Bundled Software | – Norton® Internet Security (OEM version) |
– LAN bandwidth management software | |
Operating System | Support for Windows 11 64-bit |
Support for Windows 10 64-bit | |
Form Factor | Micro ATX Form Factor |
Dimensions: 24.4cm x 24.4cm |
Specs may change without further notice.
