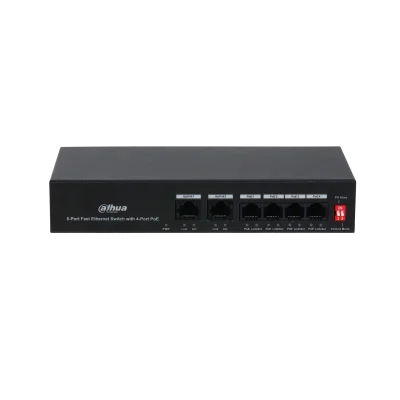

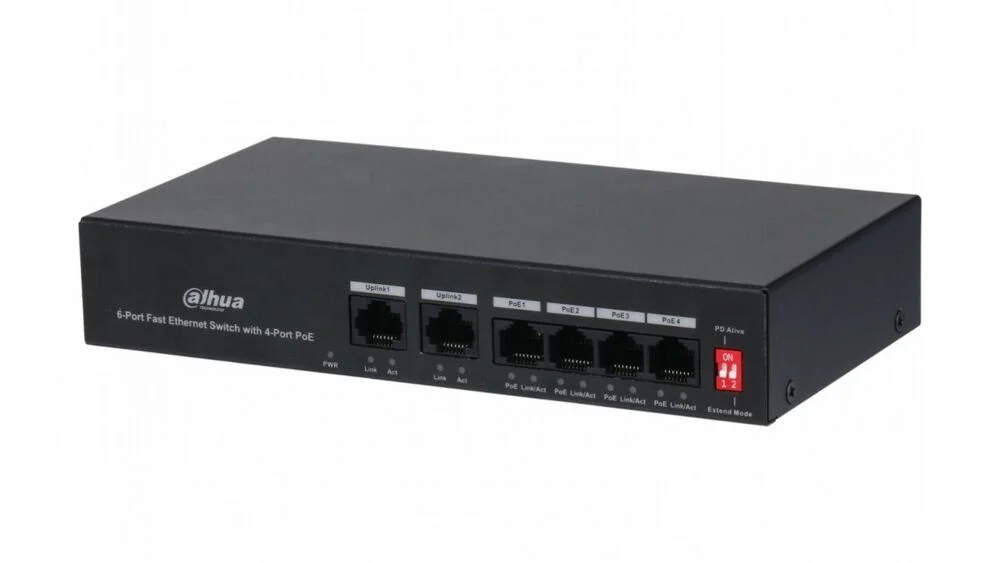

Dahua PFS3006-4ET-36 6-Port Fast Ethernet Switch with 4-Port PoE

Availability:

Domestic or Local Stocks via Bermor Techzone
  • Supports four 10/100M PoE power supply ports and two 10/100M uplink ports
  • Supports 802.3af and 802.3at standards
  • Operating Temperature: -10°C to +55°C
  • Supports 250m long-distance PoE transmission
  • Supports PoE watchdog

₱2,000.00

Domestic or Local Stocks via Bermor Techzone

Step by Step PC Builder Here!
Hardware Data Transmission Port 4 PoE ports with 10/100 Mbps Base-TX
2 uplink ports with 10/100Mbps Base-TX
Power Supply AC100–AC240V
Operating Temperature -10°C to +55°C (-14°F–131°F)
Operating Humidity 10%–90%
Power Consumption Idling: 0.5W
Full load: 36W
PoE PoE Budget Port1-4 ≤30W, whole PoE budget ≤36W
PoE Standard IEEE802.3af, IEEE802.3at
PoE Pin Assignment PoE: 1, 2, 4, 5(V+), 3, 6, 7, 8(V-)
Performance Switching Capacity 1.2 Gbps
Packet Forwarding Rate 0.89 Mpps
MAC Table Size 2 K
Jumbo Frame 2048 byte
Communication Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3X
Performance ESD Air discharge: 8kV
Contact discharge: 6kV
Thunderproof Common mode: 6kV
Differential mode: 4kV
Net Weight 0.56 kg (1.23 lb)
Gross Weight 1.11 kg (2.15 lb)
Product Dimensions (W × L × H) 194.0 mm × 108.1 mm × 35.0 mm (7.64″ × 4.26″ × 1.38″)
Packaging Dimensions (W × L × H) Packing box: 303 mm × 262 mm × 72 mm (11.92″ × 10.31″ × 2.83″)
Protective box: 549 mm × 325 mm × 397 mm (21.61″ × 12.80″ × 15.63″)
Package 10 devices in one package
Certifications CE: EN60950; FCC
SKU: PFS3006-4ET-36 Categories: ,
