Main Processor | Industrial-grade processor |
Operating System | Embedded Linux |
Operating Interface | Web, Local GUI |
AI | AI by Recorder: Face detection, face recognition, perimeter protection, SMD Plus |
AI by Camera: Face detection, face recognition, video metadata, perimeter protection, SMD Plus, stereo analysis, | |
crowd distribution, people counting, ANPR, vehicle density, heat map | |
AcuPick AI by Camera + Recorder: Max. 8-channel, 1 combined event per channel/s | |
Perimeter Protection | Perimeter Performance AI by Recorder: 4 channels, 10 IVS rules for each channel |
Perimeter Performance AI by Camera: 8 channels | |
Face Detection | Face Attributes: Gender, age group, glasses, expressions, face mask, beard |
Face Detection Performance of AI by Recorder: 2 channels (up to 12 face images/s each channel) | |
Face Detection Performance of AI by Camera: 8 channels | |
Face Recognition | Face Database Capacity: Up to 20 face databases with 20,000 images, total capacity of 2.5 G |
Face Recognition Performance of AI by Recorder: | |
– 8-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s | |
– 2-channe FD (by recorder) + FR (by recorder), video stream: 12 face images/s | |
Face Recognition Performance of AI by Camera: 8 channels | |
SMD Plus | SMD Plus by Recorder: 8 channels |
SMD Plus by Camera: 8 channels | |
Video Metadata | Metadata Performance of AI by Camera: 8 channels |
Human Attributes | Top color, top type, bottom color, bottom type, hat, bag, age, gender, umbrella |
Motor Vehicle Attributes | License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, |
vehicle registration location | |
Non-motor Vehicle Attributes | Vehicle model, vehicle color, number of persons, helmet |
Vehicle License Plate Comparison | ANPR by Camera: 8 channels |
License Plate Database Capacity: Create up to 20,000 plate numbers, Blocklist and allowlist | |
Audio and Video | Access Channel: 8 |
Network Bandwidth: | |
– AI disabled: 384 Mbps incoming, 384 Mbps recording, 384 Mbps outgoing | |
– AI enabled: 200 Mbps incoming, 200 Mbps recording, 200 Mbps outgoing | |
Resolution: 32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 5 MP, 4 MP, 1080p, 720p, D1, CIF, QCIF | |
Decoding Capability: | |
– AI disabled: 2-channel 32 MP@25 fps, 2-channel 24 MP@25 fps, 4-channel 16 MP@30 fps, 5-channel 12 MP@30 fps, | |
8-channel 8 MP@30 fps | |
– AI enabled: 1-channel 32 MP@25 fps, 1-channel 24 MP@25 fps, 2-channel 16 MP@30 fps, 4-channel 12 MP@30 fps, | |
6-channel 8 MP@30 fps, 8-channel 5 MP@30 fps | |
Video Output: 1 VGA, 1 HDMI | |
Multi-screen Display: Main screen: 1/4/8/9, Sub screen: 1/4/8/9 | |
Third-party Camera Access: ONVIF, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung | |
Compression Standard | Video Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
Audio Compression: G.711a, G.711u, PCM, G726 | |
Network | Network Protocol: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, PPPoE, |
FTP, DDNS, Alarm Server, IP Search, Multicast, P2P, Auto Registration, iSCSI | |
Mobile Phone Access: iOS, Android | |
Interoperability: ONVIF 22.12 (Profile T, Profile S, Profile G), CGI, SDK | |
Browser: Chrome, IE, Safari, Edge, Firefox | |
Recording Playback | Multi-channel Playback: Up to 8 channels |
Record Mode: General, motion detection, intelligent, alarm, POS | |
Backup Method: USB device and network | |
Playback Mode: Instant playback, general playback, event playback, tag playback, smart playback | |
Storage | Disk Group: Yes |
Alarm | General Alarm: Motion detection, privacy masking, local alarm |
Anomaly Alarm: Camera offline, storage error, disk full, IP conflict, MAC conflict, login lock, abnormal | |
behavior of fan, cybersecurity exception | |
Intelligent Alarm: Face detection, perimeter protection, face recognition, video metadata, SMD Plus, stereo | |
analysis, crowd distribution, people counting, ANPR, vehicle density, heat map | |
Alarm Linkage: Record, snapshot, local alarm output, IPC external alarm output, access controller, audio, | |
buzzer, log, preset, email | |
Port | Audio Input: 1-channel RCA |
Audio Output: 1-channel RCA | |
Alarm Input: 4 channels | |
Alarm Output: 2 channels | |
HDD Interface: 2 SATA ports, each disk can contain up to 20 TB | |
RS-232: 1, RS-485: 1, USB: 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) | |
HDMI: 1, VGA: 1, Network Port: 1 (10/100/1000 Mbps Ethernet port, RJ-45) | |
General | Power Supply: 12 VDC, 4 A |
Power Consumption: Total output of NVR is ≤ 10 W (without HDD) | |
Net Weight: 1.57 kg | |
Gross Weight: 2.73 kg | |
Product Dimensions: 375.0 mm × 284.4 mm x 56.0mm (W × D × H) | |
Packaging Dimensions: 433.0 mm × 141.0 mm × 366.0 mm (W × D × H) | |
Operating Temperature: –10 °C to +55 °C | |
Storage Temperature: –20 °C to +60 °C | |
Operating Humidity: 10%–93% (RH) | |
Installation: Rack or desktop | |
Certifications: FCC Part15, SubpartB, Class A; CE-EMC; CE-LVD |
CCTV & Securities, CCTV Accessories

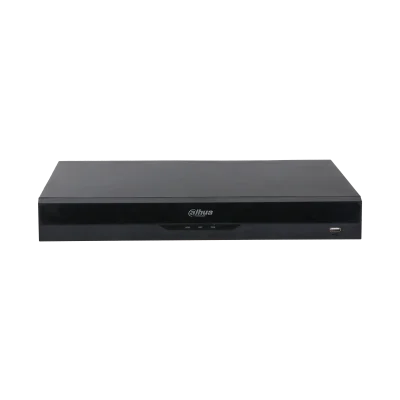

Dahua DHI-NVR5208-EI 8 Channels 1U 2HDDs Wiz Sense Network Video Recorder
Availability:
Domestic or Local Stocks via Bermor Techzone
- Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
- Max. decoding capability: 32 × 1080p@30 fps or 8 × 8MP@30 fps.
- Max. 384 Mbps incoming/recording/outgoing bandwidth.
- Support AcuPick with Max. 16-Channel.
- Support N+M cluster.
- AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus.
- AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting.
- Security baseline 2.3.
₱13,130.00
