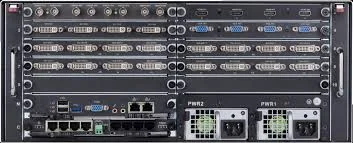

Dahua DHI-M70-4U-E Multi-Service Video Management Platform Mainframe Box
Availability:
Inquire First Before Checkout. Limited or Branch Stock
- 19” standard 4U ATCA industry box
- Easy and flexible configuration with pluggable card module design
- 40 channels @ 1080P signal encoding (fully configured)
- 20 channels @ 32MP or 80 channels @ 8MP or 320 channels @ 1080P or 720 channels @ 720P or 1280 channels @ D1 signal decoding (fully configured)
- Support for 240 @ D1 nonstandard stream signal decoding (fully configured)
- Support for maximum 60 screens splicing
- Support for analog/digital video signals input and matrix output
- Support for SD/HD video signal matrix switch and output
- Support for non-compressed digital signal encoding output
- 6 RJ-45 gigabit network ports for matrix control, preview, and online central storage
- Support for TCP/IP/RTP/RTSP/RTCP/TCP/UDP/DHCP/PPPoE and other network protocols
- Remote casting of analog/digital video onto the video-wall
- Remote reboot/upgrade/default setting, and other operations
₱217,500.00
6-Month Grace monthly payment:
₱21,921
12-Month Full Interest monthly payment:
₱25,716
Learn more about Billease Installment at Checkout
Estimated Delivery: Jun 20 - Jun 25, 2026 (Business Days)
Message us for Earlier Timeframe Request or Check Products Instock Status for Faster Timeframe
Inquire First Before Checkout. Limited or Branch Stock
⚡ 24-Hour Shipping Eligible – In-Stock & Ready to Ship
Check items here that is part of our 99% Same-Day Shipping program displayed with 24 Hours Delivery Banner.
✔ Orders placed before 2:00 PM have the highest chance for same-day shipping or delivery.
✔ Orders after 2:00 PM may still be shipped the same day, but no guarantee.
✔ Applies to items labeled under our 24-hour delivery process.
❗ If your cart includes non-eligible items, your order will follow standard processing.
🚚 Nationwide Coverage:
Orders are shipped out within 24 hours across Luzon, Visayas, and Mindanao, depending on courier and location.
📦 Stock-Based System:
This badge appears only on selected product, showcasing our massive inventory selection ready to ship anytime anywhere.
💳 Payment Note: Fully paid orders are eligible for 24hrs Delivery on Selected Cities. COD orders will only be guaranteed shipped within 24 hours.
🕒 View All 24-Hour Eligible Products
Check items here that is part of our 99% Same-Day Shipping program displayed with 24 Hours Delivery Banner.
✔ Orders placed before 2:00 PM have the highest chance for same-day shipping or delivery.
✔ Orders after 2:00 PM may still be shipped the same day, but no guarantee.
✔ Applies to items labeled under our 24-hour delivery process.
❗ If your cart includes non-eligible items, your order will follow standard processing.
🚚 Nationwide Coverage:
Orders are shipped out within 24 hours across Luzon, Visayas, and Mindanao, depending on courier and location.
📦 Stock-Based System:
This badge appears only on selected product, showcasing our massive inventory selection ready to ship anytime anywhere.
💳 Payment Note: Fully paid orders are eligible for 24hrs Delivery on Selected Cities. COD orders will only be guaranteed shipped within 24 hours.
🕒 View All 24-Hour Eligible Products
| Model | M70-4U-E |
| Main Processor | Quad-core embedded microprocessor |
| Operating System | Embedded LINUX |
| Bus | PCI-E |
| Slot | 12 (2 Main Control Board Slot, 10 Video and Audio Function Board) |
| Mainframe | Power module (redundant power optional), main control board, control board, PCI-E bus rear panel, smart temperature-controlled fan |
| Video Input Card | Max. 10 |
| Video Output Card | Max. 10 |
| Video Input | – VIC0201UH-M70 (HDMI): 2ch HDMI1.4 support HDCP |
| – VEC0404HH-M70 (HDMI): 4ch HDMI, encoding format: H.264/MPEG4, encoding capability: 4CH@1080P, support resolution: 1080P/720P/UXGA/SXGA+/SXGA/XGA/SVGA/VGA | |
| – VEC0404HD-M70 (DVI): 4ch DVI-I (HDMI & VGA with convertor), encoding format: H.264/MPEG4, encoding capability: 4CH@1080P, support resolution: 1080P/720P/UXGA/SXGA+/SXGA/XGA/SVGA/VGA | |
| Video Output | VDC0605H-M70 (HDMI): Decoding Capability: 2CH@32MP(25fps)/8CH@12MP(15fps)/8CH@4K(25fps)/32CH@1080P/72CH@720P/128CH@D1, Interface: 6ch HDMI (Interfaces 2/3/5/6 support 4K resolution, others support 1080P), Output Resolution: 40962160@24fps, 38402160@30fps, 19201080@60fps, 12801024@60fps, 1280720@60fps, 1024768@60fps, Split: 1/4/6/8/9/16/25/36, free split, Video-Wall Splicing: Support video-wall splicing (max 60 LCD display units), Video-Wall: Support Splicing/Zoom/Merge/Roam/Overlay |
| Video Input | HDMI/DVI |
| Audio Output | HDMI (embedded) |
| Control Mode | WEB/Local GUI/Video Platform/Network Keyboard/iPad |
| Network Interface | 6 RJ-45 ports (10/100/1000M), 2 in mainboard and 4 in control board |
| Serial Port | 4 RS232 ports (4 RJ45), for console and control |
| 1 RS485 port | |
| USB | 3 USB2.0, 1 USB3.0 |
| Environmental | Power Supply: 100~240V AC, 50/60Hz |
| Power Consumption: ≤600W | |
| Working Environment | -10°C |
| Dimension | 4U, 482.6 × 437.0 × 177.0mm (19.0 × 17.2 × 7.0 inch) (WDH) |
| Weight | ≤25Kg (full configured) |
| Brands |
|---|
