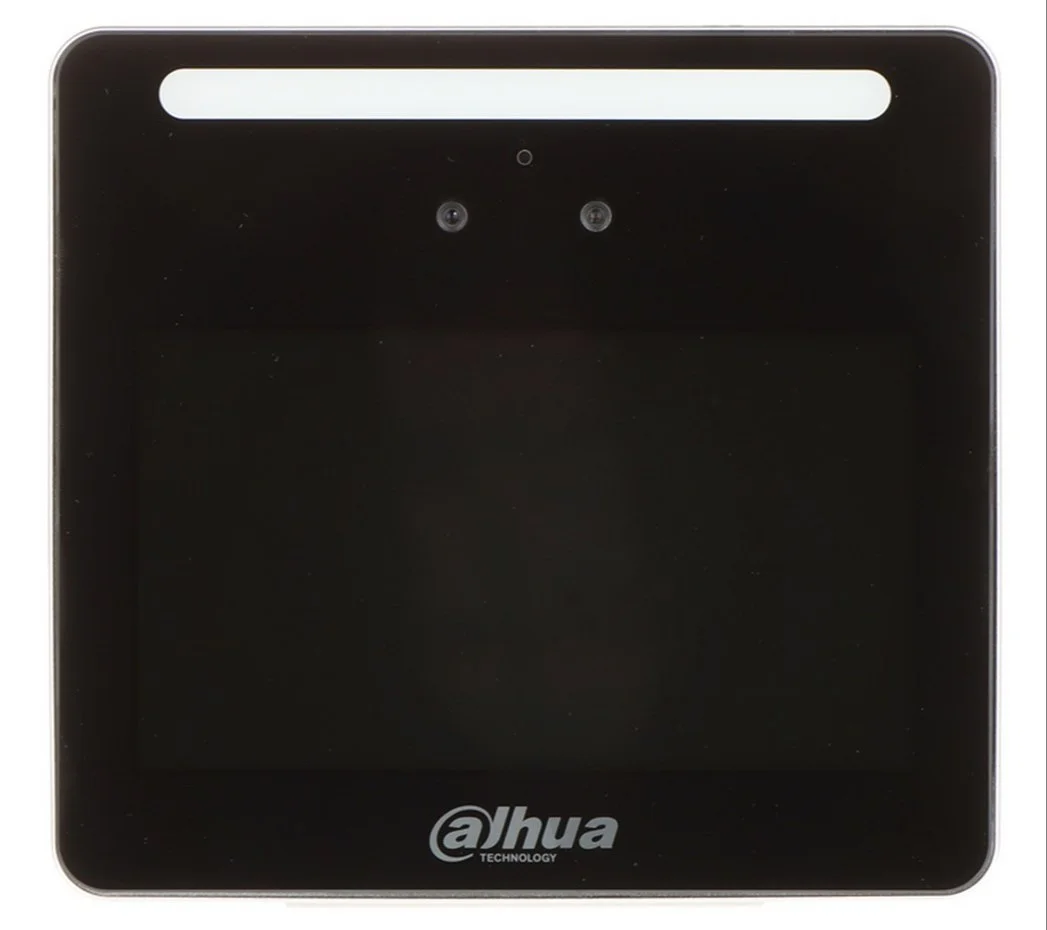

Dahua ASA3213GL-MW Fact Time Attendance Terminal

Availability:

Domestic or Local Stocks via Bermor Techzone
  • 4.3-inch LCD touch screen with a resolution of 480 × 272
  • Equipped with a 2MP wide-angle dual lens, white LED illuminator, and IR light
  • Supports face, card, and password attendance methods
  • Can store data for 500 users, 500 face images, 500 cards, and 150,000 records, and can operate without a network connection
  • Face-camera distance range of 0.3 m to 1.5 m
  • Face verification accuracy of 99.5%, face comparison speed of 0.3 s per person, low false recognition rate, and support for liveness detection

₱9,350.00

Domestic or Local Stocks via Bermor Techzone

Step by Step PC Builder Here!
System
Main Processor Embedded Processor
Network Protocol IPv4, RTSP, RTP, TCP, UDP, P2P
OSDP Protocol Support
Interoperability CGI, SDK
Display Screen
Screen 4.3-inch TFT screen
Type Capacitive screen
Resolution 480 × 272
Camera
Camera 2MP CMOS high definition camera
Voice Prompt Yes
Casing
Material PC+ABS
Function
Card Type IC card
Network Update Yes
Peripheral 1 RS-485
Real-Time Surveillance Yes
Multiple Authentication Yes
Take Face Images Yes
Auto-Registration Yes
Attendance
Record Export USB flash drive export
Attendance Mode Fixed attendance; free attendance
Statistics Statistics by personnel, month, anomaly
Department Setting 20 departments
Shift Setting 24 shifts
Capacity
User 500
Face 500
Card 500
Password 500
Record 150,000
Port
RS-485 1
USB 1 USB2.0 port
Network 1 RJ-45, 10 Mbps/100 Mbps self-adaption
Alarm Input 1
Alarm
Alarm Linkage Yes
Exit Button 1
Door Status Detection 1
Lock Control 1
General
Power Adapter Included
Power Supply Mode DC 12V 1.5A
Power Consumption ≤ 18W
Product Dimensions
Dimensions 116 mm × 107 mm × 22 mm (4.57″ × 4.21″ × 0.87″) (H×W×D)
Operating Conditions
Temperature -10°C to +55°C (+14°F to +131°F)
Humidity 5%RH–95%RH (non-condensing)
Operating Environment
Environment Indoor
Installation Method
Method Surface mount; desktop mount
Certification
Certification CE/FCC
SKU: DHI-ASA3213GL-MW Categories: ,
