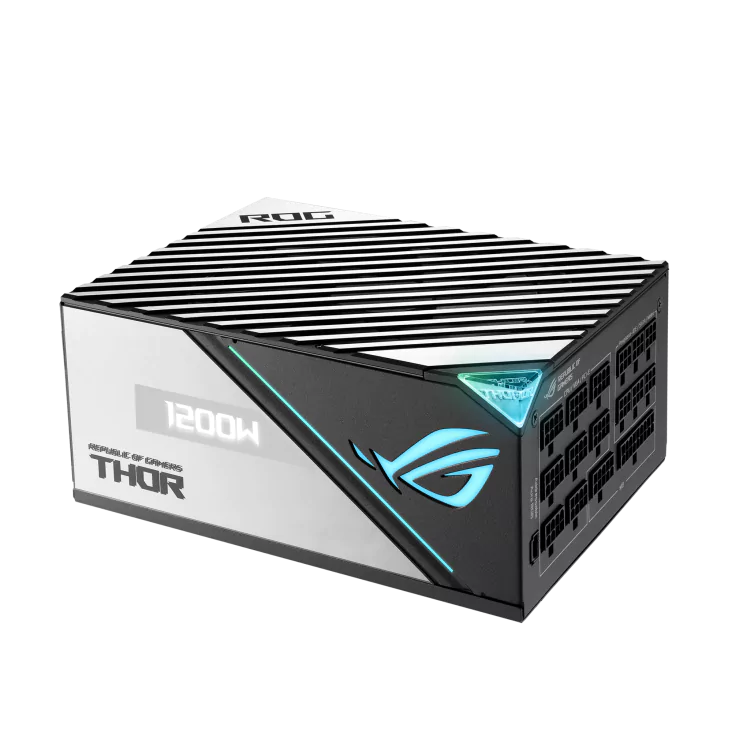

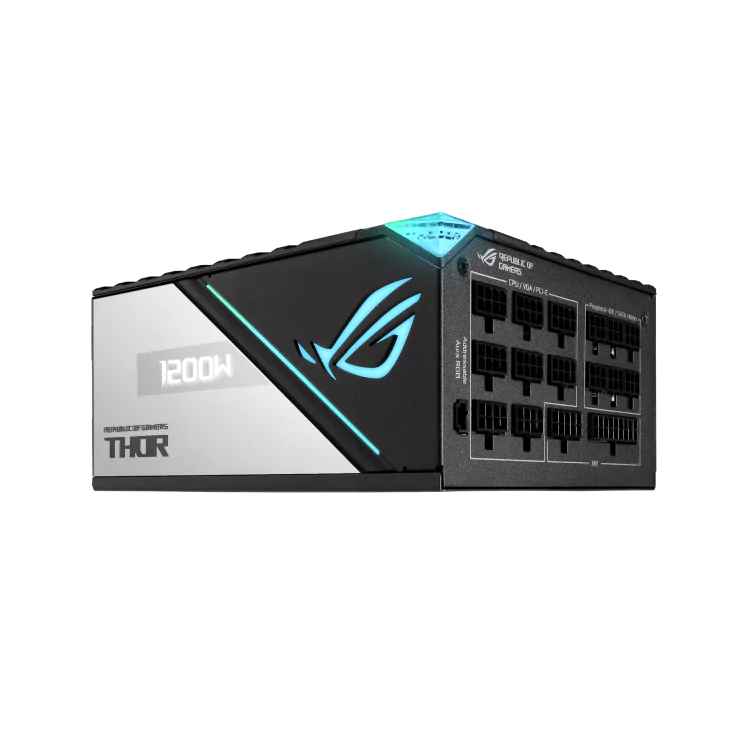

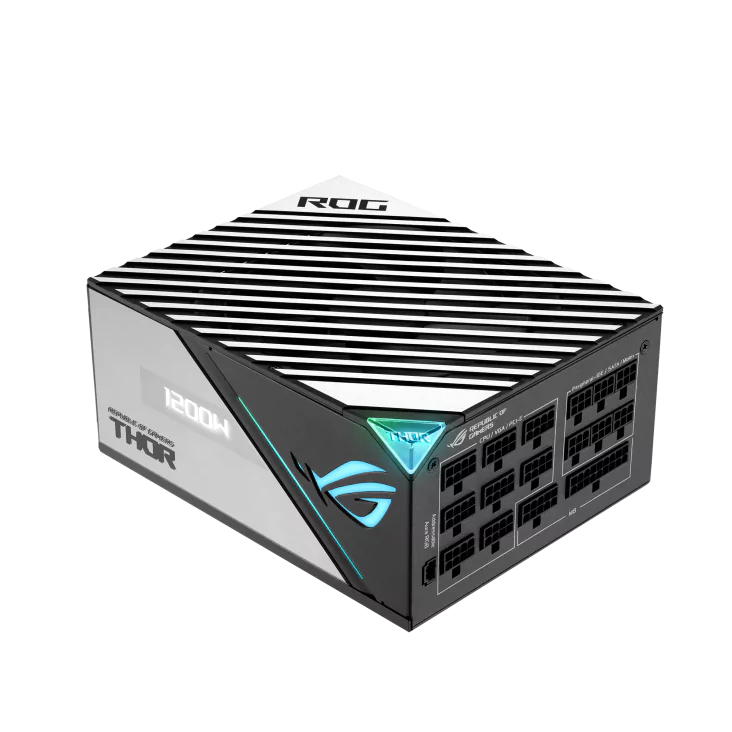

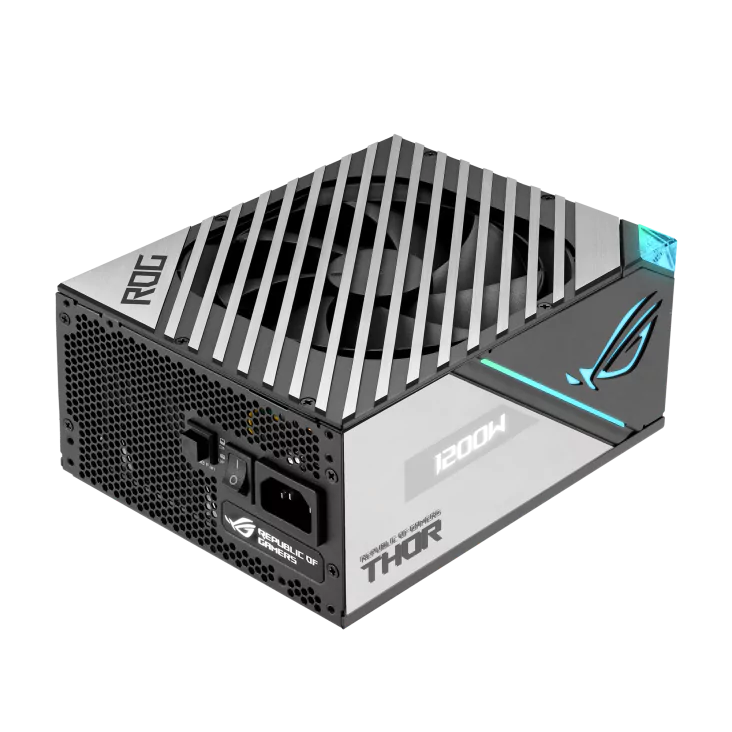

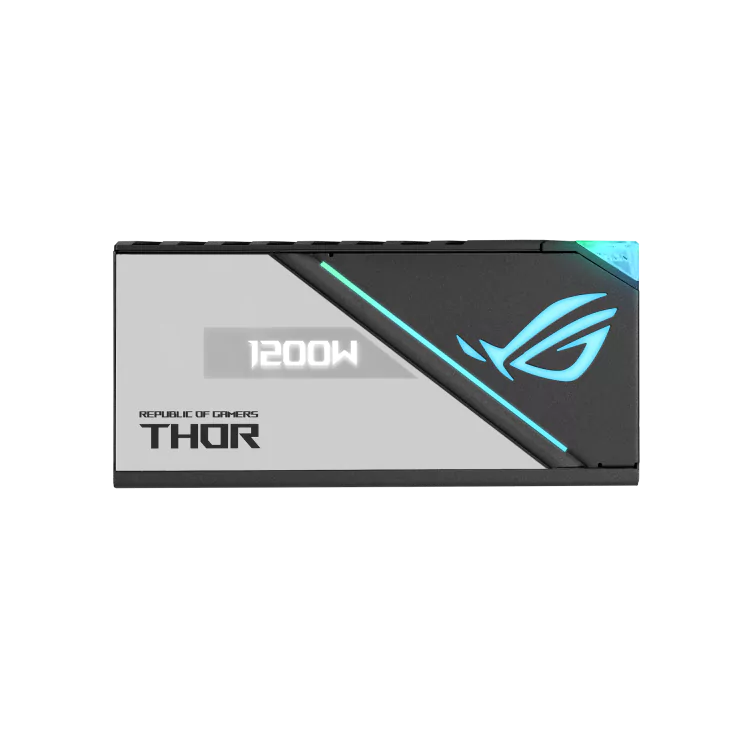

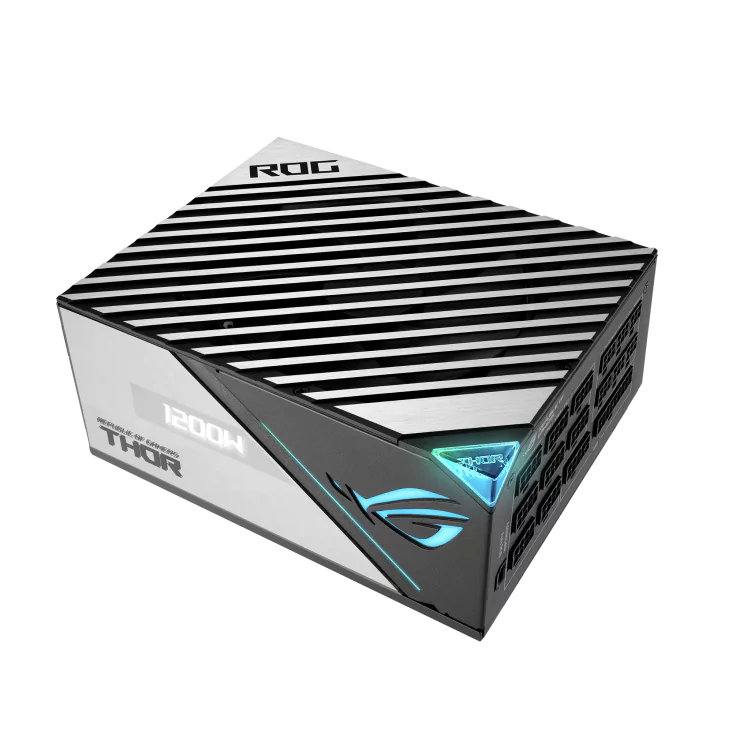

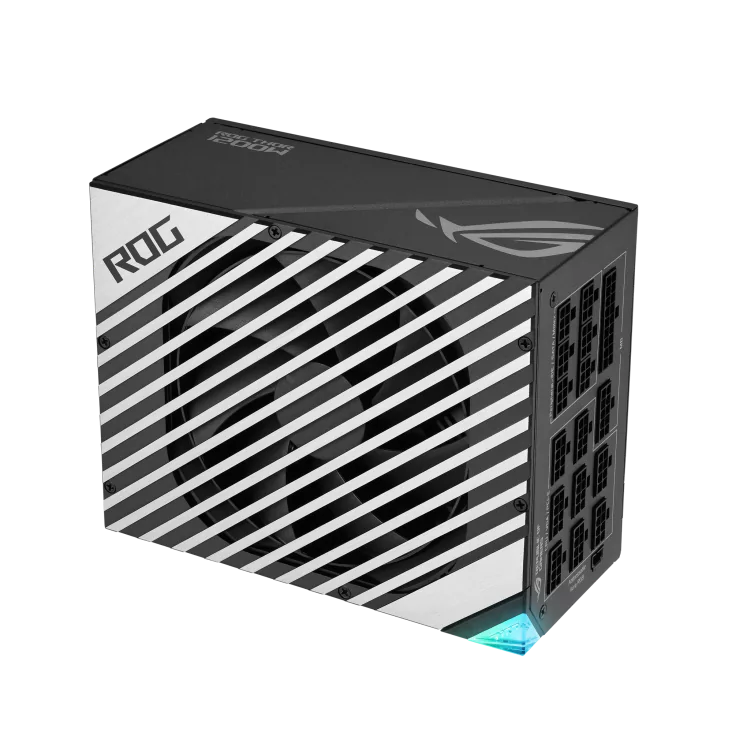

Model | ROG-THOR-1200P2-GAMING |
PFC Type | Active PFC |
Dimensions | 190 x 150 x 86 mm |
Efficiency | 80Plus Platinum |
Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
Hazardous Materials | ROHS |
AC Input Range | 100-240Vac |
Thermal Features | ROG Thermal Solution |
DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
Maximum Load | 25A 25A 100A 0.3A 3A |
Combined Load | 125W 125W 1200W 3.6W 15W |
Total Output | 1200W |
Cable Connectors | MB 24/20-pin x 1 |
CPU 4+4-pin x 2 | |
PCI-E 16-pin x 1 (component side) | |
PCI-E 6+2-pin x 8 | |
SATA x 12 | |
PERIPHERAL x 6 | |
Package Contents | Power Cord x 1 |
Motherboard Power Cable x1 (610mm) | |
CPU Cable x2 (650mm) | |
PCIE Cable 16-pin x1 (675mm) | |
PCIE 1-to-1 Cable x4 (675mm) | |
PCIE 1-to-2 Cable x2 (675+75mm) | |
SATA 1-to-4 Cable x3 (400+120+120+120mm) | |
Peripheral 1-to-3 Cable x2 (450+120+120mm) | |
Addressable RGB Cable x1 (800mm) | |
ROG sticker x 1 | |
ROG cable tie x 6 | |
Sleeved Cable Combs (6-pin) x 4 | |
Sleeved Cable Combs (8-pin) x 10 | |
Sleeved Cable Combs (24-pin) x 2 | |
Chassis Screws Package x 1 | |
Cable Tie x 12 | |
User Manual x 1 | |
Weight | 2.37 KG |
AURA SYNC | ARGB |
Cybenetics Noise Level Certification | A++ |
0dB Technology | Supported. The fan shuts off entirely when the PSU is under certain load |
Specification may change without further notice.
