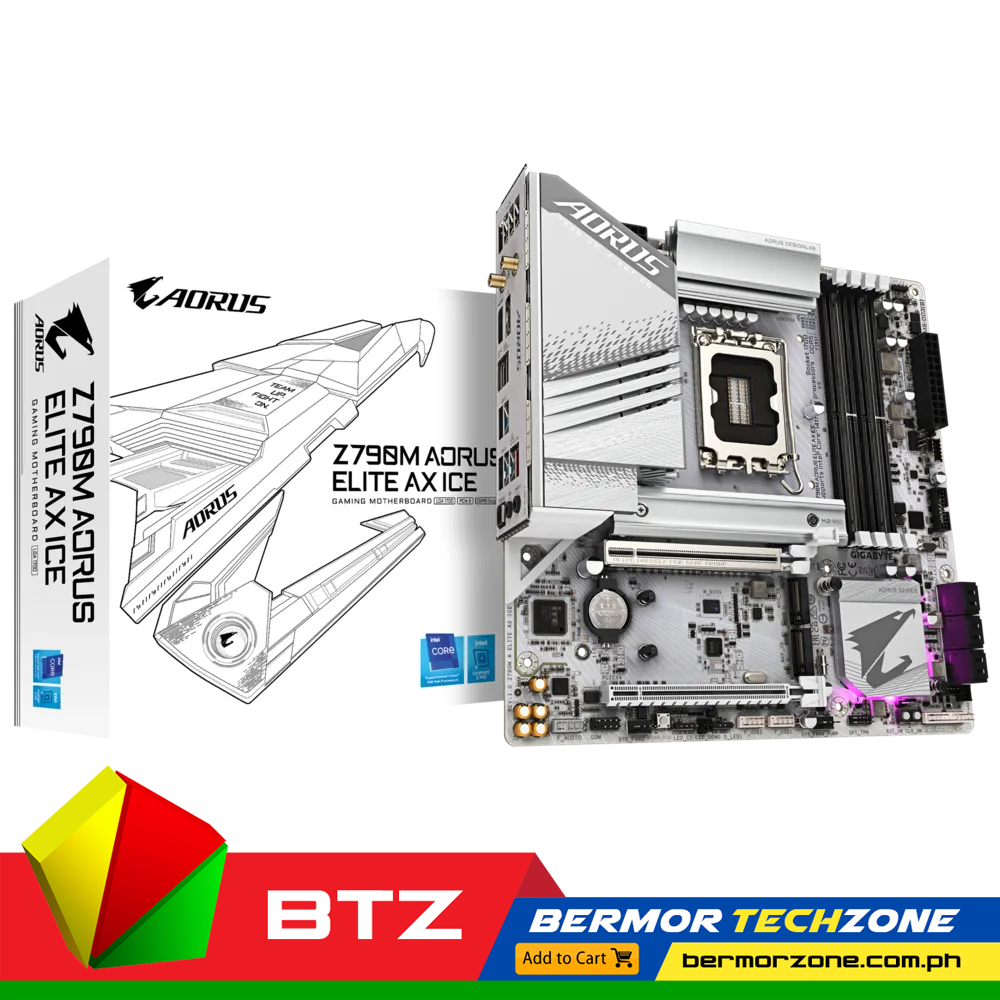

Gigabyte Z790M Aorus Elite AX ICE LGA 1700 Intel Motherboard

Availability:

Domestic or Local Stocks via Bermor Techzone

Recently Sold: 1

Key Features

  • Intel® Socket LGA 1700：Support 14th and 13th Gen Series Processors
  • Unparalleled Performance：Twin 12+1+1 Phases Digital VRM Solution
  • Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
  • EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity：DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

₱15,690.00

Domestic or Local Stocks via Bermor Techzone

Step by Step PC Builder Here!
CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors. L3 cache varies with CPU. (Refer to “CPU Support List” for more information.)
Chipset Intel® Z790 Express Chipset
Memory – Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules – 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory – Dual channel memory architecture – Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) – Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules – Support for Extreme Memory Profile (XMP) memory modules (Refer to “Memory Support List” for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
Audio Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication – Intel® Wi-Fi 6E AX211 (PCB rev. 1.0): WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard – Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1): WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 6 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+2 USB 2.0 Hubs: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors – 1 x 24-pin ATX main power connector – 1 x 8-pin ATX 12V power connector – 1 x 4-pin ATX 12V power connector – 1 x CPU fan header – 1 x water cooling CPU fan header – 3 x system fan headers – 1 x system fan/water cooling pump header – 2 x addressable LED strip headers – 2 x RGB LED strip headers – 3 x M.2 Socket 3 connectors – 6 x SATA 6Gb/s connectors – 1 x front panel header – 1 x front panel audio header – 1 x USB Type-C® header, with USB 3.2 Gen 2 support – 1 x USB 3.2 Gen 1 header – 2 x USB 2.0/1.1 headers – 2 x Thunderbolt™ add-in card connectors – 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) – 1 x serial port header – 1 x reset button – 1 x Q-Flash Plus button – 1 x Clear CMOS button – 1 x reset jumper
Back Panel Connectors – 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support – 1 x USB 3.2 Gen 2 Type-A port (red) – 4 x USB 3.2 Gen 1 ports – 4 x USB 2.0/1.1 ports – 2 x SMA antenna connectors (2T2R) – 1 x HDMI 2.0 port – 1 x DisplayPort – 1 x RJ-45 port – 1 x optical S/PDIF Out connector – 2 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring – Voltage detection – Temperature detection – Fan speed detection – Water cooling flow rate detection – Fan fail warning – Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS – 1 x 256 Mbit flash – Use of licensed AMI UEFI BIOS – PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features – Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. – Support for Q-Flash – Support for Q-Flash Plus – Support for Smart Backup
Bundled Software – Norton® Internet Security (OEM version) – LAN bandwidth management software
Operating System – Support for Windows 11 64-bit – Support for Windows 10 64-bit
Form Factor – Micro ATX Form Factor; 24.4cm x 24.4cm

Specification may change without further notice.
