LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors. L3 cache varies with CPU. Refer to “CPU Support List” for more details.
– 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
– Dual channel memory architecture
– Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
– Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
– Support for Extreme Memory Profile (XMP) memory modules. The CPU and memory configuration may affect supported memory types, data rate (speed), and number of DRAM modules. Refer to “Memory Support List” for more information.
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz (HDMI 2.0 version and HDCP 2.3 support)
– 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz (HDMI 1.4 support)
– 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz (DisplayPort 1.2 version and HDCP 2.3 support). Graphics specifications may vary depending on CPU support.
Audio
Realtek® Audio CODEC
– High Definition Audio
– 2/4/5.1/7.1-channel
– Support for S/PDIF Out
LAN
Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
– Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
– WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.3
– Support for 11ax 160MHz wireless standard
– Intel® Wi-Fi 6E AX211 (For PCB rev. 1.1)
– WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.3
– Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
CPU:
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16). For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4).
Storage Interface
CPU:
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU).
Chipset:
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB).
– 4 x SATA 6Gb/s connectors
– RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
– 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
– 1 x USB 3.2 Gen 1 ports on the back panel
– 4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
– 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
– 4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors
– 1 x 24-pin ATX main power connector
– 1 x 8-pin ATX 12V power connector
– 1 x 4-pin ATX 12V power connector
– 1 x CPU fan header
– 3 x system fan headers
– 3 x addressable RGB Gen2 LED strip headers
– 1 x RGB LED strip header
– 2 x M.2 Socket 3 connectors
– 4 x SATA 6Gb/s connectors
– 1 x front panel header
– 1 x front panel audio header
– 1 x USB Type-C® header, with USB 3.2 Gen 2 support
– 1 x USB 3.2 Gen 1 header
– 2 x USB 2.0/1.1 headers
– 2 x Thunderbolt™ add-in card connectors
– 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
– 1 x HDMI port
– 1 x Q-Flash Plus button
– 1 x reset button
– 1 x reset jumper
– 1 x Clear CMOS jumper
Back Panel Connectors
– 2 x SMA antenna connectors (2T2R)
– 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
– 1 x USB 3.2 Gen 2 Type-A port (red)
– 3 x USB 3.2 Gen 1 ports
– 4 x USB 2.0/1.1 ports
– 1 x HDMI port
– 1 x DisplayPort
– 1 x RJ-45 port
– 1 x optical S/PDIF Out connector
– 2 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
– Voltage detection
– Temperature detection
– Fan speed detection
– Water cooling flow rate detection
– Fan fail warning
– Fan speed control (support depends on the installed fan)
– Support for GIGABYTE Control Center (GCC). Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

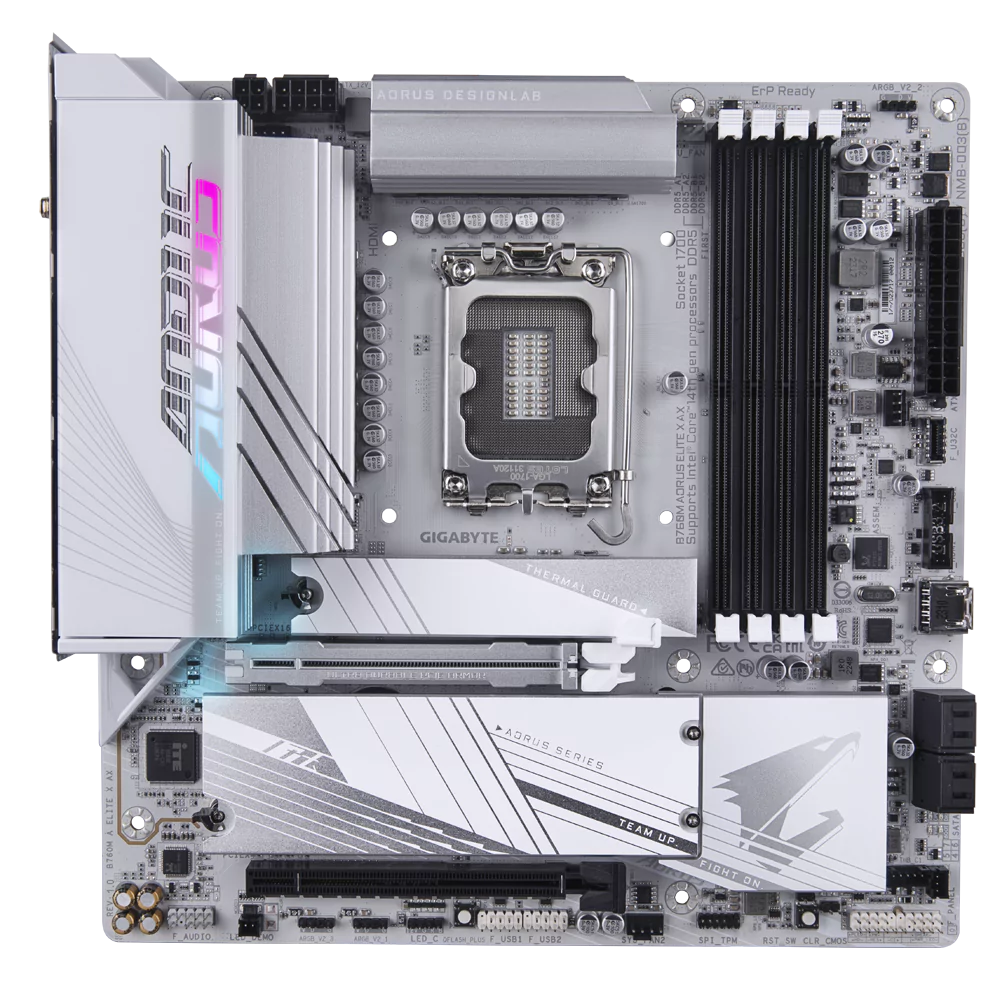

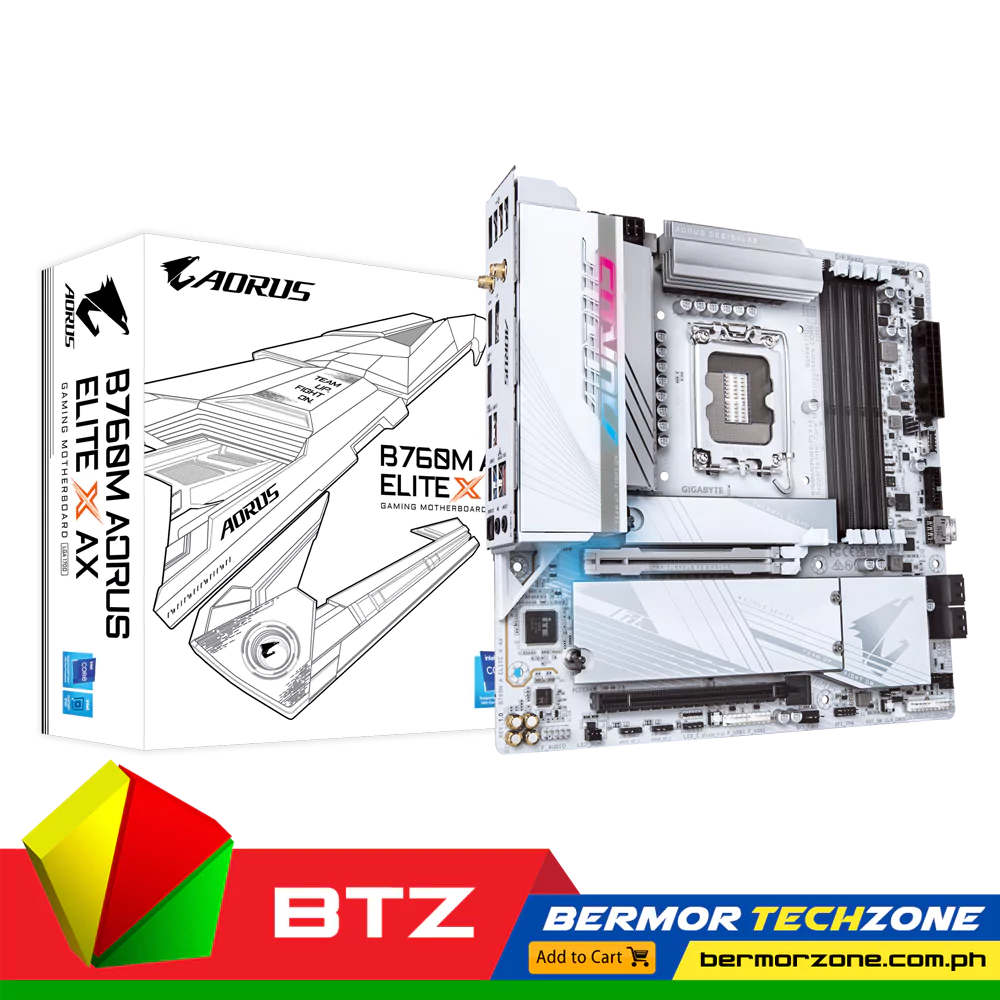

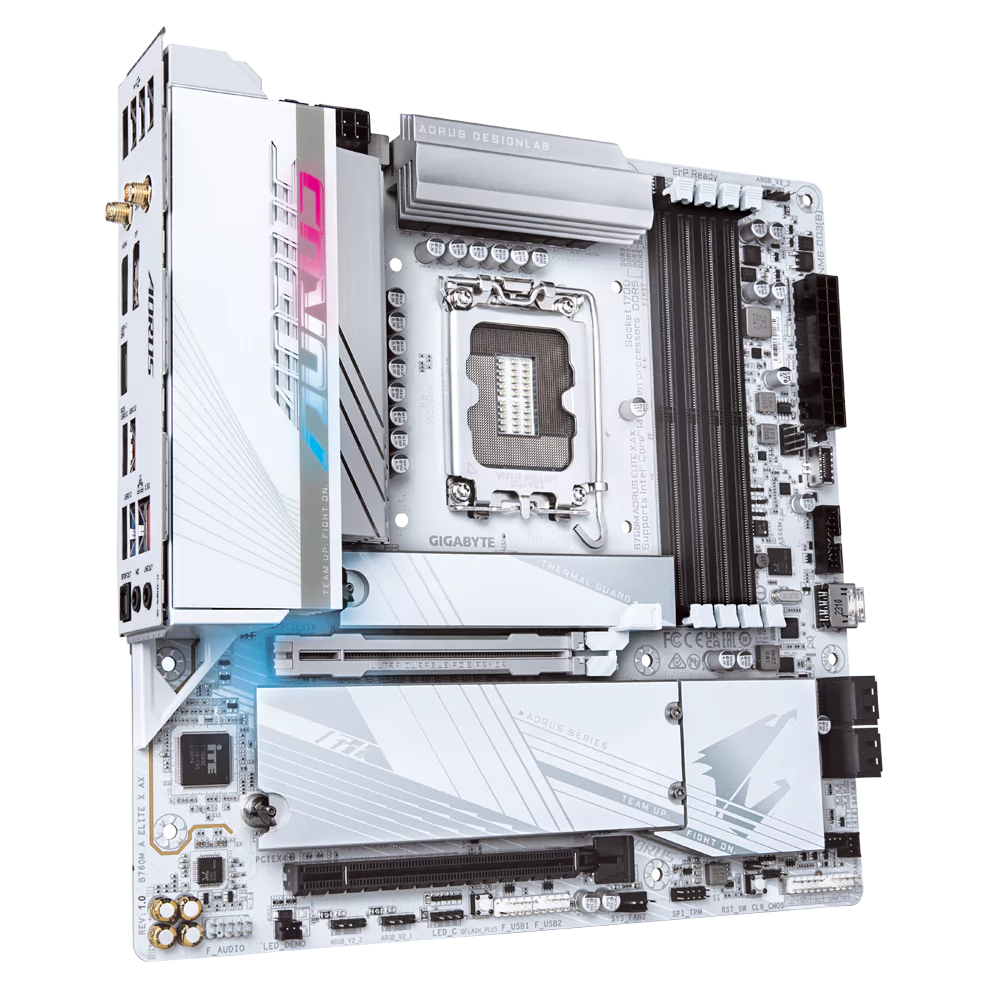

Gigabyte B760M AORUS Elite X AX White LGA 1700 Intel Motherboard
