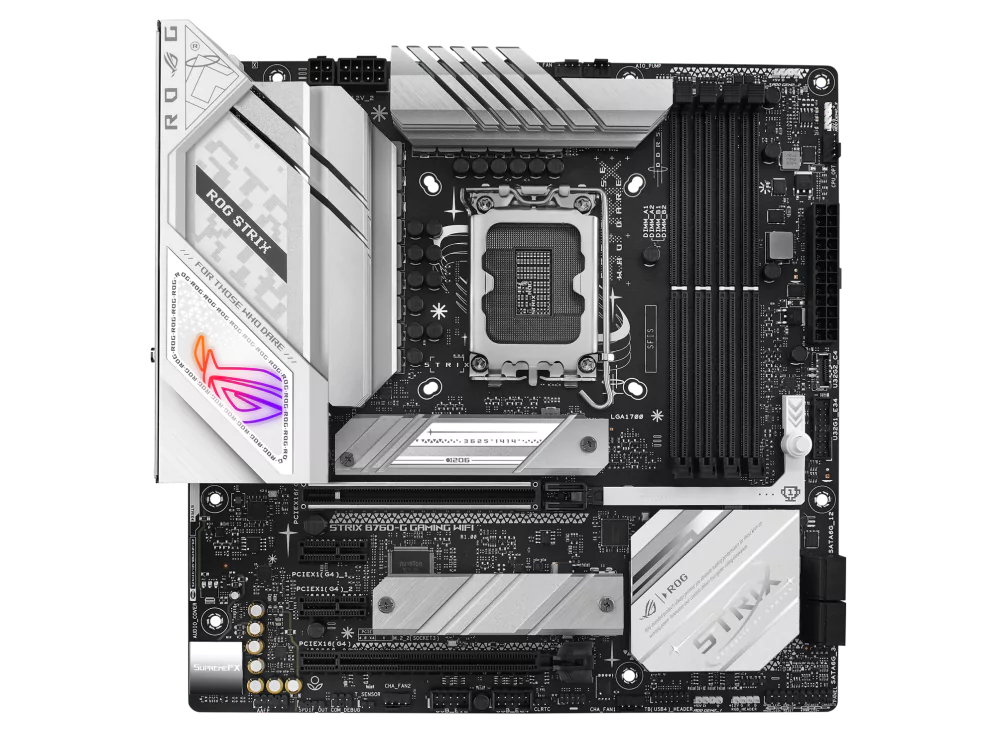

ROG STRIX B760-G GAMING WIFI
Midsize overperformer: the ROG Strix B760-G Gaming Wi-Fi is a monochrome powerhouse, ready to propel your next mATX rig. It bears the same high-bandwidth connectivity as its trusty counterpart, but diverges with lightning-fast DDR5 memory and buffed power stages to complement high-speed Intel 13th Gen processors. White and silver accents pair perfectly with the ASUS AP201, and retro insignias give it a dash of classic Strix style.
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B760 Chipset
Memory
4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics
1 x DisplayPort** 1 x HDMI®*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support 4K@60Hz as specified in DisplayPort 1.4 *** Support 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel® 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot(s) Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x1 slots – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Intel® 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3 * WiFi 6E 6GHz regulatory may vary between countries.
USB
Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High-quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback* Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Premium audio capacitors – Audio cover * Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Back Panel I/O Ports
1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) 1 x HDMI® port 1 x DisplayPort 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet 5 x Audio jacks 1 x BIOS FlashBack™ button
Internal I/O Connectors
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header
Special Features
Extreme Engine Digi+ – 5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED -CPU Socket lever protector – ProCool – Pre-mounted I/O shield – SafeSlot – SafeDIMM AURA Sync – Aura RGB header – Addressable Gen 2 header
Software Features
ROG Exclusive Software – GameFirst VI – ROG CPU-Z – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion – Sonic Radar III – DTS® Sound Unbound ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 days free trial) – AURA Creator – AURA Sync – Fan Xpert 4 – Two-Way AI Noise Cancellation – Power Saving AI Suite 3 – Performance And Power Saving Utility – DIGI+ VRM – PC Cleaner MyAsus Norton 360 for Gamers (60 days free trial) WinRAR
UEFI BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x Rubber Package(s) for M.2 1 x Q-Latch package(s) for M.2 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Documentation 1 x User manual
