Just like its formidable sibling, the ROG Strix B760-A Gaming WiFi dishes up a vibrant take on the latest Intel platform, with PCIE 5.0, USB 3.2 GEN 2×2, and cyber-inspired ROG motifs emblazoned on a high-contrast backdrop. But this variant features DDR5, bringing even more bandwidth to the table for games and apps.
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*
Chipset
Intel® B760 Chipset
Memory
4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort** 1 x HDMITM port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. // Please refer to AMD CPU specifications. **Supports max. 4K@60Hz as specified in DisplayPort 1.4 ***Supports 4K@60Hz as specified in HDMI 2.1. ****VGA resolution support depends on processors’ or graphic cards’ resolution.
Expansion Slots
Intel® 13th & 12th Gen Processors: 1 x PCIe 5.0 x16 slot Intel® B760 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode), 2 x PCIe 3.0 x1 slots *PCIe x1(G3)_1 and PCIe x1(G3)_2 slots share bandwidth with PCIe x16(G3). When PCIe x1(G3)_1 or PCIe x1(G3)_2 slot is operating, PCIe x16(G3) will only support x2 mode. – To ensure compatibility of the device installed
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports *Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Intel® 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3** *WiFi 6E 6GHz regulatory may vary between countries. **The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB
Rear USB (Total 9 ports): 1 x USB 3.2 Gen 2×2 (20G) port (1 x USB Type-C®), 1 x USB 3.2 Gen 2 (10G) port (1 x Type-A), 3 x USB 3.2 Gen 1 (5G) port (2 x Type-A, 1 x USB Type-C®), 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 6 ports): 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports, 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input Supports up to 32-Bit/384 kHz playback Audio Features: SupremeFX Shielding Technology, Savitech SV3H712 AMP, Premium audio capacitors, Dedicated audio PCB layers, Audio cover *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

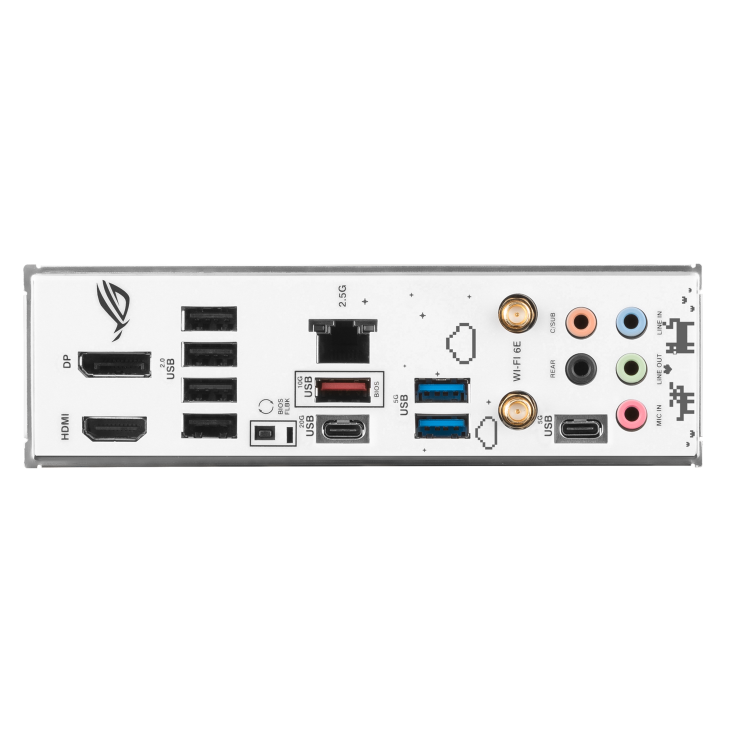

Back Panel I/O Ports
1 x USB 3.2 Gen 2×2 (20G) port (1 x USB Type-C®), 1 x USB 3.2 Gen 2 (10G) port (1 x Type-A), 3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C®), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi Module, 1 x Intel® 2.5Gb Ethernet port, 5 x Audio jacks, 1 x BIOS FlashBack™ button
Internal I/O Connectors
Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector Storage related: 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C® ), 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports, 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x 20-5 pin System Panel header, 1 x Thermal Sensor header, 1 x Thunderbolt™ (USB4®) header
Special Features
Extreme Engine Digi+: 5K Black Metallic Capacitors ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot ASUS Thermal Solution: M.2 heatsink, VRM heatsink design ASUS EZ DIY: BIOS FlashBack™ button, BIOS FlashBack™ LED, CPU Socket lever protector, ProCool, Pre-mounted I/O shield, SafeSlot, SafeDIMM Aura Sync: Aura RGB header, Addressable Gen 2 headers
Software Features
ROG Exclusive Software: GameFirst VI, ROG CPU-Z, Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion, Sonic Radar III, DTS® Sound Unbound ASUS Exclusive Software: Armoury Crate, AIDA64 Extreme (60 days free trial), Aura Creator, Aura Sync, Fan Xpert 4, Power Saving, Two-Way AI Noise Cancellation, Performance and Power Saving Utility, AI Suite 3, DIGI+ VRM, PC Cleaner, MyAsus, Adobe Creative Cloud (Free Trial), Norton 360 for Gamers, WinRAR UEFI BIOS: ASUS EZ DIY: ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, MemTest86
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME
Accessories
Cables: 2 x SATA 6Gb/s cables Additional Cooling Kit: 1 x Thermal pad for M.2 Miscellaneous: 1 x ASUS Wi-Fi moving antennas, 1 x Cable ties package, 1 x M.2 Q-Latch package, 1 x ROG Strix stickers, 1 x ROG Strix thank you card, 1 x M.2 Rubber Packages Documentation: 1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
