CPU | AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors/ AMD Ryzen™ 8000 Series Processors |
Chipset | AMD B650 |
Memory | Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/4800/4400 MT/s memory modules |
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory | |
Dual channel memory architecture | |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules | |
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules) | |
Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: |
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
– 1 x HDMI port, supporting a maximum resolution of 1920×1080@30 Hz | |
– 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz | |
Audio | Realtek® Audio CODEC |
High Definition Audio | |
2/4/5.1/7.1-channel | |
LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Wireless Communication module | Realtek® Wi-Fi 6E RTL8852CE |
– WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
– BLUETOOTH 5.3 | |
– Support for 11ax 160MHz wireless standard | |
Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
– AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x16 mode | |
– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode | |
– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode | |
Chipset: | |
– 2 x PCI Express x16 slot, , supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) | |
Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: |
– AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs | |
– AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | |
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: | |
– AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs | |
– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs | |
– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs | |
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs | |
4 x SATA 6Gb/s connectors | |
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices | |
RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
USB | CPU: |
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support (Note) | |
– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
CPU + USB 2.0 Hub: | |
– 4 x USB 2.0/1.1 ports on the back panel | |
Chipset: | |
– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header | |
– 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) | |
– 4 x USB 2.0/1.1 ports available through the internal USB headers | |
Chipset+USB 3.2 Gen 1 Hub: | |
– 4 x USB 3.2 Gen 1 ports on the back panel | |
Internal I/O Connectors | 1 x 24-pin ATX main power connector |
1 x 8-pin ATX 12V power connector | |
1 x 4-pin ATX 12V power connector | |
1 x CPU fan header | |
1 x CPU fan/water cooling pump header | |
3 x system fan headers | |
1 x system fan/water cooling pump header | |
3 x addressable RGB Gen2 LED strip headers | |
1 x RGB LED strip header | |
3 x M.2 Socket 3 connectors | |
4 x SATA 6Gb/s connectors | |
1 x front panel header | |
1 x front panel audio header | |
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support | |
1 x USB 3.2 Gen 1 header | |
2 x USB 2.0/1.1 headers | |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
1 x HDMI port* | |
Back Panel Connectors | 1 x Q-Flash Plus button |
2 x SMA antenna connectors (2T2R) | |
1 x HDMI port | |
1 x USB Type-C® port, with USB 3.2 Gen 2 support | |
2 x USB 3.2 Gen 2 Type-A ports (red) | |
5 x USB 3.2 Gen 1 ports | |
4 x USB 2.0/1.1 ports | |
1 x RJ-45 port | |
3 x audio jacks | |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring | Voltage detection |
Temperature detection | |
Fan speed detection | |
Water cooling flow rate detection | |
Fan fail warning | |
Fan speed control | |
BIOS | 1 x 256 Mbit flash |
Use of licensed AMI UEFI BIOS | |
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Unique Features | Support for GIGABYTE Control Center (GCC) |
– Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
Support for Q-Flash | |
Support for Q-Flash Plus | |
Bundled Software | Norton® Internet Security (OEM version) |
LAN bandwidth management software | |
Operating System | Support for Windows 11 64-bit |
Support for Windows 10 64-bit | |
Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
Specification may change without further notice.

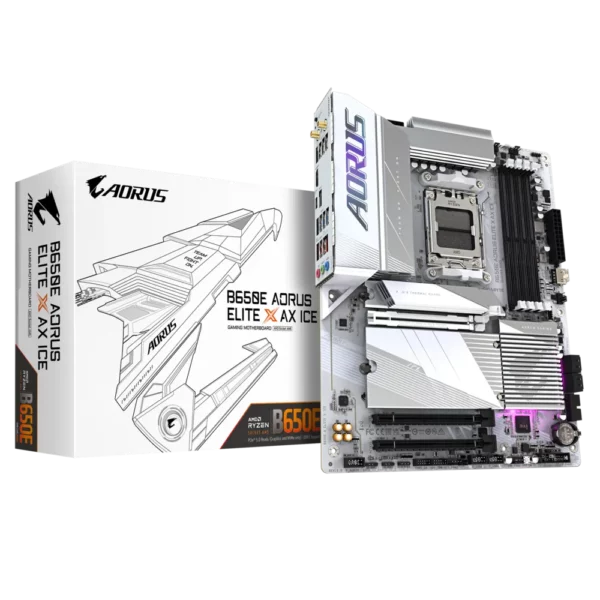

1 review for Gigabyte B650E AORUS Elite X AX Ice AMD AM5 Motherboard
