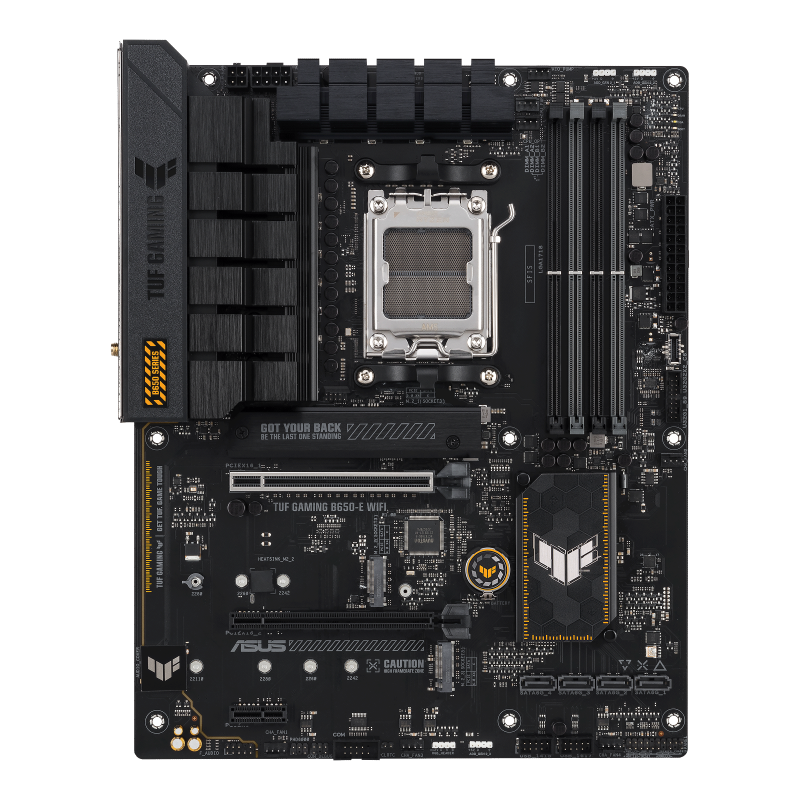

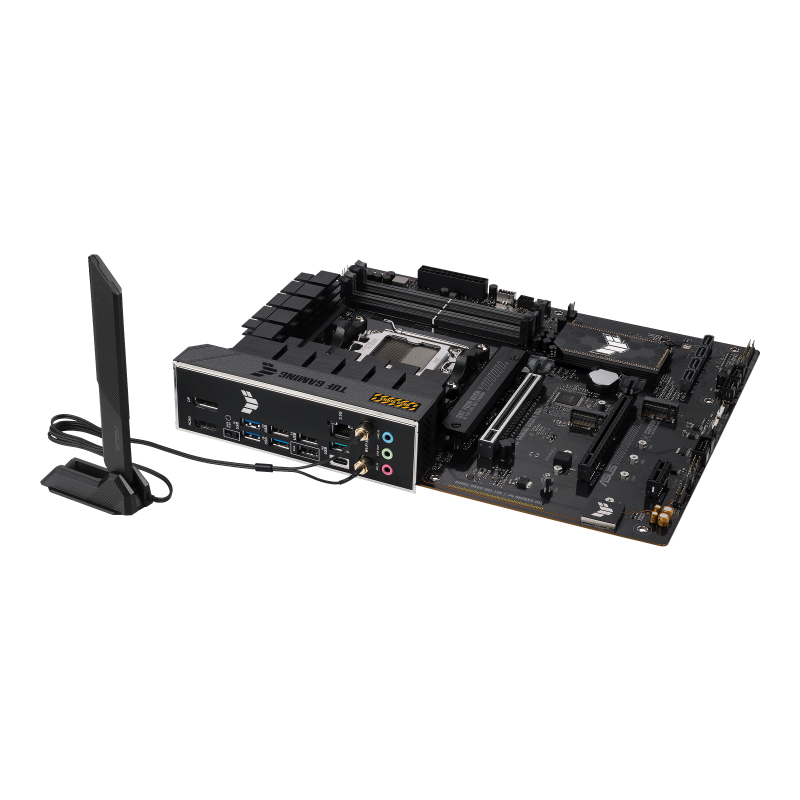

Model | TUF GAMING B650-E WIFI |
CPU | AM5 Socket for AMD Ryzen™ Desktop Processors |
Chipset | AMD B650 |
Memory | 4 x DIMM, Max. 192GB, DDR5 |
Graphics | 1 x DisplayPort, 1 x HDMI® port |
Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors: 1 x PCIe 4.0/3.0 x16 slot(s), AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), AMD B650 Chipset: 1 x PCIe 4.0/3.0 x16 slot (supports x1 mode), 1 x PCIe 4.0/3.0 x1 slots |
Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports |
Ethernet | 1 x Realtek 2.5Gb Ethernet |
Wireless & Bluetooth | Wi-Fi 6E |
USB | Rear USB (Total 8 ports): 2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C®), 3 x USB 5Gbps port(s) (3 x Type-A), 3 x USB 2.0 port(s) (3 x Type-A); Front USB (Total 7 ports): 1 x USB 20Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports, 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
Back Panel I/O Ports | 2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C®), 3 x USB 5Gbps port(s) (3 x Type-A), 3 x USB 2.0 port(s) (3 x Type-A), 1 x DisplayPort, 1 x HDMI® port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x BIOS FlashBack™ button |
Internal I/O Connectors | Fan and Cooling related, Power related, Storage related, USB, Miscellaneous |
Special Features | ASUS TUF PROTECTION, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync, Software Features, BIOS, Operating System |
Form Factor | ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
Specification may change without further notice.
