NEW!

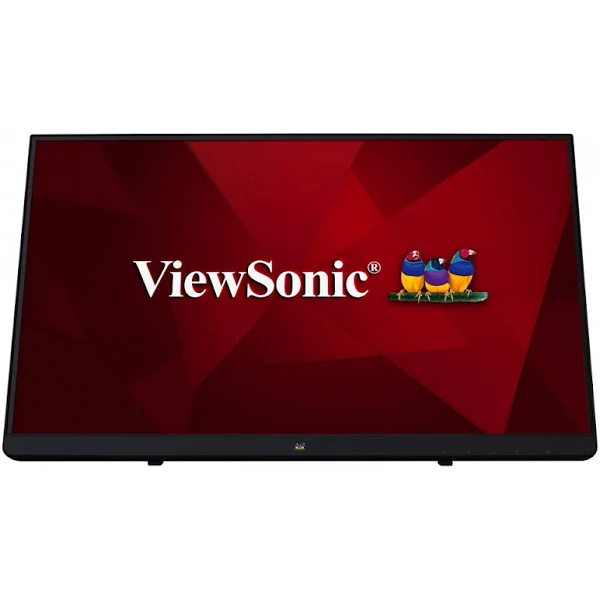

Viewsonic TD2230 22″ 10-point Touch Screen Monitor

Availability:

Domestic or Local Stocks via Bermor Techzone


ViewSonic TD2230 is a 22” (21.5” viewable) Full HD display with 10-point projected capacitive touch and SuperClear IPS-type technology, offering a responsive, intuitive touch experience with high-quality image performance at wide viewing angles for multi-user interactive environments. Users can tap, swipe, slide, pinch and nudge their fingers directly on the touch screen during group occasions. It is ideally used as an informative kiosk in hospitality, retail, healthcare and corporate sectors, utilising customised applications for simple touch interaction. It is also suitable for group studies at schools, encouraging interactive learning, or for families enjoying multimedia entertainment in addition to kids gaming at home.
It features a durable edge-to-edge, 7H glass treatment and an ergonomic design that allows the display to be adjusted or sit flat on the table, providing durable surface quality and a smooth touch experience for multiple users.

Display Size (in.) 22
Viewable Area (in.) 21.5
Panel Type IPS Technology
Resolution 1920 x 1080
Resolution Type FHD (Full HD)
Static Contrast Ratio 1,000:1 (typ)
Dynamic Contrast Ratio 50M:1
Light Source LED
Brightness 200 cd/m² (typ)
Colors 16.7M
Color Space Support 8 bit (6 bit + Hi-FRC)
Aspect Ratio 16:9
Response Time (Typical GTG) 5ms
Response Time (GTG w/OD) 5ms
Viewing Angles 178º horizontal, 178º vertical
Backlight Life (Hours) 30,000 Hrs (Min)
Curvature Flat
Refresh Rate (Hz) 60
Blue Light Filter Yes
Flicker-Free Yes
Color Gamut NTSC: 77% size (Typ)
sRGB: 108% size (Typ)
Pixel Size 0.248 mm (H) x 0.248 mm (V)
Touch Screen Projected Capacitive, 10-point multi-touch
Surface Treatment Glossy, Hard Coating (7H)
Cover Glass Thickness 0.7mm
Compatibility
PC Resolution (max) 1920×1080
Mac® Resolution (max) 1920×1080
PC Operating System Windows 7/8/8.1/10/11 certified; macOS tested
Mac® Resolution (min) 1920×1080
Connector
VGA 1
USB 3.2 Type A Down Stream 2
USB 3.2 Type B Up Stream 1
3.5mm Audio In 1
3.5mm Audio Out 1
HDMI 1.4 1
DisplayPort 1
Power in DC Socket (Center Positive)
Audio
Internal Speakers 3Watts x2
Power
Eco Mode (Conserve) 16 w/ ES 7.0; 19 w/o ES 7.0W
Eco Mode (optimized) 18 w/ ES 7.0; 22 w/o ES 7.0W
Consumption (typical) 20 w/ ES 7.0; 25 w/o ES 7.0W
Consumption (max) 25 w/ ES 7.0; 28 w/o ES 7.0W
Voltage AC 100-240V
Stand-by 0.5W
Power Supply External Power Adaptor
Additional Hardware
Kensington Lock Slot 1
Controls
Physical Controls 1, 2, Up, Down, Power
On Screen Display Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Temperature 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing) 20% to 90%
Wall Mount
VESA Compatible 100 x 100 mm
Input Signal
Frequency Horizontal RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz
Frequency Vertical RGB Analog: 50 ~ 76Hz, HDMI (v1.4): 50 ~ 76Hz, DisplayPort (v1.2): 50 ~ 76Hz
Video Input
Digital Sync TMDS – HDMI (v1.4), PCI-E – DisplayPort (v1.2)
Analog Sync Separate/Composite/SOG – RGB Analog
Ergonomics
Tilt (Forward/Back) 20º / 70º
Weight (imperial)
Net (lbs) 7.9
Net Without Stand (lbs) 7.9
Gross (lbs) 10.4
Weight (metric)
Net (kg) 3.6
Net Without Stand (kg) 3.6
Gross (kg) 4.7
Dimensions (imperial) (wxhxd)
Packaging (in.) 21.7 x 14.6 x 4.5
Physical (in.) 19.3 x 11.8 x 1.9
Physical Without Stand (in.) 19.3 x 11.8 x 1.9
Dimensions (metric) (wxhxd)
Packaging (mm) 550 x 371 x 114
Physical (mm) 490 x 299 x 47
Physical Without Stand (mm) 490 x 299 x 47
General
Regulations cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, BIS, CCC, China RoHS, China Energy Label, CECP
Package Contents TD2230 x1, 3-pin Mickey Mouse Plug (IEC C5) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Audio Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Recycle/Disposal Please dispose of in accordance with local, state or federal laws.
Warranty *Warranty offered may differ from market to market
Power Management Energy Star standards, EPEAT
SKU: TD2230 Category:
