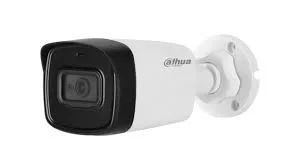

Dahua Lite 2MP 3.6mm Fixed Lens | Bullet Camera

Availability:

Domestic or Local Stocks via Bermor Techzone

The Dahua’s bullet network camera IPC-HFW2230S-S-0360B-S2 features 2MP, 1/2.7″ CMOS image sensor, built-in fixed lens of 3.6 mm. With advanced image processing technology and optical technology, Dahua Starlight technology can provide clear colorful video in the envi-ronment of low illuminance. It widely applies to various environments of low illuminance.

Adopting advanced algorithm of auto stream control according to the environment, Dahua smart encoding technology realizes the higher effi-ciency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.

₱2,770.00

Domestic or Local Stocks via Bermor Techzone

Step by Step PC Builder Here!
Image Sensor 1/2.8″ CMOS
Max. Resolution 1920 (H) × 1080 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.005 [email protected] (Color, 30 IRE);
0.0005 [email protected] (B/W, 30 IRE);
0 Lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance 30 m (98.43 ft) (IR)
Illuminator On/Off Control Auto; manual
Illuminator Number 1 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°
Lens Fixed-focal
Lens Mount M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture 2.8 mm: F1.6; 3.6 mm: F1.6
Field of View 2.8 mm: Horizontal: 107°; Vertical: 56°; Diagonal: 127°
3.6 mm: Horizontal: 88°; Vertical: 44°; Diagonal: 105°
Iris Control Fixed
Close Focus Distance 2.8 mm: 0.7 m (2.30 ft); 3.6 mm: 1.3 m (4.27 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 43.9 m 17.5 m 8.8 m 4.4 m
3.6 mm 58.9 m 23.6 m 11.8 m 5.9 m
Smart Event IVS Tripwire; intrusion
Video Compression H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Main stream: 1920 × 1080@1–25/30 fps
Sub stream: 704 × 576@1–25 fps; 704 × 480@1–30 fps
Stream Capability 2 streams
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720);
D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR DWDR
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Alarm Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
User/Host 20 (Total bandwidth: 48 M)
Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser IE; Chrome; Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client IOS; Android
Certifications CE-LVD: EN 62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Power Supply 12 V DC/PoE (802.3af)
Power Consumption Basic: 1.8 W (12 V DC); 2.5 W (PoE)
Max. (ICR + H.265 + max. resolution + main stream + IR intensity + DWDR + IVS): 3.9 W (12 V DC); 4.7 W (PoE)
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤ 95%
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Protection IP67
SKU: DH-IPC-HFW2230S-S-0360B-S2 Categories: ,
