Model | DH-IPC-HDW1239T1-LED-0280B-S5 |
Image Sensor | 1/2.8” 2Megapixel progressive CMOS |
Effective Pixels | 1920(H) x 1080(V) |
RAM/ROM | 512MB/256MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual, 1/3s–1/100000s |
Minimum Illumination | [email protected] |
IR Distance | Distance up to 30m (98ft) |
IR On/Off Control | Auto/Manual |
Lens Type | Fixed-focal |
Focal Length | 2.8mm, 3.6mm, 6.0mm optional |
Max. Aperture | F1.6 |
Angle of View | H: 108°(2.8mm), H: 87°(3.6mm), H: 54°(6.0mm) |
Focus Control | Fixed |
Close Focus Distance | 0.8m (2.62ft) |
Lens | DORI Distance (Note: DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs) |
2.8mm | |
3.6mm | |
6.0mm | |
Compression | H.265+/H.265/H.264+/H.264/MJPEG |
Streaming Capability | 2 Streams |
Resolution | 1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) |
Frame Rate | Main Stream: 1080P(1–25/30fps) |
Sub Stream: D1(1–25/30fps) | |
Bit Rate Control | CBR/VBR |
Bit Rate | H.264: 24~9472Kbps |
H.265: 14~5632Kbps | |
Day/Night | Auto(ICR)/Color/B/W |
BLC | BLC/HLC |
WDR | DWDR |
White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control | Auto/Manual |
Noise Reduction | 3D DNR |
Motion Detection | Off/On (4 Zone, Rectangle) |
Region of Interest (ROI) | Off/On (4 Zone) |
Smart IR | Support |
Defog | N/A |
Digital Zoom | 16x |
Flip | 0°/90°/180°/270° |
Mirror | Off/On |
Privacy Masking | Off/On (4 Area, Rectangle) |
Audio Input | Built-in Mic |
Audio Compression | G.711a/G.711Mu/AAC/G.726 |
Ethernet | RJ-45 (10/100Base-T) |
Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
Interoperability | ONVIF Profile S&G, API |
ONVIF | Profile S |
Max. User Access | 20 users |
Edge Storage | Dahua Cloud; FTP; Local PC; NAS |
Browser Support | IE, Chrome, Firefox, Safari |
Management Software | Smart PSS, DSS, Easy4ip, DMSS |
Smart Phone | IOS, Android |
Certifications | CE (EN 60950:2000), FCC (FCC Part 15 Subpart B) |
Power Supply | DC12V PoE (802.3af) |
Power Consumption | <4.5W |
Operating Conditions | -30°C~+60°C (-22°F~+140°F) / Less than 95% RH |
Ingress Protection | IP67 |
Vandal Resistance | IK10 |
Casing | Metal |
Dimensions | Φ106mm×94.5mm (Φ4.17”×3.72”) |
Net Weight | 0.38kg (0.84lb) |
Gross Weight | 0.51kg (1.12lb) |
CCTV & Securities, CCTV Camera

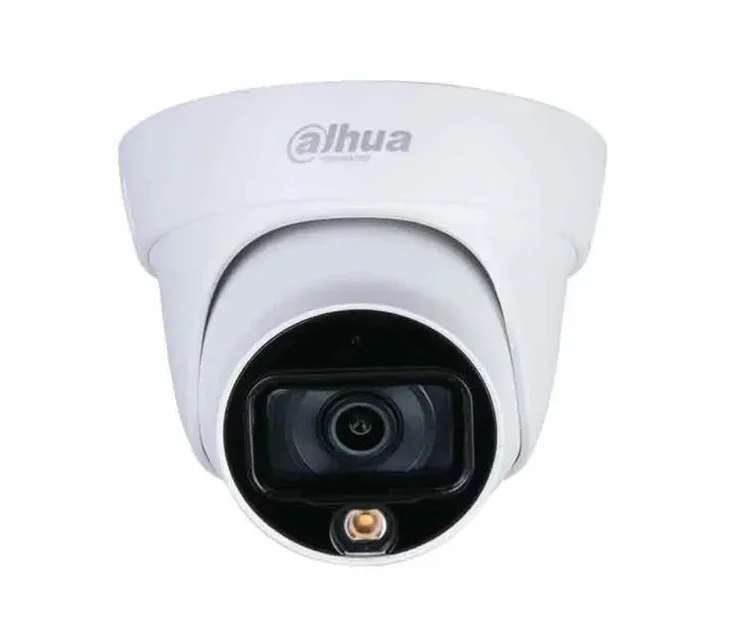

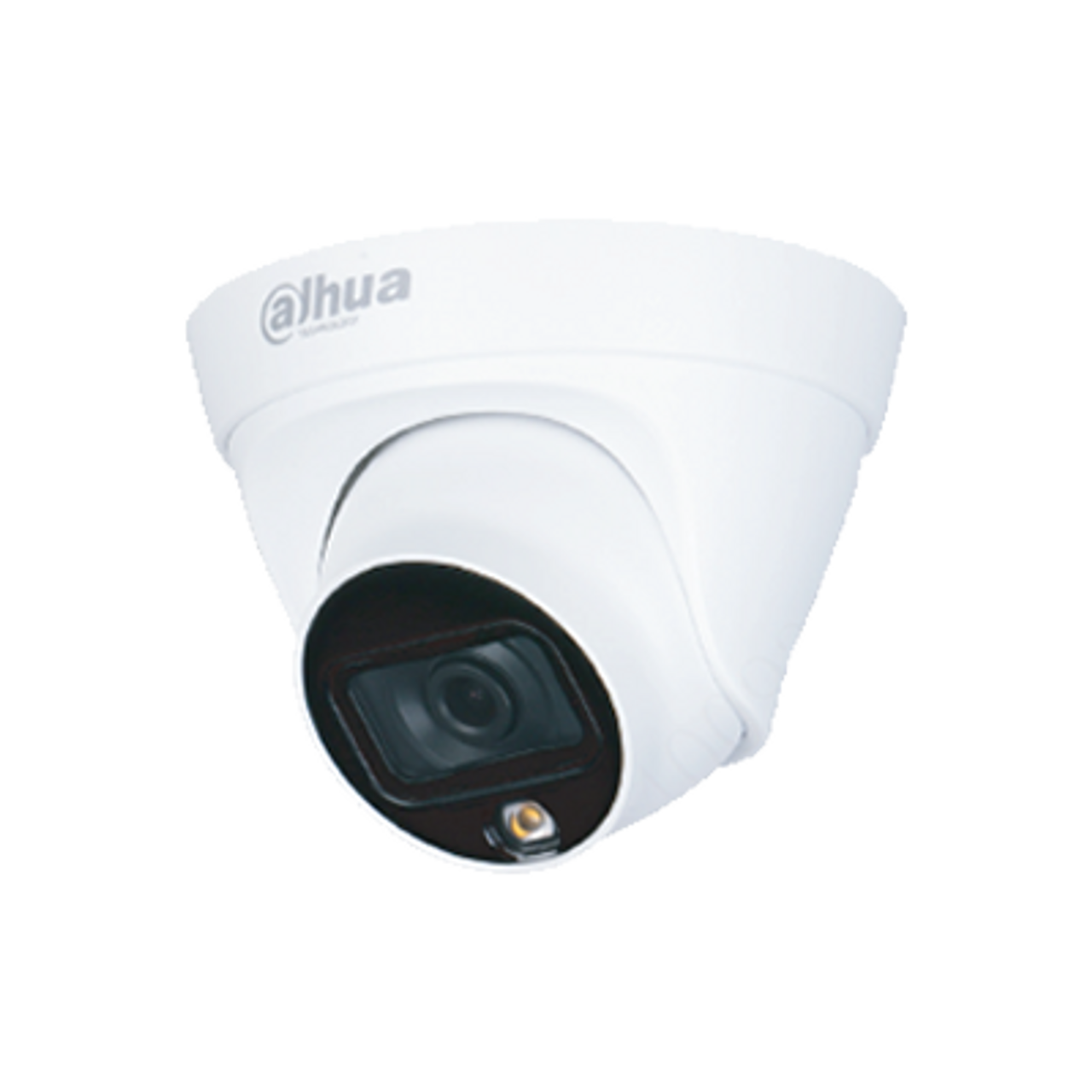

Dahua DH-IPC-HDW1239T1-LED-0280B-S5 2MP Lite Full-Color Fixed-Focal Eyeball Network Camera
Availability:
Domestic or Local Stocks via Bermor Techzone
- 2MP Lite Full-Color Fixed-Focal Eyeball Network Camera
- High-quality imaging with 2MP resolution
- Full-color video even in low-light conditions
- Fixed-focal lens for clear and focused images
- Equipped with Smart IR for enhanced night vision
- IP67 weatherproof and IK10 vandal-proof design for outdoor use
- Supports H.265+ video compression for efficient storage and bandwidth usage
₱2,250.00
