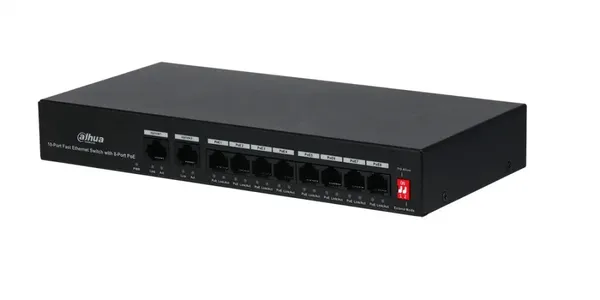

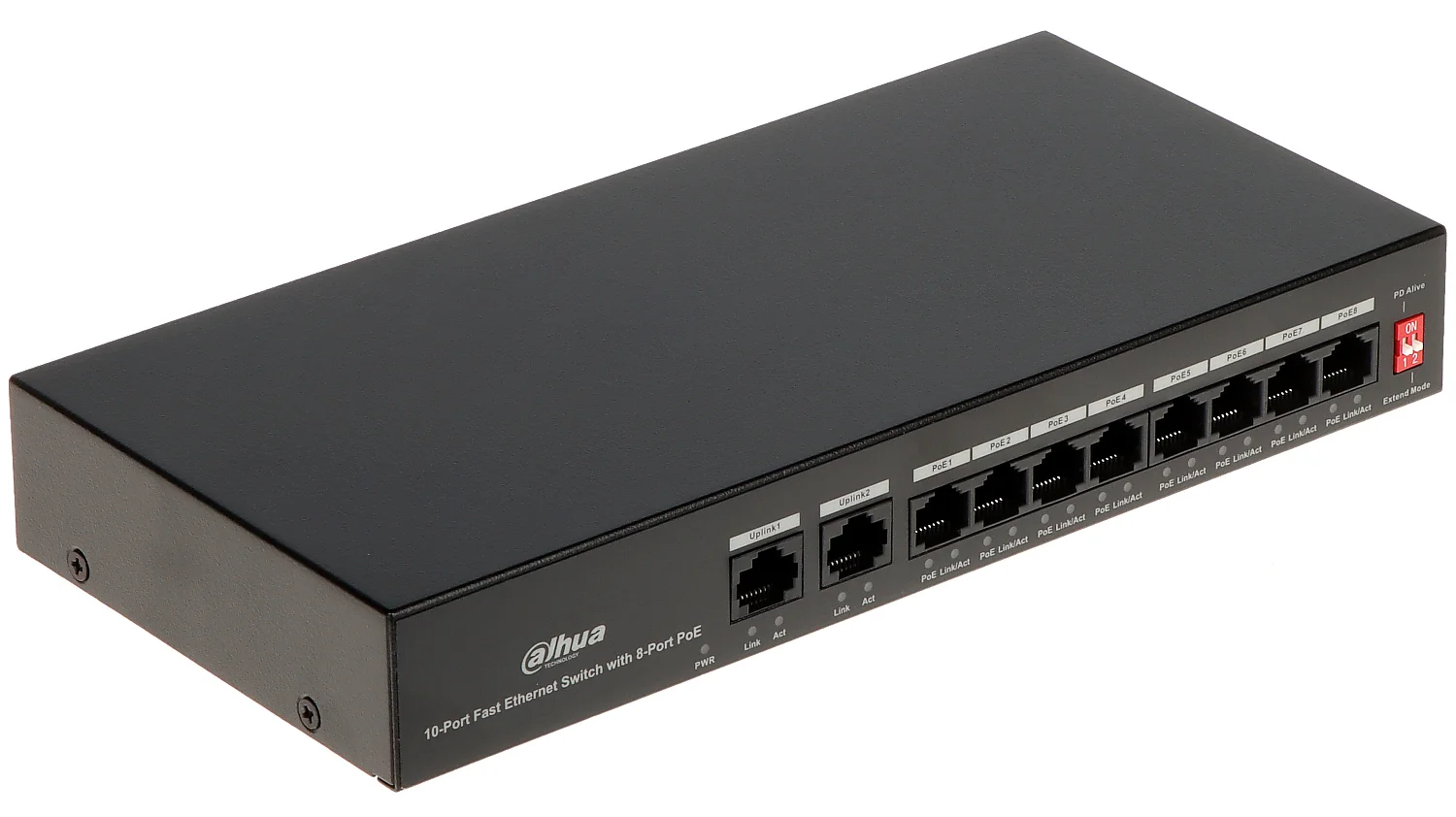

Dahua DH-PFS3010-8ET-65 10-Port Fast Ethernet Switch With 8-Port PoE

Availability:

Domestic or Local Stocks via Bermor Techzone
  • PoE Ports: Eight 10/100M PoE power supply ports
  • Uplink Ports: Two 10/100M uplink ports
  • Standards: Support for 802.3af and 802.3at standards
  • Operating Temperature: -10°C to +55°C
  • PoE Transmission Distance: Support for 250m long-distance PoE transmission
  • PoE Watchdog: Support for PoE watchdog

₱2,700.00

Domestic or Local Stocks via Bermor Techzone

Step by Step PC Builder Here!
Data Transmission Port 8 PoE ports with 10/100 Mbps Base-TX
2 uplink ports with 10/100Mbps Base-TX
Power Supply AC100–AC240V
Operating Temperature -10°C to +55°C (-14°F–131°F)
Operating Humidity 10%–90%
Power Consumption Idling: 1.0W
Full load: 65W
PoE PoE Budget
Port1-8 ≤30W, whole PoE budget ≤65W
PoE Standard
IEEE802.3af, IEEE802.3at
PoE Pin Assignment
PoE: 1, 2, 4, 5(V+), 3, 6, 7, 8(V-)
Performance Switching Capacity
2.0 Gbps
Packet Forwarding Rate
1.49 Mpps
MAC Table Size
2 K
Jumbo Frame
2048 byte
Communication Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3X
Performance
ESD
Air discharge: 8kV
Contact discharge: 6kV
Thunderproof
Common mode: 6kV
Differential mode: 4kV
Net Weight
0.76 kg (1.68 lb)
Gross Weight
1.3 kg (2.87 lb)
Product Dimensions
242.5 mm × 122.9 mm × 35.0 mm (9.55″ × 4.84″ × 1.38″)
Packaging Dimensions
Packing box: 303 mm × 262 mm × 72 mm (11.92″ ×10.31″ × 2.83″)
Protective box: 549 mm × 325 mm × 397 mm (21.61″ ×12.80″ × 15.63″)
Package
10 devices in one package
Certifications CE: EN60950;
FCC
SKU: DH-PFS3010-8ET-65 Category:
