Power Sources, Power Supply Unit

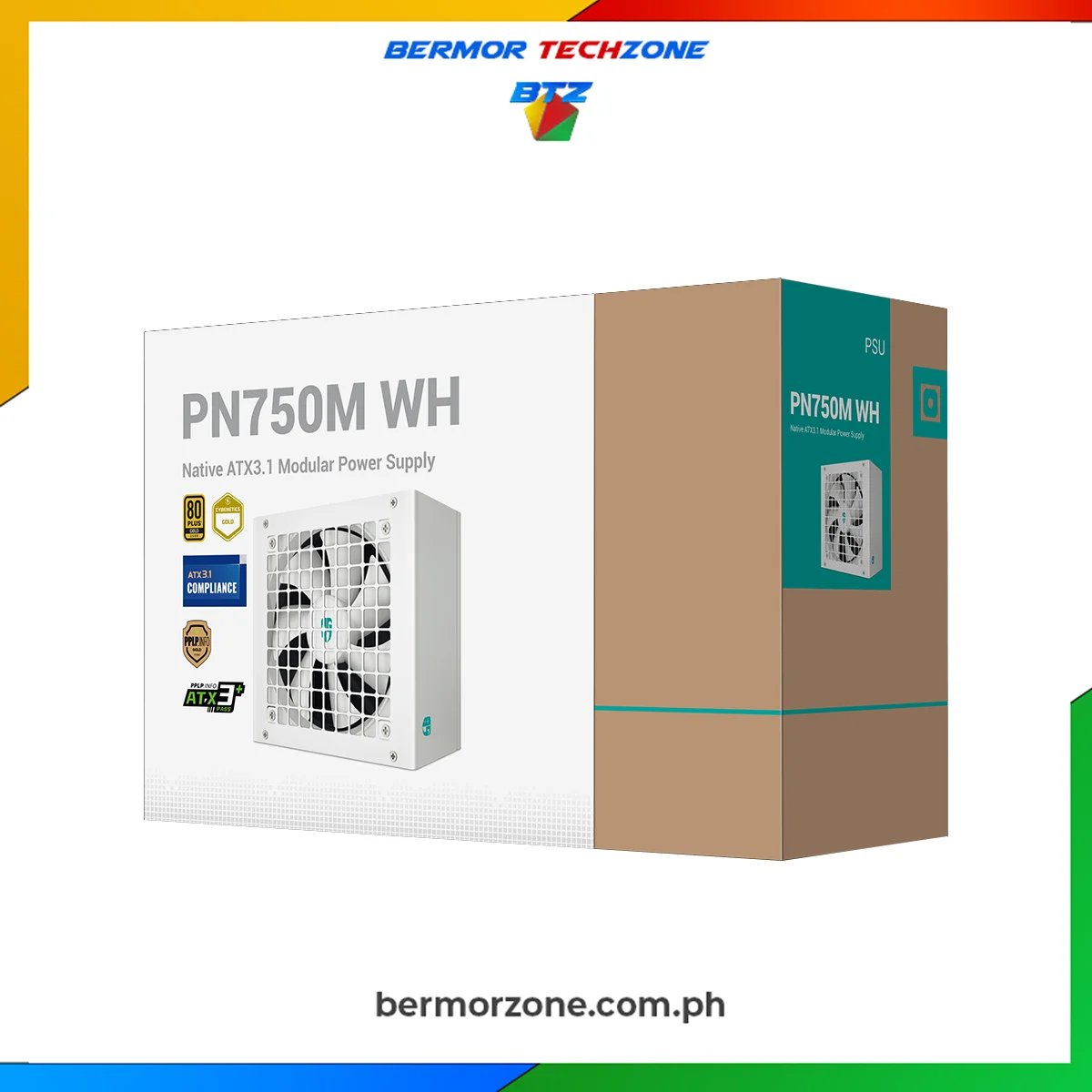

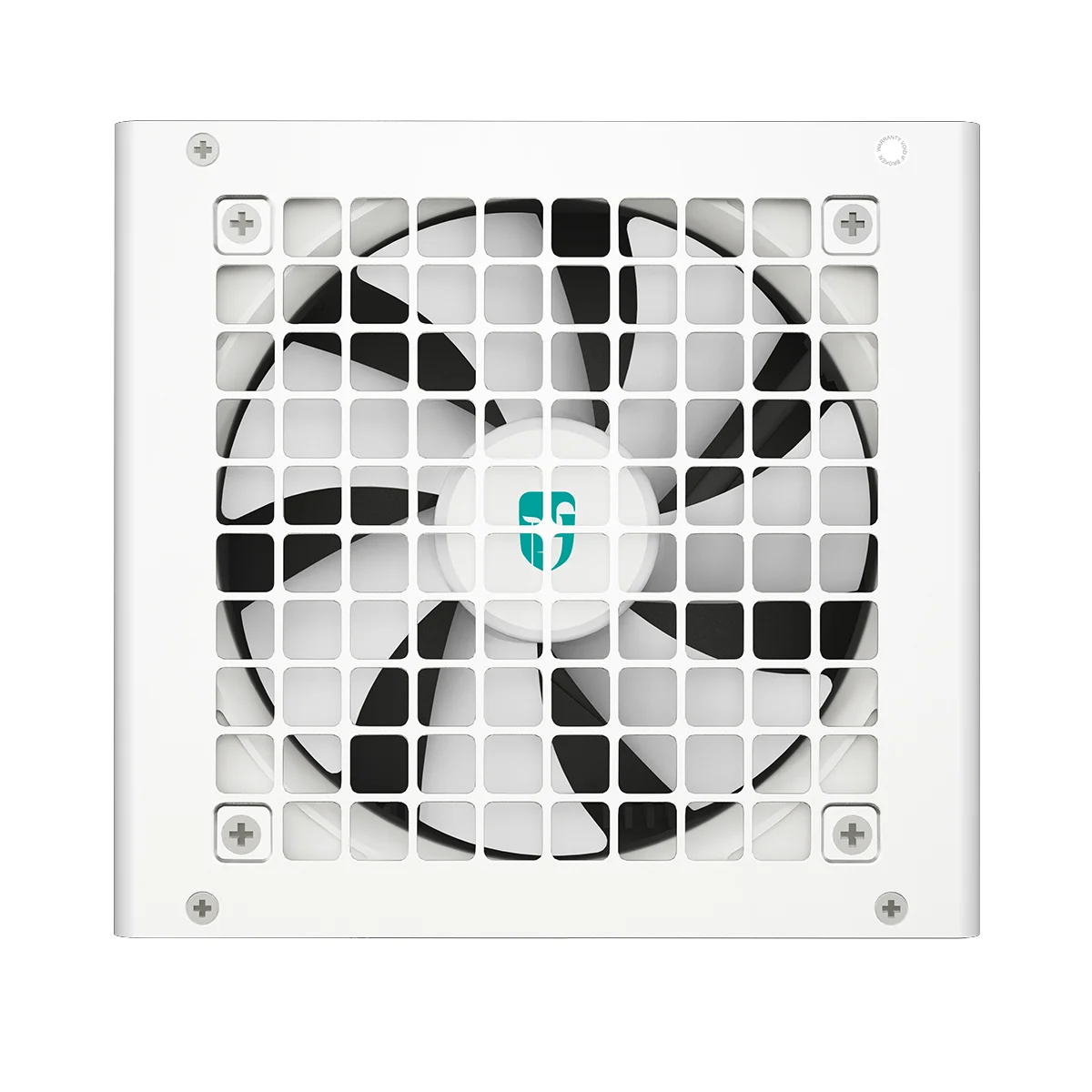

Deepcool GamerStorm PN750M | PN850M | PN1000M 80 Plus Gold Cybenetics Gold ATX 3.1 PCIe 5.1 Fully Modular Power Supply Unit White – 750W | 850W | 1000W
Availability:
Out of Stock. Check Counterpart Models
-
Dimensions: 150 × 140 × 86 mm (W × L × H)
-
Efficiency Certification: 80Plus Gold
-
Fan Size: 120 mm
-
Fan Bearing: FDB (Fluid Dynamic Bearing)
-
Topology: Active PFC + Full Bridge SRC LLC + DC to DC
-
Capacitors: Japanese Bulk Capacitor
-
Power Good Signal: 100–150 ms
-
Hold-Up Time: ≥16 ms (80% Load)
-
Typical Efficiency: ≥90% at 50% Load
-
Protection: OPP / OVP / SCP / OTP / OCP / UVP / SIP / NLO
-
Operating Temperature: 0 – 40 °C
-
Regulatory Certifications: CE, FCC, CCC, cTUVus, RCM, EAC, BIS, TUV-RH
-
ErP Compliance: ErP 2014
-
Environmental Compliance: WEEE, 中国 RoHS, Triman, P65
Price range: ₱5,450.00 through ₱7,650.00
6-Month Grace monthly payment:
₱550
12-Month Full Interest monthly payment:
₱645
Learn more about Billease Installment at Checkout
Want to be Notified upon Restock
We will inform you when the product toggled in stock. Please leave your valid email address below.
| 750W| 850W | 1000W | ATX12V V3.1 | ATX12V V3.1 | ATX12V V3.1 |
| Product Dimensions | 150×140×86mm | 150×140×86mm | 150×150×86mm |
| Efficiency Certification | 80Plus Gold | 80Plus Gold | 80Plus Gold |
| Fan Size | 120mm | 120mm | 135mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) | FDB (Fluid Dynamic Bearing) | FDB (Fluid Dynamic Bearing) |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC | Active PFC + Full Bridge SRC LLC + DC to DC | Active PFC + Half Bridge SRC LLC + DC to DC |
| Capacitors | Japanese Bulk Capacitor | Japanese Bulk Capacitor | Japanese Bulk Capacitor |
| Power Good Signal | 100–150ms | 100–150ms | 100–150ms |
| Hold Up Time | ≥16ms (80% Load) | ≥16ms (80% Load) | ≥16ms (80% Load) |
| Efficiency | ≥90% Under Typical Load (50% Loading) | ≥90% Under Typical Load (50% Loading) | ≥90% Under Typical Load (50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 – 40℃ | 0 – 40℃ | 0 – 40℃ |
| Regulatory | CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RH | CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RH | CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC/BIS |
| ErP Regulation | ErP 2014 | ErP 2014 | ErP 2014 |
| Environment Protection | WEEE/中国 RoHS/Triman/P65 | WEEE/中国 RoHS/Triman/P65 | WEEE/中国 RoHS/Triman/P65 |
| MTBF | 100,000 Hours | 100,000 Hours | 100,000 Hours |
| Brands | |
|---|---|
| Wattage | 750W, 850W, 1000W |
| PSU Form Factor | ATX |
| PSU Wattage | 650W, 750W, 850W |
