Power Sources, Power Supply Unit

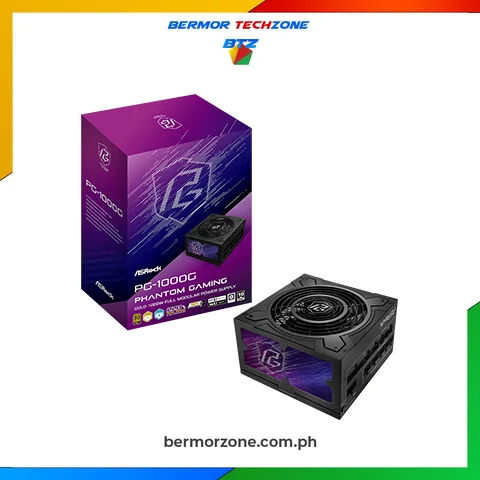

ASRock PG-G Phantom Gaming 750W | 850W | 1000W Cybenetics Platinum 80 Plus Gold Fully Modular Power Supply
Availability:
Out of Stock. Check Counterpart Models
- 80 PLUS® GOLD Certified
- Cybenetics Platinum and LAMBDA A+ Certified
- ATX3.1 & PCIe5.1 Ready
- Fully Modular Cable Design
- Native 12V-2×6 Connector Dual Color Design with TempGuard
- 100% Highly Reliable Japanese Capacitors
- 135mm Striped Axial FDB Fan
- iCool Intelligent Fan Control Mode
- 5V BOOST Mode
Price range: ₱7,570.00 through ₱10,420.00
6-Month Grace monthly payment:
₱763
12-Month Full Interest monthly payment:
₱896
Learn more about Billease Installment at Checkout
Want to be Notified upon Restock
We will inform you when the product toggled in stock. Please leave your valid email address below.
| Specification | PG-750G | PG-850G | PG-1000G |
|---|---|---|---|
| 80 PLUS Efficiency | GOLD | GOLD | GOLD |
| Cybenetics (ETA / LAMBDA) | Platinum / A | Platinum / A+ | GOLD / A |
| ATX 12V Version | ATX 3.1 | ATX 3.1 | ATX 3.1 |
| ATX | ATX 3.1 | ATX 3.1 | ATX 3.1 |
| Continuous 12V Output | 62.5 A | 70.8 A | 83.3 A |
| Warranty (Years) | 10 | 10 | 10 |
| Dimensions (L x W x H) | 150mm x 150mm x 86mm | 150mm x 150mm x 86mm | 150mm x 150mm x 86mm |
| Fan | 135mm Striped Axial FDB Fan | 135mm Striped Axial FDB Fan | 135mm Striped Axial FDB Fan |
| iCOOL MODE | Yes (Switch) | Yes (Switch) | Yes (Switch) |
| Protections | OCP, SCP, OVP, UVP, OTP, OPP | OCP, SCP, OVP, UVP, OTP, OPP | OCP, SCP, OVP, UVP, OTP, OPP |
| Capacitors | All Japanese | All Japanese | All Japanese |
| 5V BOOST | Yes (Switch) | Yes (Switch) | Yes (Switch) |
| PCIe 5.1 Cable TempGuard | Yes | Yes | Yes |
| Total Power Excursion | 220% | 220% | 220% |
| MTBF (Hours) @ 25°C | 100,000 | 100,000 | 100,000 |
| Cable Type | 24pin & 12+4pin: SleevedOthers: Individual Braided Pattern | 24pin & 12+4pin: SleevedOthers: Individual Braided Pattern | 24pin & 12+4pin: SleevedOthers: Individual Braided Pattern |
| Motherboard Cable (24pin) | 1 | 1 | 1 |
| EPS 12V CPU Connectors (4+4pin) | 2 | 2 | 2 |
| PCIe 5.1 Connectors (12+4pin) Dual Color | 1 | 1 | 1 |
| PCIe Connectors (6+2pin) | 3 | 4 | 5 |
| 4-pin Peripheral Connectors | 3 | 3 | 3 |
| SATA 5-pin Connectors | 9 | 9 | 9 |
| Brands | |
|---|---|
| PSU Form Factor | ATX |
| PSU Wattage | 750W, 850W |
| Wattage | 750W, 850W, 1000W |
