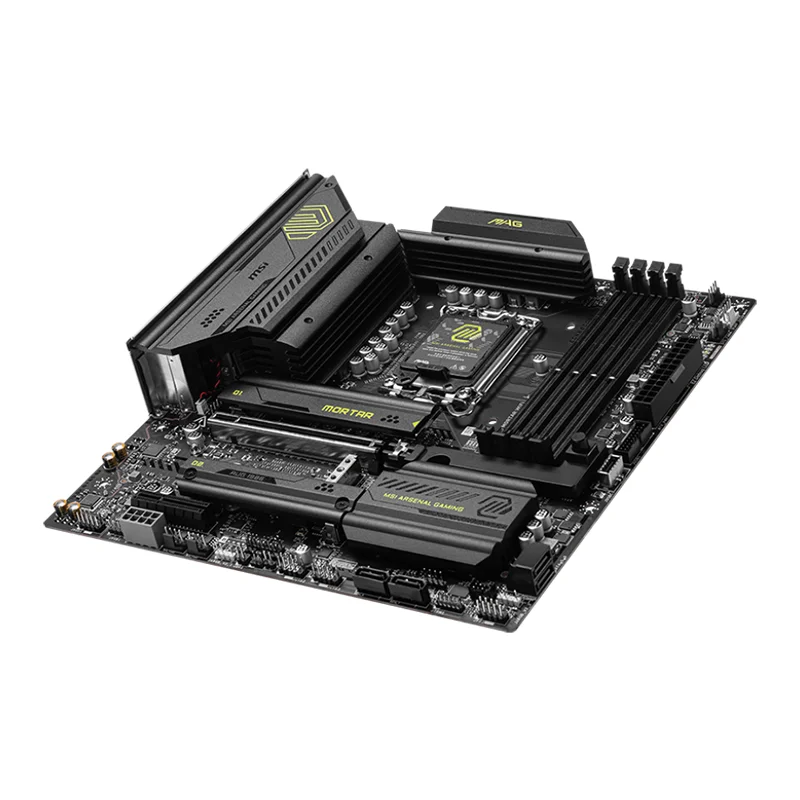

MSI MAG B860M MORTAR WIFI LGA 1851 mATX Intel Motherboard
Availability:
Out of Stock. Check Counterpart Models
Features
- PCIe Gen5 and DDR5 Overclock Support
Supports the latest Intel® Core™ Ultra (Series 2) processors on LGA 1851, with one PCIe 5.0 x16 slot and DDR5 Memory Boost for overclocking up to DDR5-9200+ MT/s. - Ultra-fast Storage with Triple M.2
Offers 1× M.2 Gen5 (CPU-wired) slot plus 2× Gen4 slots (chipset) for high-bandwidth NVMe SSDs. Includes EZ M.2 Shield Frozr II and tool-less EZ M.2 Clip II for easy installation and thermal protection. - Next-Gen Connectivity: Wi-Fi 7, 5 GbE LAN & Thunderbolt 4
Built-in Intel Killer BE1750x Wi-Fi 7 (up to 5.8 Gbps) with Bluetooth 5.4, Intel Killer E5000 5 GbE LAN, and a Thunderbolt 4 Type-C port supporting up to 40 Gbps transfer and multi-display output. - Robust Thermals & DIY-centric EZ Design
Includes FROZR GUARD cooling with MOSFET thermal pads, extended heatsinks, chipset cooling, and combo-fan headers. Users benefit from EZ PCIe Release, EZ M.2 Clip, EZ Conn cabling headers, and cable-friendly DIY features. - Compact mATX with Full-featured Power Delivery
This mATX board features a 12-phase (12+1+1+1) direct VRM design with 60 A power stages to reliably support high-end Core Ultra CPUs in a small footprint.
₱13,900.00
6-Month Grace monthly payment:
₱1,401
12-Month Full Interest monthly payment:
₱1,644
Learn more about Billease Installment at Checkout
Out of Stock. Check Counterpart Models
Want to be Notified upon Restock
We will inform you when the product toggled in stock. Please leave your valid email address below.
Add to WishlistAlready In Wishlist
Add to Wishlist
| Category | Details |
|---|---|
| Chipset | Intel® B860 |
| CPU Support | Supports Intel® Core™ Ultra Processors (Series 2) Socket: LGA 1851 |
| Memory | 4x DDR5 UDIMM, Max. 256GB Speed: 9200–6400 (OC) MT/s / 6400–4800 (JEDEC) MT/s Overclocking frequency: • 1DPC 1R: up to 9200+ MT/s • 1DPC 2R: up to 7200+ MT/s • 2DPC 1R: up to 6400+ MT/s • 2DPC 2R: up to 5600+ MT/s Supports Intel® POR/JEDEC Speeds, XMP 3.0, Dual-Channel, CUDIMM, Non-ECC UDIMM Note: DIMM slots have single-sided latches; compatibility varies by CPU/configuration |
| Onboard Graphics | 1x HDMI™ 2.1 (FRL), max 8K@60Hz 1x DisplayPort 1.4, max 4K@60Hz 1x Thunderbolt™ 4 (Type-C, DP 2.1 UHBR20), max 8K@60Hz / 4K@120Hz Available only with CPUs featuring integrated graphics |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU) 1x PCIe 4.0 x4 (Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel HD Audio Supports S/PDIF Out |
| Storage | 3x M.2 Slots: • M.2_1 (CPU): PCIe 5.0 x4, 2242/2260/2280 • M.2_2 (Chipset): PCIe 4.0 x4, 2260/2280 • M.2_3 (Chipset): PCIe 4.0 x4, 2260/2280 4x SATA 6Gb/s Refer to manual for heatsink restrictions |
| RAID Support | RAID 0, 1, 5, 10 (SATA devices) |
| Thunderbolt | 1x Thunderbolt™ 4 port (rear) Up to 40Gbps (Thunderbolt), 20Gbps (USB4), 10Gbps (USB 3.2) Supports 15W (5V/3A) charging Daisy-chain up to 3x TB4 or 5x TB3 devices Supports up to 8K display |
| USB Ports | Rear: 4x USB 2.0, 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 1x Thunderbolt 4 (Type-C) Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| LAN | Intel® Killer™ E5000 5Gbps LAN |
| Wireless | Intel® Killer™ BE1750x Wi-Fi 7 (pre-installed M.2 Key-E) Bands: 2.4/5/6GHz (320MHz) up to 5.8Gbps Supports MU-MIMO, 802.11 a/b/g/n/ac/ax/be Bluetooth® 5.4 (with MLO, 4KQAM) |
| Internal I/O | 1x Thunderbolt 5 card connector (JTBT5) 1x 24-pin ATX_PWR, 2x CPU_PWR, 1x PCIe_PWR (8-pin) 1x CPU Fan, 1x Combo Fan (Pump/SYS), 4x System Fan 1x EZ Conn-header (JAF_1), 2x Front Panel (JFP) 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD) 1x Tuning Controller connector (JDASH) 3x Addressable RGB (JARGB_V2), 1x RGB (JRGB) 1x TPM 2.0 Header USB headers: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| LED Features | 4x EZ Debug LED 1x EZ Memory Detection LED |

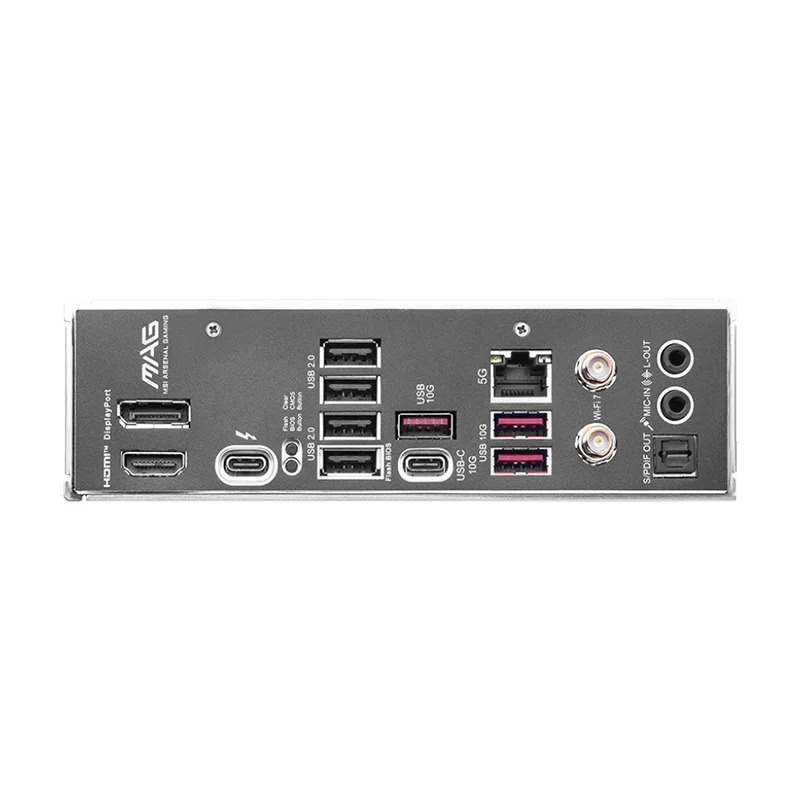

| Back Panel I/O | 1x DisplayPort 1x HDMI™ 1x Thunderbolt™ 4 (Type-C, 40Gbps) 3x USB 10Gbps Type-A 1x USB 10Gbps Type-C 4x USB 2.0 1x Intel® Killer™ 5G LAN Wi-Fi 7 / Bluetooth antenna ports Audio connectors + S/PDIF Out Flash BIOS Button Clear CMOS Button |
| Operating System | Windows® 11 64-bit |
| Brands | |
|---|---|
| Intel Chipset | B860 |
| Form Factor | MATX |
| RAM Generation | DDR5 |
