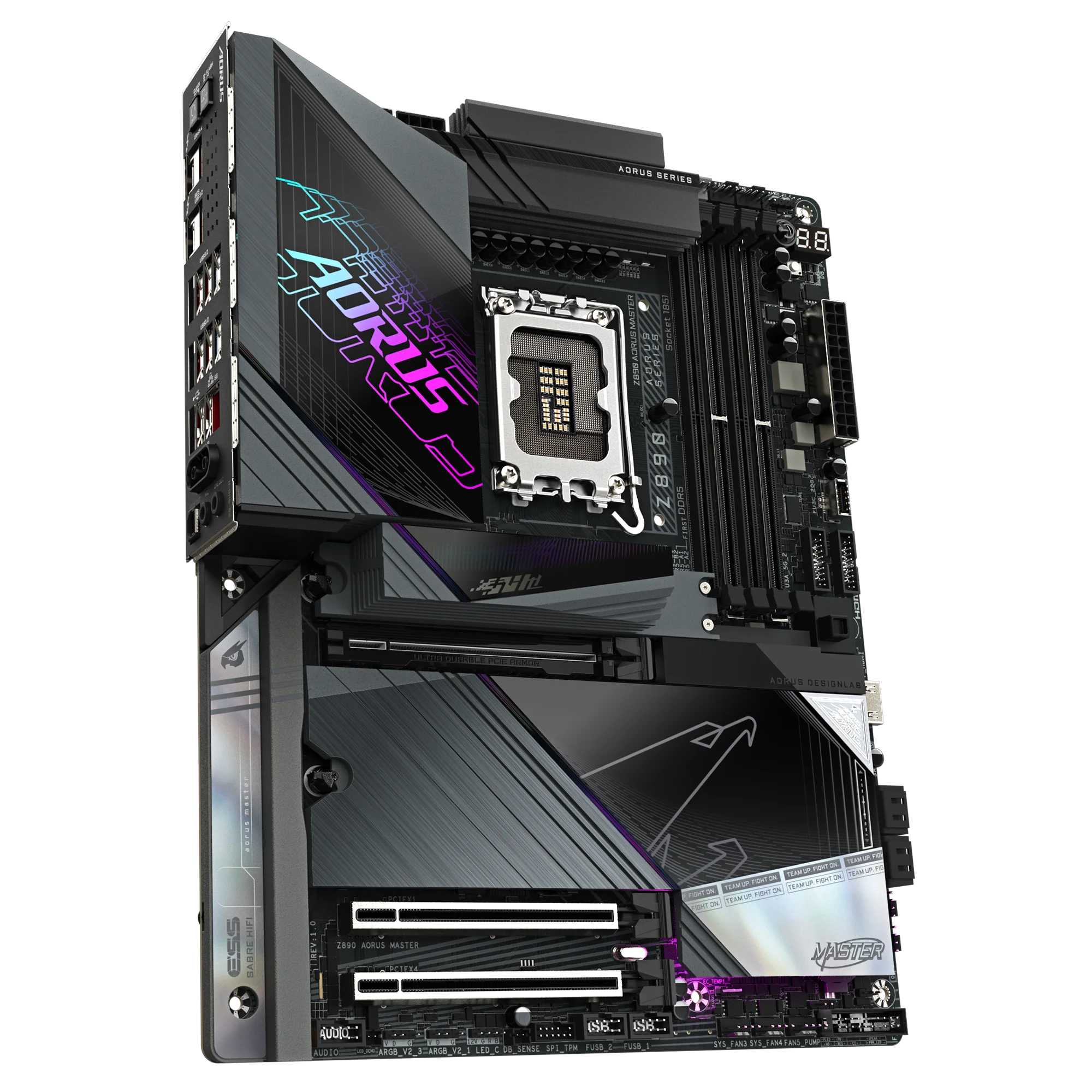

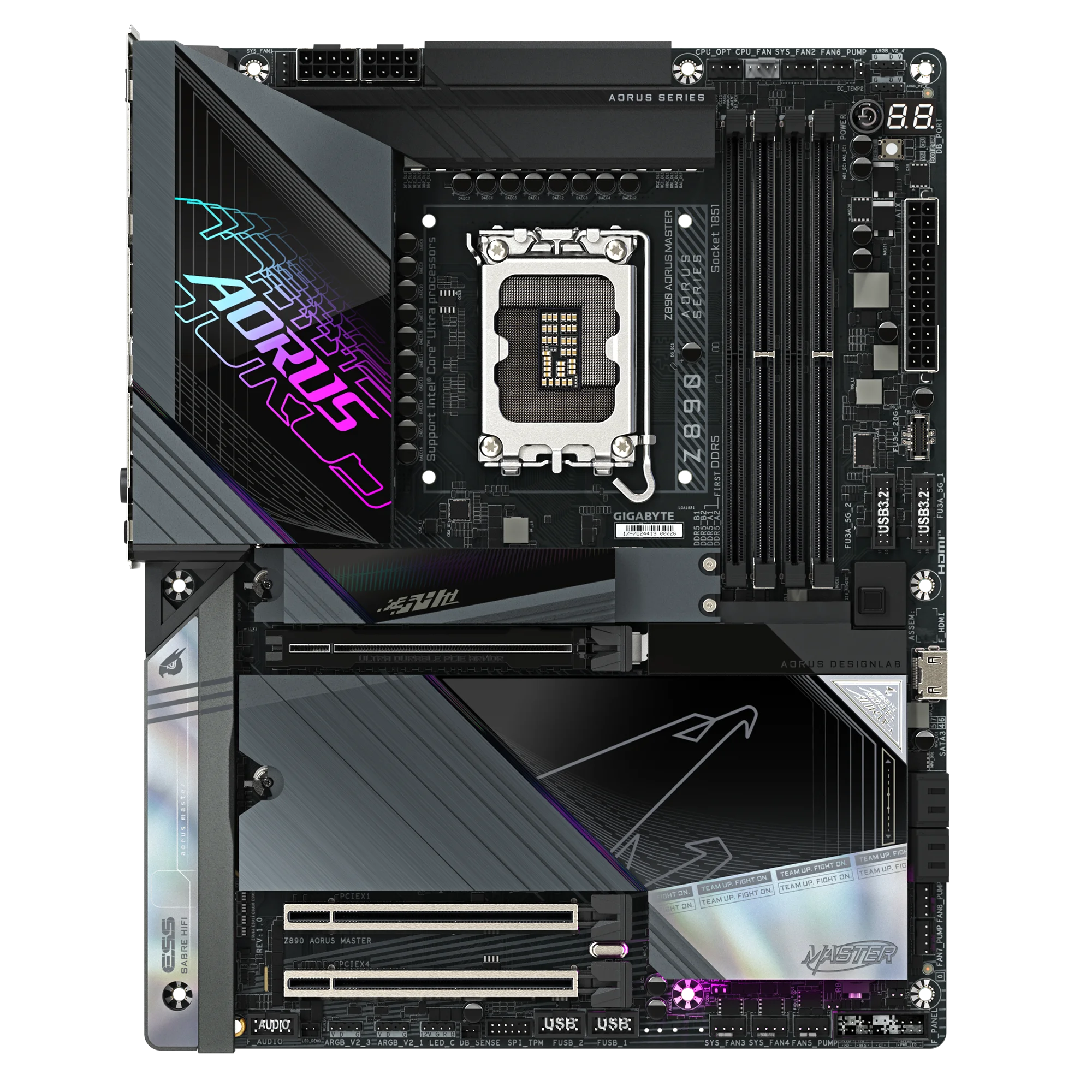

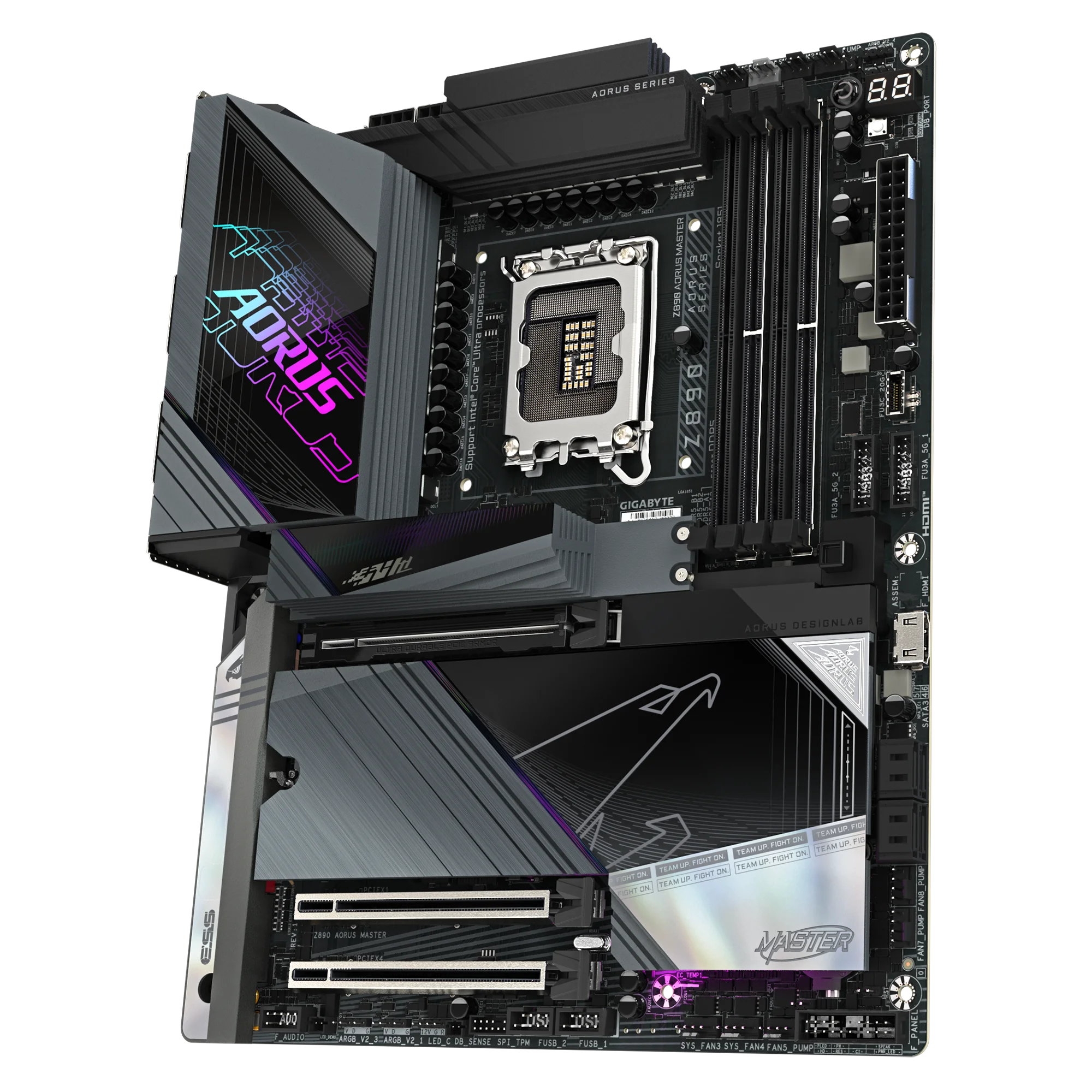

Gigabyte Z890 AORUS MASTER ATX LGA1851 Motherboard
Availability:
Out of Stock. Check Counterpart Models

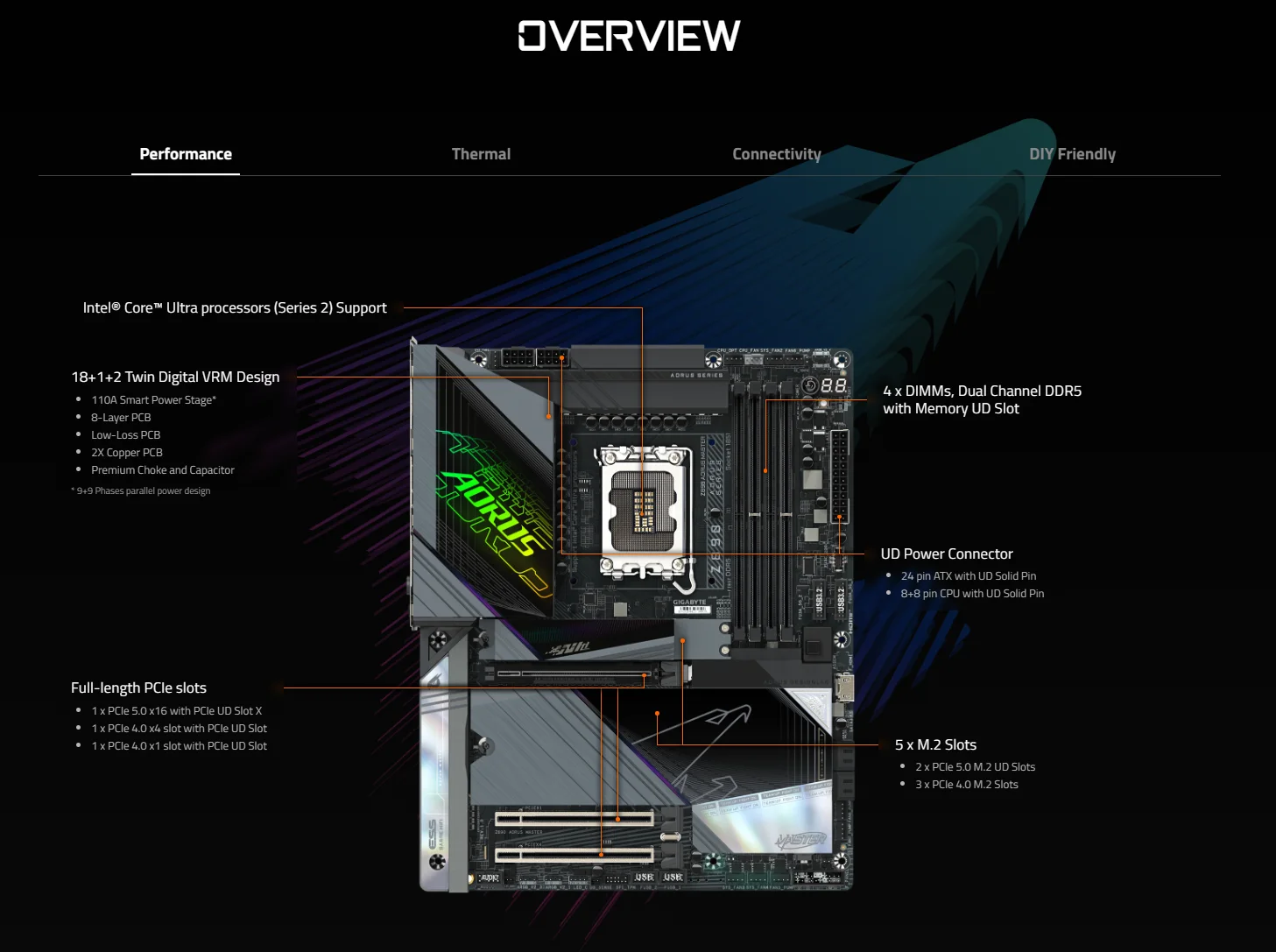

- Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 18+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AORUS AI SNATCH : Auto-Overclocking Software by AI models
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- Premium Compatibility : 4*DDR5 with XMP Memory Module Support
- DDR Wind Blade : Enhanced Active Cooling for Memory Modules

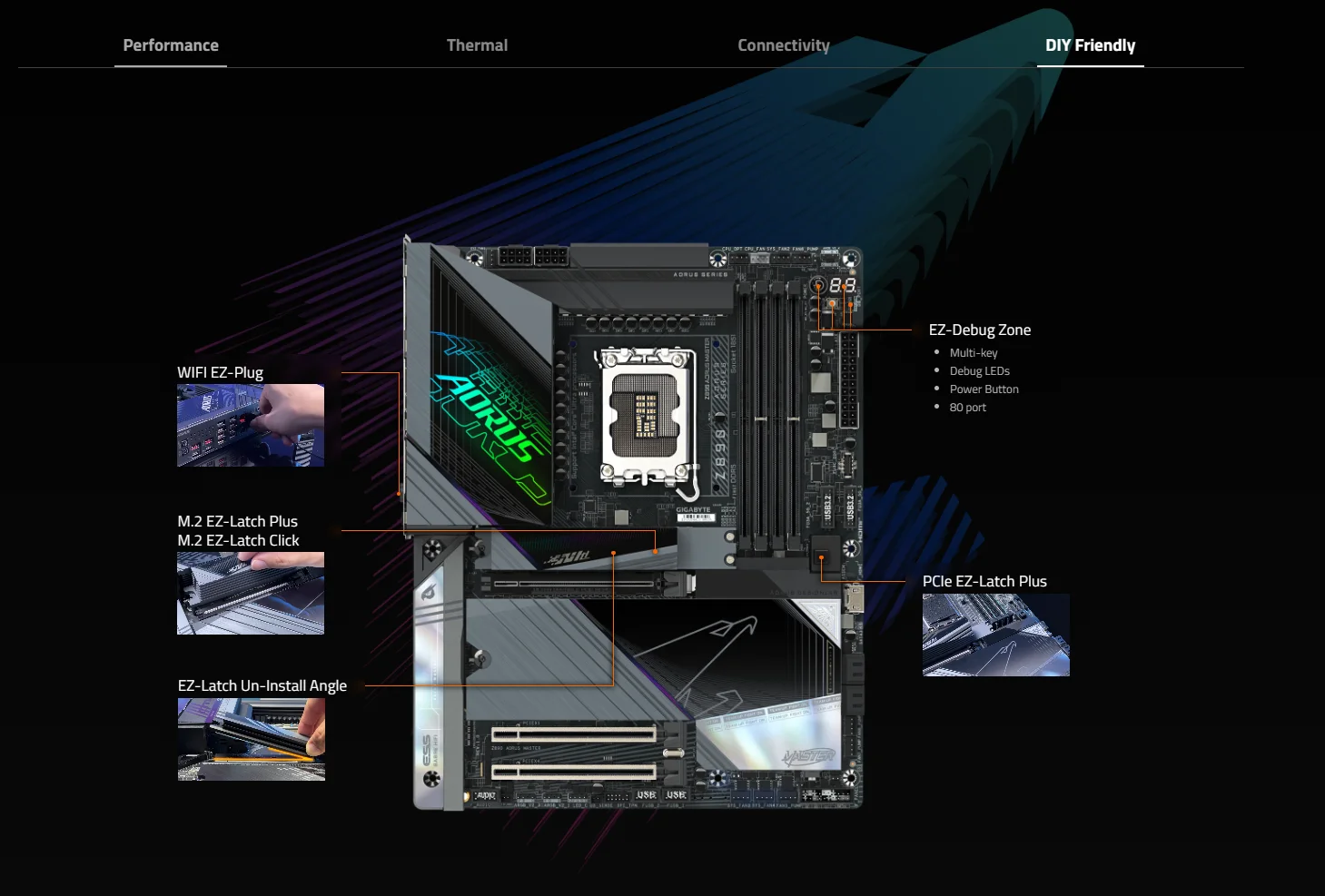

- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage : 5*M.2 slots, including 2* PCIe 5.0 x4

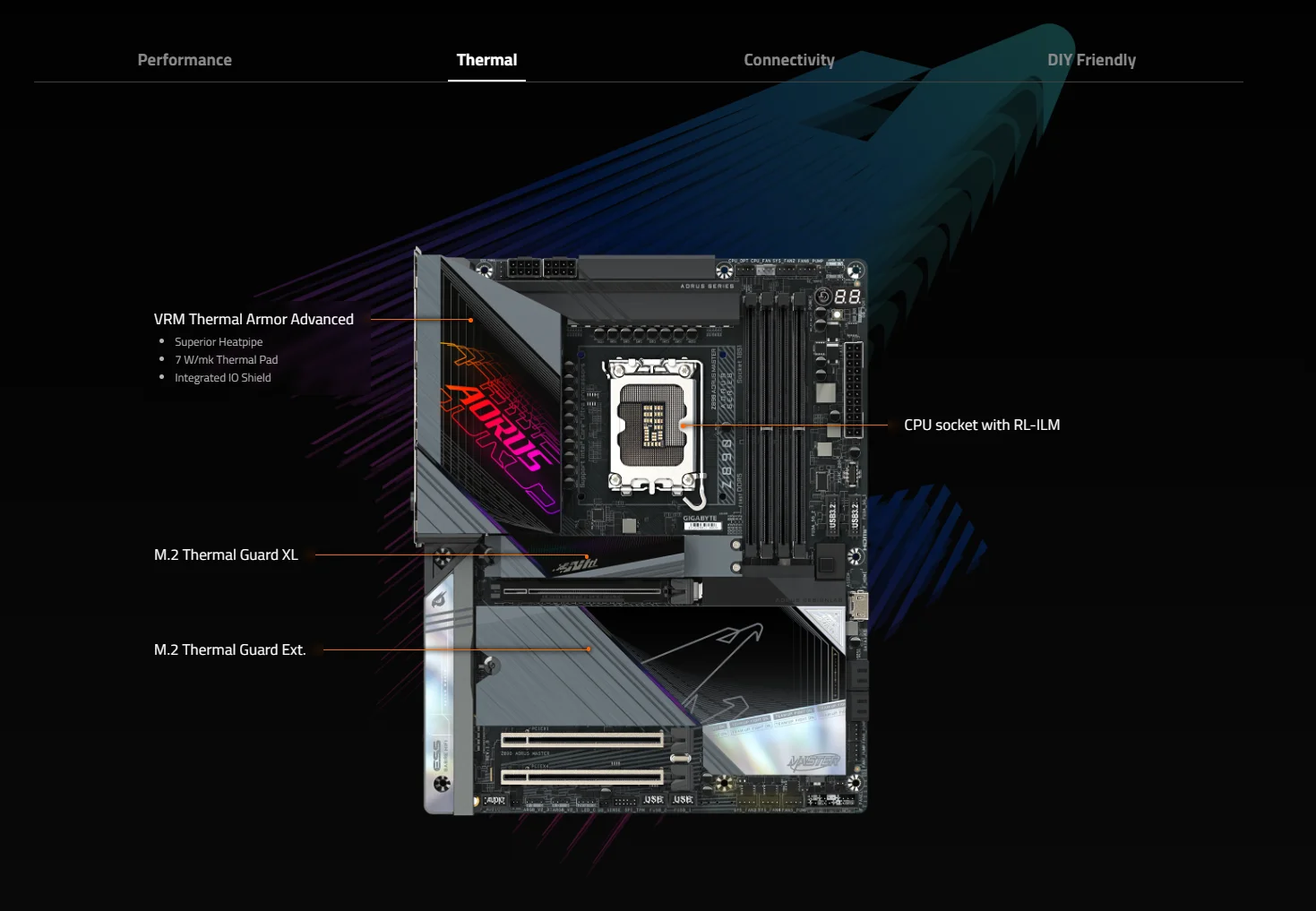

- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard XL
- Fast Networking : 10GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : Dual THUNDERBOLT™ 4 Type-C with DP-Alt
- DTS : X® Ultra Audio : ALC1220 & Rear ESS SABRE Hi-Fi 9118 DAC
- Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
₱39,500.00 ₱41,470.00
6-Month Grace monthly payment:
₱3,981
12-Month Full Interest monthly payment:
₱4,671
Learn more about Billease Installment at Checkout
Out of Stock. Check Counterpart Models
Want to be Notified upon Restock
We will inform you when the product toggled in stock. Please leave your valid email address below.
Add to WishlistAlready In Wishlist
Add to Wishlist
| CPU | LGA1851 socket, Supports Intel® Core™ Ultra Processors, L3 cache varies with CPU |
| Chipset | Intel® Z890 Express Chipset |
| Memory | Supports DDR5 9500(O.C) to 5600MT/s, 4 x DDR5 DIMM slots, up to 256GB, Dual Channel, ECC & non-ECC support, XMP, CUDIMM support |
| Onboard Graphics | Intel® HD Graphics, 2 x Thunderbolt™ 4 (USB4 Type-C) ports (Max 5120×2880@60Hz / 3840×2160@240Hz), 1 x front HDMI (1920×1080@30Hz), supports up to triple display |
| Audio | Realtek® ALC1220 CODEC, ESS ES9118 DAC, DTS:X® Ultra, High Definition Audio, 2/4/5.1-channel, S/PDIF Out |
| LAN | Marvell® AQtion AQC113C 10GbE LAN (10G/5G/2.5G/1G/100M) |
| Wireless Communication | Intel® Wi-Fi 7 BE200NGW (2.4/5/6GHz), Bluetooth 5.4, Wi-Fi 7 (Windows 11 SV3 required) |
| Expansion Slots | CPU: 1 x PCIe 5.0 x16 (x8 when M2D_CPU is used) Chipset: 1 x PCIe 4.0 x4, 1 x PCIe 4.0 x1 |
| Storage | CPU: 3 x M.2 (PCIe 5.0/4.0 support) Chipset: 2 x M.2 (PCIe 4.0/SATA), 4 x SATA 6Gb/s, RAID 0/1/5/10 support |
| USB | CPU: 2 x Thunderbolt™ 4 (USB Type-C) (40Gbps) Chipset: 6 x USB 3.2 Gen 2 Type-A Chipset+Hub: 1 x USB 3.2 Gen 2×2 Type-C (internal) USB Hubs: 8 x USB 3.2 Gen 1, 6 x USB 2.0 |
| Internal I/O Connectors | 1 x 24-pin ATX power, 2 x 8-pin ATX 12V, 1 x CPU fan, 1 x CPU/water pump, 4 x system fans, 4 x RGB Gen2, 1 x RGB header, 5 x M.2, 4 x SATA, 1 x HDMI, USB headers (Type-C, 3.2, 2.0), Clear CMOS, TPM header, Reset & Power buttons |

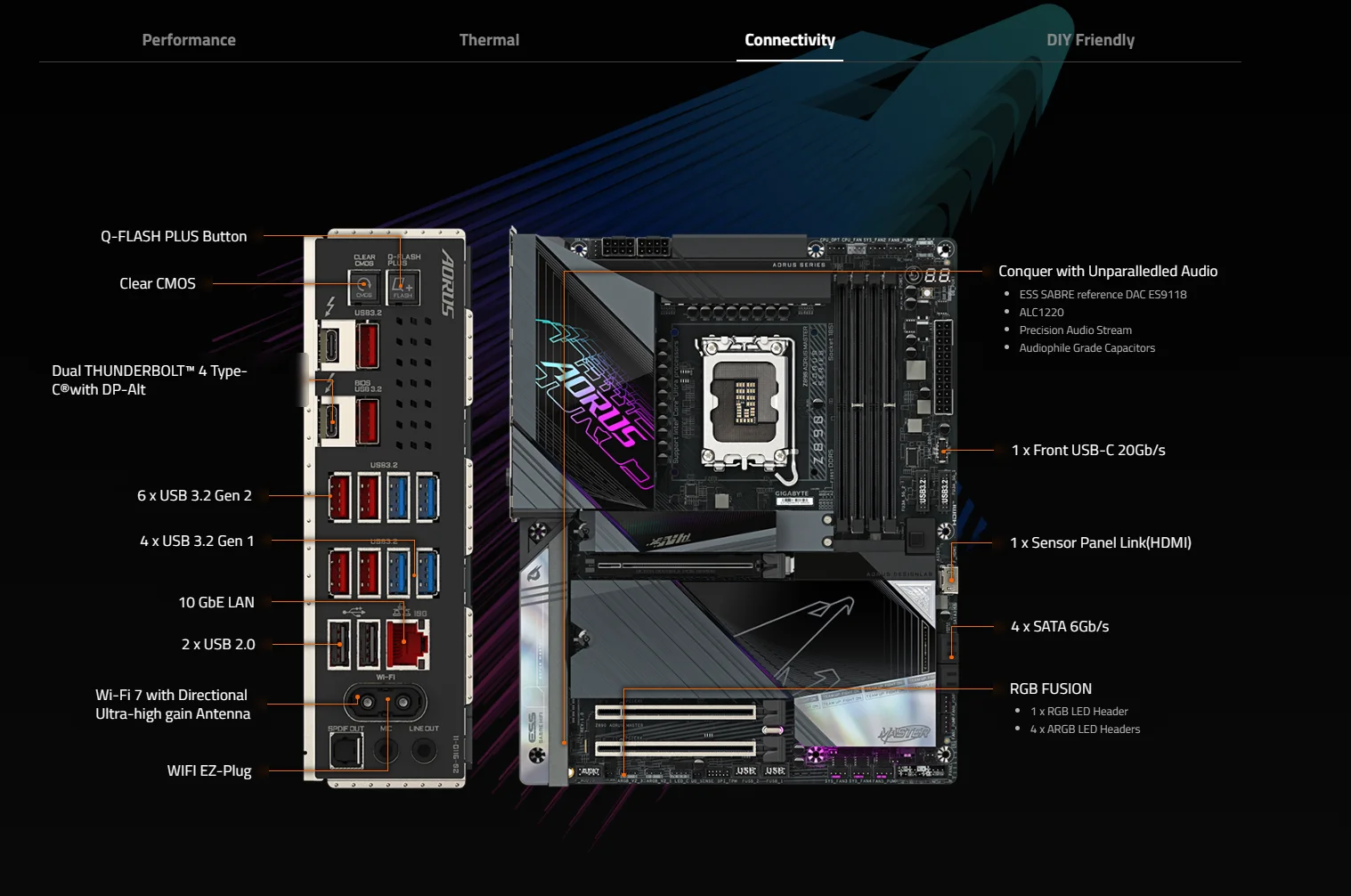

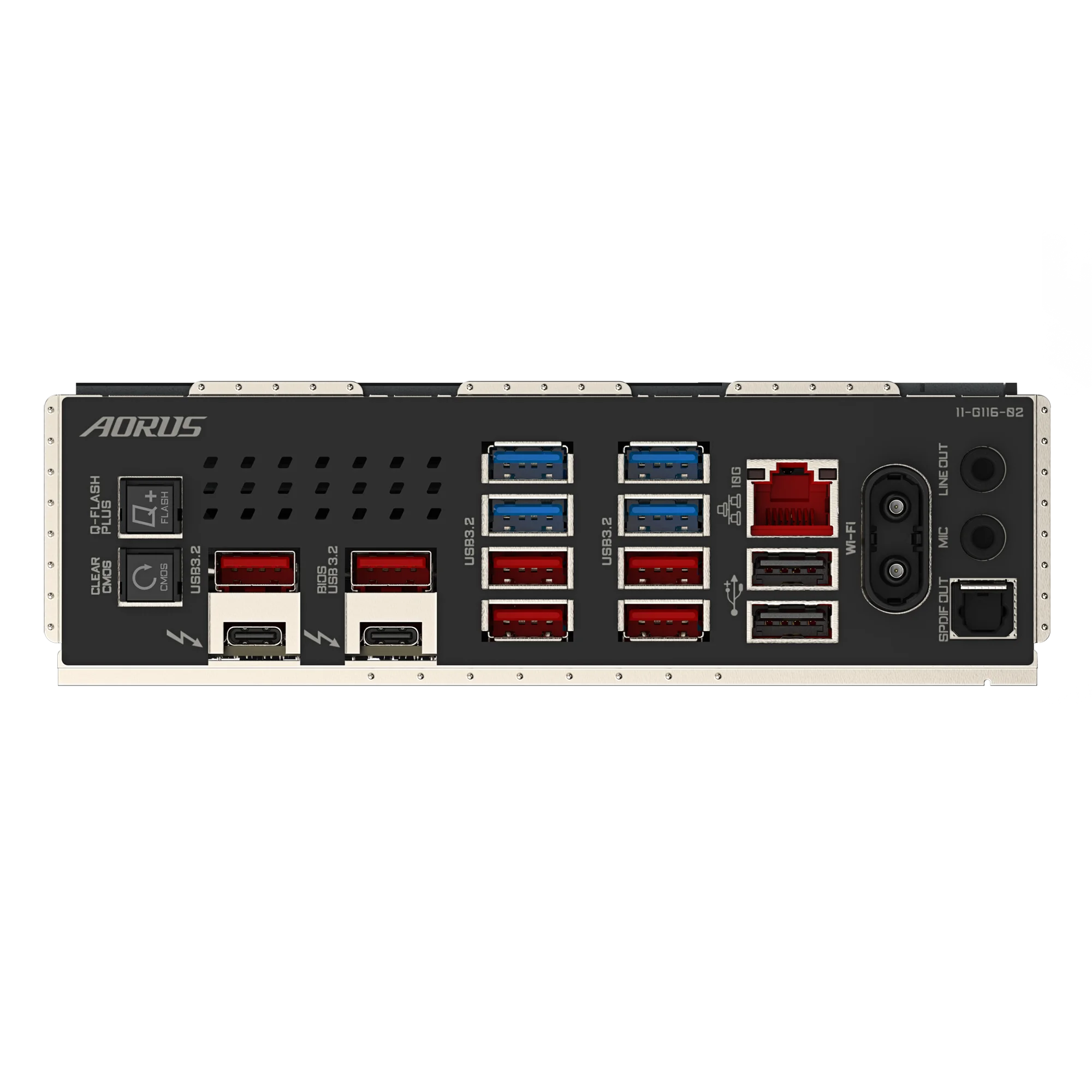

| Back Panel Connectors | Q-Flash Plus, Clear CMOS, 2 x Thunderbolt™ 4 (USB Type-C), 6 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 2 x USB 2.0, RJ-45 LAN, 2 x Antenna connectors, 2 x audio jacks, 1 x Optical S/PDIF Out |
| Brands | |
|---|---|
| Intel Chipset | Z890 |
| Form Factor | ATX |
| RAM Generation | DDR5 |
| CPU Socket | LGA 1851 |
