Gigabyte B760M E DDR5 LGA 1700 Intel Motherboard
Availability:
Onstock at Online Warehouse
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution
- Dual Channel DDR5：2*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
- Fast Networks：GbE LAN
- Extended Connectivity：Display Port, HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
₱5,995.00 ₱6,190.00
6-Month Grace monthly payment:
₱605
12-Month Full Interest monthly payment:
₱709
Learn more about Billease Installment at Checkout
Estimated Delivery: Jun 13 - Jun 18, 2026 (Business Days)
Onstock at Online Warehouse
⚡ 24-Hour Shipping Eligible – In-Stock & Ready to Ship
Check items here that is part of our 99% Same-Day Shipping program displayed with 24 Hours Delivery Banner.
✔ Orders placed before 2:00 PM have the highest chance for same-day shipping or delivery.
✔ Orders after 2:00 PM may still be shipped the same day, but no guarantee.
✔ Applies to items labeled under our 24-hour delivery process.
❗ If your cart includes non-eligible items, your order will follow standard processing.
🚚 Nationwide Coverage:
Orders are shipped out within 24 hours across Luzon, Visayas, and Mindanao, depending on courier and location.
📦 Stock-Based System:
This badge appears only on selected product, showcasing our massive inventory selection ready to ship anytime anywhere.
💳 Payment Note: Fully paid orders are eligible for 24hrs Delivery on Selected Cities. COD orders will only be guaranteed shipped within 24 hours.
🕒 View All 24-Hour Eligible Products
Check items here that is part of our 99% Same-Day Shipping program displayed with 24 Hours Delivery Banner.
✔ Orders placed before 2:00 PM have the highest chance for same-day shipping or delivery.
✔ Orders after 2:00 PM may still be shipped the same day, but no guarantee.
✔ Applies to items labeled under our 24-hour delivery process.
❗ If your cart includes non-eligible items, your order will follow standard processing.
🚚 Nationwide Coverage:
Orders are shipped out within 24 hours across Luzon, Visayas, and Mindanao, depending on courier and location.
📦 Stock-Based System:
This badge appears only on selected product, showcasing our massive inventory selection ready to ship anytime anywhere.
💳 Payment Note: Fully paid orders are eligible for 24hrs Delivery on Selected Cities. COD orders will only be guaranteed shipped within 24 hours.
🕒 View All 24-Hour Eligible Products
| CPU | LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors L3 cache varies with CPU |
| Chipset | Intel® B760 Express Chipset |
| Memory | Supports DDR5 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s 2 × DDR5 DIMM sockets, up to 128 GB (64 GB per DIMM) Dual channel architecture ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode) Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 Intel XMP support |
| Onboard Graphics | Integrated Intel® HD Graphics (CPU dependent) 1 × D-Sub (1920×1200@60Hz) 1 × DisplayPort (4096×2304@60Hz, DP 1.2, HDCP 2.3) 1 × HDMI (4096×2160@60Hz, HDMI 2.1, HDCP 2.3, native TMDS) Supports triple display |
| Audio | Realtek® Audio CODEC High Definition Audio, 2/4/5.1/7.1-channel Configurable via software S/PDIF Out supported |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbps) |
| Expansion Slots | CPU: 1 × PCIe x16 (PCIe 4.0, x16, supports GPU or NVMe SSD) Chipset: 1 × PCIe x1 (PCIe 3.0, x1) |
| Storage | CPU: 1 × M.2 (Socket 3, M key, type 2280, PCIe 4.0 x4/x2) Chipset: 1 × M.2 (Socket 3, M key, type 2280, PCIe 4.0 x4/x2) 4 × SATA 6Gb/s Supports RAID 0, 1, 5, 10 (SATA) |
| USB | Back Panel: 4 × USB 3.2 Gen 1, 2 × USB 2.0/1.1 Internal: 2 × USB 3.2 Gen 1 (via header), 4 × USB 2.0/1.1 (via headers) |
| Internal I/O | 24-pin ATX main power, 8-pin ATX 12V 1 × CPU fan, 2 × system fan headers 1 × RGB LED header 2 × M.2 slots, 4 × SATA 6Gb/s Front panel header, front panel audio header 1 × S/PDIF Out header 1 × USB 3.2 Gen 1 header 2 × USB 2.0 headers 1 × TPM header 1 × Serial port header 1 × Clear CMOS jumper |

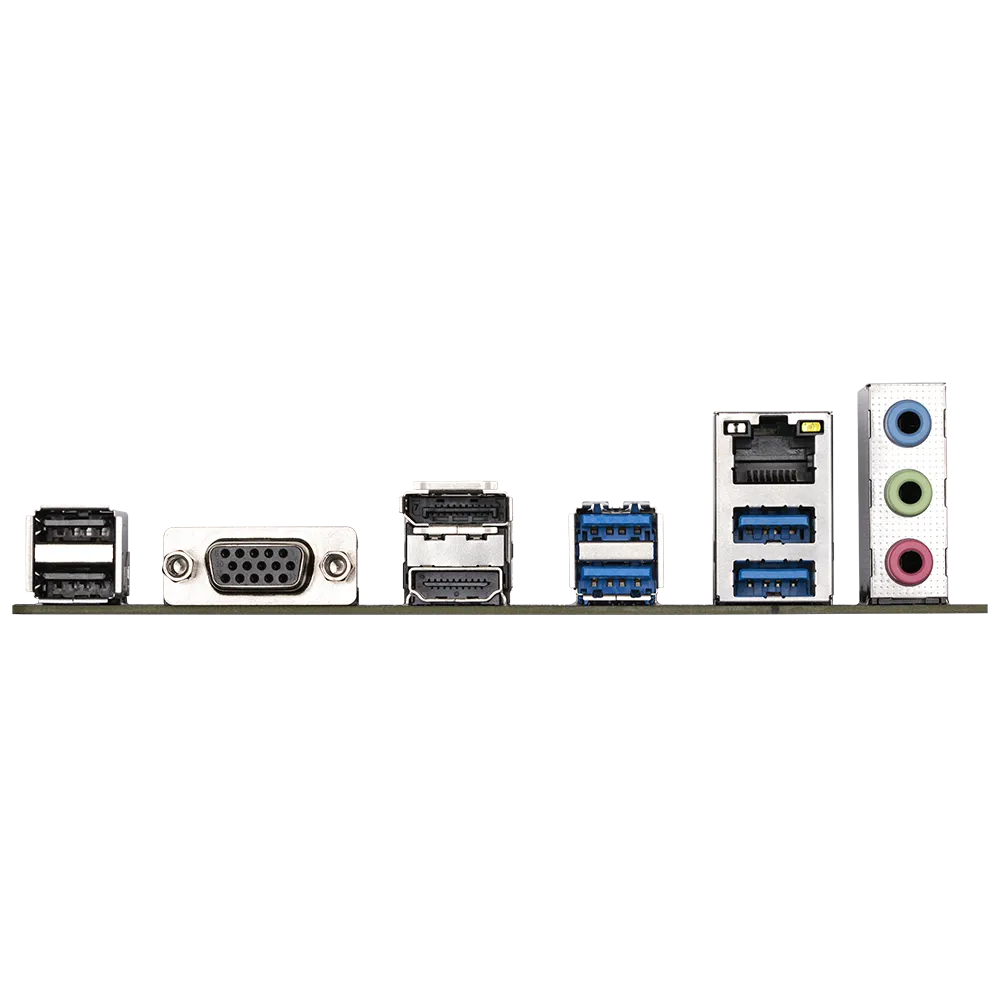

| Back Panel I/O | 2 × USB 2.0/1.1 4 × USB 3.2 Gen 1 1 × D-Sub 1 × DisplayPort 1 × HDMI 1 × RJ-45 3 × audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate detection Fan fail warning & fan speed control (depending on fan type) |
| BIOS | 128 Mbit flash, AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC) Q-Flash support |
| Bundled Software | Norton® Internet Security (OEM) LAN bandwidth management software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX, 23.0 cm × 21.5 cm |
| Brands | |
|---|---|
| Intel Chipset | B760 |
| Form Factor | MATX |
| RAM Generation | DDR5 |
| CPU Socket | LGA 1700 |
