| CPU |
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors*. L3 cache varies with CPU. * Please refer to “CPU Support List” for more information. |
| Chipset |
Intel® B760 Express Chipset |
| Memory |
Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory. Dual channel memory architecture. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode). Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Support for Extreme Memory Profile (XMP) memory modules. (Please refer “Memory Support List” for more information.) |
| Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz. * Support for DisplayPort 1.2 version and HDCP 2.3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz. * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
| Audio |
Realtek® Audio CODEC. High Definition Audio. 2/4/5.1/7.1-channel. * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out. |
| LAN |
Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication |
Intel® Killer™ Wi-Fi 6 AX1650 (PCB rev. 1.0). WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band. BLUETOOTH 5.2. Support for 11ax 160MHz wireless standard. Intel® Wi-Fi 6E AX211 (PCB rev. 1.1). WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands. BLUETOOTH 5.3. Support for 11ax 160MHz wireless standard. (Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots |
CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16. * The PCIEX16 slot can only support a graphics card or an NVMe SSD. |
| Storage Interface |
CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU). Chipset: 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB). 4 x SATA 6Gb/s connectors. RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices. |
| USB |
Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support. 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel. 2 x USB 3.2 Gen 1 ports available through the internal USB header. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header). Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel. |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector. 1 x 8-pin ATX 12V power connector. 1 x CPU fan header. 1 x CPU fan/water cooling pump header. 1 x system fan header. 1 x addressable LED strip header. 1 x RGB LED strip header. 2 x M.2 Socket 3 connectors. 4 x SATA 6Gb/s connectors. 1 x front panel header. 1 x front panel audio header. 1 x speaker header. 1 x USB Type-C® header, with USB 3.2 Gen 1 support. 1 x USB 3.2 Gen 1 header. 1 x USB 2.0/1.1 header. 1 x reset jumper. 1 x Clear CMOS jumper. 1 x chassis intrusion header. |

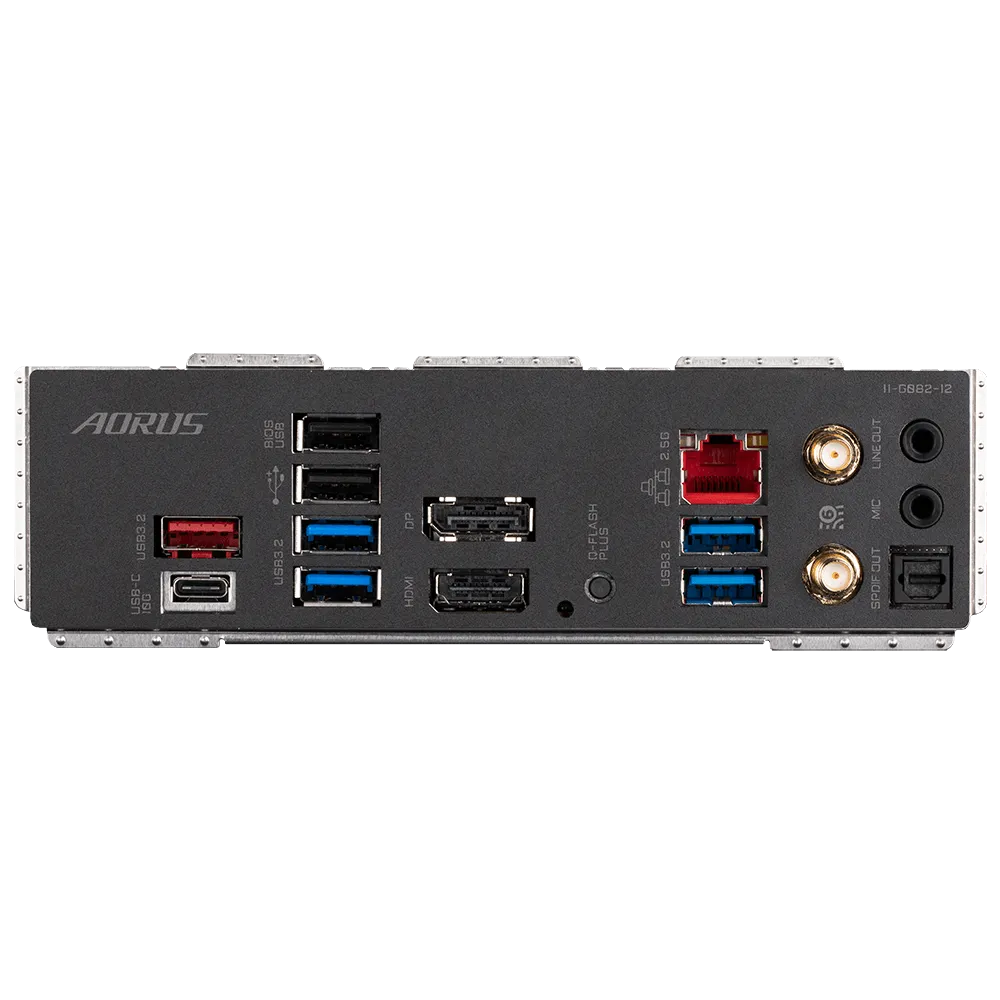

| Back Panel Connectors |
1 x USB Type-C® port, with USB 3.2 Gen 2 support. 1 x USB 3.2 Gen 2 Type-A port (red). 4 x USB 3.2 Gen 1 ports. 2 x USB 2.0/1.1 ports. 1 x DisplayPort. 1 x HDMI port. 1 x Q-Flash Plus button. 1 x RJ-45 port. 2 x SMA antenna connectors (2T2R). 1 x optical S/PDIF Out connector. 2 x audio jacks. |
| I/O Controller |
iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection. Temperature detection. Fan speed detection. Water cooling flow rate detection. Fan fail warning. Fan speed control. * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| BIOS |
1 x 256 Mbit flash. Use of licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. |
| Unique Features |
Support for GIGABYTE Control Center (GCC). * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash. Support for Q-Flash Plus. |
| Bundled Software |
Norton® Internet Security (OEM version). LAN bandwidth management software. |
| Operating System |
Support for Windows 11 64-bit. Support for Windows 10 64-bit. |
| Form Factor |
Mini-ITX Form Factor; 17.0cm x 17.0cm |

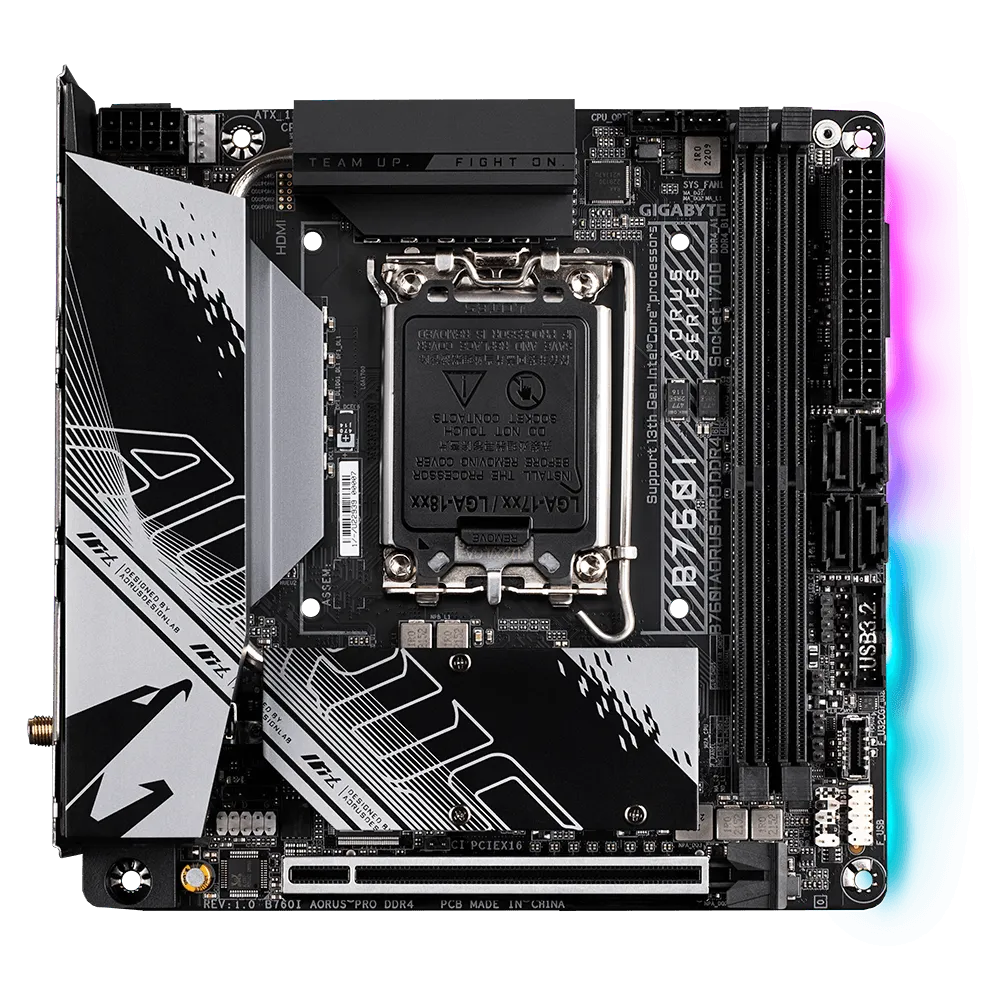

Gigabyte B760I Aorus PRO DDR4 LGA 1700 Intel Motherboard
