Supports Intel® Core™ Ultra Processors (Series 2)*, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**, * Refer to ASUS Support for CPU support list, ** Turbo Boost Max Technology 3.0 support depends on CPU types.
Chipset
Intel® B860 Chipset
Memory
2 x DIMM slots, max. 128GB, DDR5, Supports up to 9066+MT/s (OC), Non-ECC Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*, Dual channel memory architecture, Supports Intel® Extreme Memory Profile (XMP) memory module, ASUS Enhanced Memory Profile III (AEMP III), *Adjustments will be made based on the specifications of mass-produced memory products available on the market, Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. For more information, refer to the CPU/Memory Support list on the product site.
Graphics
1 x DisplayPort**, 1 x HDMI™ port***, 1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs****, * Graphics specifications may vary between CPU types. Refer to Intel for updates, ** Supports max. 4K@60Hz as specified in DisplayPort 1.4, *** Supports 4K@60Hz as specified in HDMI 2.1, **** Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support, check DisplayPort 2.1 specs, ***** VGA resolution support depends on processors’ or graphic cards’ resolution.
Expansion Slots
Intel® Core™ Ultra Processors (Series 2), 1 x PCIe 5.0 x16 slot, To ensure compatibility of the device installed, refer to ASUS Support for the list of supported peripherals.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*, Intel® Core™ Ultra Processors (Series 2) M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode), Intel® B860 Chipset**, M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports, * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Intel® 2.5Gb Ethernet, ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 7*, 2×2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency bands**, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate, Bluetooth® v5.4***, *Wi-Fi features may vary depending on the operating system, For Windows 11, Wi-Fi 7 requires 24H2 or later for full functionality, ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries, *** The Bluetooth® version may vary, refer to the Wi-Fi module manufacturer’s site for the latest specifications.
USB
Rear USB (Total 8 ports): 1 x Thunderbolt™ 4 (USB Type-C®), 1 x USB 20Gbps (USB Type-C®), 1 x USB 10Gbps (Type-A), 3 x USB 5Gbps (Type-A), 2 x USB 2.0 (Type-A). Front USB (Total 5 ports): 1 x USB 10Gbps connector (USB Type-C®), 1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports), 1 x USB 2.0 header (supports 2 additional USB 2.0 ports), * USB Type-C® power delivery output: max. 5V/3A.
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*, Impedance sense for front and rear headphone outputs, Internal audio amplifier for headphones and speakers, Jack-detection, Multi-streaming, Front Panel Jack-retasking, High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in), Supports up to 32-Bit/192 kHz playback*, Audio Features: SupremeFX Shielding Technology, Savitech SV3H712 AMP, Rear optical S/PDIF out port, Premium audio capacitors, Dedicated audio PCB layers, * Due to HDA bandwidth limitations, 32-Bit/192 kHz is not supported for 7.1 Surround Sound.
Back Panel I/O Ports
1 x Thunderbolt™ 4 (USB Type-C®), 1 x USB 20Gbps (USB Type-C®), 1 x USB 10Gbps (Type-A), 3 x USB 5Gbps (Type-A), 2 x USB 2.0 (Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Intel® 2.5Gb Ethernet port, 2 x Audio jacks, 1 x Optical S/PDIF out port, 1 x Clear CMOS button.
Internal I/O Connectors
1 x 4-pin CPU Fan header, 1 x 4-pin AIO Pump header, 1 x 4-pin Chassis Fan header, 1 x 24-pin Main Power connector, 1 x 8-pin +12V CPU Power connector, 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, 1 x USB 10Gbps connector (USB Type-C®), 1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports), 1 x USB 2.0 header (supports 2 additional USB 2.0 ports), 2 x Addressable Gen2 headers, 1 x Front Panel Audio header (F_AUDIO), 1 x 10-1 pin Front System Panel header, 1 x Thermal Sensor header.
Special Features
Extreme Engine Digi+, ASUS Q-Design (PCIe Slot Q-Release Slim, M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot), ASUS Thermal Solution (M.2 heatsink backplate, M.2 heatsink, VRM heatsink design), ASUS EZ DIY (Clear CMOS button, CPU Socket lever protector, ProCool, Pre-mounted I/O shield, SafeSlot, SafeDIMM), Aura Sync (Addressable Gen2 headers).
Software Features
ROG Exclusive Software: ROG CPU-Z, Dolby Atmos; ASUS Exclusive Software: Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 4, GameFirst, Power Saving, AIDA64 Extreme (60 days trial), HWiNFO, ASUS AI Advisor, ASUS DriverHub, ASUS GlideX, TurboV Core; Adobe Creative Cloud (Free Trial), Norton 360 for Gamers (60 Days Free Trial), WinRAR (40 Days Free Trial).
BIOS
256Mb Flash ROM, UEFI AMI BIOS, ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey), NPU Boost.
Manageability
WOL by PME, UEFI PXE.

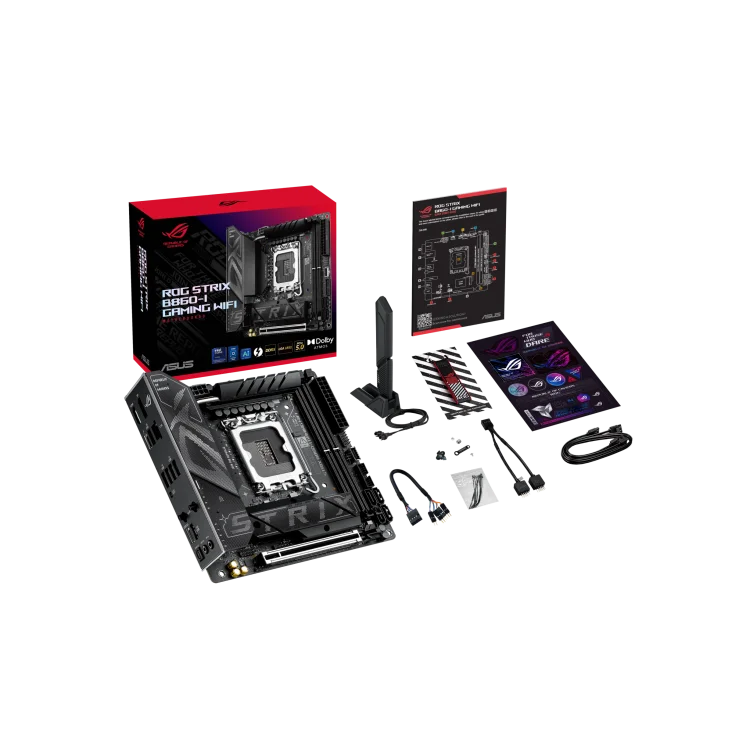

Accessories
2 x SATA 6Gb/s cables, 1 x ROG USB2.0 splitter cable, 1 x Panel cable, 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch package, 1 x Screw package for M.2 SSD, 1 x M.2 Bracket, 1 x ROG key chain, 1 x ROG Strix stickers, 1 x Quick start guide.

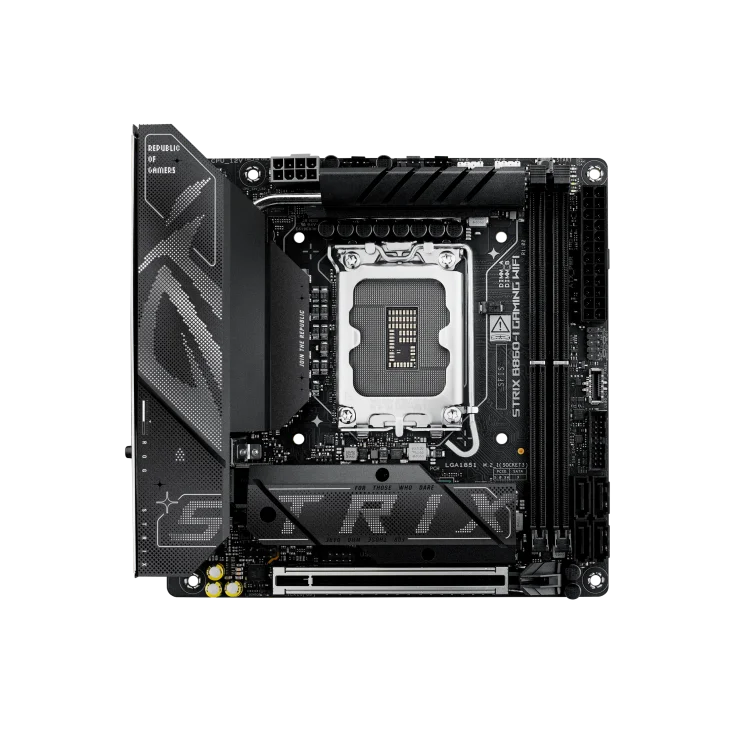

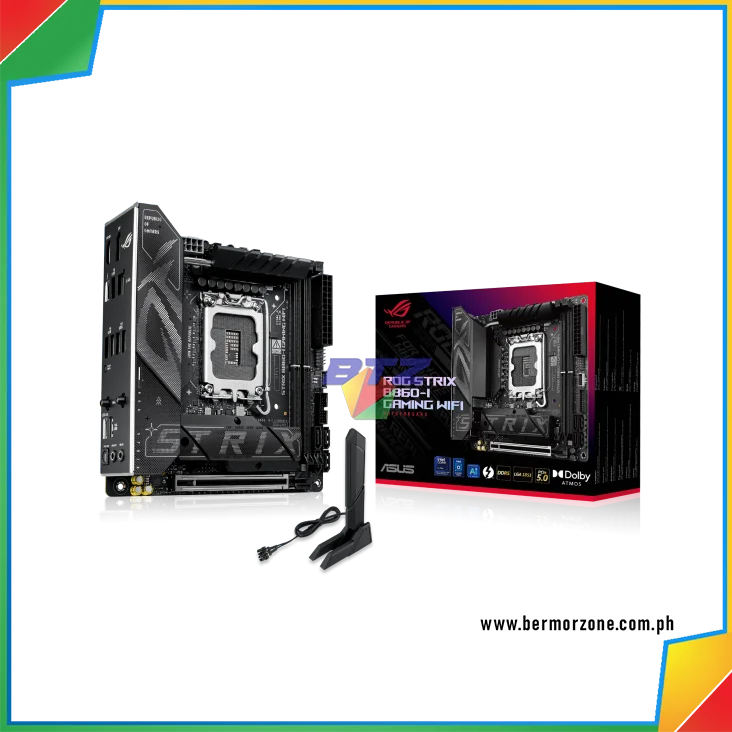

ASUS ROG STRIX B860-I GAMING WIFI Mini-ITX LGA 1851 Motherboard
Reviews
There are no reviews yet
