Intel Motherboards, Motherboards

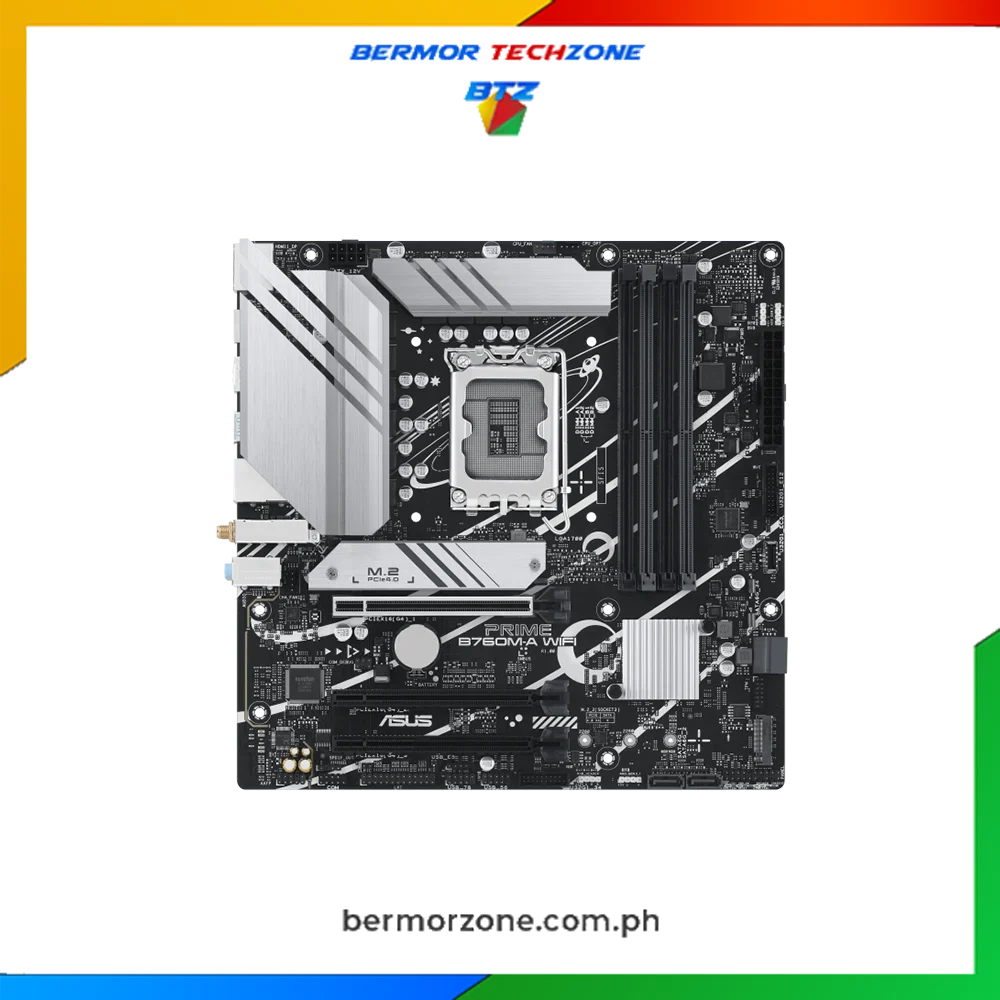

Asus Prime B760M-A WIFI-CSM LGA 1700 Intel Motherboard
Availability:
Out of Stock. Check Counterpart Models
Features
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
₱7,995.00 ₱9,960.00
6-Month Grace monthly payment:
₱806
12-Month Full Interest monthly payment:
₱946
Learn more about Billease Installment at Checkout
Out of Stock. Check Counterpart Models
Want to be Notified upon Restock
We will inform you when the product toggled in stock. Please leave your valid email address below.
Add to WishlistAlready In Wishlist
Add to Wishlist
| Category | Details |
|---|---|
| CPU Support | Intel® Socket LGA1700 for Intel® Core™ 14th/13th/12th Gen, Pentium® Gold & Celeron® ProcessorsSupports Intel® Turbo Boost Tech 2.0 & Turbo Boost Max 3.0* |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM, max 128GB DDR5DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHzDual Channel, Intel® XMP, OptiMem IINon-ECC, un-buffered DDR5 w/ On-Die ECC |
| Graphics | 1 x DisplayPort 1.4 (max 4K@60Hz)2 x HDMI™ 2.1 ports (max 4K@60Hz)Graphics depend on CPU |
| Expansion Slots | From CPU: 1 x PCIe 4.0 x16From Chipset: 1 x PCIe 4.0 x16 (x4 mode)1 x PCIe 4.0 x16 (x1 mode) |
| Storage | 2 x M.2 slots (PCIe 4.0 x4)4 x SATA 6Gb/s portsSupports Intel® RST SATA RAID 0/1/5/10 |
| Ethernet | 1 x Realtek 2.5Gb LAN |
| Wireless & BT | Wi-Fi 6 (2×2, 2.4/5GHz)Bluetooth® 5.2 |
| USB (Rear I/O) | 2 x USB 3.2 Gen 2 (Type-A)4 x USB 2.0 (Type-A) |
| USB (Front I/O) | 2 x USB 3.2 Gen 1 headers (4 ports)1 x USB 3.2 Gen 1 Type-C® header2 x USB 2.0 headers (4 ports)1 x USB 2.0 header (1 port) |
| Audio | Realtek 7.1 Surround HD Audio CODECSupports 24-bit/192 kHzFeatures: Audio shielding, premium caps, dedicated PCB layers |
| Back Panel I/O | 2 x USB 3.2 Gen 2 (Type-A)4 x USB 2.0 (Type-A)1 x DisplayPort2 x HDMI™1 x Realtek 2.5Gb LAN1 x Wi-Fi module3 x Audio jacks1 x PS/2 combo port |
| Internal I/O | Cooling: 1 x CPU Fan, 1 x CPU OPT Fan, 2 x Chassis Fan
Power: 1 x 24-pin ATX, 1 x 8-pin CPU RGB: 3 x ARGB Gen 2, 1 x Aura RGB Other: Clear CMOS, COM, LPT, TPM, S/PDIF, Front Panel Audio, 20-3 pin System Panel |
| Special Features | ASUS 5X Protection III (SafeSlot Core+, LANGuard, DIGI+ VRM, Stainless-Steel I/O)Q-Design (Q-DIMM, Q-LED Core, Q-Slot)M.2 heatsink, VRM heatsinkProCool powerAura Sync RGB |
| Software | Armoury Crate (Aura Sync, Fan Xpert 2+)AI Suite 3 (Digi+ VRM, PC Cleaner)ASUS CPU-Z, MyAsus, Norton (60-day trial), WinRAR |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOSFeatures: EZ Flash 3, CrashFree BIOS 3, EZ Mode |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA 6Gb/s cables1 x Wi-Fi antennas1 x I/O Shield1 x M.2 rubber package1 x M.2 screw packageUser guide, ACC Express Activation Key |
| OS Support | Windows® 11, Windows® 10 64-bit |
| Form Factor | mATX, 9.6″ x 9.6″ (24.4cm x 24.4cm) |
| Brands | |
|---|---|
| Form Factor | MATX |
| Intel Chipset | B760 |
| CPU Socket | LGA 1700 |
| RAM Generation | DDR5 |
