AMD Motherboards, Motherboards

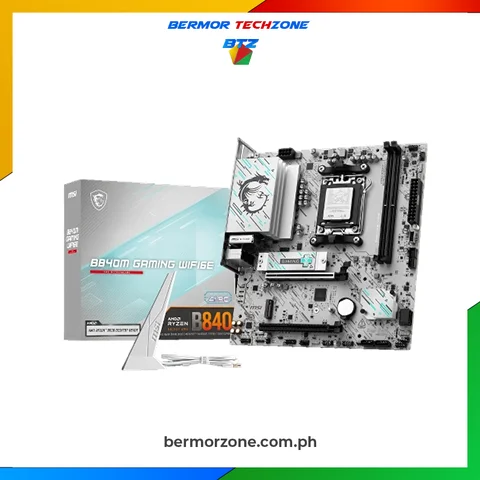

MSI B840M GAMING WIFI6E AM5 Micro ATX Motherboard
Availability:
Out of Stock. Check Counterpart Models
Features
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Ultra Performance: 7+2+1 P-PAK Power System, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thickened copper
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
- High-speed Connectivity: Wi-Fi 6E with 2.5G LAN – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
₱9,125.00 ₱9,500.00
6-Month Grace monthly payment:
₱920
12-Month Full Interest monthly payment:
₱1,079
Learn more about Billease Installment at Checkout
Out of Stock. Check Counterpart Models
Want to be Notified upon Restock
We will inform you when the product toggled in stock. Please leave your valid email address below.
Add to WishlistAlready In Wishlist
Add to Wishlist
| Category | Specification |
|---|---|
| Chipset | AMD B840 |
| CPU | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Socket | AM5 |
| Memory | – 2× DDR5 UDIMM, max. 128 GB- DDR5 8000–5600 (OC) MT/s / 5600–4800 (JEDEC) MT/s- Ryzen™ 9000 Series max OC: 1DPC 1R up to 8000+ MT/s, 1DPC 2R up to 7200+ MT/s- Supports AMD POR & JEDEC speeds, memory OC, AMD EXPO™, dual-channel, non-ECC unbuffered memory, CUDIMM (Clock Driver bypass only)**CUDIMM support & POR boot frequency may vary by CPU. Manual OC possible after boot. |
| Onboard Graphics | – 1× HDMI™ 2.1, up to 4K@60Hz*- 1× DisplayPort 1.4, up to 4K@60Hz**Only with CPUs featuring integrated graphics; specs vary by CPU. |
| Expansion Slots | – 2× PCIe x16• PCI_E1 (from CPU): PCIe 4.0 x16 (Ryzen 9000/7000) / x8 (Ryzen 8700/8600/8400) / x4 (Ryzen 8500/8300)• PCI_E2 (from chipset): PCIe 3.0 x4 |
| Audio | Realtek® ALC897 Codec, 7.1-Channel HD Audio |
| Storage | – 2× M.2 (PCIe 4.0 x4, 2280/2260)- 4× SATA 6Gb/s*Check manual for M.2 heatsink restrictions |
| RAID | Supports RAID 0, 1, 10 (SATA) |
| USB Ports | Rear: 2× USB 2.0, 4× USB 5Gbps Type-A
Front: 4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 5Gbps Type-C |
| LAN | Realtek® 8125D 2.5G LAN |
| Internal I/O | 1× ATX_PWR, 1× CPU_PWR, 1× CPU Fan, 2× System Fan, 2× Front Panel (JFP), 1× Chassis Intrusion (JCI), 1× Front Audio (JAUD), 1× COM Port (JCOM), 3× Addressable V2 RGB LED (JARGB_V2), 1× RGB LED (JRGB), 1× TPM 2.0 header, 4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 5Gbps Type-C |
| Wireless LAN & Bluetooth | Wi‑Fi 6E (pre-installed M.2 Key‑E module), MU‑MIMO TX/RX, 2.4/5/6 GHz* (160 MHz) up to 2.4 Gbps, 802.11a/b/g/n/ac/ax, Bluetooth® 5.3*6 GHz availability depends on regional regulations; Bluetooth 5.3 ready in Win10 21H1 / Win11 |
| LED Features | 4× EZ Debug LED, 1× EZ Memory Detection LED |
| Back Panel Ports | Clear CMOS Button, USB 5G, 2.5G LAN, Wi‑Fi / Bluetooth antennas, audio connectors, Flash BIOS Button, HDMI™, DisplayPort, USB 2.0 |
| Operating System | Windows® 11 64‑bit |
| PCB Info | mATX, 226 mm × 243.84 mm |
| Brands | |
|---|---|
| AMD Chipset | B840 |
| Form Factor | MATX |
| RAM Generation | DDR5 |
