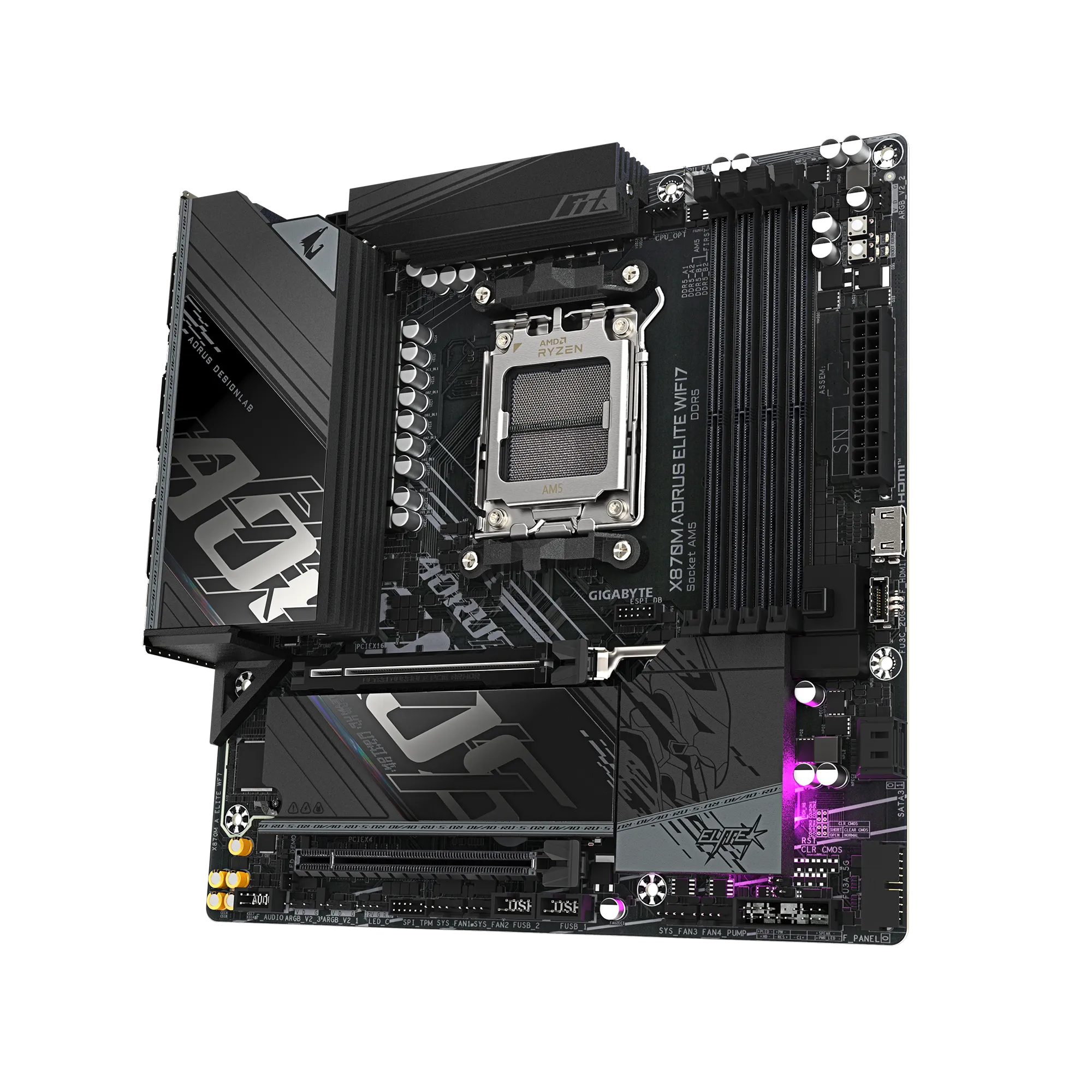

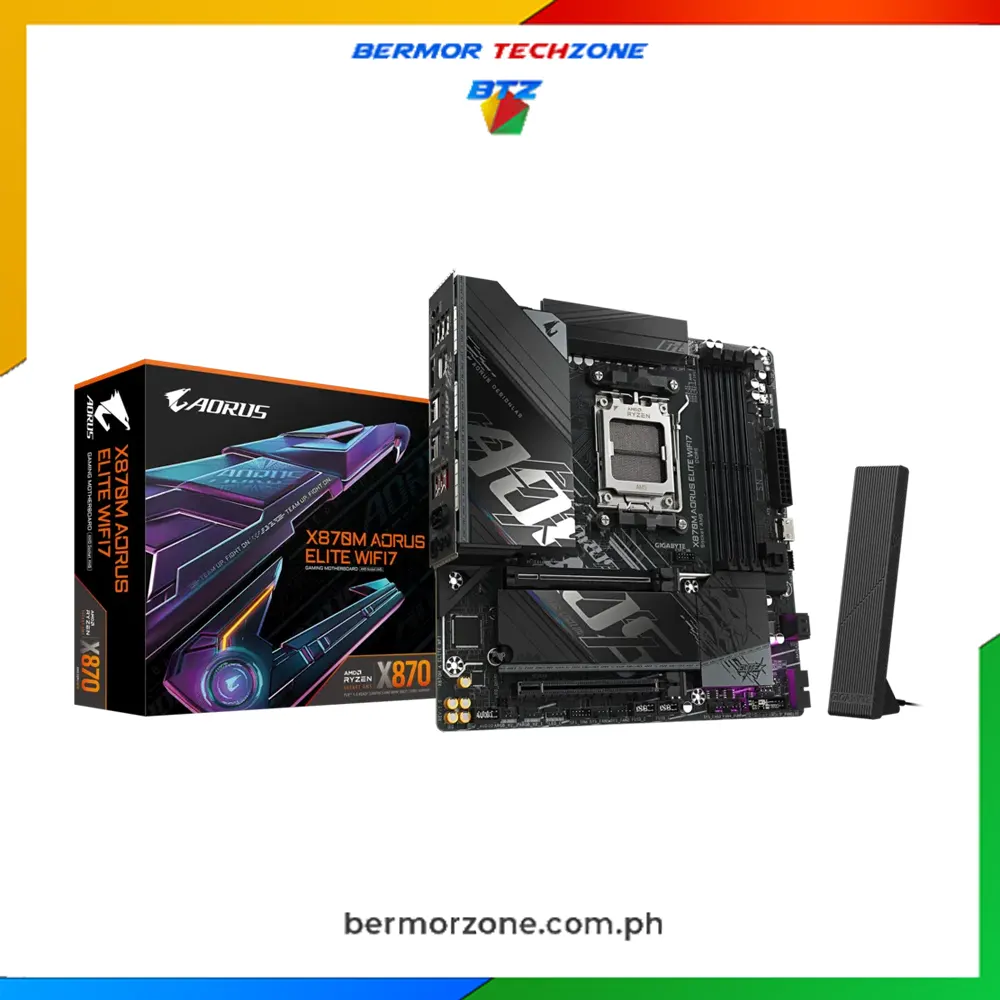

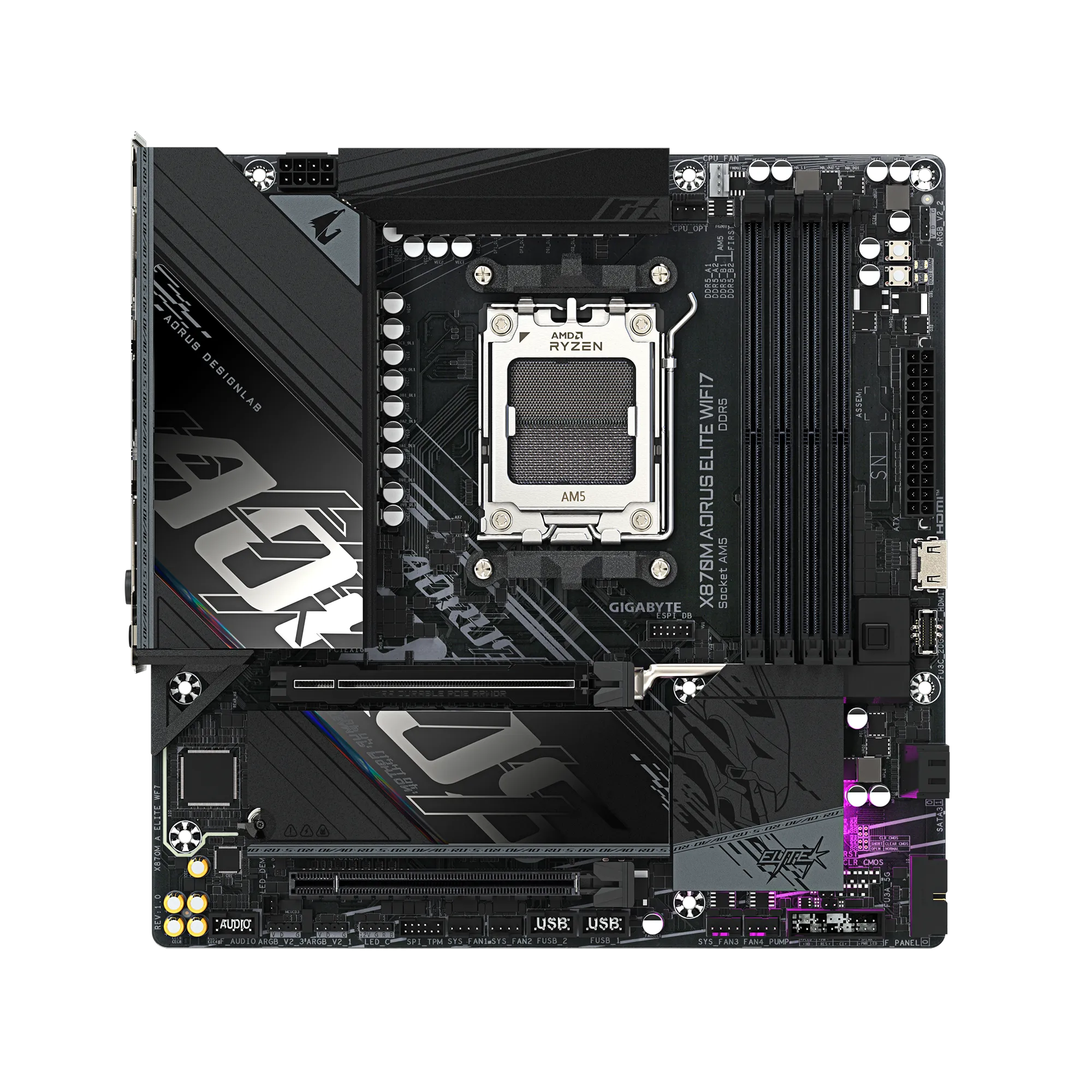

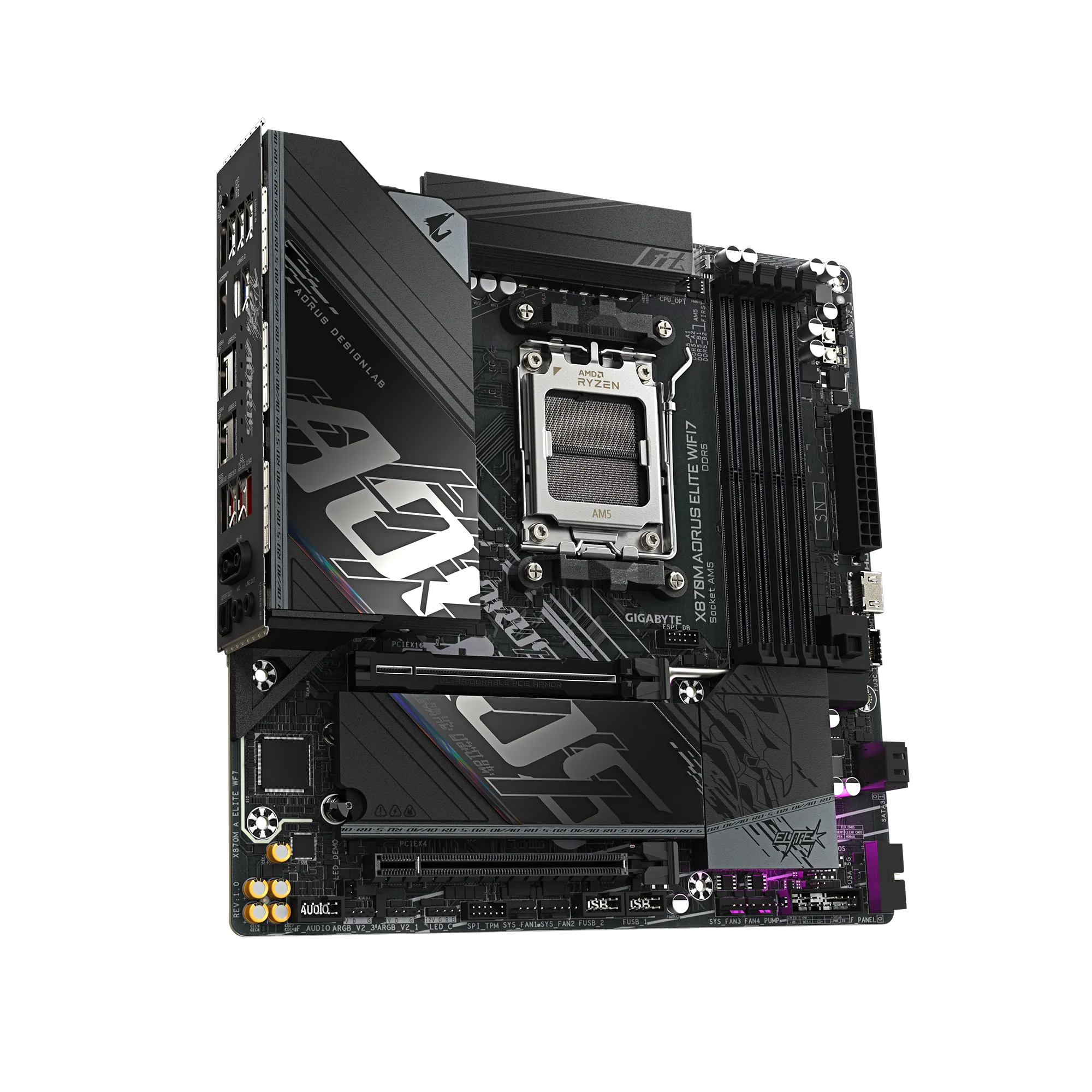

Gigabyte X870M AORUS ELITE WIFI7 Micro ATX AM5 Motherboard GA-X870M-A-ELITE-WF7
Availability:
Onstock at Online Warehouse
Key Features
- X3D Turbo Mode：Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors

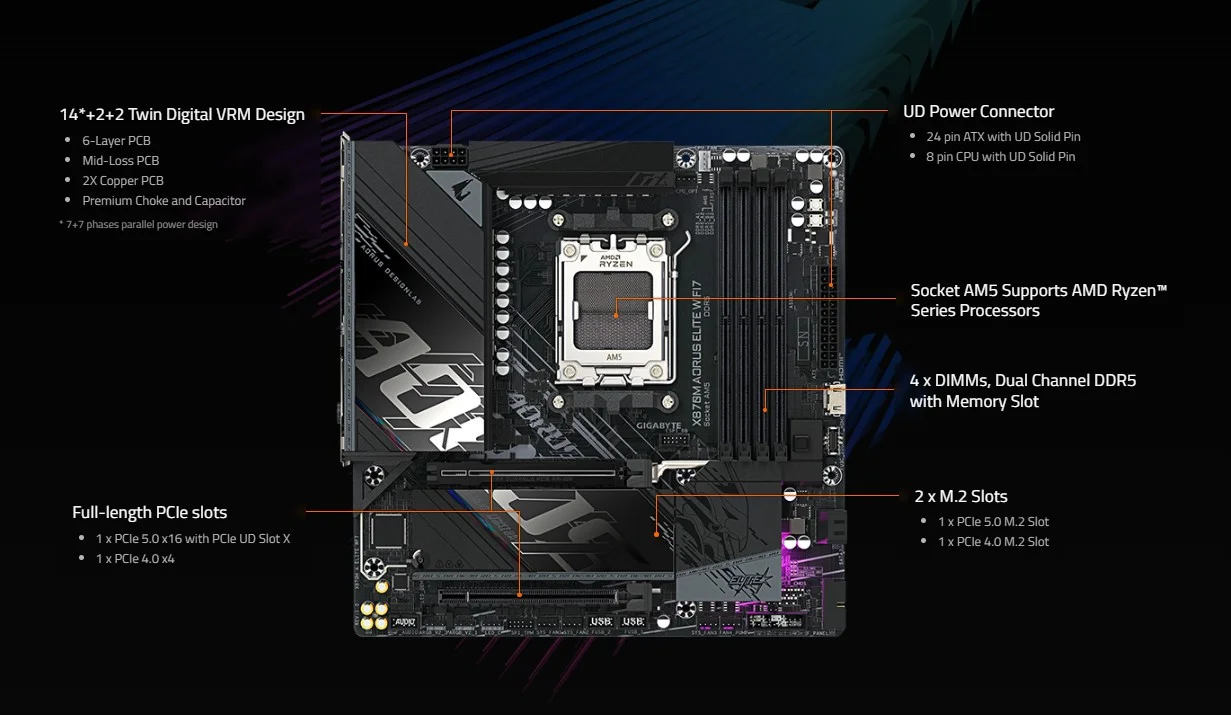

- Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support

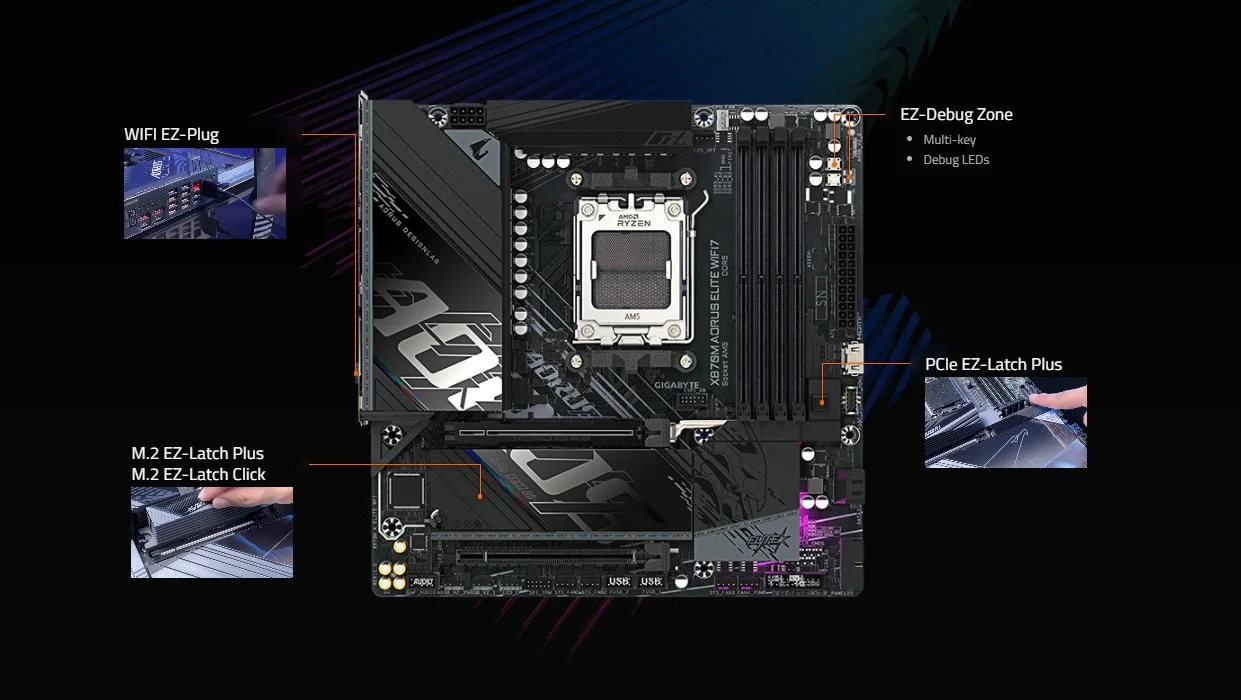

- WIFI EZ-Plug：Quick and easy design for Wi-Fi antenna installation
- D5 Bionic Corsa for Infinite Memory Performance
- EZ-Latch：PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click：M.2 heatsinks with screwless design
- Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
- Friendly UI：Multi-Theme, AIO Fan Control, and Q-Flash Auto ScaninBIOS and SW
- Ultra-Fast Storage：2*M.2 slots, including PCIe 5.0 x4

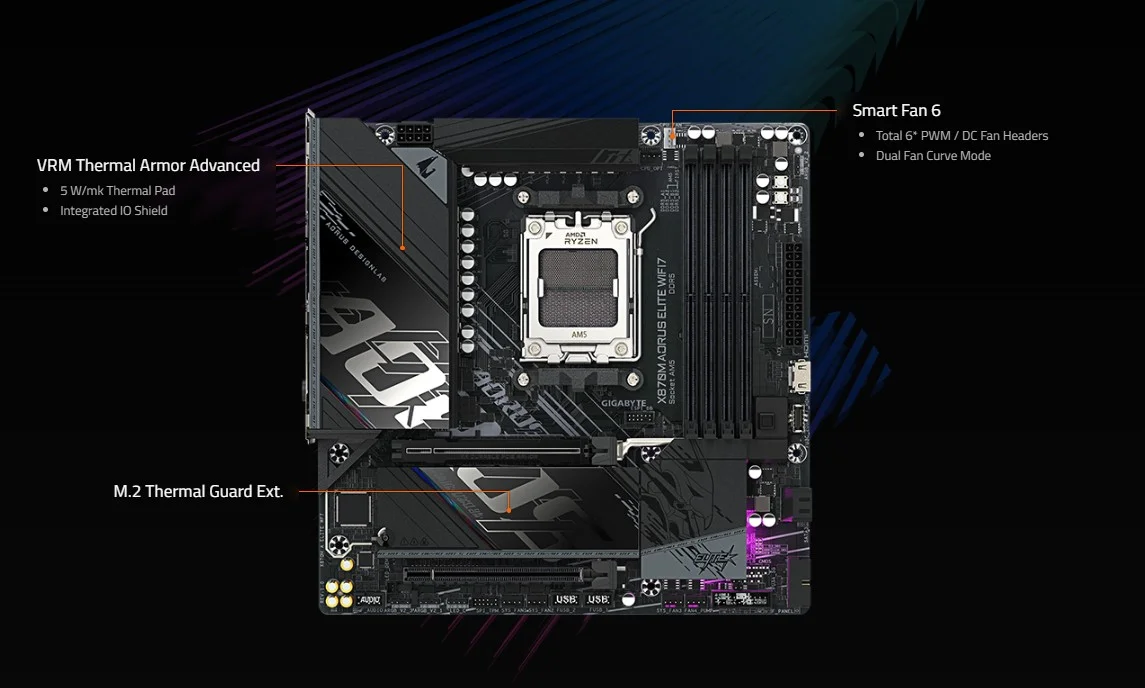

- Efficient Thermal：VRM Thermal Armor Advanced& M.2 Thermal Guard Ext.
- Fast Networking：2.5GbE LAN & Wi-Fi 7
- Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
- PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card
₱14,450.00 ₱18,000.00
6-Month Grace monthly payment:
₱1,457
12-Month Full Interest monthly payment:
₱1,709
Learn more about Billease Installment at Checkout
Estimated Delivery: Jun 12 - Jun 17, 2026 (Business Days)
Onstock at Online Warehouse
⚡ 24-Hour Shipping Eligible – In-Stock & Ready to Ship
Check items here that is part of our 99% Same-Day Shipping program displayed with 24 Hours Delivery Banner.
✔ Orders placed before 2:00 PM have the highest chance for same-day shipping or delivery.
✔ Orders after 2:00 PM may still be shipped the same day, but no guarantee.
✔ Applies to items labeled under our 24-hour delivery process.
❗ If your cart includes non-eligible items, your order will follow standard processing.
🚚 Nationwide Coverage:
Orders are shipped out within 24 hours across Luzon, Visayas, and Mindanao, depending on courier and location.
📦 Stock-Based System:
This badge appears only on selected product, showcasing our massive inventory selection ready to ship anytime anywhere.
💳 Payment Note: Fully paid orders are eligible for 24hrs Delivery on Selected Cities. COD orders will only be guaranteed shipped within 24 hours.
🕒 View All 24-Hour Eligible Products
Check items here that is part of our 99% Same-Day Shipping program displayed with 24 Hours Delivery Banner.
✔ Orders placed before 2:00 PM have the highest chance for same-day shipping or delivery.
✔ Orders after 2:00 PM may still be shipped the same day, but no guarantee.
✔ Applies to items labeled under our 24-hour delivery process.
❗ If your cart includes non-eligible items, your order will follow standard processing.
🚚 Nationwide Coverage:
Orders are shipped out within 24 hours across Luzon, Visayas, and Mindanao, depending on courier and location.
📦 Stock-Based System:
This badge appears only on selected product, showcasing our massive inventory selection ready to ship anytime anywhere.
💳 Payment Note: Fully paid orders are eligible for 24hrs Delivery on Selected Cities. COD orders will only be guaranteed shipped within 24 hours.
🕒 View All 24-Hour Eligible Products
| Category | Specification |
|---|---|
| CPU | AMD Socket AM5, supports: – AMD Ryzen™ 9000 / 8000 / 7000 Series Processors (See GIGABYTE website for full list) |
| Chipset | AMD X870 |
| Memory | 4× DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM) Dual-channel architecture Supports up to DDR5-8200(O.C.) Supports AMD EXPO™ & Intel XMP Supports non-ECC Un-buffered DIMMs |
| Onboard Graphics | Integrated AMD Radeon™ Graphics – 2× USB4 Type-C (DP & USB4, up to 3840×2160@240 Hz) – 1× HDMI 2.1 (up to 4096×2160@60 Hz) – 1× Front HDMI 1.4 (1920×1080@30 Hz) DP 1.4, HDR, HDCP 2.3 supported; CPU-dependent |
| Audio | Realtek® ALC1220 CODEC High Definition Audio (2/4/5.1/7.1 channels) DSD Audio, S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN (2.5/1 Gbps/100 Mbps) |
| Wireless | Realtek® Wi-Fi 7 RTL8922AE – 802.11a/b/g/n/ac/ax/be (2.4/5/6 GHz) – Bluetooth 5.4 Wi-Fi 7 requires Windows 11 SV3 |
| Expansion Slots | – 1× PCIe x16 (from CPU): • Ryzen 9000/7000: PCIe 5.0 x16 • Ryzen 8000 Phoenix 1: PCIe 4.0 x8 • Ryzen 8000 Phoenix 2: PCIe 4.0 x4 – 1× PCIe x16 (from chipset): PCIe 4.0 x4 |
| Storage | – 1× M.2 (M2A_CPU): PCIe 5.0/4.0 x4/x2 (type 25110/22110/2580/2280) – 1× M.2 (M2C_SB): PCIe 4.0 x2 (type 22110/2280) – 2× SATA 6Gb/s connectors RAID 0/1/5/10 for NVMe (RAID 5: Ryzen 9000 only), RAID 0/1 for SATA |
| USB Ports | Rear Panel: – 2× USB4 Type-C (DP & USB4) – 2× USB 3.2 Gen 2 Type-A (red) – 4× USB 3.2 Gen 1 – 4× USB 2.0/1.1 Internal: – 1× USB 3.2 Gen 2×2 Type-C header – 1× USB 3.2 Gen 1 header (2 ports) – 2× USB 2.0 headers (4 ports) |
| Internal I/O | – 1× 24-pin ATX main power – 1× 8-pin ATX 12V power – 4× fan headers (1 CPU, 1 CPU/Water Pump, 2 System/Water Pump) – 3× Addressable RGB Gen2, 1× RGB LED header – 2× M.2 connectors – 2× SATA 6Gb/s – USB headers: 1× Type-C (Gen2x2), 1× USB 3.2 Gen 1, 2× USB 2.0/1.1 – HDMI port – Front panel/audio headers – Clear CMOS jumper, reset button, power button |

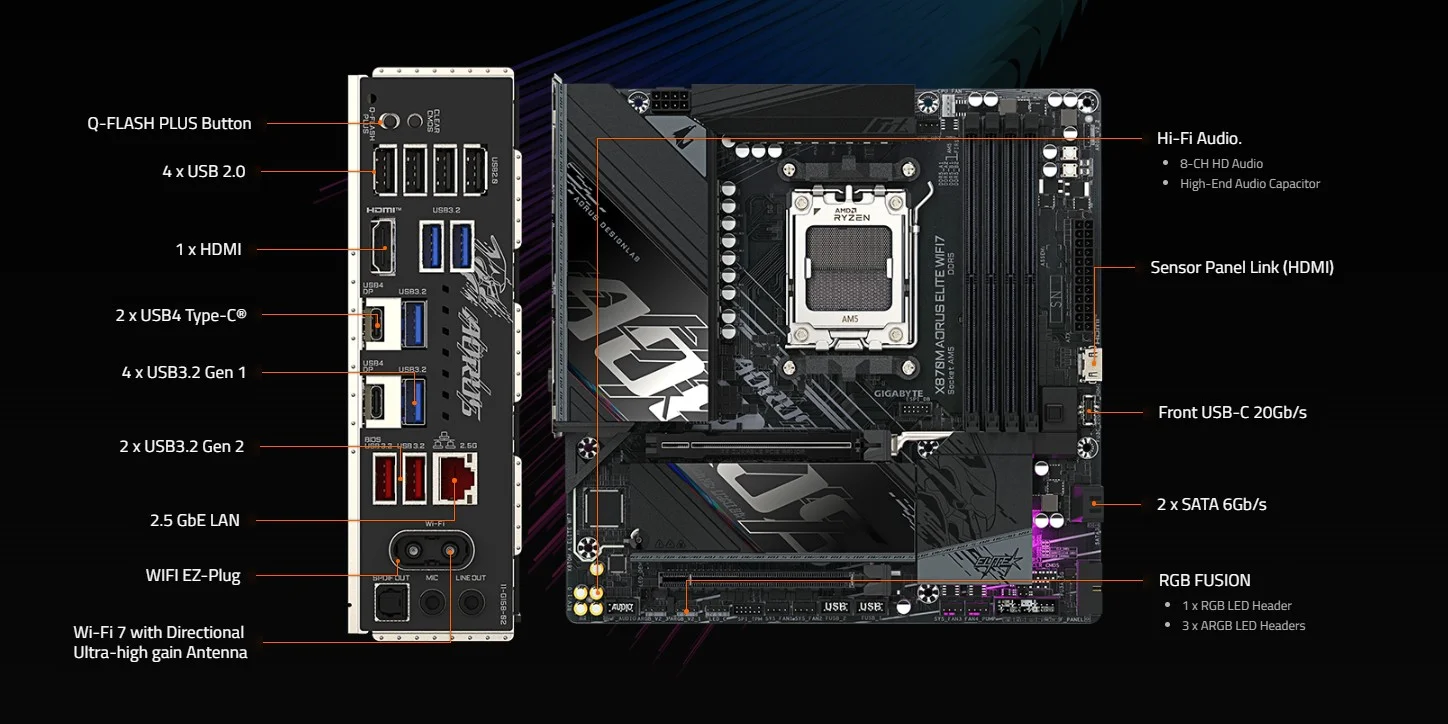

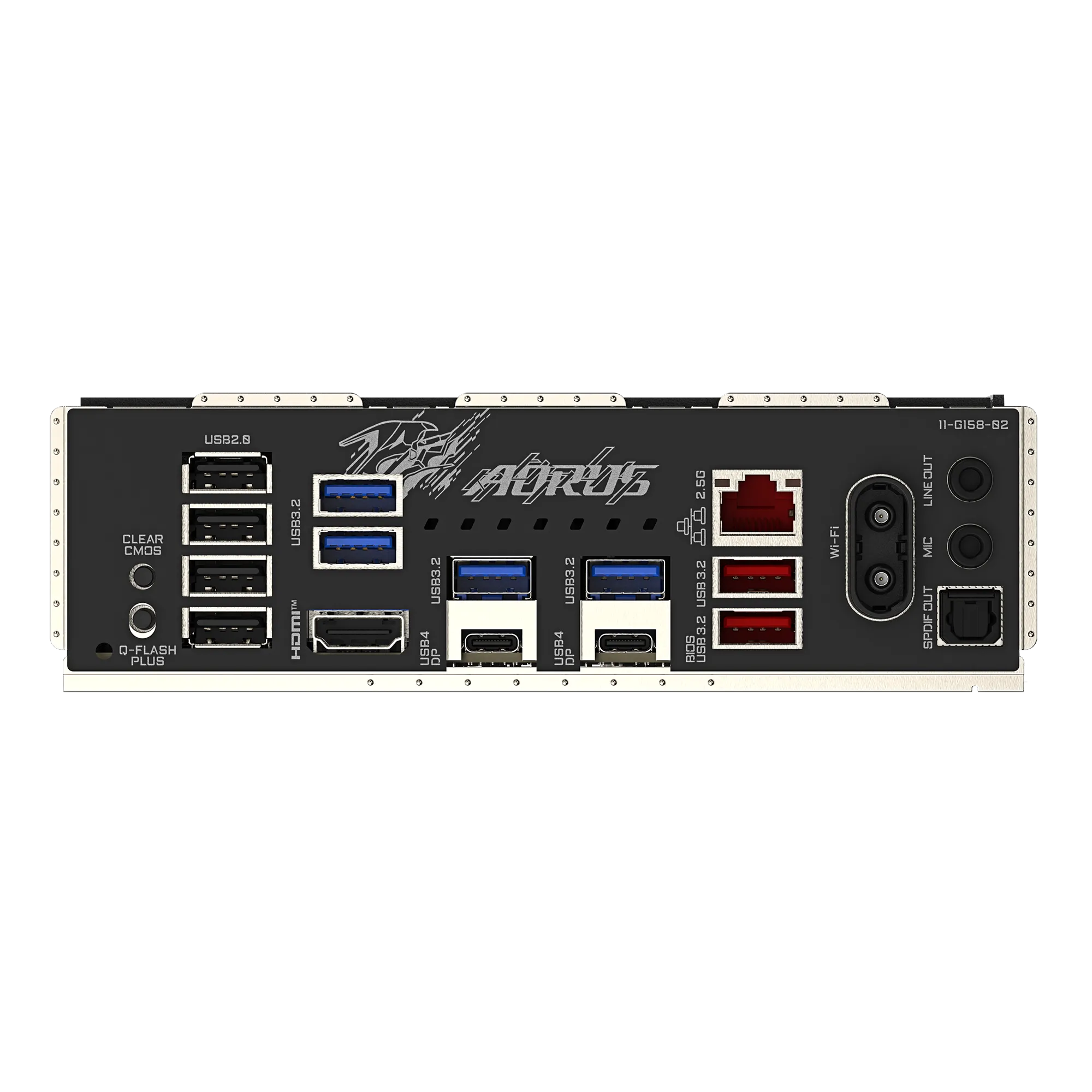

| Back Panel I/O | – 2× USB4 Type-C – 2× USB 3.2 Gen 2 Type-A (red) – 4× USB 3.2 Gen 1 – 4× USB 2.0/1.1 – 1× HDMI – 1× RJ-45 (2.5GbE) – 2× Antenna connectors – 2× Audio jacks + 1× Optical S/PDIF Out – Clear CMOS + Q-Flash Plus buttons |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water flow rate detection Fan fail warning, fan speed control (CPU/fan-dependent) |
| BIOS | – 1× 256 Mbit flash – AMI UEFI BIOS (PnP 1.0a, DMI 2.7, ACPI 5.0, etc.) |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM) |
| OS Support | Windows 11 64-bit |
| Form Factor | Micro ATX (24.4 cm × 24.4 cm) |
| Brands | |
|---|---|
| AMD Chipset | X870 |
| Form Factor | MATX |
| CPU Socket | AM5 |
| RAM Generation | DDR5 |
