AMD Motherboards, Motherboards

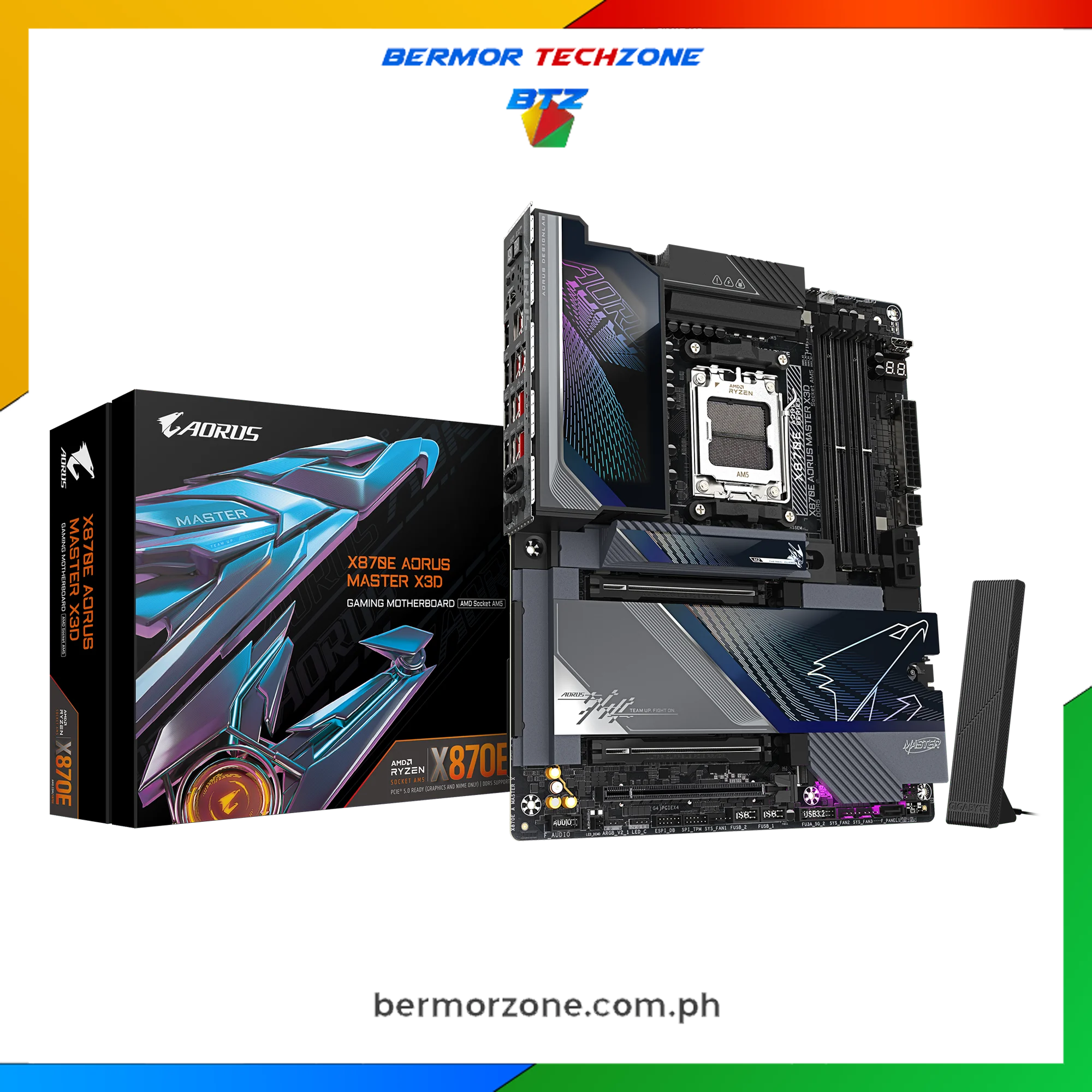

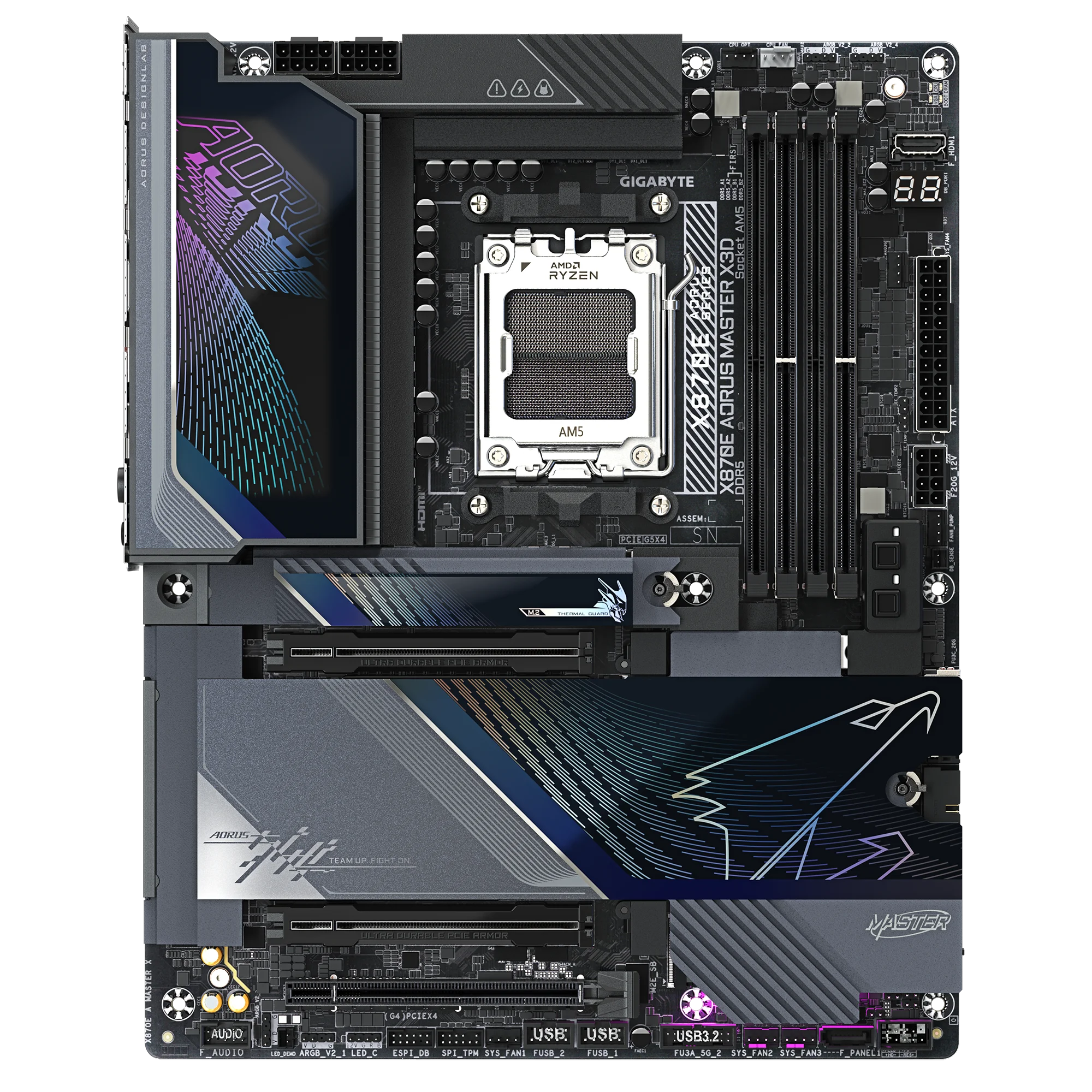

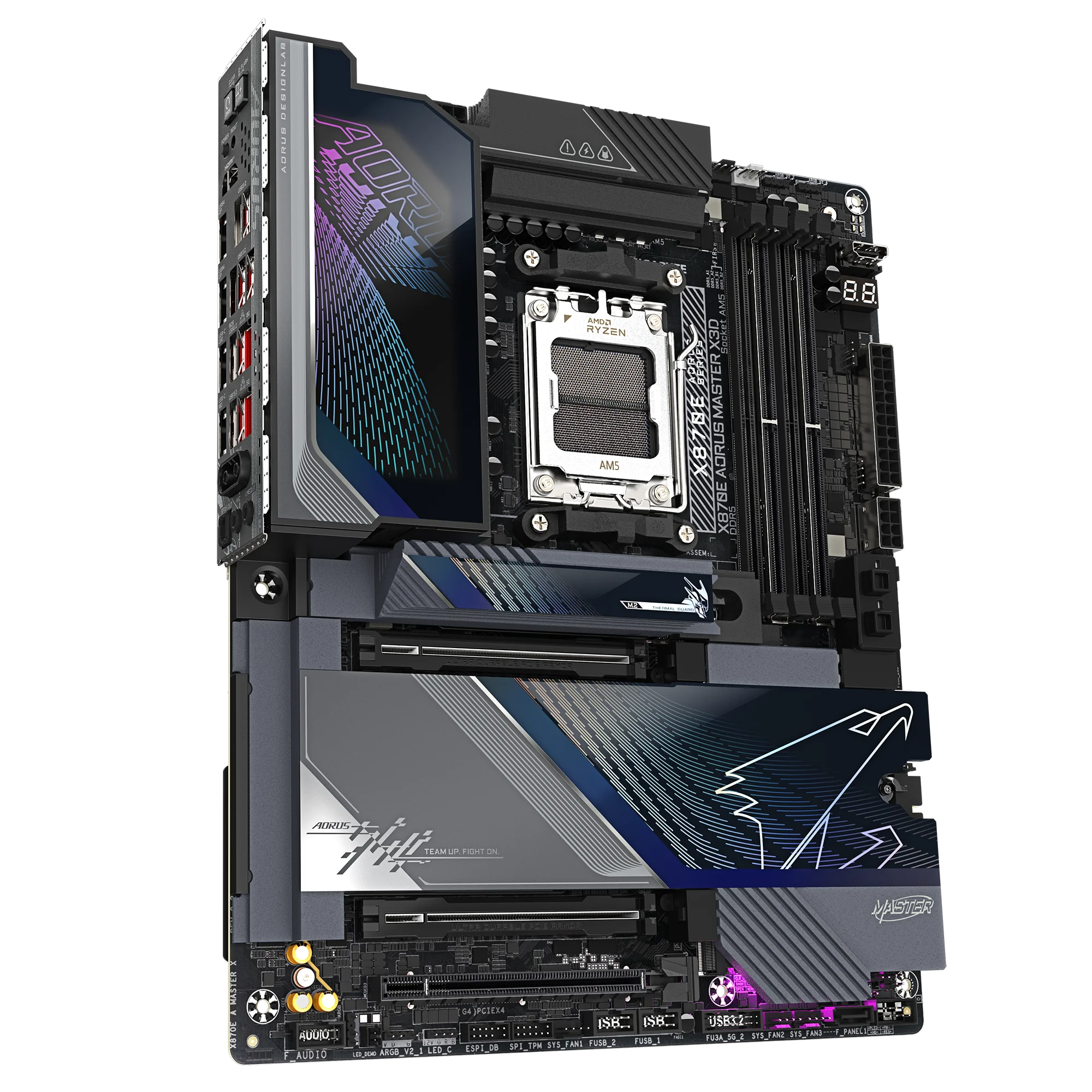

Gigabyte X870E AORUS MASTER X3D ATX AM5 Motherboard
Availability:
Onstock at Online Warehouse
Key Features
- X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
- DDR5 OC up to 9000MT/s
- DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 18+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- PCIe EZ-Latch Plus Duo : One click for screwless & quick release on dual PCIe slots
- M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 5*M.2 slots, including PCIe 5.0 x4
- PCB Thermal Plate : 14% thermal improvement and reinforced motherboard stability.
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
- Fast Networking : 10GbE LAN + 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
₱37,950.00 ₱38,100.00
6-Month Grace monthly payment:
₱3,825
12-Month Full Interest monthly payment:
₱4,487
Learn more about Billease Installment at Checkout
Estimated Delivery: Jun 15 - Jun 19, 2026 (Business Days)
Onstock at Online Warehouse
⚡ 24-Hour Shipping Eligible – In-Stock & Ready to Ship
Check items here that is part of our 99% Same-Day Shipping program displayed with 24 Hours Delivery Banner.
✔ Orders placed before 2:00 PM have the highest chance for same-day shipping or delivery.
✔ Orders after 2:00 PM may still be shipped the same day, but no guarantee.
✔ Applies to items labeled under our 24-hour delivery process.
❗ If your cart includes non-eligible items, your order will follow standard processing.
🚚 Nationwide Coverage:
Orders are shipped out within 24 hours across Luzon, Visayas, and Mindanao, depending on courier and location.
📦 Stock-Based System:
This badge appears only on selected product, showcasing our massive inventory selection ready to ship anytime anywhere.
💳 Payment Note: Fully paid orders are eligible for 24hrs Delivery on Selected Cities. COD orders will only be guaranteed shipped within 24 hours.
🕒 View All 24-Hour Eligible Products
Check items here that is part of our 99% Same-Day Shipping program displayed with 24 Hours Delivery Banner.
✔ Orders placed before 2:00 PM have the highest chance for same-day shipping or delivery.
✔ Orders after 2:00 PM may still be shipped the same day, but no guarantee.
✔ Applies to items labeled under our 24-hour delivery process.
❗ If your cart includes non-eligible items, your order will follow standard processing.
🚚 Nationwide Coverage:
Orders are shipped out within 24 hours across Luzon, Visayas, and Mindanao, depending on courier and location.
📦 Stock-Based System:
This badge appears only on selected product, showcasing our massive inventory selection ready to ship anytime anywhere.
💳 Payment Note: Fully paid orders are eligible for 24hrs Delivery on Selected Cities. COD orders will only be guaranteed shipped within 24 hours.
🕒 View All 24-Hour Eligible Products
| CPU | AMD Socket AM5 Supports: • AMD Ryzen™ 9000 Series Processors • AMD Ryzen™ 8000 Series Processors • AMD Ryzen™ 7000 Series ProcessorsRefer to GIGABYTE website for the latest CPU support list. |
| Chipset | AMD X870E |
| Memory | • 4 × DDR5 DIMM slots, up to 256 GB (64 GB per DIMM) • Dual-channel memory architecture • Supports DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s • Supports non-ECC Un-buffered DIMM • Supports AMD EXPO™ and XMPMemory speed and support depend on CPU and configuration. |
| Onboard Graphics | Integrated AMD Radeon™ Graphics + ASMedia USB4® Controller: • 2 × USB4® Type-C® ports (DP 1.4, HDR) • Max resolution: 3840×2160@240HzIntegrated AMD Radeon™ Graphics: • 1 × HDMI (4096×2160@60Hz, HDMI 2.1, HDCP 2.3, HDR) • 1 × front HDMI (1920×1080@30Hz, HDMI 1.4) Graphics support varies by CPU. |
| Audio | Realtek® ALC1220 CODEC ESS ES9118 DAC DTS:X® Ultra support High Definition Audio 2/4/5.1-channel audio Front panel line-out supports DSD audio Optical S/PDIF Out |
| LAN | Realtek® 5GbE LAN (LAN1) Realtek® 10GbE LAN (LAN2) |
| Wireless Communication | MediaTek Wi-Fi 7 MT7927 / RZ738 • 802.11 a/b/g/n/ac/ax/be • 2.4 / 5 / 6 GHz bands • 11be 320MHz support • Bluetooth® 5.4Wi-Fi 7 requires Windows 11 SV3; 6 GHz availability varies by region. |
| Expansion Slots | CPU: • 1 × PCIe x16 (PCIEX16) – Ryzen 9000/7000: PCIe 5.0 x16 – Ryzen 8000 Phoenix 1: PCIe 4.0 x8 – Ryzen 8000 Phoenix 2: PCIe 4.0 x4• 1 × PCIe x16 (PCIEX8) – Ryzen 9000/7000: PCIe 5.0 x8 – Not available with Ryzen 8000 Phoenix CPUs PCIEX16 and PCIEX8 share bandwidth. Chipset: |
| Storage Interface | CPU: • M2A_CPU (PCIe 5.0/4.0 x4/x2, 2580/2280) • M2B_CPU (PCIe 5.0 x4/x2, 2280) Shares bandwidth with USB4 controllerChipset: • M2C_SB / M2D_SB (PCIe 4.0 x4/x2, 2280) • M2E_SB (PCIe 4.0 x2, 2280) • 2 × SATA 6Gb/s RAID: |
| USB | CPU + ASMedia USB4®: • 2 × USB4® Type-C® (rear)CPU: • 1 × USB 3.2 Gen 2 Type-A (rear) Chipset: |
| Internal I/O Connectors | 24-pin ATX power 2 × 8-pin ATX 12V power PCIe power connector CPU fan & pump headers 6 × system fan headers + extension header 4 × ARGB Gen2 headers 1 × RGB header 5 × M.2 slots 2 × SATA ports USB-C Gen2x2 header 2 × USB 3.2 Gen1 headers 2 × USB 2.0 headers Front panel & audio headers Speaker, TPM, noise detection, HDMI, chassis intrusion headers Reset & Clear CMOS jumpers 2 × temperature sensor headers |
| Back Panel I/O | Q-Flash Plus button Clear CMOS / Reset / Power buttons HDMI port 2 × USB4® Type-C® (DP) 1 × USB-C® Gen 2 1 × USB-C® Gen 2×2 7 × USB 3.2 Gen 2 Type-A 2 × RJ-45 LAN 2 × Wi-Fi antenna connectors 2 × audio jacks Optical S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage / temperature / fan speed detection Water cooling flow rate monitoring Fan fail warning & control Noise detection |
| BIOS | 1 × 512 Mbit flash AMI UEFI BIOS ACPI 5.0, SMBIOS 2.7, DMI 2.7 |
| Unique Features | GIGABYTE Control Center (GCC) Q-Flash & Q-Flash Plus Smart Backup |
| Bundled Software | Norton® Internet Security (OEM) |
| Operating System | Windows 11 64-bit |
| Form Factor | ATX Form Factor, 30.5 × 24.4 cm |
| Brands | |
|---|---|
| AMD Chipset | X870 |
| CPU Socket | AM5 |
| Form Factor | ATX |
| RAM Generation | DDR5 |
