AMD Motherboards, Motherboards

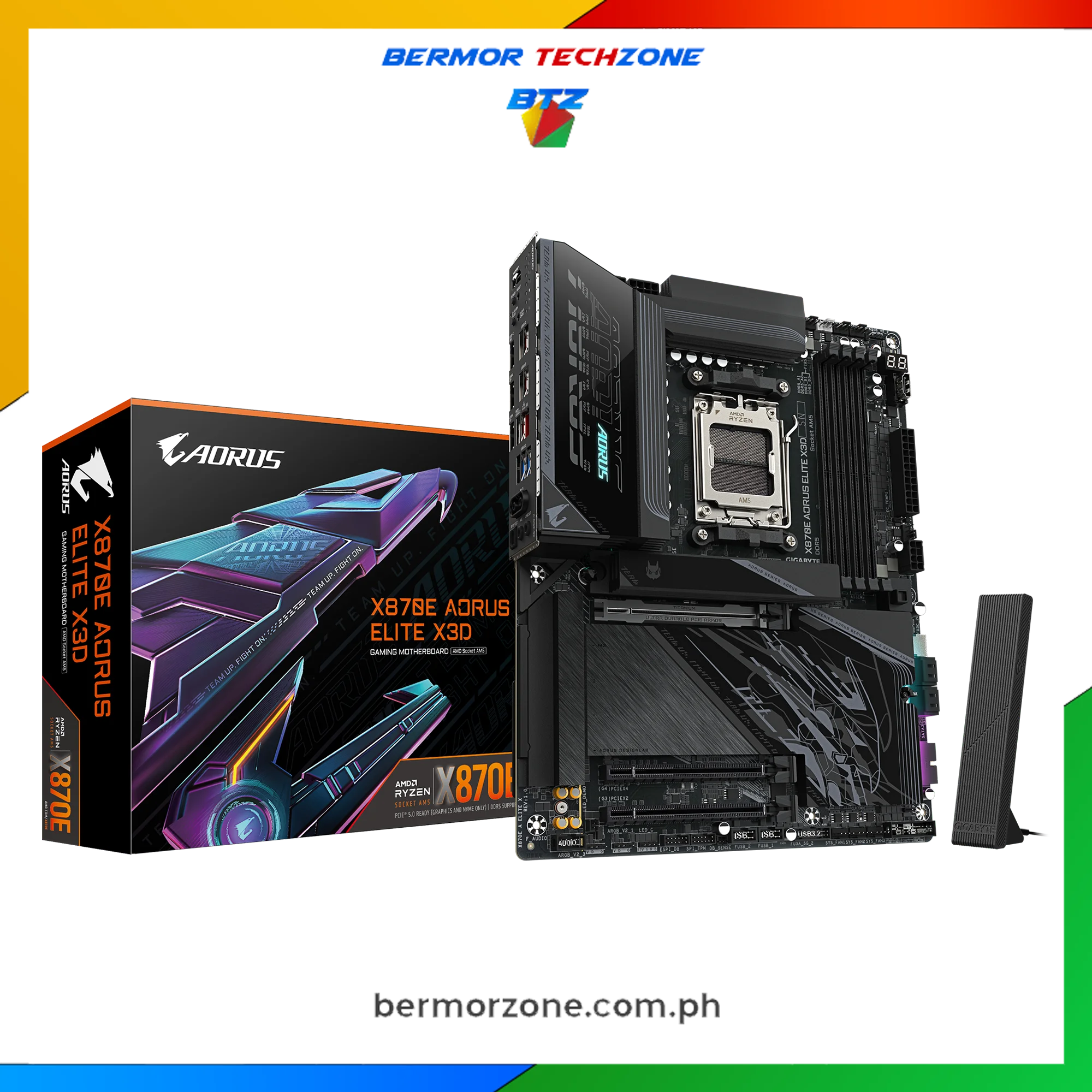

Gigabyte X870E AORUS ELITE X3D ATX AM5 Motherboard GA-X870E-A-ELITE-X
Availability:
Onstock at Online Warehouse
- X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
- DDR5 OC up to 9000MT/s
- DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4
- PCB Thermal Plate : 14% thermal improvement and reinforced motherboard stability.
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
- Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
₱21,500.00
6-Month Grace monthly payment:
₱2,167
12-Month Full Interest monthly payment:
₱2,543
Learn more about Billease Installment at Checkout
Estimated Delivery: Jun 13 - Jun 18, 2026 (Business Days)
Onstock at Online Warehouse
⚡ 24-Hour Shipping Eligible – In-Stock & Ready to Ship
Check items here that is part of our 99% Same-Day Shipping program displayed with 24 Hours Delivery Banner.
✔ Orders placed before 2:00 PM have the highest chance for same-day shipping or delivery.
✔ Orders after 2:00 PM may still be shipped the same day, but no guarantee.
✔ Applies to items labeled under our 24-hour delivery process.
❗ If your cart includes non-eligible items, your order will follow standard processing.
🚚 Nationwide Coverage:
Orders are shipped out within 24 hours across Luzon, Visayas, and Mindanao, depending on courier and location.
📦 Stock-Based System:
This badge appears only on selected product, showcasing our massive inventory selection ready to ship anytime anywhere.
💳 Payment Note: Fully paid orders are eligible for 24hrs Delivery on Selected Cities. COD orders will only be guaranteed shipped within 24 hours.
🕒 View All 24-Hour Eligible Products
Check items here that is part of our 99% Same-Day Shipping program displayed with 24 Hours Delivery Banner.
✔ Orders placed before 2:00 PM have the highest chance for same-day shipping or delivery.
✔ Orders after 2:00 PM may still be shipped the same day, but no guarantee.
✔ Applies to items labeled under our 24-hour delivery process.
❗ If your cart includes non-eligible items, your order will follow standard processing.
🚚 Nationwide Coverage:
Orders are shipped out within 24 hours across Luzon, Visayas, and Mindanao, depending on courier and location.
📦 Stock-Based System:
This badge appears only on selected product, showcasing our massive inventory selection ready to ship anytime anywhere.
💳 Payment Note: Fully paid orders are eligible for 24hrs Delivery on Selected Cities. COD orders will only be guaranteed shipped within 24 hours.
🕒 View All 24-Hour Eligible Products
| CPU | AMD Socket AM5, support for: • AMD Ryzen™ 9000 Series Processors • AMD Ryzen™ 8000 Series Processors • AMD Ryzen™ 7000 Series ProcessorsRefer to GIGABYTE’s website for the latest CPU support list. |
| Chipset | AMD X870E |
| Memory | Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s
• 4 × DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM) CPU and memory configuration may affect supported speed and capacity. |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support
Via ASMedia USB4® Controller: Via HDMI: Front HDMI: Graphics specifications may vary by CPU. |
| Audio | Realtek® ALC1220 CODEC • High Definition Audio • 2 / 4 / 5.1 / 7.1-channel support • Back panel line out supports DSD audio • Support for S/PDIF Out7.1-channel audio requires audio software configuration. |
| LAN | Realtek® 5GbE LAN chip (5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless Communication | Qualcomm® Wi-Fi 7 QCNCM865 • 802.11 a/b/g/n/ac/ax/be • 2.4 / 5 / 6 GHz bands • Support for 11be 320MHz wireless standard • Bluetooth® 5.4Wi-Fi 7 requires Windows 11 SV3. 6 GHz availability depends on regional regulations. |
| Expansion Slots | CPU: • 1 × PCIe x16 slot (PCIEX16) – Ryzen™ 9000/7000: PCIe 5.0 x16 – Ryzen™ 8000 Phoenix 1: PCIe 4.0 x8 – Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4PCIEX16 supports graphics card or NVMe SSD only. Chipset: |
| Storage Interface | CPU-connected M.2: • 1 × M.2 (M2A_CPU), PCIe 5.0/4.0 x4/x2 (type 25110/22110/2580/2280) • 1 × M.2 (M2B_CPU), PCIe 5.0 x4/x2 (type 22110/2280)M2B_CPU shares bandwidth with USB4 controller. With Ryzen™ 8000 Series, M2B_CPU is disabled. Chipset-connected M.2: • 4 × SATA 6Gb/s |
| USB | Back Panel: • 2 × USB4® Type-C® • 1 × USB 3.2 Gen 2 Type-C® • 5 × USB 3.2 Gen 2 Type-A (red) • 3 × USB 3.2 Gen 1Internal: • 1 × USB 3.2 Gen 2×2 Type-C® header (65W PD 3.0 / QC 4+) • 2 × USB 3.2 Gen 1 headers • 2 × USB 2.0/1.1 headers |
| Internal I/O Connectors | 1 × 24-pin ATX power 2 × 8-pin ATX 12V power 1 × PCIe power connector 1 × CPU fan header 1 × CPU fan/water pump header 6 × system fan/water pump headers 3 × ARGB Gen2 headers 1 × RGB header 4 × M.2 sockets 4 × SATA 6Gb/s Front panel & audio headers USB Type-C®, USB 3.2 Gen 1, USB 2.0 headers TPM header Reset & Clear CMOS jumpers Temperature sensor headers Noise detection header |
| Back Panel Connectors | HDMI port Reset button Power button Clear CMOS button Q-Flash Plus button 5 × USB 3.2 Gen 2 Type-A 1 × USB 3.2 Gen 2 Type-C® 2 × USB4® Type-C® (DisplayPort) RJ-45 LAN port 3 × USB 3.2 Gen 1 2 × Wi-Fi antenna connectors 2 × audio jacks Optical S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed detection Water cooling flow rate detection Fan fail warning & control Noise detection |
| BIOS | 1 × 512 Mbit flash Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Windows 11 64-bit |
| Form Factor | ATX Form Factor, 30.5 cm × 24.4 cm |
| Brands | |
|---|---|
| AMD Chipset | X870 |
| CPU Socket | AM5 |
| Form Factor | ATX |
| RAM Generation | DDR5 |
