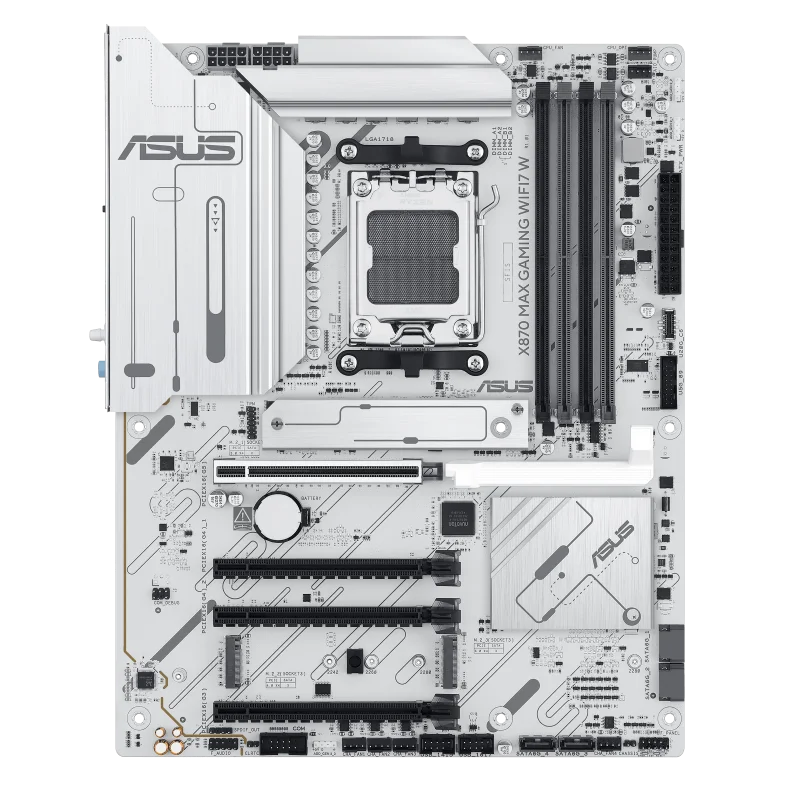

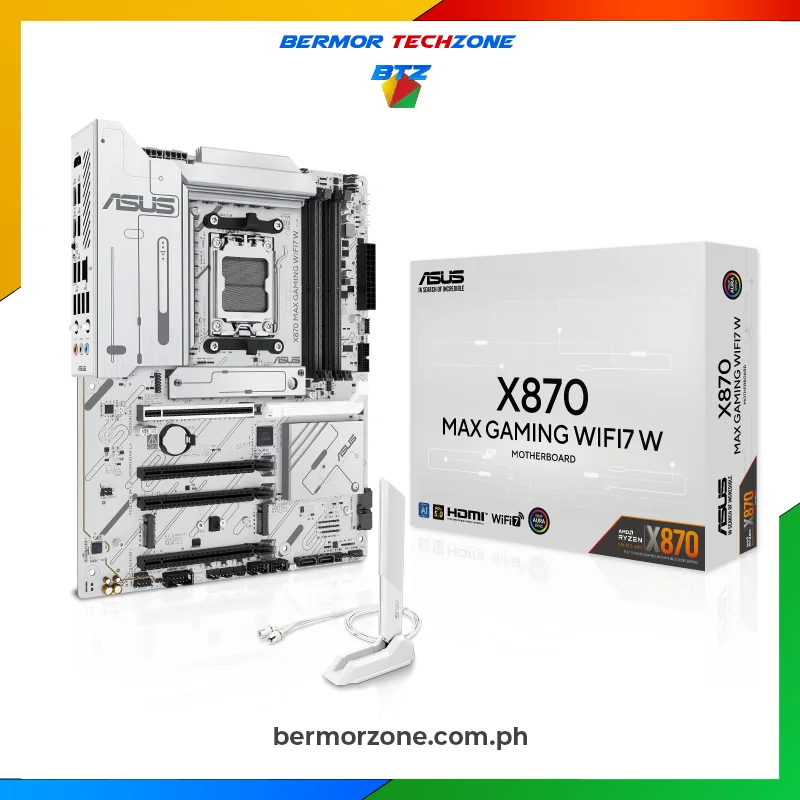

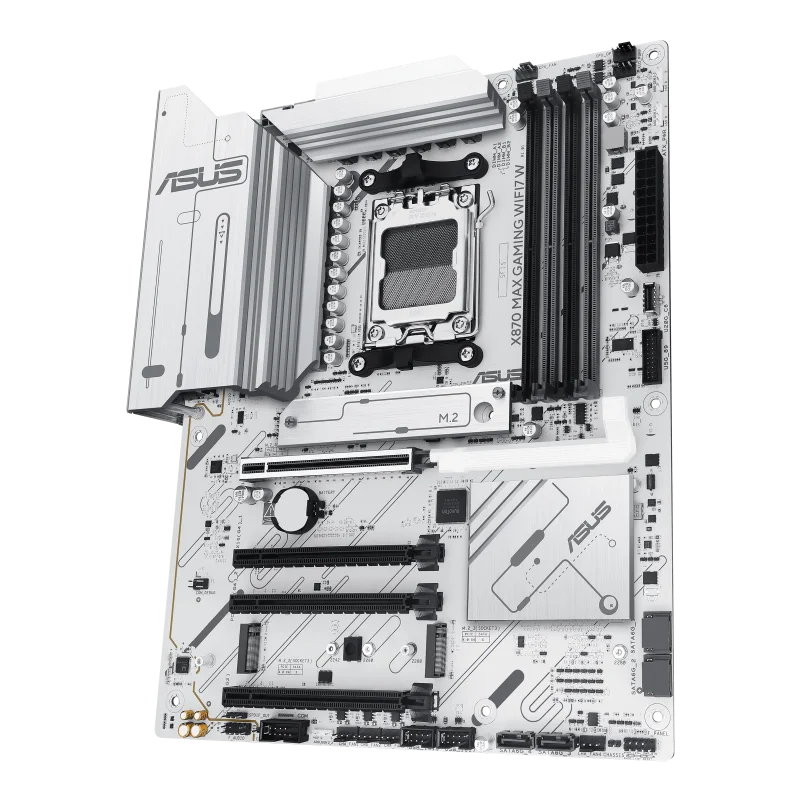

Asus X870 MAX GAMING WIFI7 W AM5 ATX White Motherboard
Onstock at Online Warehouse
-
CPU: AMD Socket AM5, supports Ryzen™ 9000 / 8000 / 7000 Series
-
Chipset: AMD X870
-
Memory: 4× DDR5 DIMM, up to 256GB, 8000+ MT/s (OC), Dual Channel, ECC/Non-ECC, EXPO™ & AEMP support
-
Graphics: 1× HDMI™ (4K@60Hz), 2× USB4® Type-C® (4K@60Hz, CPU-dependent)
-
Expansion Slots:
-
Ryzen 9000/7000: 1× PCIe 5.0 x16
-
Ryzen 8000: 1× PCIe 4.0 x16 (x8/x4)
-
X870: 2× PCIe 4.0 x16 (x1), 1× PCIe 3.0 x16 (x1)
-
-
Storage:
-
3× M.2 (1× PCIe 5.0 x4 / 4.0 x4, 2× PCIe 4.0 x4)
-
4× SATA 6Gb/s (shared bandwidth with USB4/SATA)
-
-
RAID: RAIDXpert2 – 9000: RAID 0/1/5/10, 8000: 0/1, 7000: 0/1/10
-
LAN: 1× Realtek 2.5Gb Ethernet, ASUS LANGuard
-
Wireless & BT: Wi-Fi 7 (802.11be), 2×2, Bluetooth® v5.4 (OS/region-dependent)
-
Rear USB:
-
2× USB4® Type-C® (40Gbps)
-
1× USB 10Gbps (Type-A)
-
3× USB 5Gbps (Type-A)
-
4× USB 2.0 (Type-A)
-
₱15,850.00
Estimated Delivery: Jun 18 - Jun 23, 2026 (Business Days)
Onstock at Online Warehouse
Check items here that is part of our 99% Same-Day Shipping program displayed with 24 Hours Delivery Banner.
✔ Orders placed before 2:00 PM have the highest chance for same-day shipping or delivery.
✔ Orders after 2:00 PM may still be shipped the same day, but no guarantee.
✔ Applies to items labeled under our 24-hour delivery process.
❗ If your cart includes non-eligible items, your order will follow standard processing.
🚚 Nationwide Coverage:
Orders are shipped out within 24 hours across Luzon, Visayas, and Mindanao, depending on courier and location.
📦 Stock-Based System:
This badge appears only on selected product, showcasing our massive inventory selection ready to ship anytime anywhere.
💳 Payment Note: Fully paid orders are eligible for 24hrs Delivery on Selected Cities. COD orders will only be guaranteed shipped within 24 hours.
🕒 View All 24-Hour Eligible Products
| Category | Details |
|---|---|
| CPU Support | AMD Socket AM5 for Ryzen™ 9000 / 8000 / 7000 Series |
| Chipset | AMD X870 |
| Memory | 4x DIMM DDR5, up to 256GB, 8000+ MT/s (OC), ECC & Non-ECC, Dual Channel, AMD EXPO™, ASUS AEMP |
| Graphics | 1x HDMI 2.1 (4K@60Hz), 2x USB4® (DP 1.4a, 4K@60Hz) Type-C Display Output (CPU dependent) |
| Expansion Slots | 1x PCIe 5.0 x16 (Ryzen 9000/7000), 1x PCIe 4.0 x16 (Ryzen 8000), 2x PCIe 4.0 x16 (x1), 1x PCIe 3.0 x16 (x1, shares with SATA6G_3/4) |
| Storage | 3x M.2 (1x PCIe 5.0 x4, 2x PCIe 4.0 x4), 4x SATA 6Gb/s (M.2_2 disables with USB4 in use; PCIEX16(G3) disables SATA6G_3/4) |
| RAID Support | RAIDXpert2: 9000 (RAID 0/1/5/10), 8000 (0/1), 7000 (0/1/10) |
| Networking | Realtek 2.5Gb Ethernet, ASUS LANGuard |
| Wireless | Wi-Fi 7 (2×2, 2.4/5/6GHz, 160MHz, up to 2.9Gbps), Bluetooth® v5.4 |
| USB (Rear) | 2x USB4® (40Gbps, Type-C), 1x USB 10Gbps (Type-A), 3x USB 5Gbps (Type-A), 4x USB 2.0 (Type-A) |
| USB (Front) | 1x USB 20Gbps (Type-C), 1x USB 5Gbps header (2 ports), 2x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 HD Audio CODEC, Jack-detection, Multi-streaming, 24-bit/192 kHz, Audio shielding, Premium caps, Dedicated layers |
| Back Panel I/O | 2x USB4® Type-C, 1x USB 10Gbps, 3x USB 5Gbps, 4x USB 2.0, HDMI, 2.5Gb LAN, Wi-Fi, 3x Audio jacks, BIOS FlashBack™ button |
| Internal I/O | 1x USB 20Gbps, 1x USB 5Gbps header, 2x USB 2.0 headers, 4x SATA, 3x M.2, Fan headers (CPU/AIO/Chassis), RGB headers, TPM, COM, S/PDIF, Front Panel Audio etc. |
| Special Features | Q-Design (Q-DIMM, Q-LED, Q-Antenna), 5X Protection III, SafeSlot, BIOS FlashBack™, Pre-mounted I/O Shield, ASUS AEMP, Aura Sync (ARGB Gen 2) |
| Software | Armoury Crate, Fan Xpert 4, AI Cooling II, ASUS AI Advisor, TurboV Core, CPU-Z, Norton 360 (60-day), WinRAR (40-day) |
| BIOS | 256Mb UEFI AMI BIOS, EZ Mode, MyHotkey, CrashFree BIOS 3, EZ Flash 3 |
| Manageability | WOL by PME, PXE |
| Accessories | 2x SATA cables, ASUS WiFi Q-Antenna, M.2 rubber & screw kit, Quick Start Guide |
| Operating System | Windows 11 |
| Form Factor | ATX (30.5 cm x 24.4 cm / 12 in x 9.6 in) |
| Brands | |
|---|---|
| AMD Chipset | X870 |
| Form Factor | ATX |
| RAM Generation | DDR5 |
| CPU Socket | AM5 |
