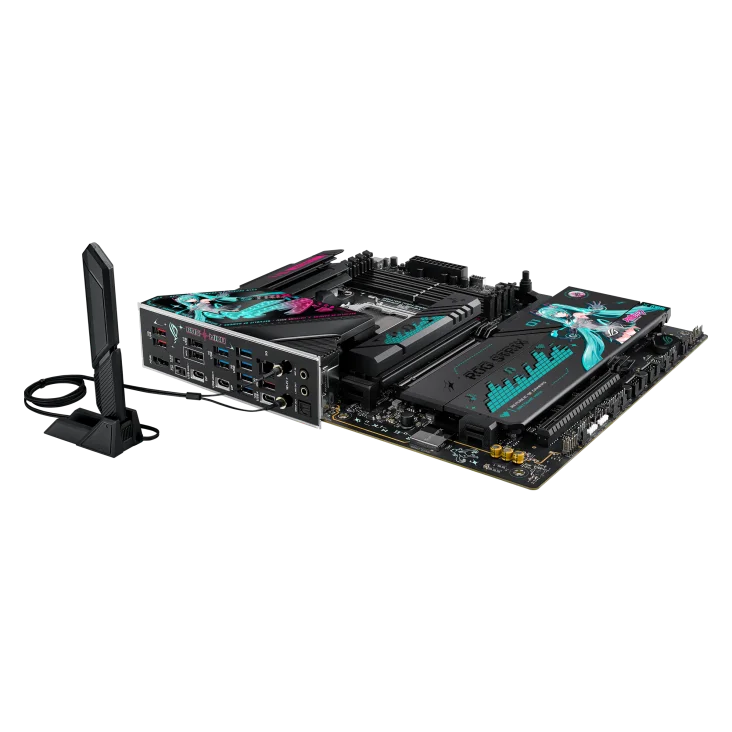

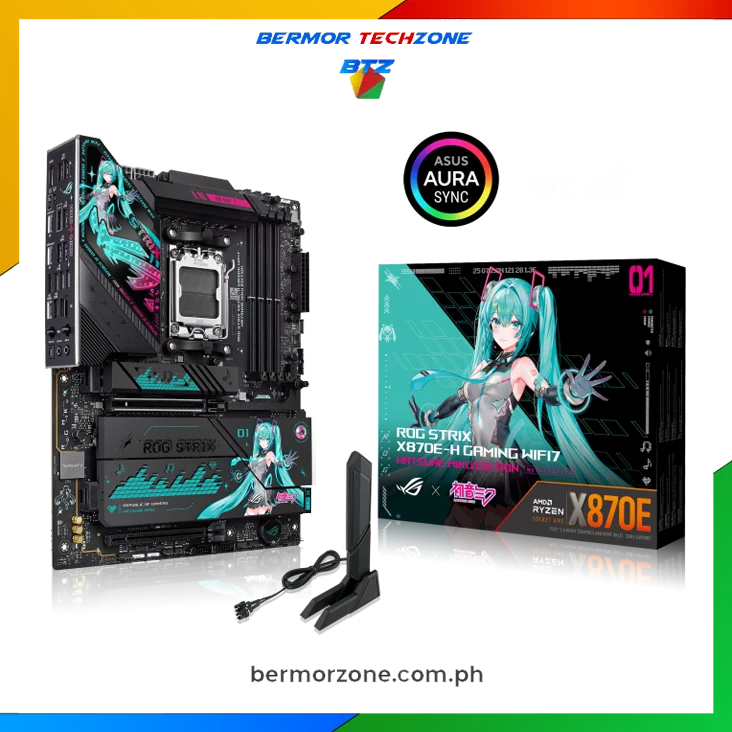

Asus ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION AM5 ATX Motherboard
Availability:
Out of Stock. Check Counterpart Models
-
Socket: AMD AM5 (Ryzen™ 9000 / 8000 / 7000 Series)
-
Chipset: AMD X870E
-
Memory: 4× DDR5 up to 256GB, 8000+MT/s (OC), AMD EXPO™, AEMP supported
-
Graphics Output: HDMI 2.1 + 2× USB4 Type-C (DisplayPort 1.4a)
-
Storage: 4× M.2 (PCIe 5.0/4.0) + 4× SATA 6Gb/s
-
Networking: Realtek 5Gb Ethernet + Wi-Fi 7 + Bluetooth 5.4
-
Audio: Realtek ALC1220P, SupremeFX, Savitech AMP, S/PDIF Out
-
USB Ports: 14 rear (incl. 2× USB4), 7 front (incl. 1× 20Gbps Type-C)
-
Cooling & Power: 1× AIO Pump, 8 total fan headers, 24-pin ATX + dual 8-pin CPU
-
Design Features: Q-Design, BIOS FlashBack™, Clear CMOS, SafeSlot, Aura Sync
-
Form Factor: ATX (30.5 × 24.4 cm)
-
OS Support: Windows 11
₱33,000.00
6-Month Grace monthly payment:
₱3,326
12-Month Full Interest monthly payment:
₱3,902
Learn more about Billease Installment at Checkout
Out of Stock. Check Counterpart Models
Want to be Notified upon Restock
We will inform you when the product toggled in stock. Please leave your valid email address below.
Add to WishlistAlready In Wishlist
Add to Wishlist
| CPU Support | AMD Socket AM5 for Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors* *Refer to ASUS Support for compatibility. |
| Chipset | AMD X870E |
| Memory | 4 × DIMM, Max 256GB, DDR5 Supports up to 8000+ MT/s (OC) Dual Channel Architecture Supports AMD EXPO™, AEMP, DIMM Fit / DIMM Fit Pro Non-ECC un-buffered DDR5 with On-Die ECC |
| Graphics | 1 × HDMI™ 2.1 (4K@60Hz) 2 × USB4® Type-C (DisplayPort 1.4a, up to 4K@60Hz)* *Graphics specs vary by CPU. |
| Expansion Slots | Ryzen™ 9000 / 7000 Series: 1 × PCIe 5.0 x16 Ryzen™ 8000 Series: 1 × PCIe 4.0 x16 (x8/x4 mode) Chipset: 1 × PCIe 4.0 x16 (x4 mode) |
| Storage | 4 × M.2 slots • M.2_1 (PCIe 5.0 x4) • M.2_2 (PCIe 5.0 x4)* • M.2_3 (PCIe 4.0 x4) • M.2_4 (PCIe 4.0 x4) 4 × SATA 6Gb/s ports *M.2_2 shares bandwidth with PCIEX16(G5) |
| RAID Support | RAID 0/1/5/10 (Ryzen™ 9000) RAID 0/1 (Ryzen™ 8000) RAID 0/1/10 (Ryzen™ 7000) |
| Ethernet | Realtek 5Gb Ethernet with ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (MediaTek MT7925, 2×2) Supports 2.4 / 5 / 6GHz bands Bluetooth® v5.4 |
| Rear USB Ports | Total 14 • 2 × USB4® (40Gbps, Type-C) • 4 × USB 10Gbps (3 × Type-A + 1 × Type-C with 30W PD/PPS) • 6 × USB 5Gbps (Type-A) • 2 × USB 2.0 (Type-A) |
| Front USB Ports | Total 7 • 1 × USB 20Gbps (Type-C) • 1 × USB 5Gbps header (2 ports) • 2 × USB 2.0 headers (4 ports) |
| Audio | Realtek ALC1220P 7.1 HD Audio CODEC SupremeFX Shielding, Savitech SV3H712 AMP 120 dB SNR playback / 113 dB SNR recording Optical S/PDIF out, Premium capacitors |
| Back Panel I/O | 2 × USB4 Type-C 4 × USB 10Gbps (3 × Type-A + 1 × Type-C) 6 × USB 5Gbps Type-A 2 × USB 2.0 Type-A 1 × HDMI 1 × Wi-Fi module 1 × Realtek 5Gb LAN 2 × Audio jacks 1 × Optical S/PDIF 1 × BIOS FlashBack™ button 1 × Clear CMOS button |
| Internal I/O Connectors | 1 × 24-pin ATX 2 × 8-pin CPU Power 1 × AIO Pump 1 × CPU Fan 1 × CPU OPT Fan 5 × Chassis Fan 4 × M.2, 4 × SATA 1 × USB 20Gbps (Type-C) 1 × USB 5Gbps header (2 ports) 2 × USB 2.0 headers (4 ports) 3 × ARGB Gen 2 headers 1 × Thermal Sensor 1 × Start Button 1 × Front Audio (F_AUDIO) 1 × Chassis Intrusion header 1 × CPU OV jumper |
| Special Features | ASUS Q-Design (Q-Latch, Q-Release, Q-DIMM, Q-LED, Q-Slot) Extreme Engine Digi+ with 5K Black Metallic Capacitors ASUS Thermal Solution (VRM & M.2 heatsinks) BIOS FlashBack™, Clear CMOS Pre-mounted I/O Shield, SafeSlot, SafeDIMM Aura Sync with Addressable RGB Gen 2 headers |
| Software | Armoury Crate, Aura Creator/Sync, Fan Xpert 4 (AI Cooling II), GameFirst, AI Advisor, AIDA64 (Trial), HWiNFO, GlideX, TurboV Core, USB Wattage Watcher, Norton 360 (Trial), Adobe CC (Trial) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | 2 × SATA cables, ASUS Wi-Fi Q-Antenna, Cable ties, M.2 Q-Latch, PCIe to Front USB Card, Hatsune Miku Edition Phone Stand, Stickers, Thank You Card, M.2 Rubbers, Quick Start Guide |
| Operating System | Windows 11 |
| Form Factor | ATX (30.5 × 24.4 cm) |
| Brands | |
|---|---|
| AMD Chipset | X870 |
| CPU Socket | AM5 |
| Form Factor | ATX |
| RAM Generation | DDR5 |
